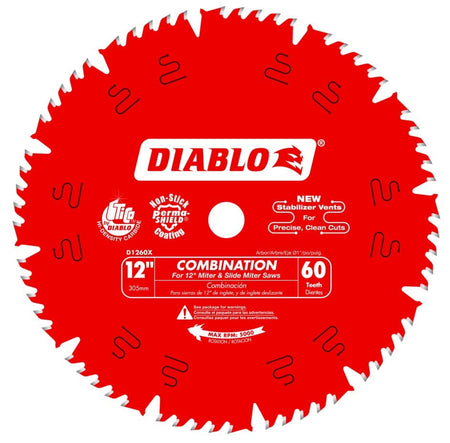

Diablo Combination Saw Blade D1260X 12 Inch 1 Arbor (60T COMB TiCo Carbide 0.118 Thin Kerf 6000 RPM Ripping Crosscutting Table Miter Wood Slicer)
Couldn't load pickup availability
Industrial-Grade 12 Inch 60-Tooth TiCo Carbide Combination Circular Saw Blade
The Diablo D1260X 12-Inch 60-Tooth Combination Circular Saw Blade functions as an all-purpose wood cutting disc engineered to execute both fast rip passes and smooth crosscuts through dimensional lumber, hardwoods, softwoods, and sheet goods. Constructed with TiCo high-density titanium cobalt carbide tips brazed to a laser-cut hardened steel body, this 1-inch arbor blade operates on table saws, miter saws, and slide miter saws running at speeds up to 6,000 RPM. Featuring a combination tooth grind grouped in sets of five separated by deep chip-ejection gullets, a 0.118-inch thin kerf, a 15-degree hook angle, and a thermal red Perma-SHIELD non-stick coating, the blade eliminates frequent tool changeovers while resisting pitch buildup and core plate distortion.
Best Used For:
- All-Purpose Table Saw Ripping & Crosscutting: Executing clean rip passes and crosscuts on 2X lumber, oak, pine, and plywood panels without changing blades.
- Wood Composite & Sheathing Slicing: Cutting Oriented Strand Board (OSB), particle board, and composite sheet materials with reduced motor drag.
- General Jobsite Trim Framing: Trimming interior wood moldings, subflooring materials, and framing studs on compound miter saws.
Key Performance & Safety Features
- TiCo High-Density Carbide Tips: Custom-formulated titanium cobalt micro-grain carbide tips maintain sharp cutting edges significantly longer than standard carbide.
- Smart Combination Tooth Geometry: Features five-tooth grouping with large expansion gullets for fast ripping dust clearance and close tooth spacing for smooth crosscuts.
- Perma-SHIELD Non-Stick Thermal Coating: Protective red fluoropolymer coating guards against thermal heat buildup, resin pitch gumming, and corrosion.
- Laser-Cut Thin Kerf (0.118 in.): Requires less feed torque to maximize saw power efficiency and produce clean cuts with reduced dust.
- Tri-Metal Shock-Resistant Brazing: Multi-layer silver-copper-silver brazing allows carbide teeth to absorb severe impacts without tip detachment.
- Hardened Steel Core Body: Computer-milled 0.071-inch alloy steel plate maintains flatness for stable, wobble-free linear tracking at 6,000 RPM.
What's Included
- (1) Diablo D1260X 12" 60-Tooth Combination Circular Saw Blade with 1" Arbor
Technical Specifications
| Brand Name | Diablo Tools |
| Model Number SKU | D1260X |
| Tool Classification | Combination Circular Saw Blade |
| Blade Outer Diameter | 12.00 in. |
| Arbor Hole Specification | 1.00 in. Round |
| Total Tooth Count | 60 Teeth |
| Tooth Grind Geometry | COMB (Combination) |
| Cutter Tip Composition | TiCo™ High-Density Titanium Cobalt Carbide |
| Cutting Kerf Width | 0.118 in. (3.0 mm) |
| Core Plate Thickness | 0.071 in. (1.8 mm) |
| Hook Angle Geometry | 15° Positive Hook Angle |
| Maximum Operating Speed | 6,000 RPM |
| Surface Finish Treatment | Perma-SHIELD® Non-Stick Fluoropolymer Red Coating |
| Primary Machine Compatibility | 12-Inch Table Saws, Miter Saws & Sliding Compound Miter Saws |
| Target Material Substrates | Hardwoods, Softwoods, OSB, Plywood, Particle Board, Wood Composites |
Pro-Tip: When using the D1260X for deep ripping cuts in thick hardwood stock on a table saw, raise the blade height so the carbide teeth extend roughly 1/2 inch above the top surface of the board. This height setting optimizes the chip-ejection capacity of the combination gullets, keeping the motor load light and preventing edge scorching.
