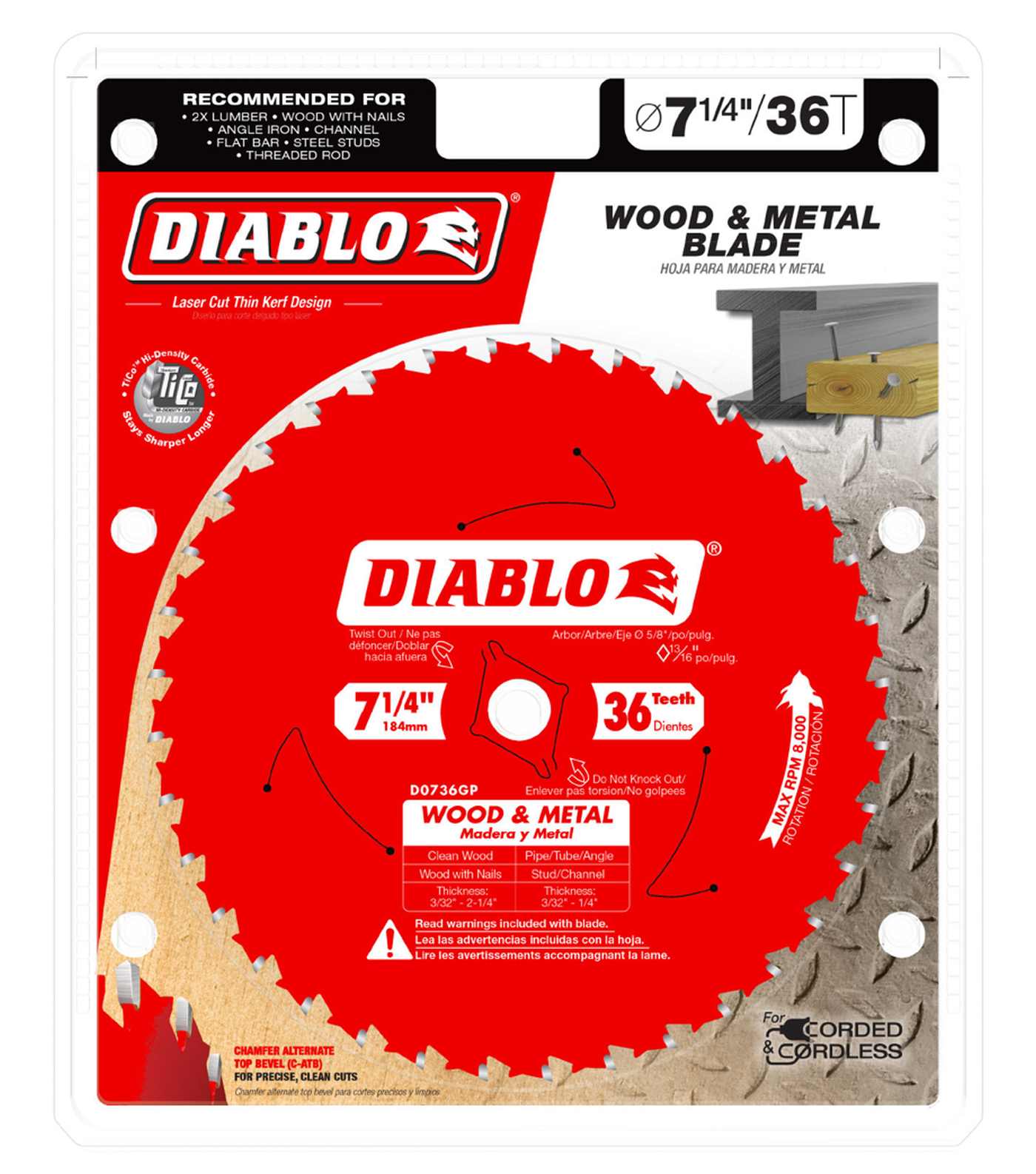

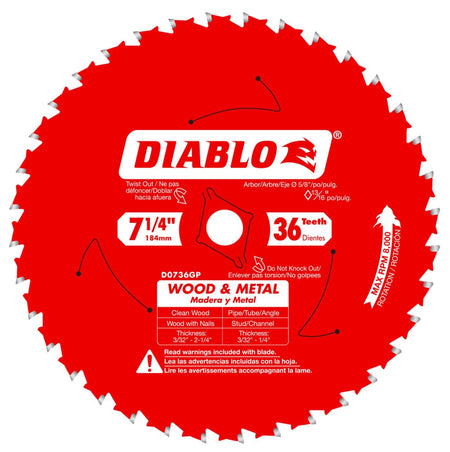

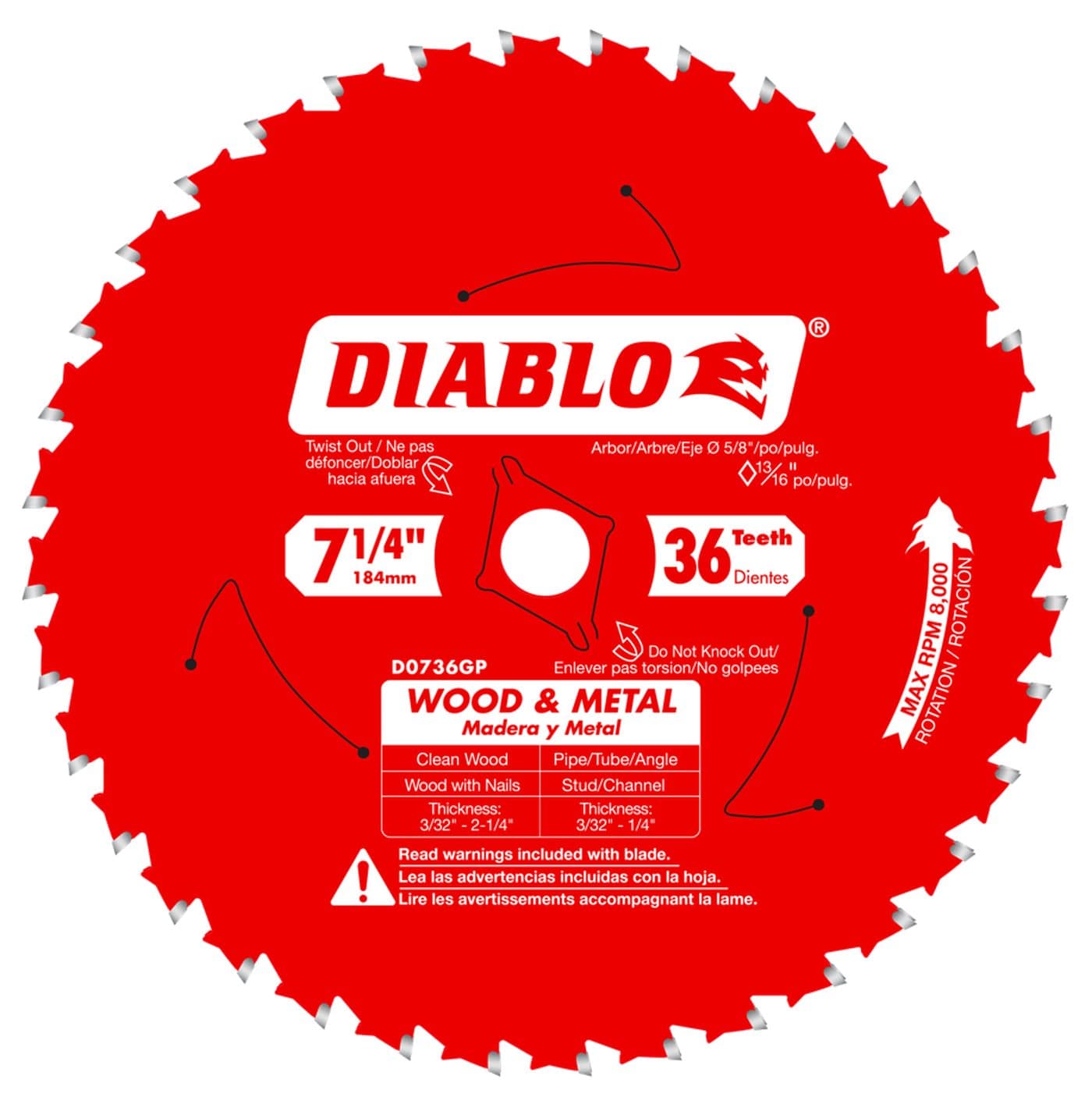

Diablo D0736GPA 7-1/4 Inch 36 Tooth Wood and Metal Carbide Circular Saw Blade C-ATB Thin Kerf TiCo Carbide 5/8 Arbor Steel Studs Nail Embedded Wood
Couldn't load pickup availability
Complete the Job Faster with the Industry’s First Professional Grade Multi-Purpose Wood and Metal Saw Blade
The Diablo D0736GPA 7-1/4 Inch 36-Tooth Wood and Metal Saw Blade is a groundbreaking innovation designed to eliminate downtime on the jobsite. As the industry's first true multi-purpose blade, it is engineered to transition seamlessly between clean wood, nail-embedded lumber, and various metal materials without a single blade change. Capable of slicing through 2X lumber up to 2-1/4 inches thick and metals ranging from 3/32 to 1/4 inch wall thickness, this blade is the ultimate efficiency tool for framers, remodelers, and general contractors. Stop wasting time swapping tools and start focusing on high-production results with a blade that handles steel studs, angle iron, channel, and threaded rod with equal precision.
This blade is built for extreme durability, featuring Diablo’s proprietary TiCo™ Hi-Density Carbide tips and specialized Tri-Metal Shock Resistant Brazing. This combination allows the teeth to withstand the high-impact stress of hitting nails in wood while maintaining the hardness required for clean, burr-free cuts in ferrous metals. The Chamfered-Alternate Top Bevel (C-ATB) tooth design and laser-cut thin kerf minimize resistance, making it an ideal choice for maximizing the battery life of cordless saws. Protected by a Perma-SHIELD® non-stick aluminum coating, the D0736GPA resists heat, gumming, and corrosion, ensuring that your blade runs cool and stays true even during the most demanding demolition or construction projects.
Key Features
- Dual-Material Versatility: Specifically designed to cut both wood (including nail-embedded) and metal with a single blade.
- TiCo™ Hi-Density Carbide: Custom-formulated carbide provides maximum performance and extreme impact resistance for longer cutting life.
- C-ATB Tooth Geometry: Chamfered-Alternate Top Bevel design ensures clean, burr-free finishes in metal and smooth rips in wood.
- Perma-SHIELD® Coating: Non-stick aluminum coating protects the blade against heat build-up, gumming, and corrosion.
- Advanced Stabilizer Vents: Laser-cut vents trap noise and vibration to keep the blade straight and stable during heavy-duty operation.
- Laser-Cut Thin Kerf: Minimizes material removal and requires less power, perfect for extending cordless saw runtime.
- Tri-Metal Shock Resistant Brazing: High-performance brazing system allows carbide tips to withstand extreme impacts from nails.
What's Included
- (1) Diablo 7-1/4" 36-Tooth Wood and Metal Carbide Circular Saw Blade (D0736GPA)
Specifications
| Brand | Diablo by Freud |
|---|---|
| Model Number | D0736GPA |
| Diameter | 7-1/4 Inches |
| Number of Teeth | 36 |
| Arbor Size | 5/8 Inch (Diamond Knockout) |
| Kerf Width | 0.067 Inches |
| Plate Thickness | 0.051 Inches |
| Hook Angle | 5° |
| Maximum Speed | 8,000 RPM |
| Wood Cutting Thickness | Up to 2-1/4 Inches |
| Metal Wall Thickness | 3/32 Inch to 1/4 Inch |
| Threaded Rod Diameter | 1/4 Inch to 1 Inch |
Pro-Tip: To ensure the longest possible life for your Wood and Metal blade, always maintain a steady, consistent feed rate. When cutting through metals like steel studs or angle iron, let the blade’s weight do the work—forcing the cut can lead to excessive heat, while cutting too slowly in wood can cause friction-based glaze. Proper material support is key to preventing the vibration that leads to premature carbide chipping.
