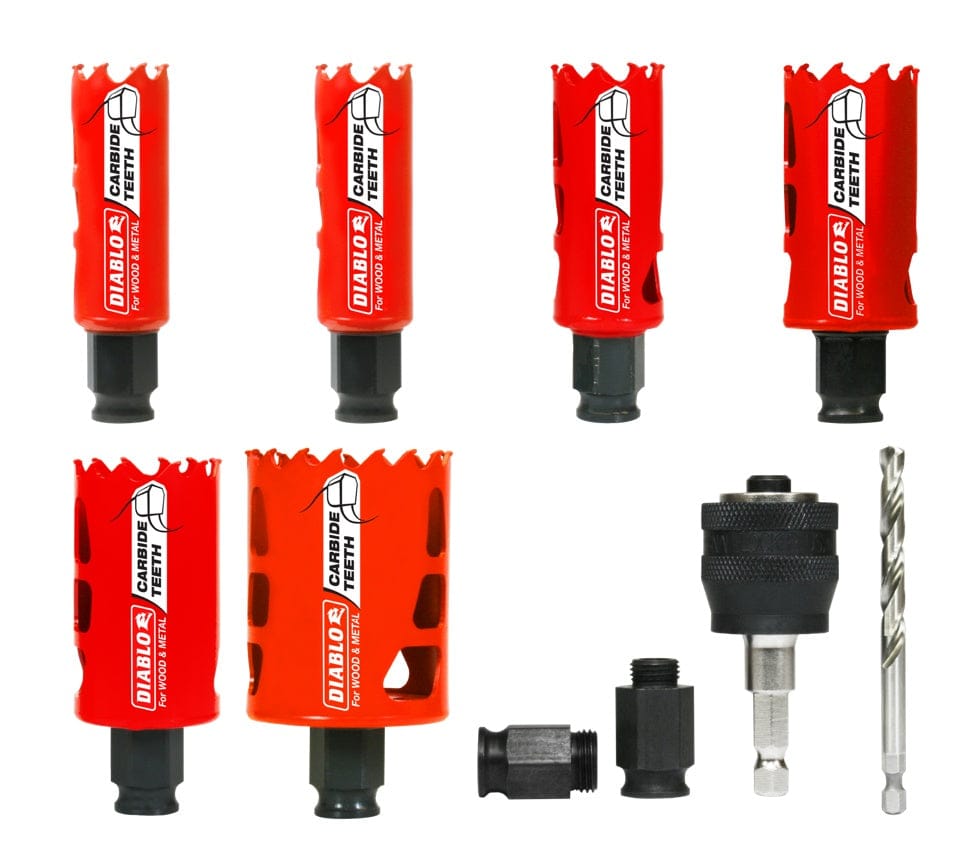

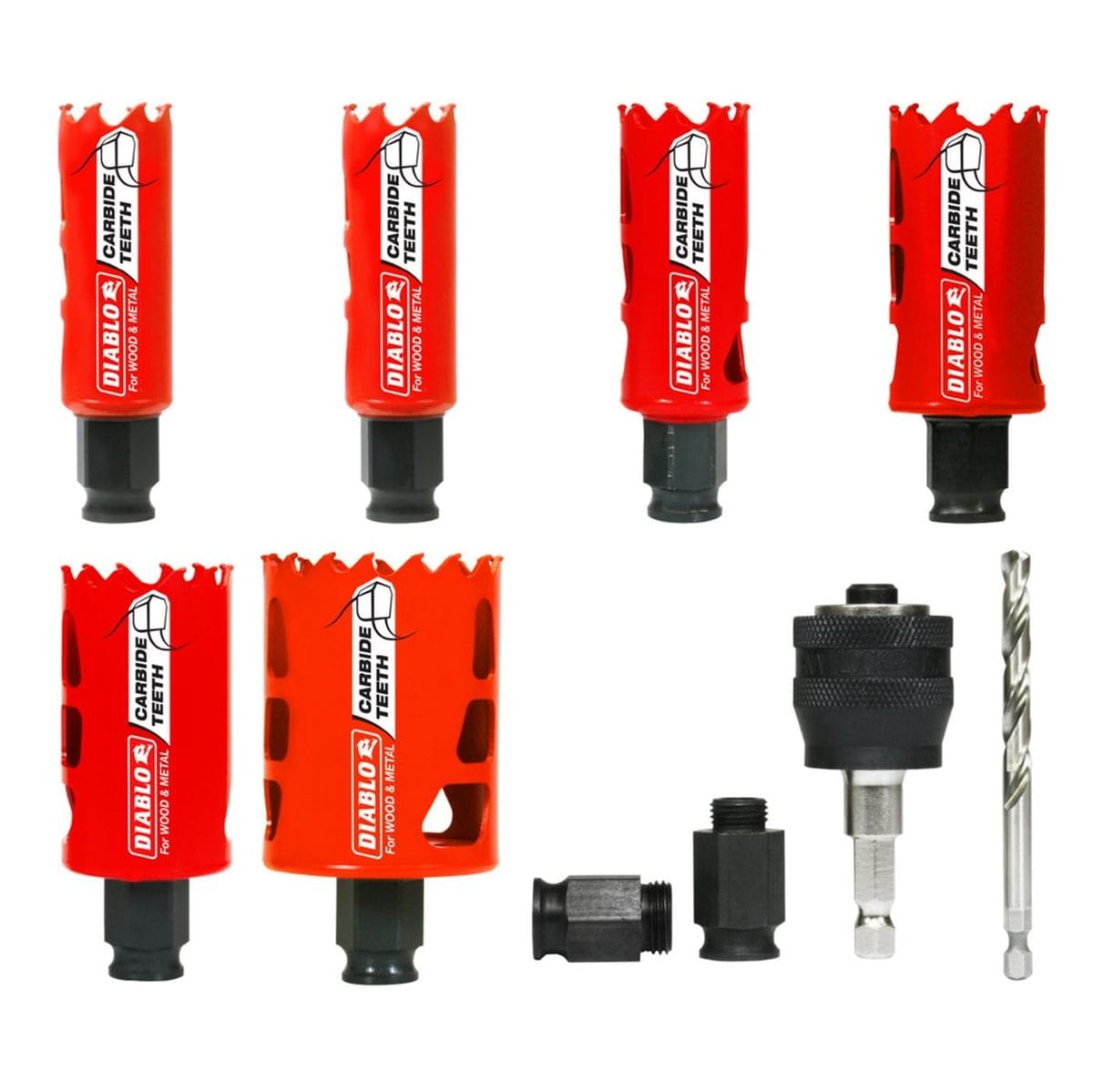

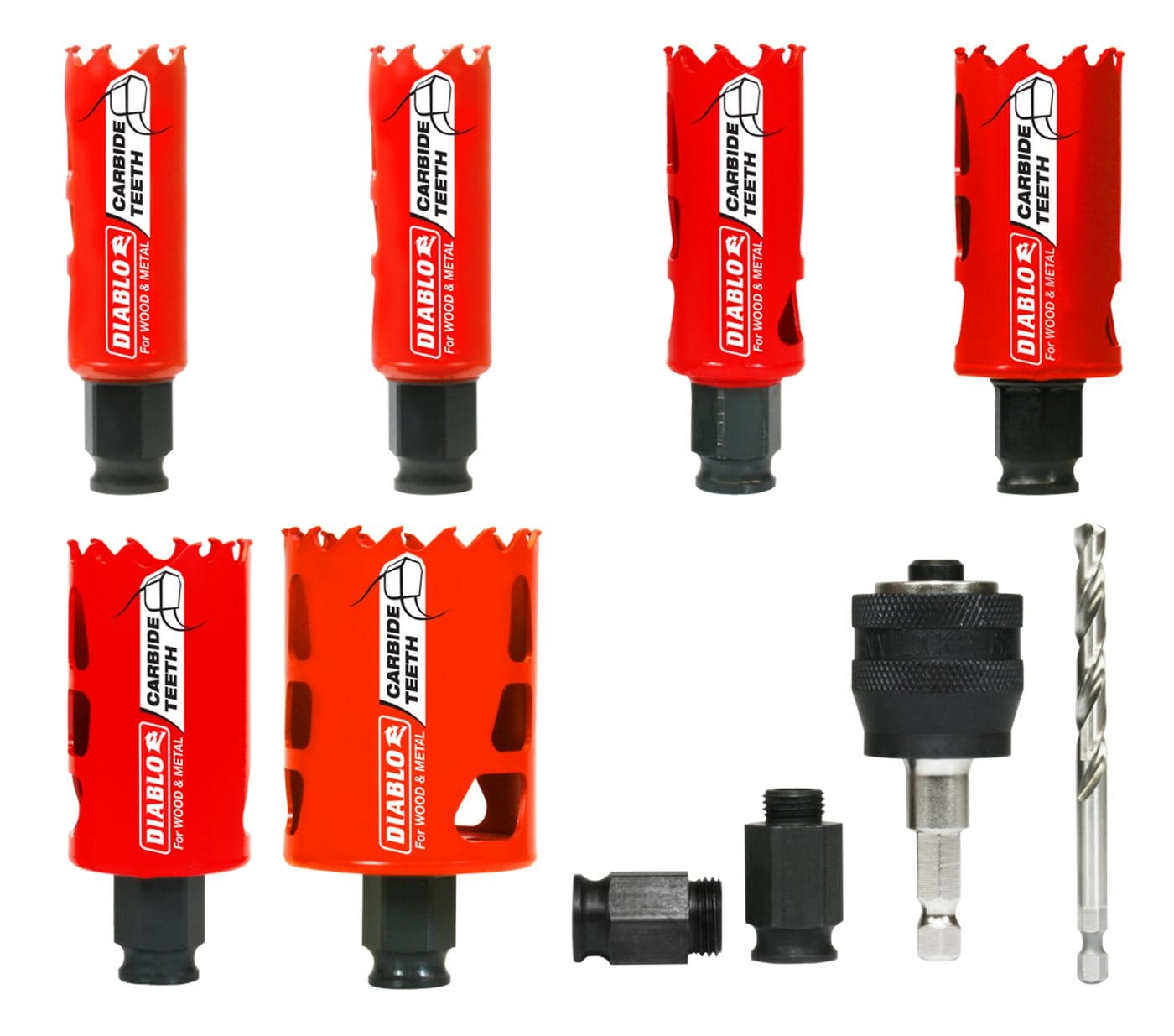

A studio shot of the Diablo 9-piece general purpose hole saw set, showing all six red carbide hole saws, the Snap-Lock mandrel, adapters, and the pilot drill bit.

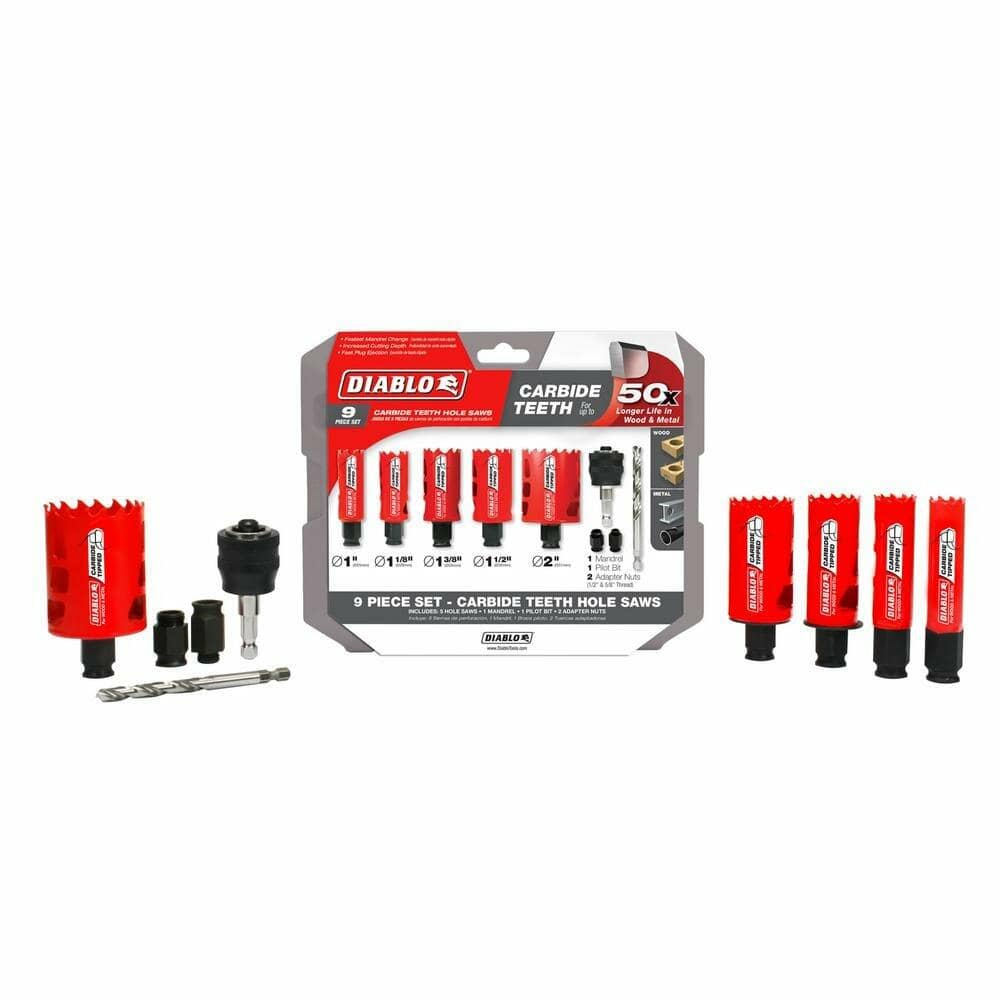

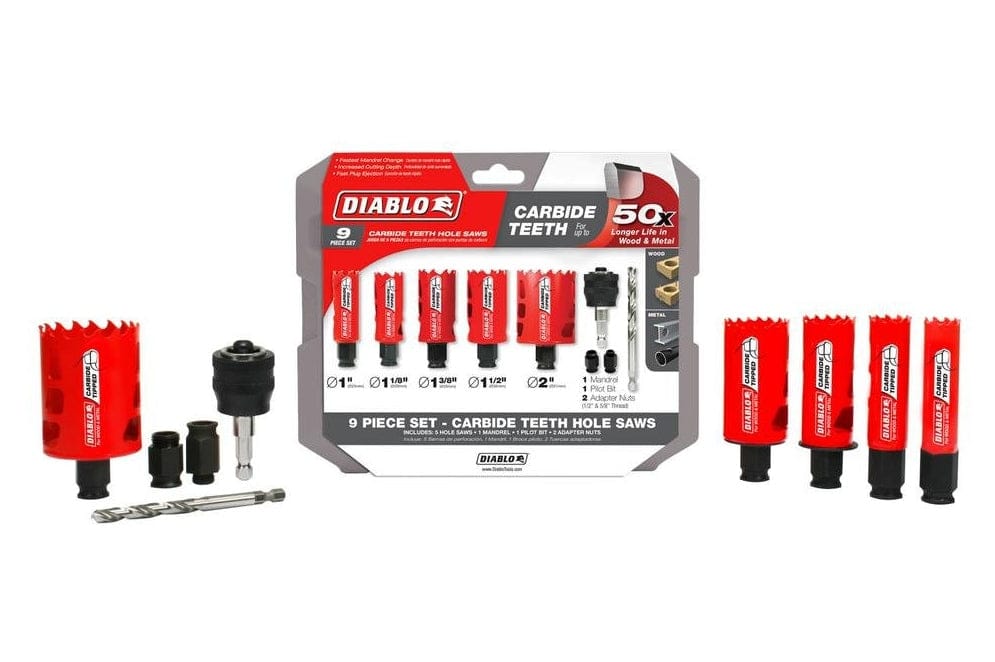

Diablo 9-piece carbide hole saw set displayed with packaging and components laid out. Includes seven red hole saws ranging from 3/4" to 1-1/2", two arbors, and a pilot bit. Packaging emphasizes 50x longer life in metal and wood cutting.

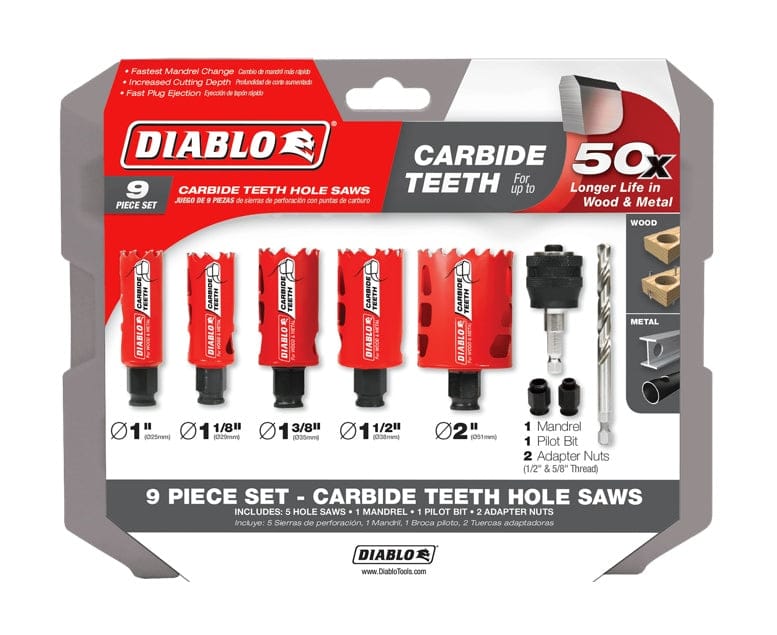

Packaged Diablo 9-piece carbide hole saw set featuring six red hole saws, one mandrel, one pilot bit, and two adapter nuts. Packaging highlights features like 50x longer life, fastest mandrel change, enhanced carbide design, and fast plug ejection. Sizes range from 1" to 2-1/8".

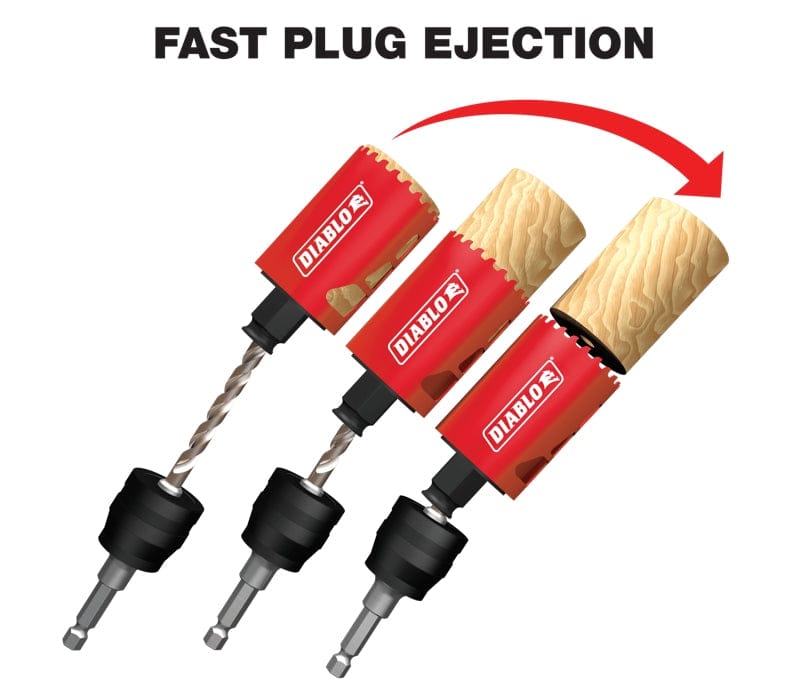

Three-stage visual showing Diablo hole saw’s fast plug ejection system. The red hole saw progresses from pre-cutting to capturing a wooden plug, then ejecting it. An arrow and “FAST PLUG EJECTION” text emphasize the tool’s efficiency

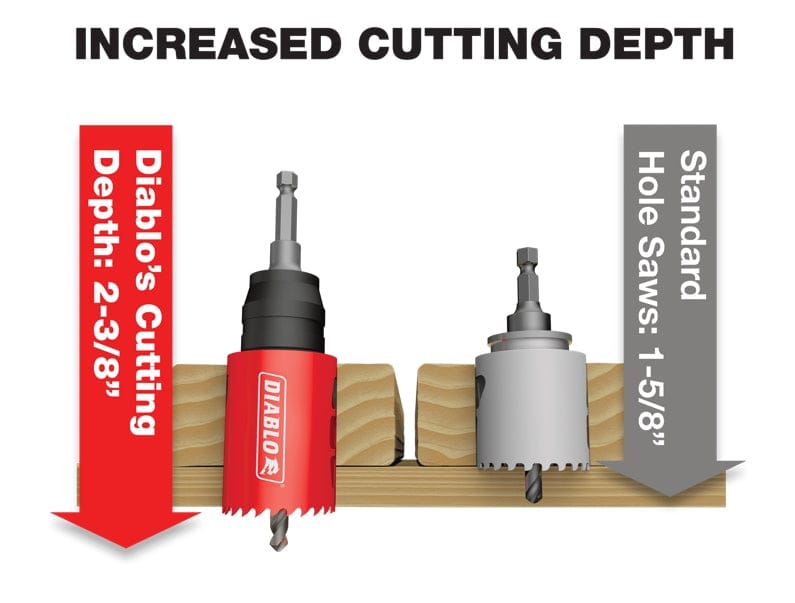

Side-by-side comparison of cutting depth between a Diablo hole saw and a standard hole saw. The red Diablo saw shows a deeper cut at 2-3/8 inches, while the gray standard saw cuts to 1-5/8 inches. Text highlights “INCREASED CUTTING DEPTH.”
A studio shot of the Diablo 9-piece general purpose hole saw set, showing all six red carbide hole saws, the Snap-Lock mandrel, adapters, and the pilot drill bit.

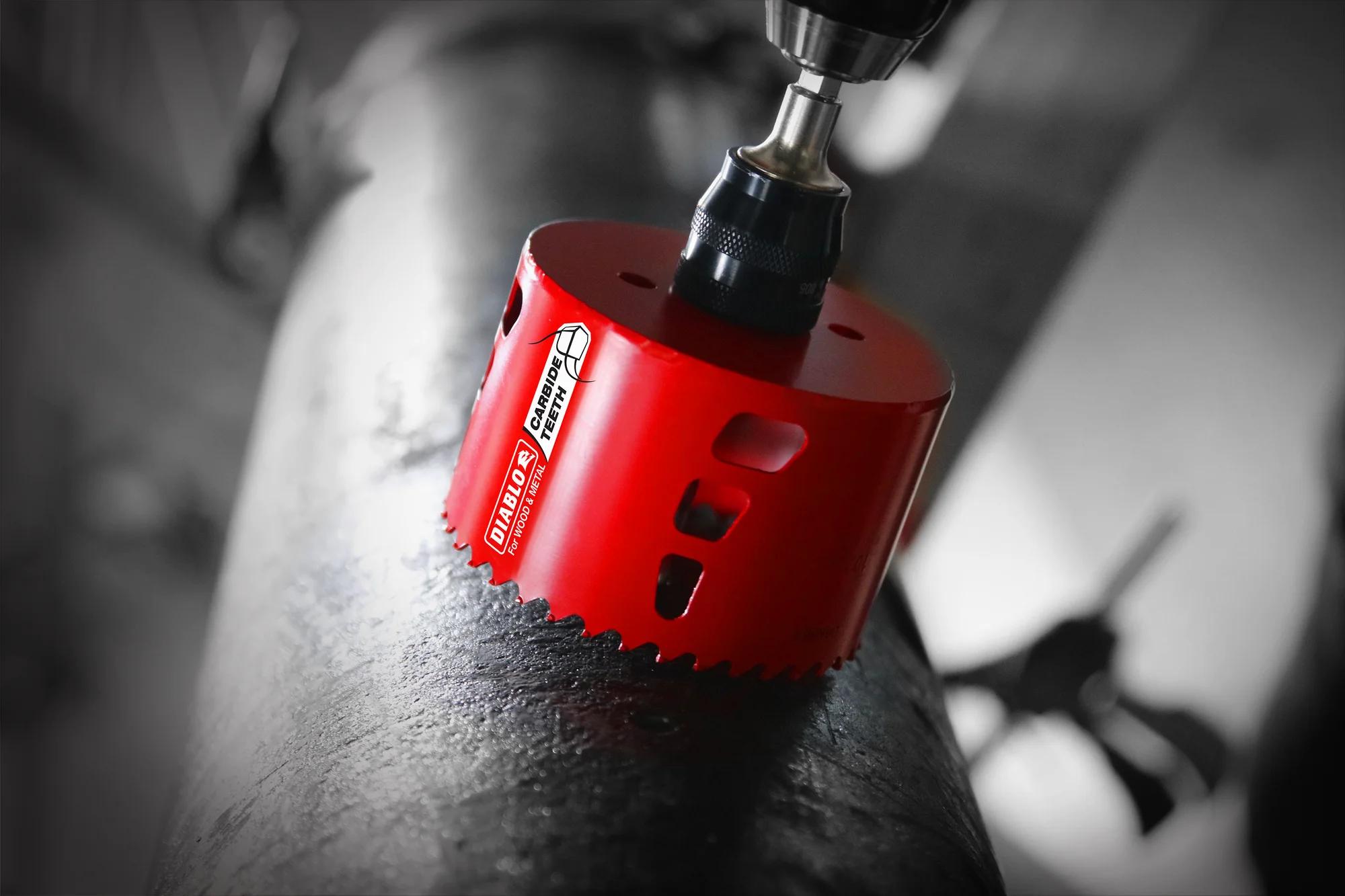

Close-up of a red Diablo carbide hole saw attached to a power drill, actively cutting into a cylindrical metal surface. The hole saw features sharp teeth and side openings for debris removal. Branding and specifications are visible on the tool, emphasizing its use in metalworking applications.
Diablo Demo Demon Carbide Teeth Rough-In Hole Saw promotional how to video
A studio shot of the Diablo 9-piece general purpose hole saw set, showing all six red carbide hole saws, the Snap-Lock mandrel, adapters, and the pilot drill bit.
Diablo 9-piece carbide hole saw set displayed with packaging and components laid out. Includes seven red hole saws ranging from 3/4" to 1-1/2", two arbors, and a pilot bit. Packaging emphasizes 50x longer life in metal and wood cutting.
Packaged Diablo 9-piece carbide hole saw set featuring six red hole saws, one mandrel, one pilot bit, and two adapter nuts. Packaging highlights features like 50x longer life, fastest mandrel change, enhanced carbide design, and fast plug ejection. Sizes range from 1" to 2-1/8".
Three-stage visual showing Diablo hole saw’s fast plug ejection system. The red hole saw progresses from pre-cutting to capturing a wooden plug, then ejecting it. An arrow and “FAST PLUG EJECTION” text emphasize the tool’s efficiency
Side-by-side comparison of cutting depth between a Diablo hole saw and a standard hole saw. The red Diablo saw shows a deeper cut at 2-3/8 inches, while the gray standard saw cuts to 1-5/8 inches. Text highlights “INCREASED CUTTING DEPTH.”
A studio shot of the Diablo 9-piece general purpose hole saw set, showing all six red carbide hole saws, the Snap-Lock mandrel, adapters, and the pilot drill bit.
Close-up of a red Diablo carbide hole saw attached to a power drill, actively cutting into a cylindrical metal surface. The hole saw features sharp teeth and side openings for debris removal. Branding and specifications are visible on the tool, emphasizing its use in metalworking applications.
Diablo Demo Demon Carbide Teeth Rough-In Hole Saw promotional how to video
DIABLO

Diablo Hole Saw Set DHS09SGPCT 9 Piece Kit (TiCo Carbide 2-3/8 Depth Snap-Lock Mandrel Wood Metal Stainless Nail Embedded Pipe Boring Drilling Tool)

In stock
SKU: DHS09SGPCT
$77.49 USD

Description

Diablo Tools Logo

Diablo DHS09SGPCT 9-Piece General Purpose Carbide Teeth Hole Saw Set

The Diablo DHS09SGPCT 9-piece general purpose carbide teeth hole saw set bores clean conduit openings through electrical enclosures, drills rough-in plumbing pipe penetrations through 2x4 framing, slices stainless steel panels, and cores dense plastics without tool binding. Engineered with TiCo™ high-density carbide teeth that deliver up to 50X longer cutting life than standard bi-metal hole saws, this kit provides an extended 2-3/8-inch cutting depth to core 40% deeper holes in a single pass without stopping to clear timber plugs. Outfitted with the patented Snap-Lock Plus™ mandrel system for tool-free cup size transitions and instant core ejection, along with an aggressive variable tooth geometry that dampens vibration and frictional heat, it equips commercial plumbers, electricians, and mechanical contractors with fast, burr-free boring across 3/8-inch and 1/2-inch drill chucks.

Best Used For:

  • Electrical Service and Conduit Rough-In: Boring 1-inch to 2-inch entry holes through steel junction boxes, panel knockouts, and aluminum raceways with clean, burr-free edges.
  • Plumbing Pipe and Mechanical Chases: Drilling through dimensional framing lumber, subflooring, and hidden nails in a single pass to route water supply lines and drain pipes.
  • Stainless Steel and Cast Iron Fabrication: Coring holes in dense metal sheets, machinery enclosures, and cast metal without dulling or stripping carbide teeth.

Key Performance & Safety Features

  • TiCo™ Hi-Density Carbide Teeth: Specially formulated micro-grain carbide tips withstand severe abrasion from wood resins, steel fasteners, and dense metals.
  • Extended 2-3/8-Inch Cutting Depth: Delivers 40% deeper cutting reach to complete single-pass boring through 2x dimensional lumber without plug removal delays.
  • Patented Snap-Lock Plus™ Mandrel: Enables fast, tool-free cup changes and effortless plug ejection with a quick backward push on the collar.
  • 50X Extended Cutting Life: High-performance carbide metallurgy outlasts standard bi-metal hole saws by up to 50 times in multi-material drilling.
  • Variable Tooth Geometry: Dual-pitch tooth configuration balances chip load to reduce high-torque rotational vibration and heat accumulation.
  • Universal Mandrel System: One Snap-Lock Plus mandrel body securely fits all Diablo hole saw diameters ranging from 5/8 inch to 6 inches.

What's Included

  • (1) 1" Carbide Teeth Hole Saw for Wood and Metal (DHS1000CT)
  • (1) 1-1/8" Carbide Teeth Hole Saw for Wood and Metal (DHS1125CT)
  • (1) 1-3/8" Carbide Teeth Hole Saw for Wood and Metal (DHS1375CT)
  • (1) 1-1/2" Carbide Teeth Hole Saw for Wood and Metal (DHS1500CT)
  • (1) 2" Carbide Teeth Hole Saw for Wood and Metal (DHS2000CT)
  • (1) Snap-Lock Plus™ Mandrel
  • (1) Pilot Drill Bit
  • (2) Threaded Adaptor Nuts
  • (1) Rugged Jobsite Storage Case

Technical Specifications

Manufacturer Diablo by Freud
Model Number DHS09SGPCT
Product Classification General Purpose Carbide Hole Saw Set
Total Piece Count 9 Pieces
Cutting Depth Capacity 2.375 inches (2-3/8 in / 60.33 mm)
Diameter Range Included 1.000 in to 2.000 in (1 in, 1-1/8 in, 1-3/8 in, 1-1/2 in, 2 in)
Mandrel Connection Interface Snap-Lock Plus™ Tool-Free Quick-Change Mandrel
Drill Chuck Shank Compatibility 0.375 inches (3/8 in) & Larger Standard 1/2" Chucks
Tooth Architecture Variable Pitch Tooth Geometry
Cutting Tip Metallurgy TiCo™ Hi-Density Micro-Grain Carbide
Wear Life Multiplier 50X vs. Standard Bi-Metal Hole Saws
Target Substrates Wood, Nail-Embedded Timber, Stainless Steel, Cast Iron, Aluminum, & Plastic
Storage Enclosure Heavy-Duty Molded Jobsite Carrying Case

Pro-Tip: To eject stuck wood plugs instantly, pull the Snap-Lock Plus collar back to disengage the cup from the mandrel; the spring-action pilot bit mechanism pushes the core out without requiring screwdrivers or pry tools.
