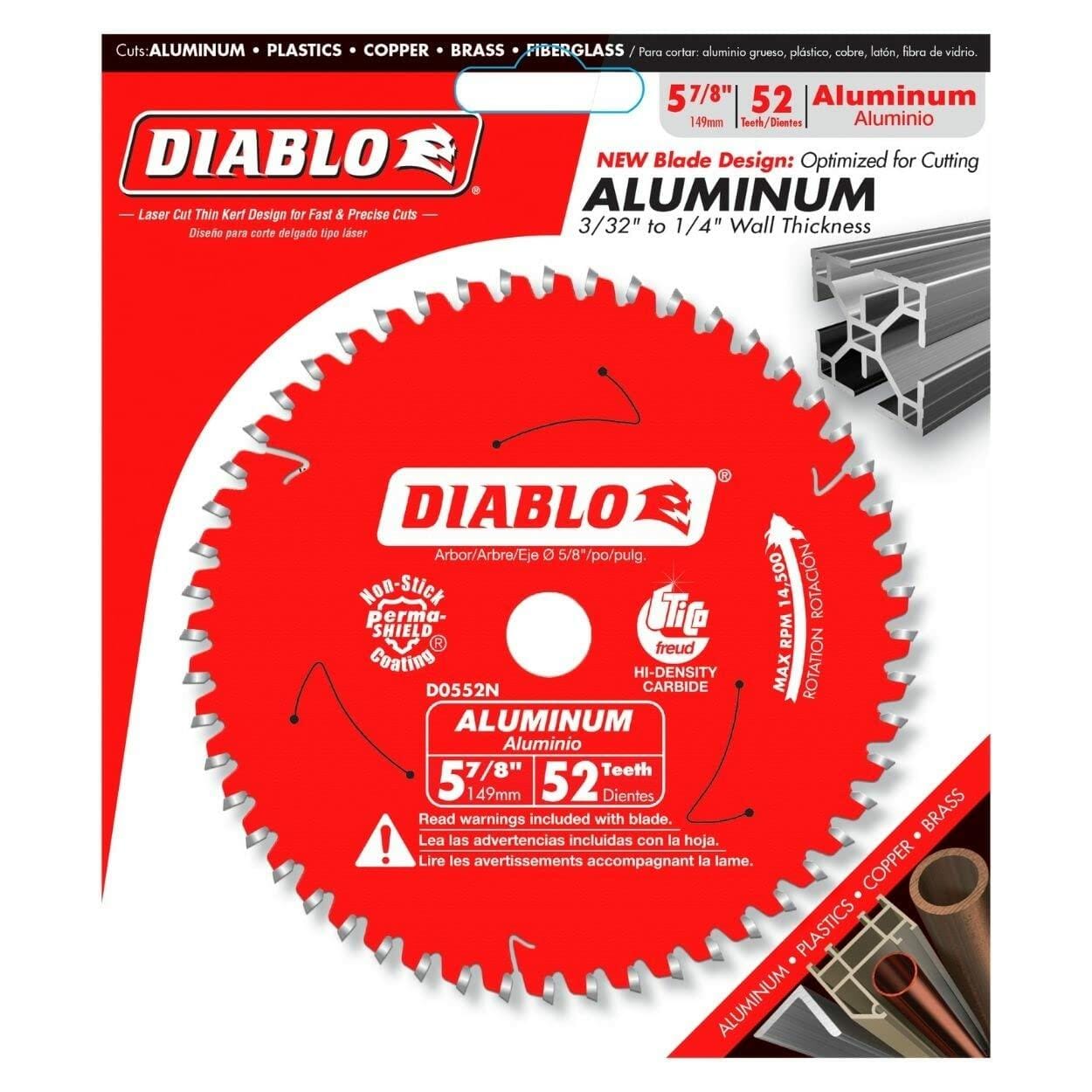

Packaged Diablo 5-7/8" circular saw blade with red body and silver teeth, labeled for cutting aluminum, plastics, copper, brass, and fiberglass. Packaging highlights features like TiCo carbide tips, triple chip grind, and Perma-SHIELD coating. Model D0552N.
Diablo 5-7/8" aluminum cutting saw blade with red coating and 52 silver carbide teeth. Marked with model D0552N, 5/8" arbor, and 13,200 max RPM. Features Perma-SHIELD coating and directional arrow for rotation. Suitable for non-ferrous metal cutting.
Packaged Diablo 5-7/8" circular saw blade with red body and silver teeth, labeled for cutting aluminum, plastics, copper, brass, and fiberglass. Packaging highlights features like TiCo carbide tips, triple chip grind, and Perma-SHIELD coating. Model D0552N.
DIABLO

Diablo D0552N 5-7/8 Inch 52 Tooth Carbide Saw Blade for Aluminum Non-Ferrous Metal Copper Brass 5/8 Arbor 52T TCG Triple Chip Grind Thin Kerf

Only 2 left
SKU: D0552N
$29.97 USD

Description

Diablo Tools Logo Logout

Achieve Surgical Precision and Burr-Free Finishes in Aluminum and Non-Ferrous Metals

The Diablo D0552N 5-7/8 Inch 52-Tooth Aluminum Cutting Saw Blade is the professional’s solution for navigating the challenges of non-ferrous metal fabrication. Engineered specifically for thin to medium-thickness materials, this blade excels at slicing through aluminum extrusions, copper piping, and brass plates with unmatched ease. Featuring Diablo’s radical TiCo™ Super-Density Micro-Grain Carbide, the D0552N is built to withstand heavy impacts and resist the typical wear associated with metalwork. By utilizing a specialized Triple Chip Grind (TCG) tooth geometry, this blade delivers clean, "mirror-like" finishes that virtually eliminate the need for secondary grinding or rework, saving you significant labor time on every project.

Beyond its incredible cutting speed, the D0552N is designed for maximum tool longevity and user comfort. Advanced laser-cut stabilizer vents trap noise and vibration, keeping the blade cool and stable for high-accuracy cuts, while the Perma-SHIELD® non-stick coating protects against heat build-up and corrosion. This blade is optimized for both corded and cordless circular saws, with a thin kerf design that requires less power from your saw, effectively extending battery runtime on portable jobsites. Whether you are a professional contractor installing aluminum trim or a fabricator working with delicate brass components, the Diablo Steel Demon series provides the durability and precision required for elite-level results.

Key Features

  • TiCo™ Super-Density Micro-Grain Carbide: Formulated specifically for non-ferrous metals to provide extreme cutting life and clog-free performance.
  • Triple Chip Grind (TCG) Geometry: Delivers maximum speed and durability while producing clean, burr-free finishes in aluminum and copper.
  • Tri-Metal Shock Resistant Brazing: A specialized three-metal system allows carbide teeth to withstand extreme impact for industrial-grade durability.
  • Perma-SHIELD® Non-Stick Coating: High-performance coating shields the blade from heat, gumming, and corrosion to prolong cutting life.
  • Laser-Cut Stabilizer Vents: Effectively traps noise and vibration to keep the blade straight, rigid, and cool during high-RPM operation.
  • Extreme RPM Capability: Rated for up to 14,500 RPM, making it compatible with high-speed specialized metal cutting saws.
  • Thin Kerf Design: Minimizes material removal and reduces power consumption, making it ideal for cordless circular saws.

What's Included

  • (1) Diablo 5-7/8" 52-Tooth Carbide Tipped Saw Blade for Aluminum (D0552N)

Specifications

Brand Diablo by Freud
Model Number D0552N
Blade Diameter 5-7/8 Inches
Number of Teeth 52
Arbor Size 5/8 Inch
Kerf Width 0.061 Inches
Plate Thickness 0.039 Inches
Hook Angle -5°
Maximum Speed 14,500 RPM
Tooth Grind TCG (Triple Chip Grind)
Ideal Metal Thickness 3/32" to 1/4" (Medium Aluminum)
Primary Application Aluminum, Copper, Brass, Plastics

Pro-Tip: To ensure the longest life when cutting aluminum extrusions, use a lubricant like a wax stick or a specialized cutting fluid on the blade. This prevents the aluminum from "welding" itself to the carbide teeth due to friction-based heat, keeping your cuts smooth and your blade ready for the next project.
