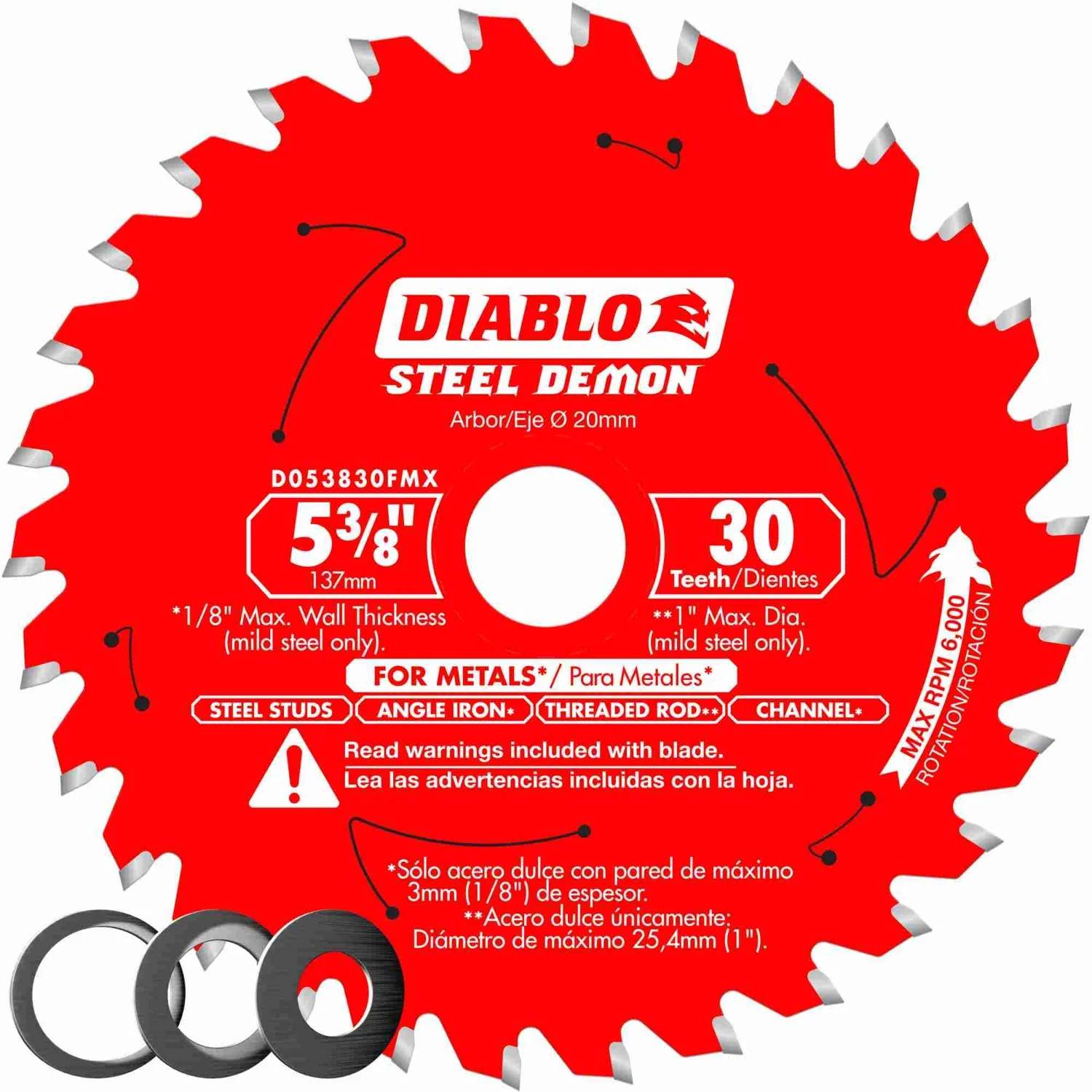

Diablo D053830FMX 5-3/8 Inch 30 Tooth Steel Demon Carbide Metal Cutting Saw Blade 20mm Arbor Triple Chip Grind Mild Steel Studs Conduit EMT Thin Kerf
Couldn't load pickup availability
Experience Unmatched Precision and 50X Longer Life in Metal Cutting with Steel Demon Technology
The Diablo D053830FMX 5-3/8 Inch 30-Tooth Steel Demon™ Carbide Saw Blade is the professional’s answer to fast, accurate, and burr-free cuts in mild steel. Engineered to outperform standard grinding discs, this blade features high-performance TiCo™ Hi-Density Carbide that delivers maximum durability and a superior quality finish. Whether you are framing with steel studs, installing EMT conduit, or cutting angle iron, the specialized Triple Chip Grind (TCG) configuration slices through metal with minimal sparks and reduced heat. This controlled cutting action produces larger chips rather than fine dust, creating a safer work environment with fewer airborne contaminants and eliminating the need for "hot permits" on many restrictive jobsites.
Designed specifically for the high-demand user, the D053830FMX features a laser-cut thin kerf body that requires significantly less cutting power, making it the ideal choice for maximizing the battery life of cordless trim saws. The blade is treated with Diablo’s signature Perma-SHIELD® non-stick coating, which shields the steel from heat, gumming, and corrosion. Advanced laser-cut stabilizer vents are strategically placed to trap noise and vibration, ensuring the blade remains cool and stable for surgical accuracy. With a versatile 20mm arbor and included bushings, this blade is optimized for seamless compatibility with major brands like Milwaukee, Bosch, and DeWalt, providing a high-performance cutting solution that requires virtually no re-work.
Key Features
- TiCo™ Hi-Density Carbide: Application-specific carbide formulation provides maximum performance and significantly longer life versus abrasive discs.
- Triple Chip Grind (TCG): Advanced tooth geometry produces clean, burr-free cuts in mild steel with minimal sparks and cool-to-the-touch results.
- Laser-Cut Thin Kerf: Minimizes material removal and reduces resistance, delivering faster cuts and extending cordless saw battery runtime.
- Perma-SHIELD® Non-Stick Coating: Protects the blade against heat build-up, gumming, and corrosion for an effortless glide through tough metals.
- Advanced Stabilizer Vents: Trap noise and vibration to keep the blade running straight and cool, preventing wandering and deflection.
- Tri-Metal Shock Resistant Brazing: A specialized three-metal system allows the carbide teeth to withstand extreme impacts for maximum jobsite durability.
- Controlled Cutting Action: Produces larger chip sizes for a cleaner workspace and reduced respiratory hazards compared to grinding discs.

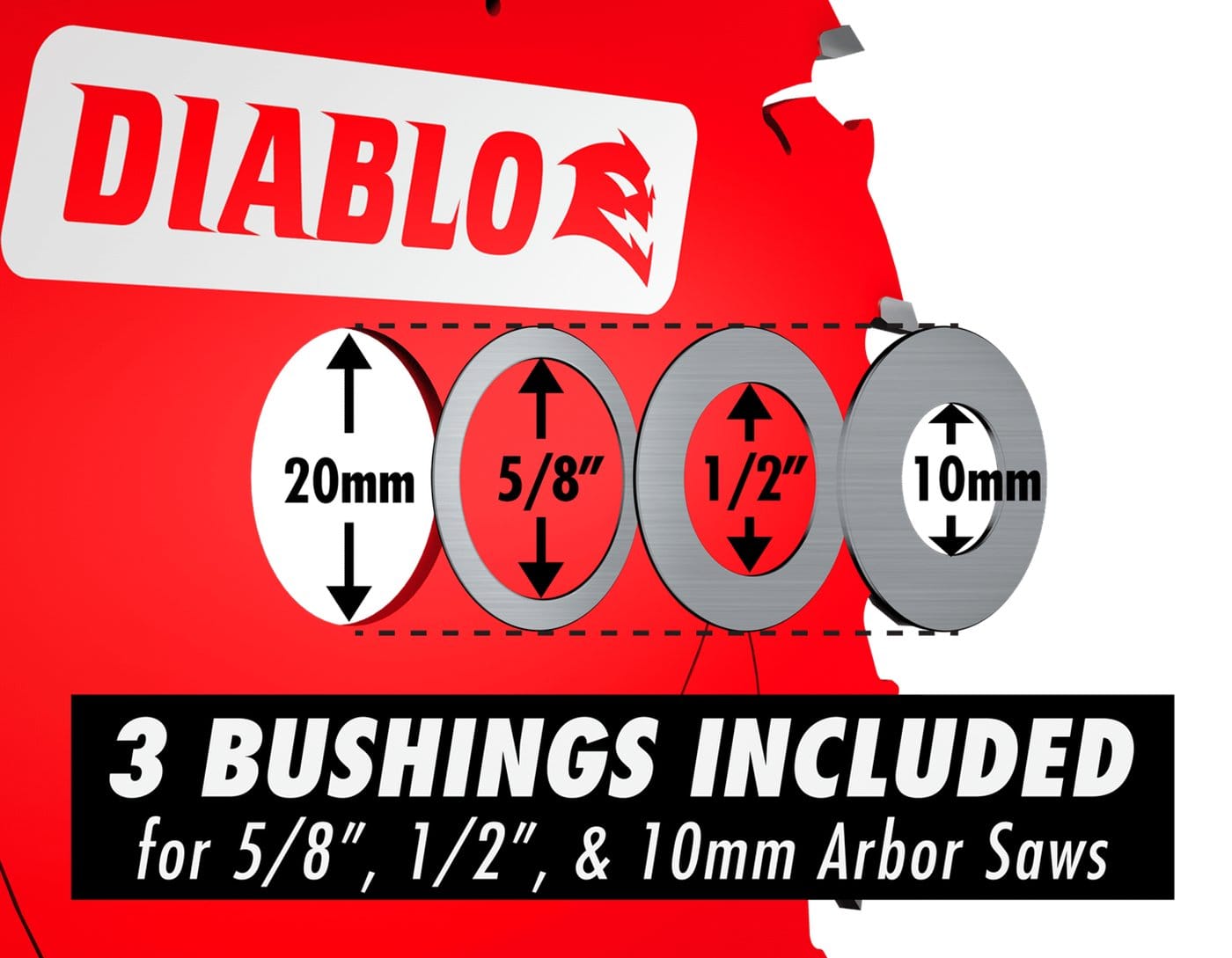

What's Included

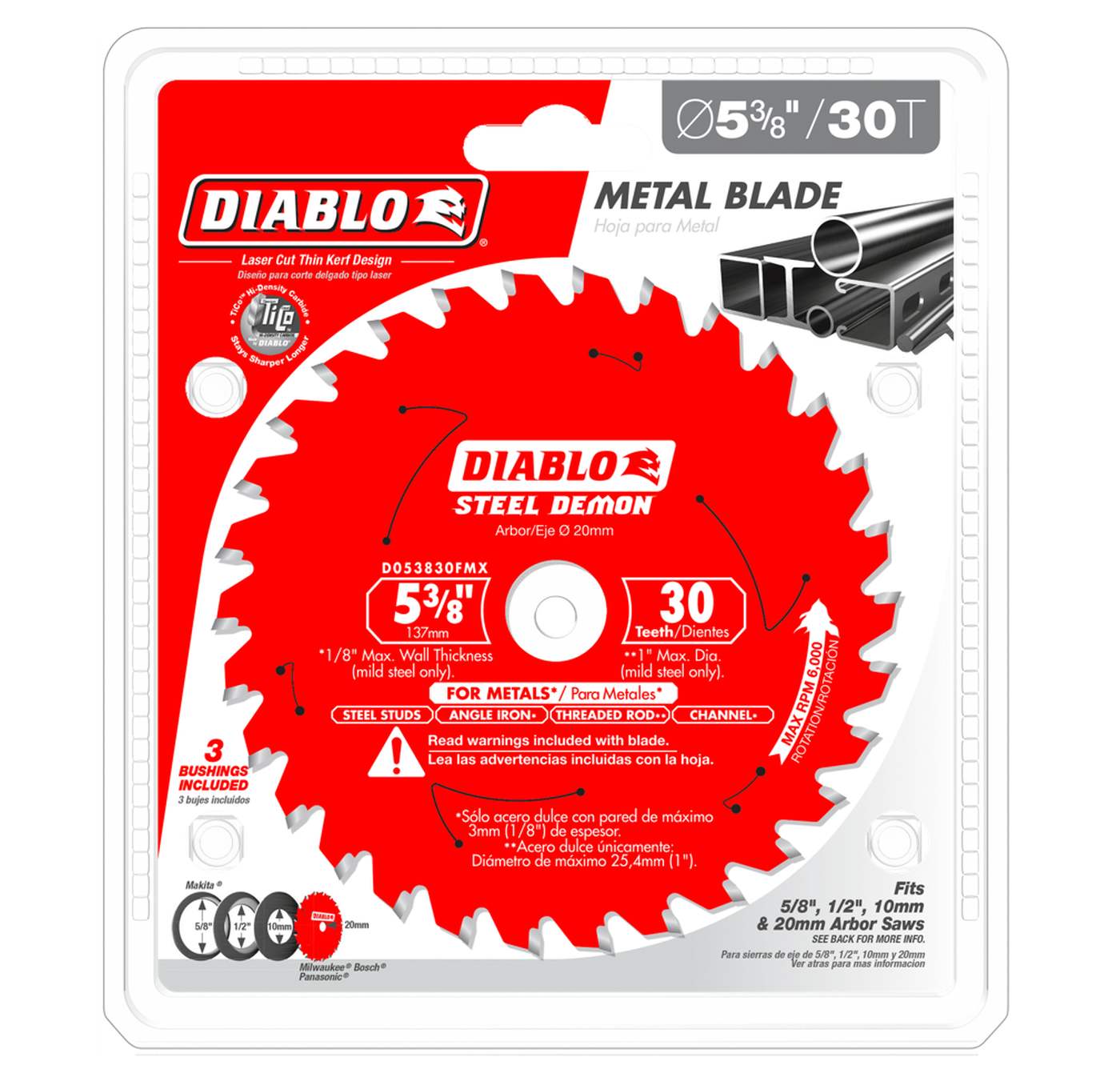

- (1) Diablo 5-3/8" 30-Tooth Steel Demon™ Carbide Metal Cutting Saw Blade (D053830FMX)
- (1) 20mm to 5/8" Bushing
- (1) 20mm to 1/2" Bushing
- (1) 20mm to 10mm Bushing
Specifications
| Brand | Diablo by Freud |
|---|---|
| Model Number | D053830FMX |
| Diameter | 5-3/8 Inches |
| Number of Teeth | 30 TCG |
| Arbor Size | 0.787 Inches (20mm) |
| Kerf Width | 0.059 Inches |
| Plate Thickness | 0.039 Inches |
| Hook Angle | 2° |
| Maximum Speed | 6,000 RPM |
| Material Capacity (Wall) | Up to 1/8 Inch Wall Thickness |
| Material Capacity (Solid) | Up to 1 Inch Diameter Threaded Rod |
| Tooth Grind | Triple Chip Grind (TCG) |
Pro-Tip: To ensure the longest life for your carbide teeth, always secure your workpiece firmly to prevent movement. When cutting mild steel, let the saw reach full RPM before engaging the material and use a steady, consistent feed rate—cutting too slowly can cause friction-based heat build-up, while forced cutting can damage the carbide tips.
