Diablo Spade Bit DSP2050-P2 1/2 x 6 Inch SPEEDemon 2 Pack (1/4 Hex Shank SPEED TIP Self Feed Curved Paddle Timber Electrical Wire Rough In)

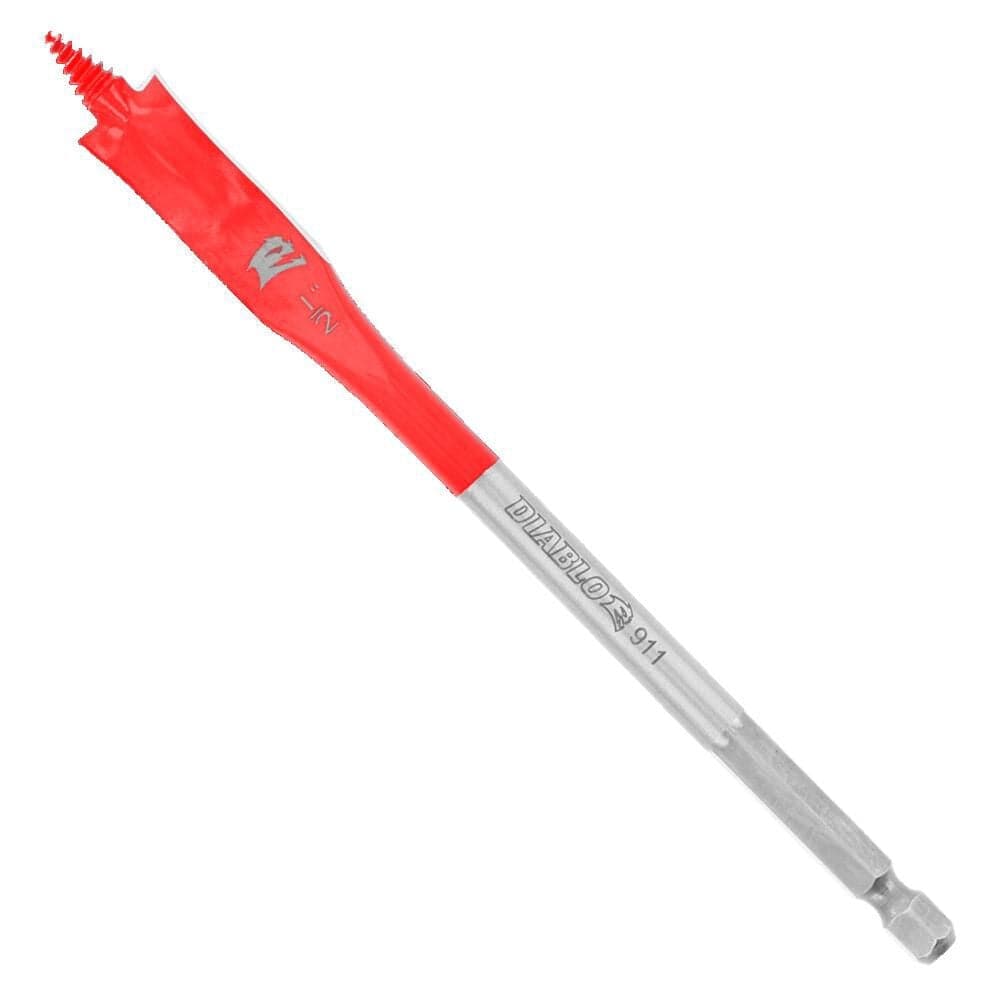

Diablo DSP2050-P2 1/2-Inch x 6-Inch SPEEDemon Self-Feeding Spade Bit 2-Pack

The Diablo DSP2050-P2 is a 2-piece set of 1/2-inch diameter by 6-inch overall length spade drill bits engineered with self-feeding SPEED-TIP thread points and Impact Strong 1/4-inch hex shanks for rapid wood boring. Manufactured in Switzerland with high-speed steel and an optimized curved paddle geometry that accelerates chip evacuation to extend battery runtime on cordless tools, these high-efficiency wood bits pull themselves through dimensional lumber with minimal operator force. Designed for electricians, plumbers, and framing contractors routing electrical cables and low-voltage wiring through wall studs and floor joists, their angled cutting spurs score wood fibers prior to main paddle engagement to prevent entry splinters and exit blowout.

Best Used For:

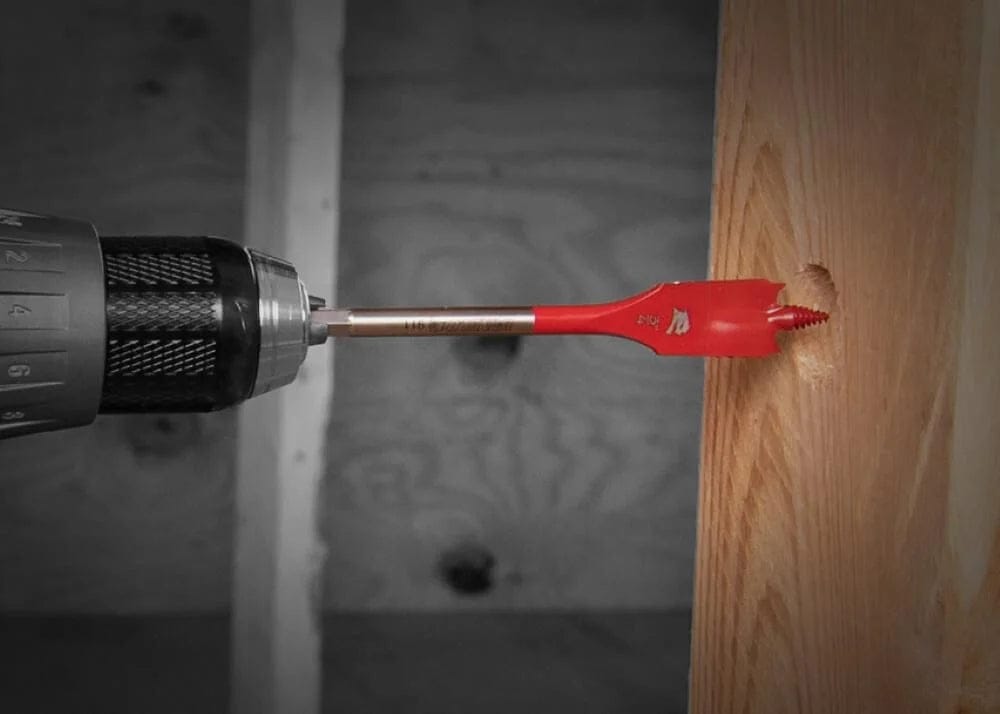

• Electrical Wiring & Cable Rough-In: Boring fast, clean 1/2-inch holes through wooden wall studs and ceiling joists for non-metallic Romex cable runs.
• Small Plumbing Line Pass-Throughs: Penetrating floor framing and timber plates to clear PEX tubing and copper water supply lines.
• Structural Framing & Construction Boring: Drilling clean holes through softwoods, hardwoods, plywood, and OSB subfloor panels without stalling high-torque impact drivers.

Key Performance & Safety Features

• SPEED-TIP Self-Feeding Thread Point: Self-pulling threaded lead screw draws the bit effortlessly through timber to reduce user fatigue.
• Curved Evacuation Paddle Geometry: Curved paddle profile ejects wood shavings rapidly to eliminate hole clogging and reduce friction heat.
• Impact Strong Hex Shank Base: Reinforced 1/4-inch hex shank absorbs high torque pulses in impact drivers without snapping or slipping.
• Angled Scoring Cutters: Precision-ground side spurs score timber surface fibers prior to material removal to ensure clean, blowout-free holes.
• Cordless Battery Efficiency: Low-friction cutting profile lowers drill motor draw to yield more holes per battery charge cycle.
• Dual Rotary & Impact Driver Compatibility: Performs with maximum stability in both standard 3/8-inch drill chucks and 1/4-inch hex quick-change impact drivers.

What's Included

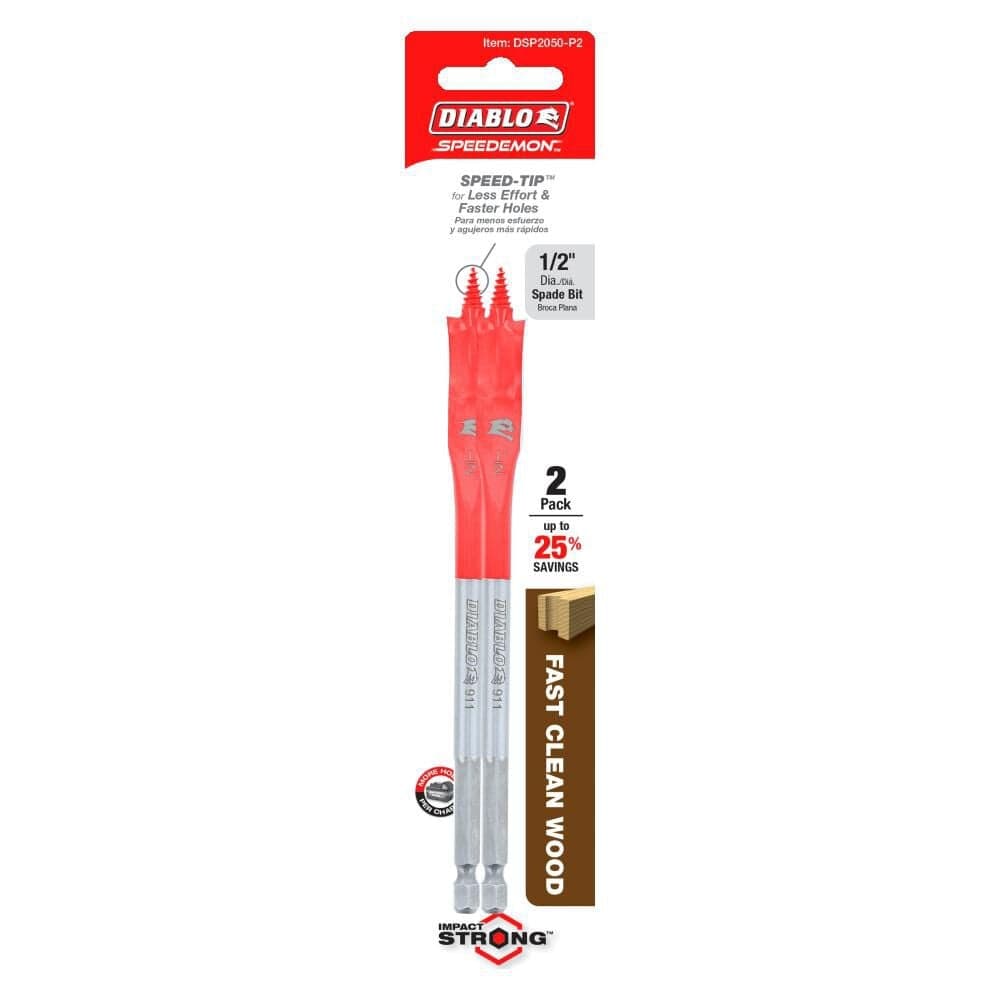

• (2) Diablo 1/2" x 6" SPEEDemon™ Self-Feeding Spade Bits (DSP2050)

Technical Specifications

Pro-Tip: Allow the self-feeding threaded SPEED-TIP to pull the spade bit through structural wood framing naturally without applying excessive forward pushing force to preserve tip threads and prevent motor strain.
