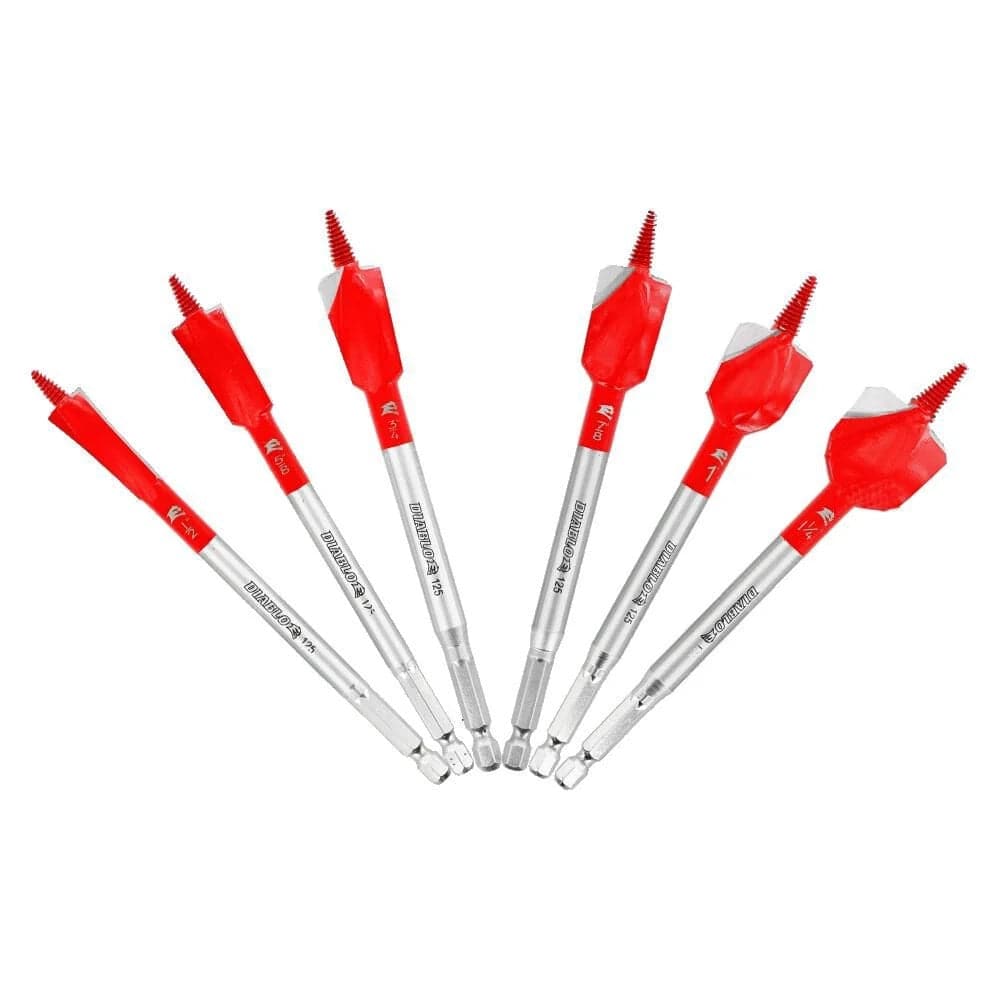

A product shot of the Diablo 6-piece Demo Demon spade bit set arranged in a fan shape, showing bits of varying sizes from 1/2 inch to 1 1/4 inch with red paddle heads and silver shanks.

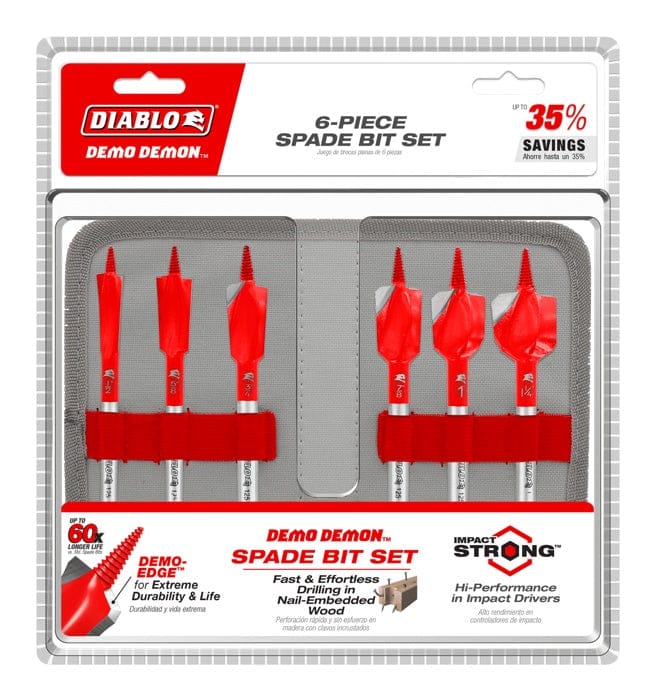

The Diablo Demo Demon 6-piece spade bit set in its protective gray and red storage pouch and clear retail plastic packaging, highlighting extreme durability for nail-embedded wood.

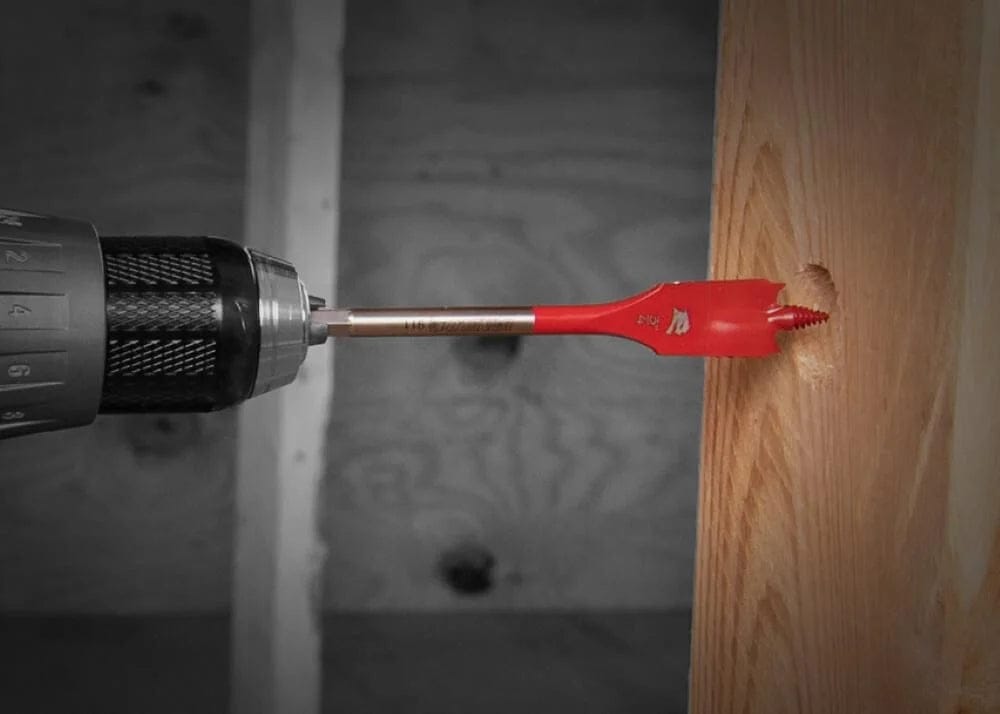

Close-up action photograph of a red Diablo spade bit attached to a power drill as it successfully bores through a thick wooden plank in a professional setting.
A product shot of the Diablo 6-piece Demo Demon spade bit set arranged in a fan shape, showing bits of varying sizes from 1/2 inch to 1 1/4 inch with red paddle heads and silver shanks.
The Diablo Demo Demon 6-piece spade bit set in its protective gray and red storage pouch and clear retail plastic packaging, highlighting extreme durability for nail-embedded wood.
Close-up action photograph of a red Diablo spade bit attached to a power drill as it successfully bores through a thick wooden plank in a professional setting.
DIABLO

Diablo Spade Bit Set DSPD4920-S6 6 Piece Demo Demon (1/4 Hex Shank Self Feed DEMO Edge Nail Embedded Wood Rough In Drilling)

In stock
SKU: DSPD4920-S6
$38.97 USD

Description

Diablo Tools Logo Logout

Diablo DSPD4920-S6 Demo Demon 6-Piece Self-Feeding Spade Bit Set

The Diablo DSPD4920-S6 is a 6-piece Demo Demon spade bit set featuring 1/4-inch Impact Strong hex shanks and DEMO-Edge dual cutting edges for boring through nail-embedded wood during demolition and rough-in framing. Manufactured in Switzerland with high-speed steel and self-feeding Dura-Tip lead screws, these 6-inch long bits withstand direct fastener strikes while delivering up to 60X longer life than standard spade bits. Designed for electricians, plumbers, and framing contractors routing pipe and wire conduits through repurposed or salvaged lumber, the set covers 1/2-inch through 1-1/4-inch hole diameters while utilizing an optimized curved paddle design to clear wood chips rapidly and preserve battery runtime on cordless impact drivers.

Best Used For:

  • Demolition & Remodel Rough-In Drilling: Boring fast conduit and wire clearance holes through older stud walls, floor joists, and subfloors containing hidden framing nails.
  • Plumbing Supply & Waste Pipe Pass-Throughs: Sinking 1/2-inch to 1-1/4-inch diameter holes through dimensional timber and double-top plates for PEX lines and PVC drain pipes.
  • High-Torque Framing Fastener Clearance: Drilling clean pass-through channels in hardwoods, softwoods, and structural plywood without snapping bits upon nail impact.

Key Performance & Safety Features

  • 60X Extended Life DEMO-Edge: Dual cutting edge architecture withstands severe mechanical shock and direct nail strikes in structural timber.
  • Dura-Tip Self-Feeding Screw Point: Threaded lead screw pulls the bit through tough wood with minimal user effort while protecting against tooth fracture.
  • Curved Evacuation Paddle Geometry: Accelerated chip removal channel prevents chip clogging and lowers friction heat buildup.
  • Impact Strong Hex Shank Base: Reinforced 1/4-inch hex base resists rotational shearing and chuck slippage in high-torque impact drivers.
  • Swiss High-Speed Steel Metallurgy: Premium HSS construction maintains cutting edge sharpness across extreme friction heat applications.
  • 35% Value Set Bundle: Provides six essential contractor bit sizes in one kit to lower per-bit operational costs on high-volume jobsites.

What's Included

  • (1) 1/2" x 6" Demo Demon™ Spade Bit (DSPD4010)
  • (1) 5/8" x 6" Demo Demon™ Spade Bit (DSPD4020)
  • (1) 3/4" x 6" Demo Demon™ Spade Bit (DSPD4030)
  • (1) 7/8" x 6" Demo Demon™ Spade Bit (DSPD4040)
  • (1) 1" x 6" Demo Demon™ Spade Bit (DSPD4050)
  • (1) 1-1/4" x 6" Demo Demon™ Spade Bit (DSPD4070)

Technical Specifications

Brand Manufacturer Diablo Tools® (Freud)
Model Part Number OEM SKU DSPD4920-S6
Included Bit Diameters 1/2, 5/8, 3/4, 7/8, 1, 1-1/4 inches
Overall Tool Length Dimension 6 inches (6.0 in / 152.4 mm)
Shank Base Connection Type 1/4 inch Hex Shank (6.35 mm)
Shank Mechanical Rating Impact Strong™ Rated
Lead Tip Thread Technology Dura-Tip™ Self-Feed Lead Screw
Cutting Edge Architecture DEMO-Edge™ Dual Edge Profile
Base Material Metallurgy Swiss High Speed Steel (HSS)
Tool Drive Mode Compatibility Rotary Drill or High-Torque Impact Driver
Target Primary Substrates Nail-Embedded Wood, Softwood, Hardwood, Plywood
Assembled Package Net Weight 1-47/100 lbs (1.47 lbs / 666.78 g)
Country of Origin Manufacturing Switzerland
Universal Product Code UPC 008925164494
Total Package Piece Quantity 6 Spade Bits

Pro-Tip: Maintain high drill RPMs when contacting embedded framing nails to allow the DEMO-Edge geometry to slice through steel fasteners cleanly without binding or kicking back.
