Diablo Abrasive Wheel DBD045125X01F 4-1/2 Inch Dual Cut Grind (1/8 Thick 7/8 Arbor Aluminum Oxide Steel Cast Iron Metal Shaping Angle Grinder Unit)

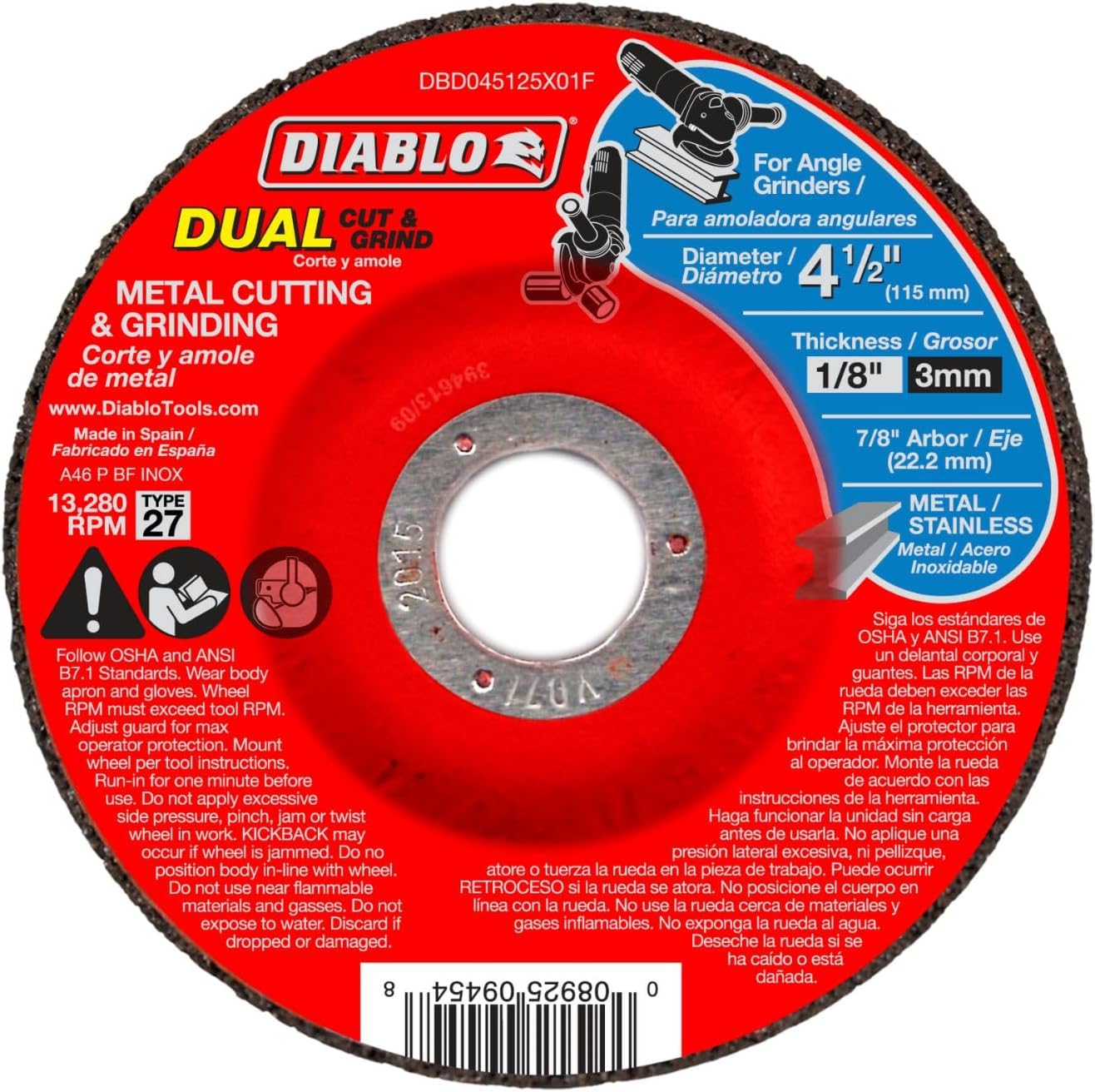

Diablo DBD045125X01F 4-1/2" x 1/8" Type 27 Dual Cut and Grind Metal Disc

The Diablo DBD045125X01F 4-1/2-inch Type 27 dual-action cut and grind disc cuts structural shapes and grinds weld seams in a single continuous workflow across carbon steel, stainless steel, cast iron, and sheet metal. Engineered with a premium aluminum oxide abrasive formulation, a versatile 1/8-inch thickness, and multi-layer structural fiberglass reinforcement, this 13,280 maximum RPM wheel eliminates the downtime and expense of swapping between separate cut-off discs and heavy grinding wheels. Outfitted with a standard 7/8-inch arbor interface and a depressed center profile that provides spindle clearance during flush cutting and angle grinding, it equips certified welders, pipefitters, and metal fabricators with balanced, dual-purpose surface preparation across all standard 4-1/2-inch angle grinders.

Best Used For:

• Single-Step Weld Fabrication and Blending: Cutting structural metal tubing to length and immediately chamfering joint edges or smoothing weld beads without changing accessories.
• Gouging and Root Pass Weld Cleaning: Slicing out defective weld root passes and grinding surrounding base metal flush to clean bright steel.
• Confined Space Pipe and Channel Parting: Executing deep straight cut-offs on schedule 40 pipe, Unistrut channels, and heavy steel plate, followed by immediate face deburring.

Key Performance & Safety Features

• Dual Cut and Grind Capability: Specially engineered 1/8-inch wheel cross-section withstands both radial plunge cutting and severe lateral face-grinding loads.
• Premium Aluminum Oxide Formulation: Sharp abrasive grains penetrate hard metal alloys rapidly while resisting thermal breakdown under heavy friction.
• Multi-Layer Fiberglass Reinforcement: High-tensile woven fiberglass mesh provides exceptional burst resistance and operator safety during aggressive side-to-side grinding.
• Type 27 Depressed Center Architecture: Recessed hub keeps mounting flange nuts clear of the workpiece surface during shallow 15° to 30° grinding passes and flush cut-offs.
• 13,280 Maximum RPM Rating: Dynamically balanced wheel core prevents tool chatter and vibration, maximizing operator control during prolonged fabrication shifts.

What's Included

• (1) Diablo DBD045125X01F 4-1/2" x 1/8" x 7/8" Arbor Type 27 Dual Cut and Grind Disc

Technical Specifications

Pro-Tip: When alternating between cutting and grinding with this combination wheel, always make your straight cuts at a strict 90° angle first; transition smoothly into a 15° to 30° tilt for deburring to maintain even edge wear without creating notches along the outer diameter.
