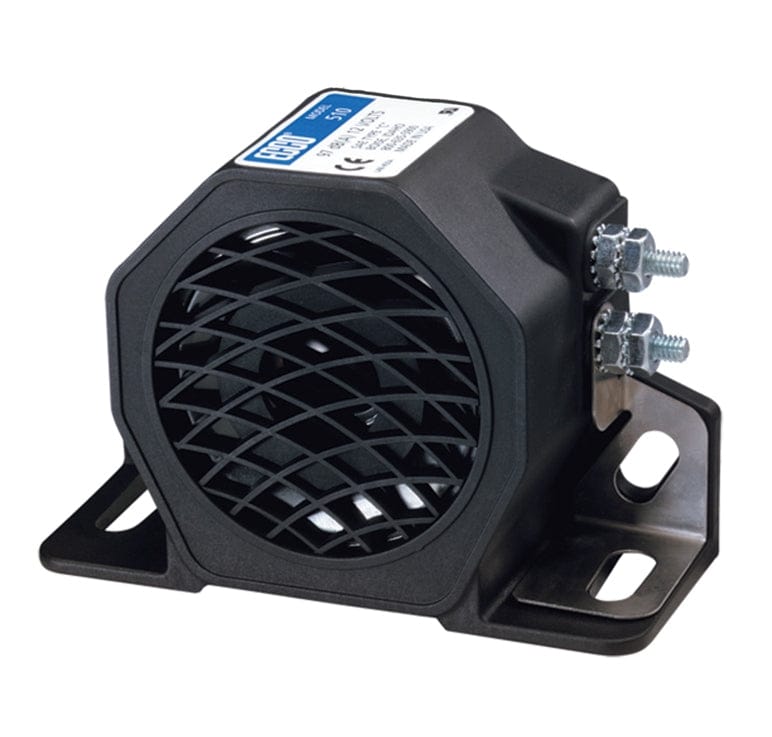

Angled studio shot of the ECCO 510 alarm highlighting the compact black housing, blue specification label, and two threaded stud terminals on the side.

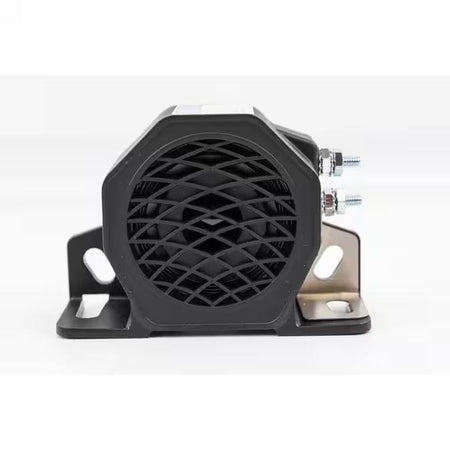

Front view of the black ECCO 510 back-up alarm showing the speaker grille pattern, mounting flanges, and side stud terminals.

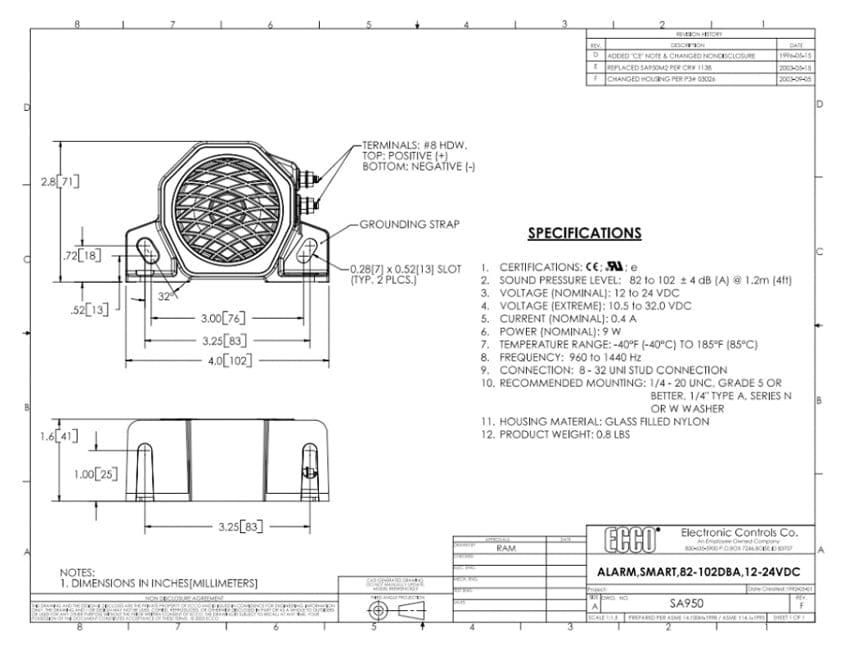

Detailed technical schematic displaying front, side, and top views with full measurements in inches and millimeters, along with a specifications list.

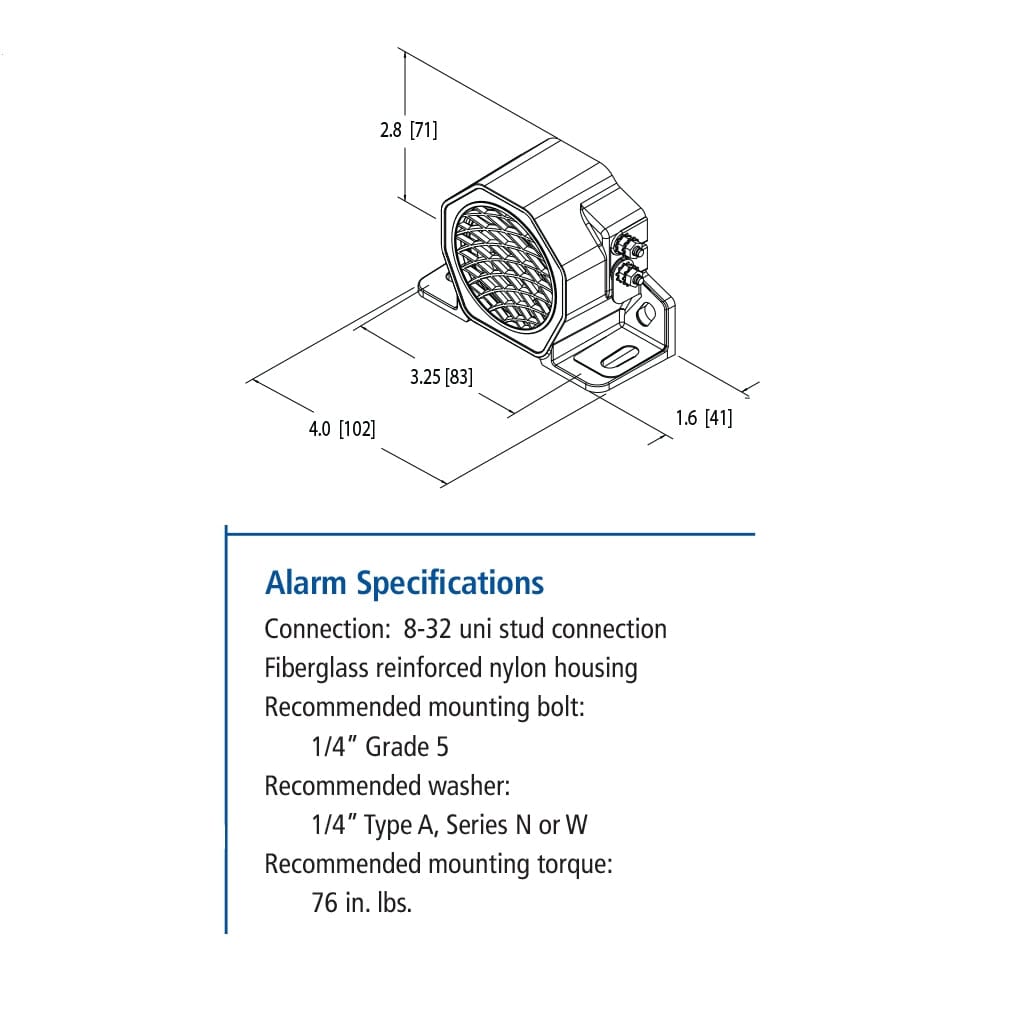

Technical line drawing of the alarm in an isometric view with dimensions: 2.8 inches height, 3.25 inches mounting hole width, 4.0 inches overall width, and 1.6 inches depth.
Angled studio shot of the ECCO 510 alarm highlighting the compact black housing, blue specification label, and two threaded stud terminals on the side.
Front view of the black ECCO 510 back-up alarm showing the speaker grille pattern, mounting flanges, and side stud terminals.
Detailed technical schematic displaying front, side, and top views with full measurements in inches and millimeters, along with a specifications list.
Technical line drawing of the alarm in an isometric view with dimensions: 2.8 inches height, 3.25 inches mounting hole width, 4.0 inches overall width, and 1.6 inches depth.
ECCO

ECCO 510 Back-Up Alarm 97 dB 12V Surface Mount Compact Reverse Warning Beeper SAE Type C

In stock
SKU: ECCO 510
$25.00

Description

Compact, Reliable Reverse Warning for Any Fleet

Enhance job site safety and reduce liability with the ECCO 510 Back-Up Alarm, the industry standard for compact reverse warning solutions. Part of the renowned 500 Series, this high-performance alarm delivers a powerful 97 dB(A) warning signal designed specifically for 12V systems. Its compact footprint makes it the perfect choice for a wide range of vehicles, from delivery vans and light trucks to forklifts and heavy equipment, where installation space may be limited but safety cannot be compromised.

Engineered to withstand the toughest working conditions, the ECCO 510 features a rugged glass-filled nylon housing with completely encapsulated electronics. This epoxy-sealed design provides superior protection against moisture, dust, and heavy vibration, ensuring a long service life even in harsh weather or off-road environments. Featuring ECCO's exclusive Self-Resonating Circuitry (SRC), the alarm automatically monitors and adjusts its frequency to the optimum level for prevailing environmental conditions, compensating for temperature shifts and age to maintain a consistent, compliant warning signal every time.

Key Features

  • High Visibility Sound: Produces a fixed 97 dB(A) warning tone to alert personnel of reversing vehicles.
  • Smart Audio Technology: Self-Resonating Circuitry (SRC) adjusts audio frequency for optimal volume and clarity.
  • Rugged Durability: Electronics are fully encapsulated in epoxy to protect against mud, water, and vibration.
  • Compact Design: Small profile housing allows for flexible mounting in tight spaces on various vehicle types.
  • Easy Installation: Features a universal mounting bracket with 2-bolt installation and self-grounding strap.
  • Universal Compatibility: Designed for 12V DC electrical systems (0.2 Amps draw).
  • Certified Safety: Meets SAE J994 Type C, CE, R10, and AMECA safety standards.
  • Weatherproof: IP65 rated enclosure allows for power washing and all-weather operation.

What's Included

  • (1) ECCO 510 Back-Up Alarm
  • (1) Integrated Universal Mounting Bracket

Specifications

Model Number 510
Series 500 Series
Sound Output 97 dB(A)
Voltage 12 VDC
Amperage 0.2 Amps
Mount Type 2 Bolt / Surface Mount
Connection Stud Terminal
Dimensions (WxHxD) 4.0" x 2.8" x 1.6"
Housing Material Glass-Filled Nylon
Approvals SAE Type C, CE, R10, IP65, AMECA
Operating Temp -40°F to 185°F
Warranty 2 Years

Pro-Tip: For the most effective operation and SAE compliance, mount the ECCO 510 on the rear of the vehicle with the sound opening facing outward and unobstructed. Avoid mounting securely against flexible body panels that vibrate excessively, as this can dampen the sound output.
