Slugger by Fein Annular Cutter 63134397042 1-9/16 Inch (2 Inch Depth HSS Magnetic Drill Press Bit 3/4 Inch Weldon Shank Structural Steel)

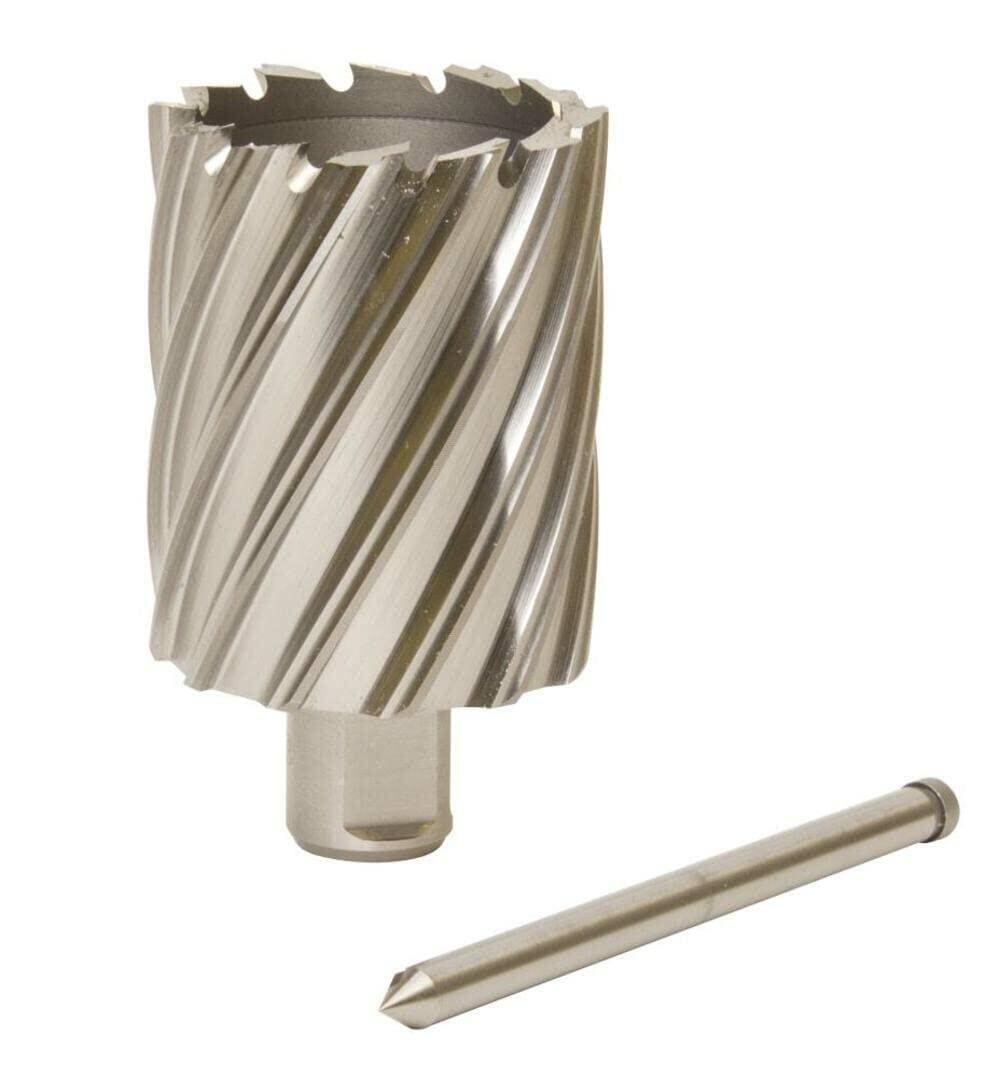

Slugger by Fein 63134397042 1-9/16-Inch x 2-Inch HSS Annular Cutter

The Slugger by Fein 63134397042 1-9/16-Inch x 2-Inch HSS Annular Cutter is a high-speed steel core drilling bit engineered to bore precise 1-9/16-inch diameter holes through structural steel, mild steel plate, and stainless steel up to 2 inches thick. Utilizing a 3/4-inch Weldon flat shank and a precision pilot pin, this CNC-machined cutter removes material solely along the perimeter of the cut to reduce feed force requirements. Designed for portable magnetic drill presses and workshop drilling machines, this industrial core bit solves slow drilling cycle times, excessive tool wear, and rough burr formation across heavy steel fabrication and structural framing jobsites.

Best Used For:

• Structural Steel I-Beam Framing: Drilling clean, burr-free 1-9/16-inch bolt pass-through holes in structural steel beams and heavy plate gussets.
• Stainless Steel & Alloy Fabrication: Machining precise core holes in tough alloy plate stock with reduced frictional heat generation.
• Magnetic Drill Press Field Operations: Executing rapid 2-inch deep hole cuts on jobsite locations using portable magnetic drills with 3/4-inch Weldon chucks.

Key Performance & Safety Features

• High-Speed Steel (HSS) Composition: Premium HSS construction delivers exceptional wear resistance and edge hardness during continuous metal cutting.
• 3/4-Inch Weldon Flat Shank: Universal dual-flat Weldon shank locks securely into magnetic drill spindles to eliminate slip under heavy torsional load.
• Integrated Pilot Pin Ejection System: Included pilot pin aligns the entry point, feeds cutting fluid to the tooth tips, and ejects the solid steel slug automatically.
• 2-Inch Maximum Cutting Depth: Extended barrel depth capacity allows single-pass drilling through thick structural plates and stacked metal stock.
• Precision CNC Tooth Geometry: Formulated tooth angles slice thin swarf chips to optimize drilling speed and minimize machine horsepower draw.

What's Included

• (1) Slugger by Fein 1-9/16 in. x 2 in. HSS Annular Cutter (63134397042)
• (1) Matching Centering & Slug Ejection Pilot Pin

Technical Specifications

Pro-Tip: Always apply cutting fluid or wax internally through the pilot pin reservoir before drilling structural steel to extend cutter edge life and guarantee clean slug ejection.
