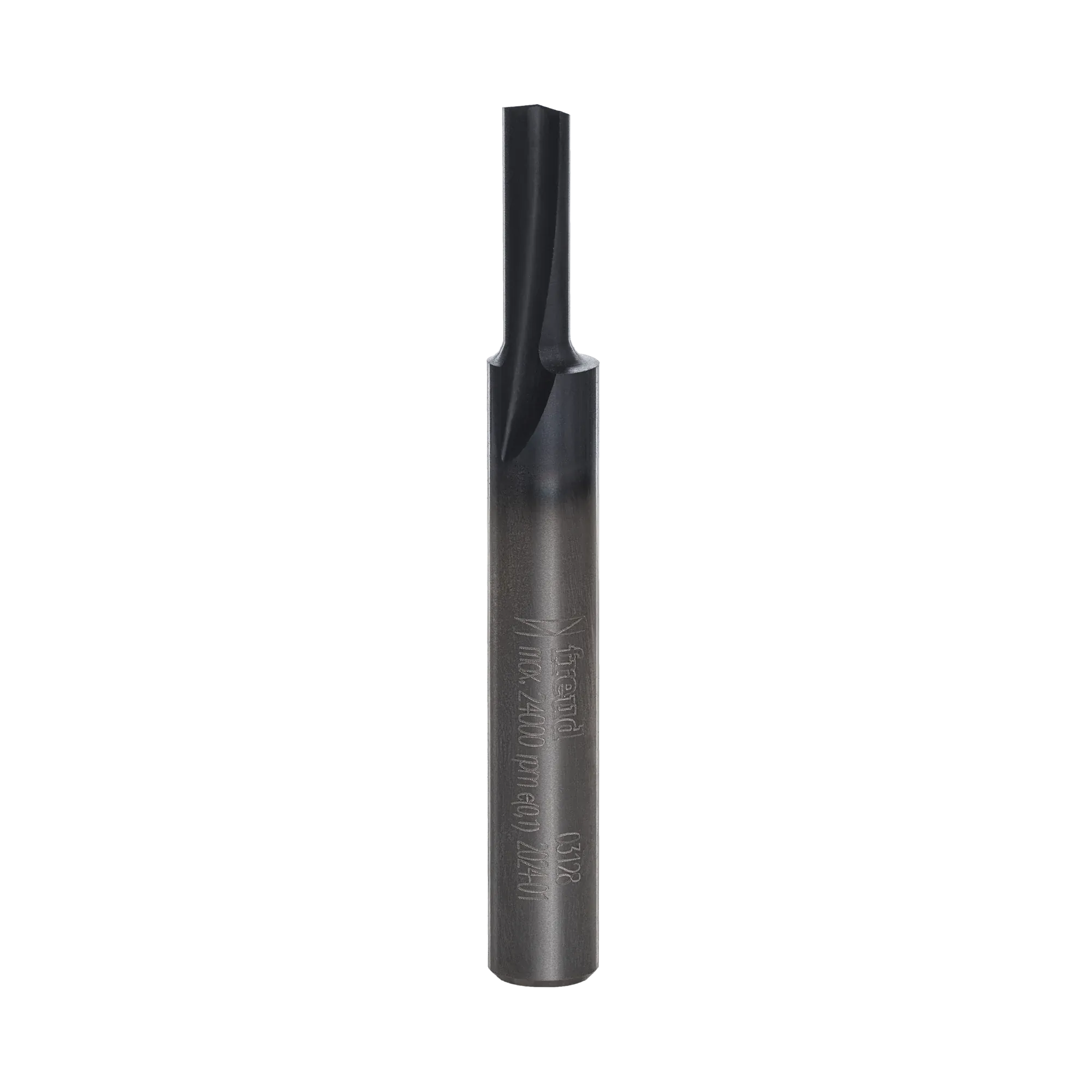

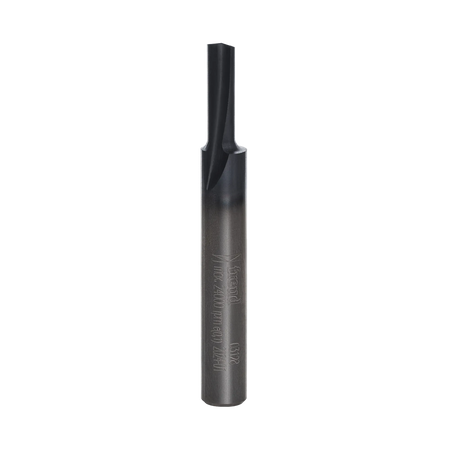

A professional studio photograph of the Freud 03-128 single flute straight router bit, showcasing its distinct Black I.C.E. industrial coating on the cutting head and a polished 1/4-inch steel shank.
A technical diagram for the Freud 03-128 bit, illustrating a precise straight-walled cut in a wood cross-section that is 3/16 of an inch wide and 1/2 of an inch deep.
A technical 3D rendering of a wooden block with a clean, precise 3/16-inch wide straight groove routed through the center to demonstrate the cutting profile of the Freud 03-128 bit.
A technical overhead diagram of the Freud 03-128 router bit, highlighting the single flute's massive open gullet design which provides maximum chip clearance for fast production feed rates.
Freud Black Ice CNC Bits promotional video
A professional studio photograph of the Freud 03-128 single flute straight router bit, showcasing its distinct Black I.C.E. industrial coating on the cutting head and a polished 1/4-inch steel shank.
A technical diagram for the Freud 03-128 bit, illustrating a precise straight-walled cut in a wood cross-section that is 3/16 of an inch wide and 1/2 of an inch deep.
A technical 3D rendering of a wooden block with a clean, precise 3/16-inch wide straight groove routed through the center to demonstrate the cutting profile of the Freud 03-128 bit.
A technical overhead diagram of the Freud 03-128 router bit, highlighting the single flute's massive open gullet design which provides maximum chip clearance for fast production feed rates.
Freud Black Ice CNC Bits promotional video
Freud

Freud 03-128 3/16 Inch Single Flute Straight Router Bit 1/4 Inch Shank Black ICE Coated TiCo Carbide Woodworking Tool for High Speed CNC Work

Only 1 left
SKU: 03-128
$9.95

Description

Achieve Industrial Feed Rates with Freud’s High-Clearance Black I.C.E. Straight Bits

The Freud 03-128 3/16" Single Flute Straight Router Bit is engineered for high-volume production where rapid material removal and superior chip evacuation are critical. Featuring a single-flute geometry, this bit provides maximum open gullet space, allowing for much faster feed rates compared to standard double-flute bits without the risk of clogging. This design is ideal for grooving, slotting, and plunging in hardwoods, softwoods, plywood, and abrasive composites.

This bit features Freud’s innovative Black I.C.E. (Industrial Cooling Element) coating, which keeps the cutting edge cool and significantly reduces pitch buildup. When combined with TiCo™ Hi-Density Carbide, this coating delivers up to 2X the tool life and performance of standard uncoated bits. Optimized for use in CNC machines, table-mounted routers, and hand-held units, the 03-128 ensures a cleaner finish and more efficient workflow for any professional woodworking shop.

Key Features

  • Black I.C.E. Coating: Provides a cool cutting edge and superior chip evacuation for high-speed production.
  • TiCo™ Hi-Density Carbide: Specialized industrial-grade carbide formula for maximum edge retention and durability.
  • Maximum Chip Clearance: Single-flute design allows for fast feed rates in various materials.
  • Universal Compatibility: Optimized for peak performance in CNC, hand-held, and table-mounted routers.
  • Extended Tool Life: Delivers 2X increased performance compared to standard uncoated bits.

What's Included

  • (1) Freud 03-128 3/16" Single Flute Straight Router Bit

Specifications

Brand Name Freud
Model # 03-128
Overall Diameter 3/16 Inch
Carbide Height 1/2 Inch
Shank Diameter 1/4 Inch
Overall Length 2 Inches
Number of Cutters 1
Max RPM 24,000
Coating Black I.C.E.
Material TiCo™ Hi-Density Carbide
Pro-Tip: Because single-flute bits remove a large amount of material per rotation, always maintain a steady, rapid feed rate. This prevents the bit from dwelling in one spot, which can cause friction heat and premature dulling, even with advanced coatings like Black I.C.E.
