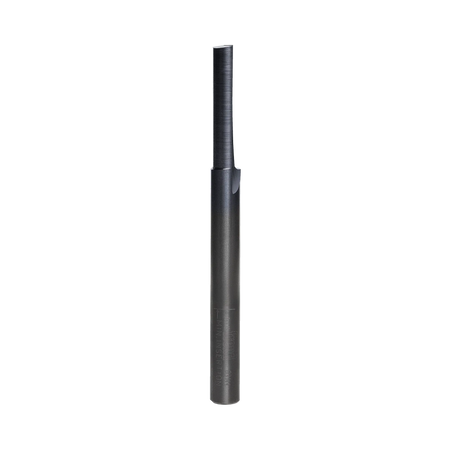

Studio product shot of the Freud 03-144 single flute straight router bit, featuring a long silver 1/4-inch shank and a dark grey Black I.C.E. coated cutting head.
Technical diagram showing the dimensions of the Freud 03-144 bit, indicating a 1/4 inch cutting diameter, a 1 inch cutting height, and an extended overall length of 3 inches.
Retail packaging for the Freud 03-144 Single Flute Straight Bit, featuring the extended length tool in a clear blister pack and highlighting the 1/4 inch diameter and Black I.C.E. coating.
3D computer graphic showing a block of wood with a narrow square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the single grey carbide cutting flute designed for fast chip clearance against a red background.
Studio product shot of the Freud 03-144 single flute straight router bit, featuring a long silver 1/4-inch shank and a dark grey Black I.C.E. coated cutting head.
Freud Black Ice CNC Bits promotional video
Studio product shot of the Freud 03-144 single flute straight router bit, featuring a long silver 1/4-inch shank and a dark grey Black I.C.E. coated cutting head.
Technical diagram showing the dimensions of the Freud 03-144 bit, indicating a 1/4 inch cutting diameter, a 1 inch cutting height, and an extended overall length of 3 inches.
Retail packaging for the Freud 03-144 Single Flute Straight Bit, featuring the extended length tool in a clear blister pack and highlighting the 1/4 inch diameter and Black I.C.E. coating.
3D computer graphic showing a block of wood with a narrow square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the single grey carbide cutting flute designed for fast chip clearance against a red background.
Studio product shot of the Freud 03-144 single flute straight router bit, featuring a long silver 1/4-inch shank and a dark grey Black I.C.E. coated cutting head.
Freud Black Ice CNC Bits promotional video
Freud

Freud Straight Router Bit 03-144 1/4 Inch Single Flute (1/4 Inch Shank Black ICE Extended 3 Inch Length TiCo Carbide 24000 RPM CNC Fast Grooving)

Only 1 left
SKU: 03-144
$13.99 USD

Description

Freud precisely the best logo Logout

Freud 03-144 1/4 Inch Single Flute Extended Reach Straight Router Bit

The Freud 03-144 is a 1/4-inch overall cutting diameter single-flute straight router bit engineered for high-speed material removal, rapid deep-pocket routing, and fast chip clearance. Built with a 1/4-inch shank, a 1-inch carbide height, and an extended 3-inch overall length, this single-cutter tool features an open single-flute design that maximizes waste ejection during deep passes. Tipped with TiCo™ Hi-Density Micrograin Carbide and coated with thermal-repelling Black I.C.E. (Industrial Cooling Element) technology, it operates at rotational speeds up to 24,000 RPM across CNC machinery, router tables, or handheld routers in solid hardwoods, softwoods, plywood, and wood composites.

Best Used For:

  • Rapid CNC Roughing Passes: Executing high-speed slot milling and rapid material clearing passes across sheet goods prior to final finishing routines.
  • Extended-Reach Deep Pocketing: Reaching deep interior recesses and thick panel stock using the 3-inch extended overall tool length.
  • Narrow High-Feed Grooving: Milling 1/4-inch wide dado grooves at aggressive feed rates without chip pack-up or thermal clogging.

Key Performance & Safety Features

  • Single-Flute Open Gullet Design: Maximizes chip clearance volume to enable faster linear feed rates and eliminate chip packing in deep cuts.
  • Black I.C.E. Thermal Coating: Industrial cooling element coating repels frictional heat and pitch buildup to preserve cutter edge sharpness.
  • 3-Inch Extended Overall Length: Extended tool length capacity provides reach for thick stock routing and deep interior template passes.
  • TiCo™ Hi-Density Micrograin Carbide: Custom-formulated titanium-cobalt micrograin carbide edges resist abrasive wear under continuous friction.
  • Plunge-Cut Tip Geometry: Precision end-ground face supports vertical drilling entry for starting internal grooves and blind mortises.
  • 24,000 RPM Maximum Speed Rating: Precision-balanced body geometry maintains stable operation at high rotational spindle speeds.

What's Included

  • (1) Freud 03-144 1/4" Single Flute Straight Router Bit with 1/4" Shank

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 03-144
Overall Cutting Diameter (D) 0.250 inches (1/4" / 6.4 mm)
Shank Diameter (A) 0.250 inches (1/4" / 6.4 mm)
Carbide Cutting Height (h) 1.000 inch (1" / 25.4 mm)
Overall Tool Length (H) 3.000 inches (3" / 76.2 mm)
Number of Flutes / Cutters 1 Flute (Single Flute Design)
Cutter Protective Coating Black I.C.E. (Industrial Cooling Element)
Cutting Style Profile Straight / Plunge Cutting Edge
Maximum Operating Speed 24,000 RPM
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Handheld Routers, Router Tables

Pro-Tip: When using an extended 3-inch length bit with a 1/4-inch shank, run fast feed rates on CNC machines to maintain a proper chip load and prevent tool deflection in deep passes.
