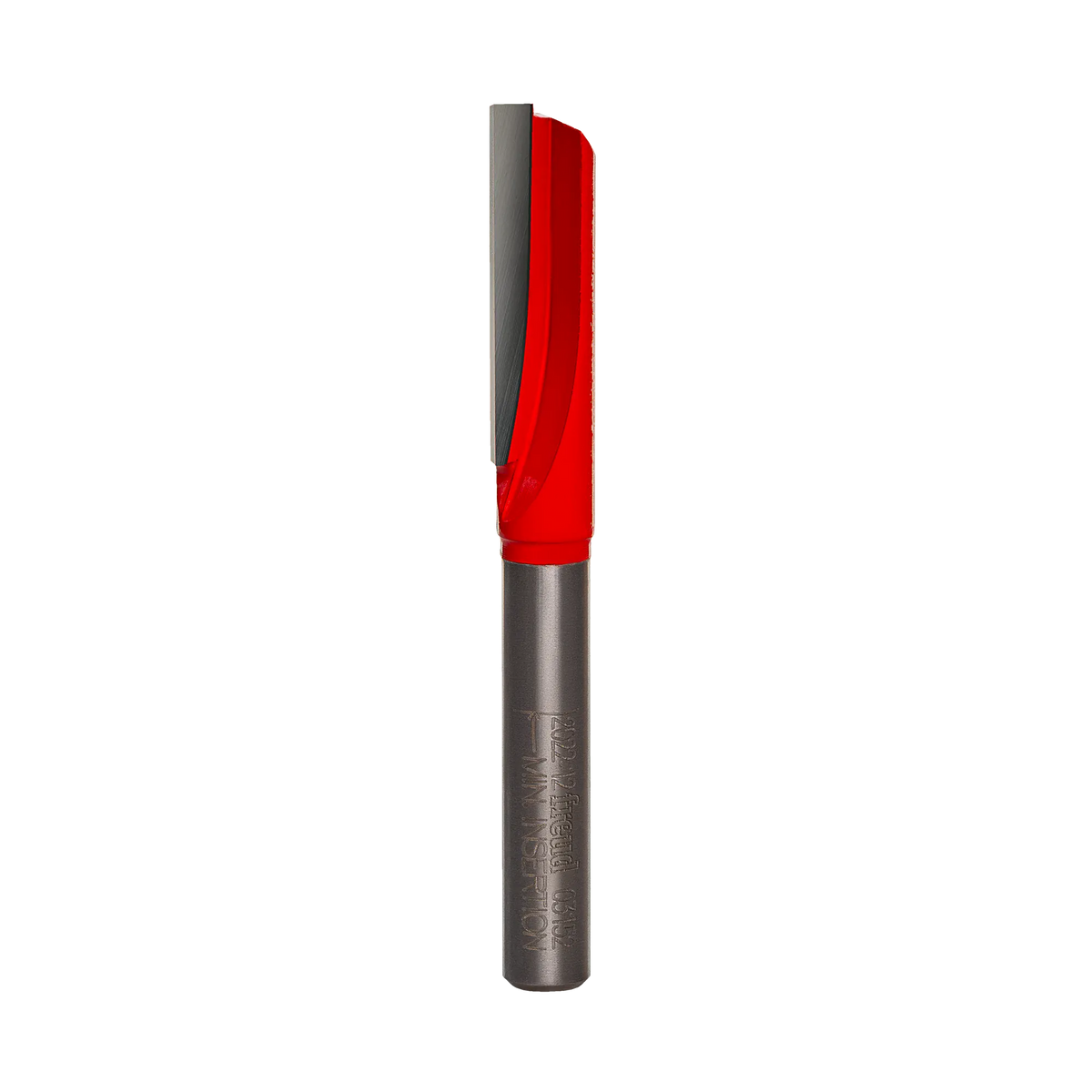

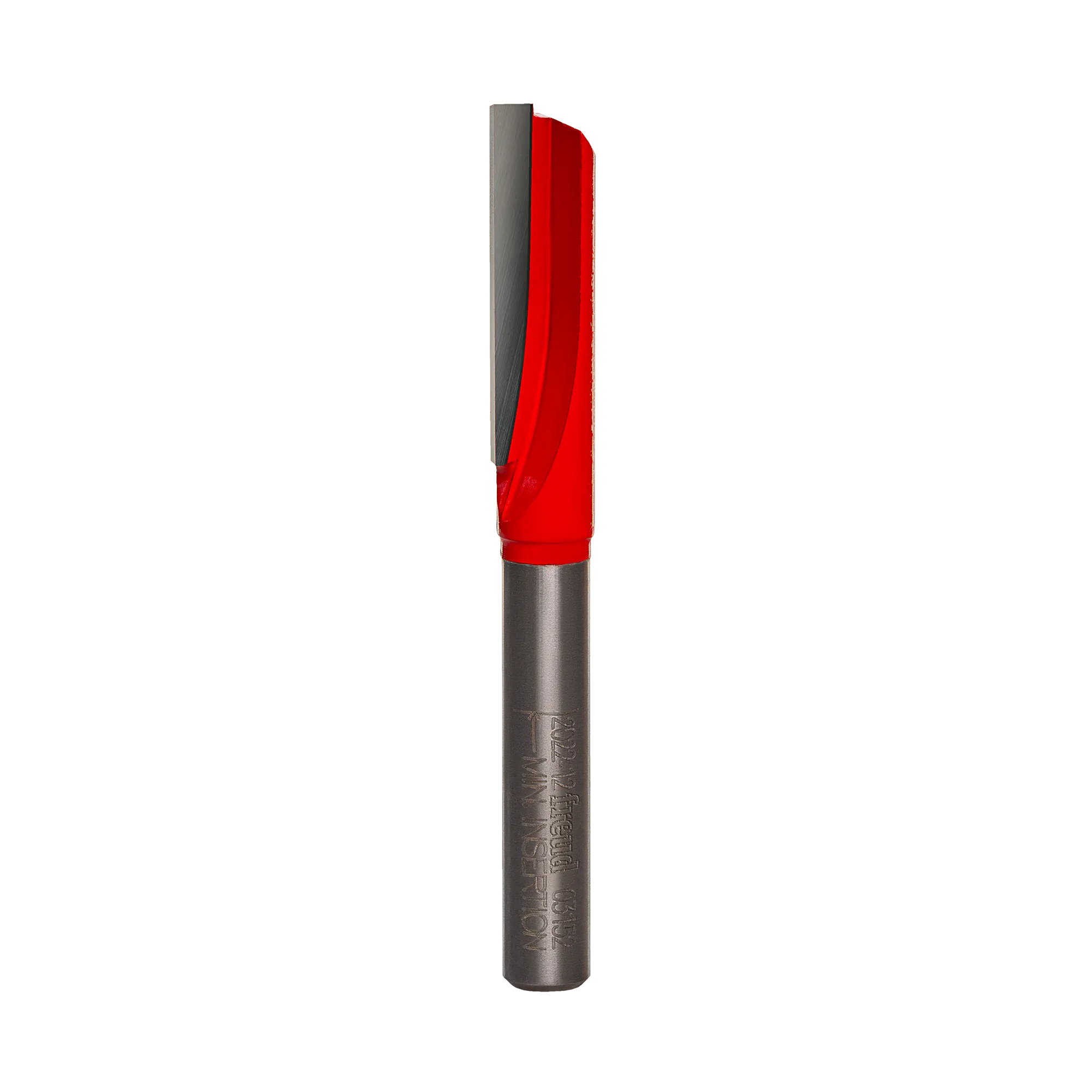

A studio product photograph of the Freud 03-152 single flute straight router bit, showcasing its solid carbide construction, sharp silver cutting edge, and polished 1/4 inch steel shank.
A technical diagram illustrating the cutting profile of the Freud 03-152 bit, showing a cross-section of a wood block with a precise 5/16 inch wide and 1 inch deep straight cut.
A technical 3D rendering of a wooden block featuring a clean, precise straight groove routed through the center to demonstrate the high-production cutting capability of the Freud 03-152 bit.
A technical overhead diagram of the Freud 03-152 single flute router bit, highlighting the massive open gullet design that allows for maximum chip clearance and fast production rates.
A studio product photograph of the Freud 03-152 single flute straight router bit, showcasing its solid carbide construction, sharp silver cutting edge, and polished 1/4 inch steel shank.
A technical diagram illustrating the cutting profile of the Freud 03-152 bit, showing a cross-section of a wood block with a precise 5/16 inch wide and 1 inch deep straight cut.
A technical 3D rendering of a wooden block featuring a clean, precise straight groove routed through the center to demonstrate the high-production cutting capability of the Freud 03-152 bit.
A technical overhead diagram of the Freud 03-152 single flute router bit, highlighting the massive open gullet design that allows for maximum chip clearance and fast production rates.
Freud

Freud 03-152 5/16 Inch Single Flute Straight Router Bit 1/4 Inch Shank Solid Carbide High Production Tool for Hardwood Plywood CNC and Routers

Only 1 left
SKU: 03-152
$10.99

Description

Achieve Rapid Material Removal with Freud’s Industrial Single Flute Straight Bit

The Freud 03-152 Single Flute Straight Router Bit is engineered for high-volume production environments where speed and chip clearance are the top priorities. Unlike standard double-flute bits, the single-flute design provides massive open space for chip evacuation, allowing for significantly faster feed rates without clogging or overheating. This makes it the ideal choice for contractors and woodworkers who need to plow through hardwood, softwood, plywood, or composites quickly and efficiently.

Crafted from Freud Premier Solid Carbide, the 03-152 is built to maintain a razor-sharp edge much longer than high-speed steel alternatives, even when working with abrasive composite materials. The bit features a specialized end-of-bit relief geometry that allows for lightning-fast plunging, while the precise hook and shear angles ensure a smooth finish despite the aggressive feed rate. Whether you are using a CNC machine, a table router, or a hand-held portable unit, this bit delivers industrial-grade performance for general stock removal and rapid trenching.

Key Features

  • Maximum Chip Clearance: Specialized single-flute design enables superior chip evacuation for high-speed production.
  • Freud Premier Solid Carbide: Provides extreme durability and extended cutting life compared to HSS bits.
  • Fast Plunge Cutting: Features end-of-bit relief for rapid, effortless plunging into wood and composites.
  • Universal Machine Compatibility: Fully optimized for use in CNC, hand-held, table-mounted, and palm routers.
  • Versatile Material Range: Easily cuts through all composition materials, veneered plywoods, hardwoods, and softwoods.
  • Perma-SHIELD® Coating: Non-stick red coating reduces blade drag and protects against heat and resin buildup.

What's Included

  • (1) [Freud 03-152](http://googleusercontent.com/shopping_content/6_link) 5/16" Single Flute Straight Router Bit

Specifications

Country of Origin: Italy
Overall Diameter (D) 5/16 Inch
Shank Diameter (A) 1/4 Inch
Carbide Height (h) 1 Inch
Overall Length (H) 2-1/2 Inches
Number of Cutters 1
Maximum RPM 24,000 RPM
Bit Material Solid Carbide
UPC Code 008925382287
Cutting Direction Right Hand
Ideal Application Fast stock removal
Pro-Tip: Because single-flute bits are designed for fast feed rates, they generate less heat at high speeds than double-flute bits. To get the best finish, keep the router moving consistently; pausing in one spot can cause friction-induced burn marks, even with the superior chip clearance of this Freud bit.
