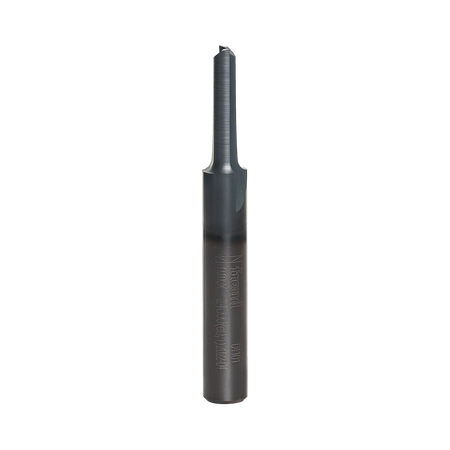

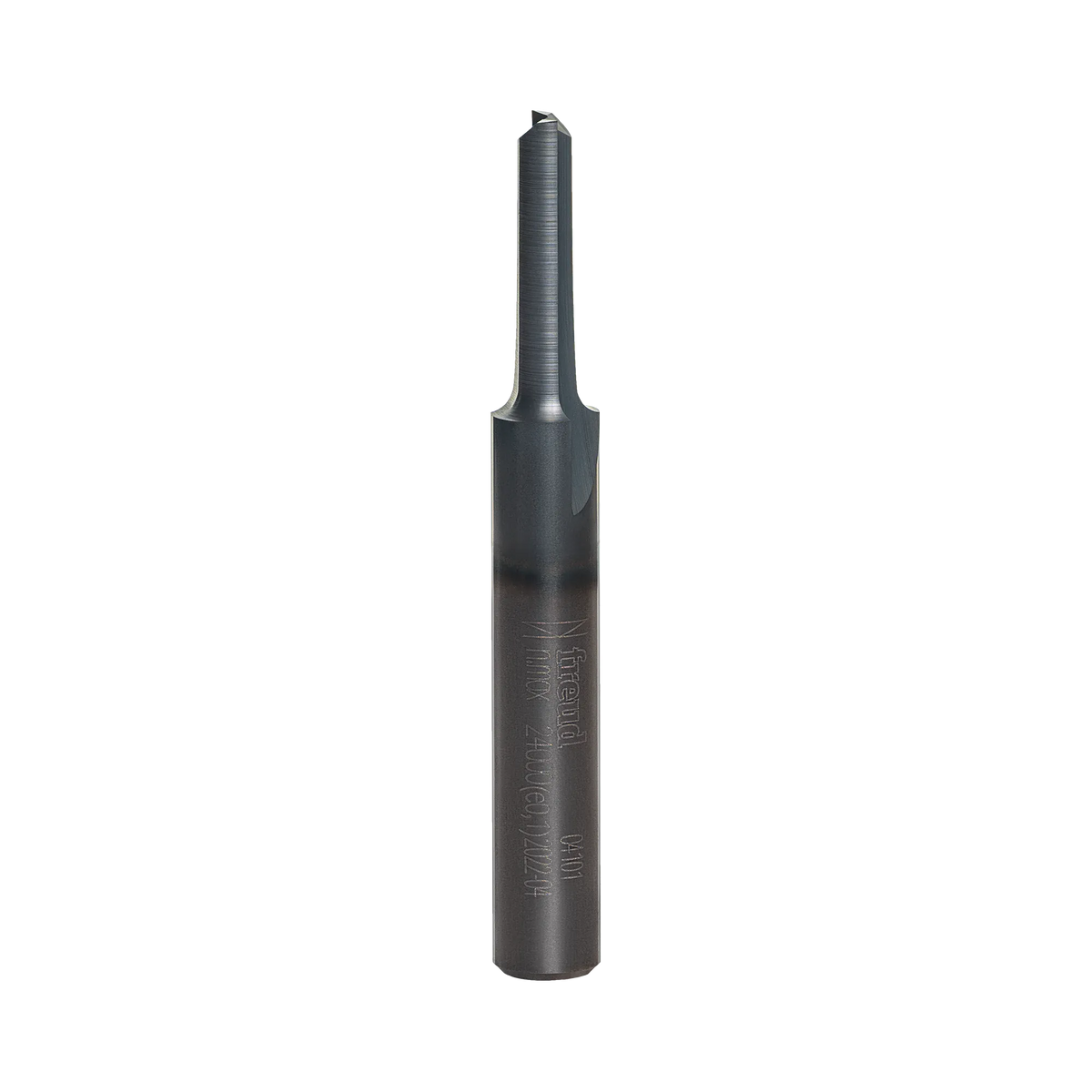

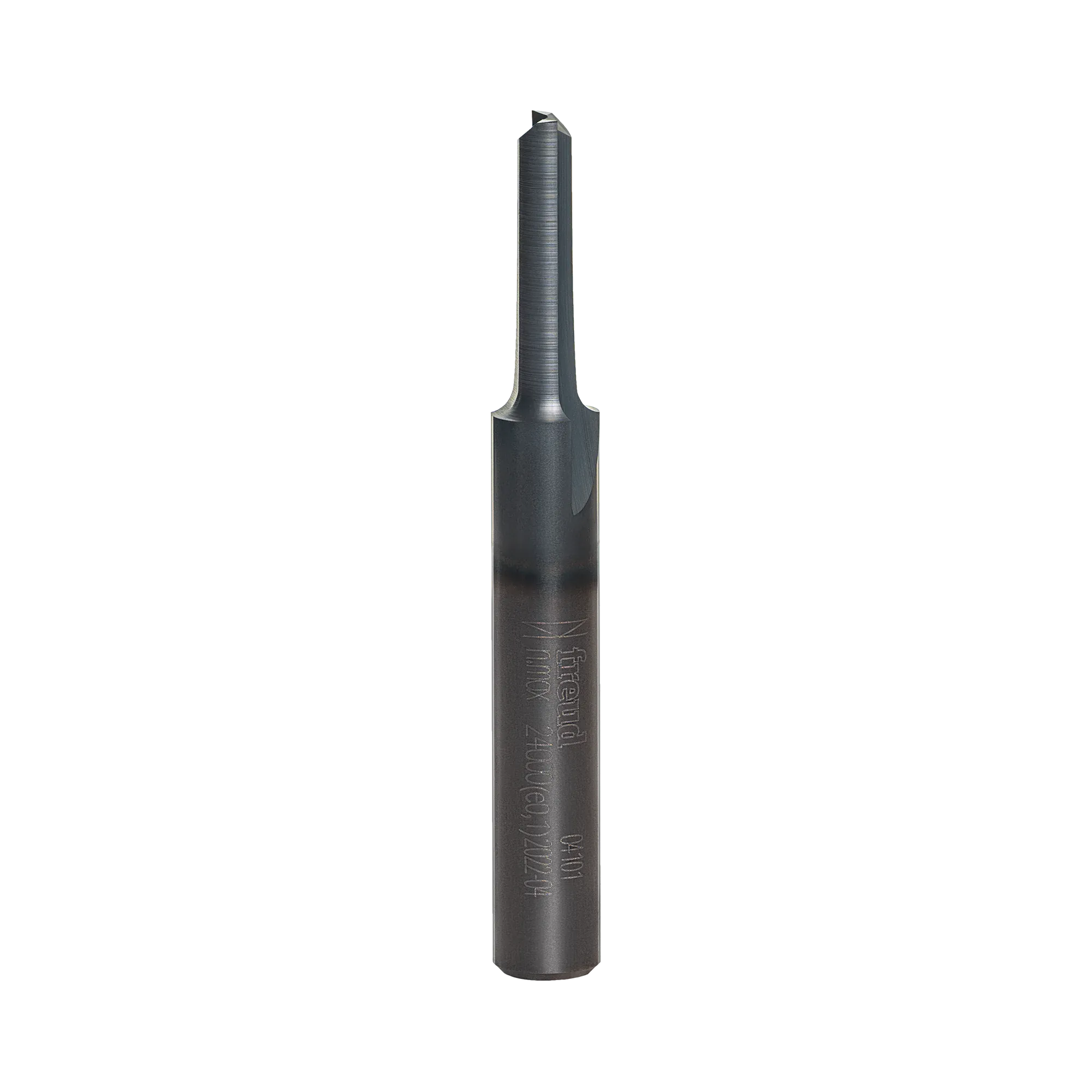

Studio product shot of the Freud 04-101 double flute straight router bit, featuring a silver 1/4-inch shank and a dark grey Black I.C.E. coated cutter head.
Retail packaging for the Freud 04-101 Double Flute Straight Bit, featuring the dark Black I.C.E. coated tool in a clear blister pack and highlighting the 5/32 inch diameter.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 5/32 inch and a cutting depth of 5/8 inch for model number 04-101.
3D computer graphic showing a block of wood with a narrow square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Freud Black Ice CNC Bits promotional video
Studio product shot of the Freud 04-101 double flute straight router bit, featuring a silver 1/4-inch shank and a dark grey Black I.C.E. coated cutter head.
Retail packaging for the Freud 04-101 Double Flute Straight Bit, featuring the dark Black I.C.E. coated tool in a clear blister pack and highlighting the 5/32 inch diameter.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 5/32 inch and a cutting depth of 5/8 inch for model number 04-101.
3D computer graphic showing a block of wood with a narrow square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Freud Black Ice CNC Bits promotional video
Freud

Freud 04-101 5/32 Inch Double Flute Straight Router Bit 1/4 Inch Shank Black ICE Carbide for Grooving Edge Routing Wood Plywood Composites

Only 1 left
SKU: 04-101
$14.99

Description

Maximize Detail and Tool Life with the Freud 5/32 Inch Black I.C.E. Straight Router Bit

Achieve exceptional precision in your finest woodworking projects with the Freud 04-101 5/32 Inch Double Flute Straight Bit. Designed for intricate grooving, delicate inlays, and detailed routing, this bit features Freud's revolutionary Black I.C.E. (Industrial Cooling Element) coating. This advanced, slick coating shields the cutting edge against heat and pitch buildup, allowing the tool to run significantly cooler than standard bits. When paired with Freud's exclusive TiCo Hi-Density Carbide, this technology delivers up to 2X the cutting life and performance of standard uncoated cutters, ensuring that your fine detail work remains sharp and clean project after project.

The 04-101 is engineered for professional versatility and a flawless finish across a variety of materials, including hardwood, softwood, plywood, and abrasive composites. Its computer-balanced double flute geometry utilizes precise hook and shear angles to slice cleanly through wood fibers, minimizing vibration and leaving a smooth surface that often requires no sanding. The carbide tips are relief-ground to facilitate safe and effective plunge cutting, making this tool perfect for starting blind grooves or internal cutouts directly in the center of a workpiece. Whether you are running a CNC machine for complex patterns or using a hand-held router for joinery, this bit provides the reliability you need.

Key Features

  • Black I.C.E. Coating: Innovative coating reduces heat, improves chip evacuation, and prevents pitch buildup.
  • TiCo Hi-Density Carbide: Proprietary blend maximizes hardness and edge retention for extended tool life.
  • 2X Performance: Delivers twice the life and performance compared to standard uncoated router bits.
  • Double Flute Design: Two precision-ground edges ensure fast material removal and a superior finish.
  • Plunge Cutting Ready: Relieved tips allow for vertical drilling and starting grooves anywhere on the material.
  • Small Diameter Precision: 5/32 inch diameter is ideal for inlays, fine slots, and detailed joinery.
  • Versatile Compatibility: Engineered for use in CNC, hand-held, and table-mounted routers.

What's Included:

  • (1) 5/32 In. Double Flute Straight Bit with 1/4 In. Shank (Model 04-101)

Specifications

Model Number 04-101
Overall Diameter (D) 5/32 In.
Shank Diameter (A) 1/4 In.
Carbide Height (h) 5/8 In.
Overall Length (H) 1-1/2 In.
Number of Flutes 2 (Double Flute)
Max RPM 24,000 RPM
Material TiCo Hi-Density Carbide
Coating Black I.C.E.
Bit Type Straight Plunge
Pro-Tip: Small diameter bits like this 5/32" cutter are extremely susceptible to deflection and breakage if pushed too hard. To prolong the life of the bit and utilize the Black I.C.E. coating effectively, never attempt to cut the full 5/8" depth in a single pass. Instead, take multiple shallow passes (approx. 1/16" to 1/8" per pass) to ensure a clean cut and prevent overheating.
