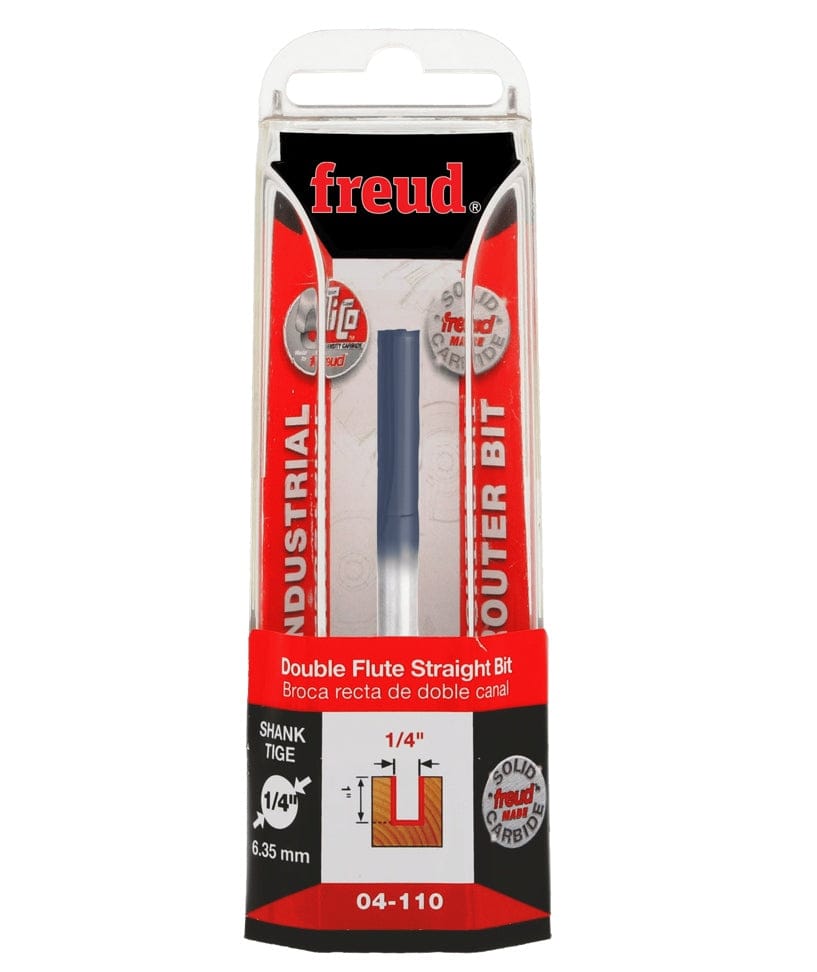

Retail packaging for the Freud 04-110 Double Flute Straight Bit, featuring the tool in a clear blister pack and highlighting the 1/4 inch diameter and 1 inch cutting depth.

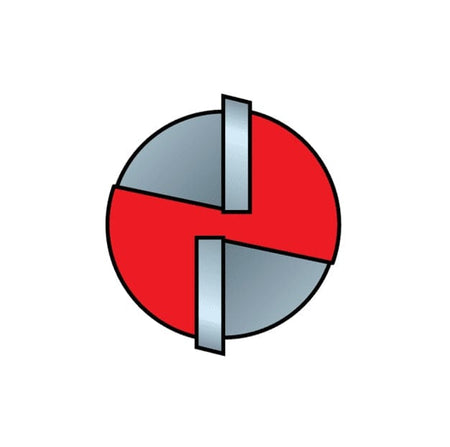

Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.

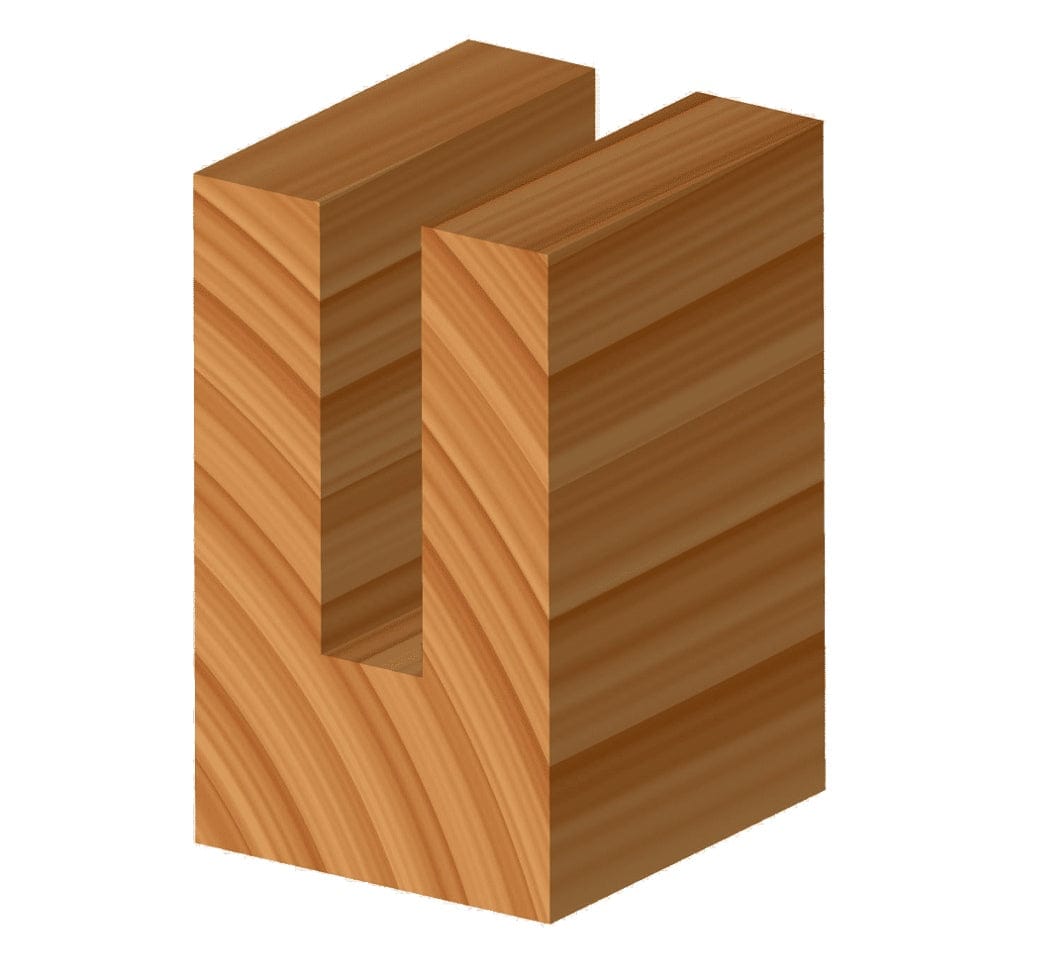

3D computer graphic showing a block of wood with a narrow square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Studio product shot of the Freud 04-110 double flute straight router bit, featuring a silver 1/4-inch shank and a dark grey Black I.C.E. coated cutter head.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 1/4 inch and a cutting depth of 1 inch for model numbers 04-108 and 04-110.
Retail packaging for the Freud 04-110 Double Flute Straight Bit, featuring the tool in a clear blister pack and highlighting the 1/4 inch diameter and 1 inch cutting depth.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
3D computer graphic showing a block of wood with a narrow square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Freud

Freud 04-110 1/4 Inch Double Flute Straight Router Bit 1/4 Inch Shank TiCo Carbide Extended Reach for Grooving Edge Routing Wood Composites

Only 1 left
SKU: 04-528
$18.99

Description

Achieve Deep Precision Grooves with the Freud 1/4 Inch Double Flute Straight Router Bit

Unlock superior reach and precision in your woodworking projects with the Freud 04-110 1/4 Inch Double Flute Straight Bit. Designed for deep channel cutting and general-purpose routing, this professional-grade tool features an extended overall length (2-7/8") that standard bits simply cannot match. It is crafted from Freud's exclusive TiCo Hi-Density Carbide, a proprietary blend that maximizes hardness and heat resistance. This premium construction ensures the bit retains a razor-sharp edge significantly longer than standard cutters, delivering clean, chatter-free results in hardwood, softwood, plywood, and abrasive composites.

The 04-110 is engineered for versatility and finish quality. Its computer-balanced double flute geometry utilizes precise hook and shear angles to slice cleanly through wood fibers, leaving a smooth surface that requires minimal sanding. The carbide tips are also relief-ground to facilitate safe and effective plunge cuts, making this tool perfect for starting dados, mortises, or internal cutouts in the center of a workpiece. Whether you are using a CNC machine, a hand-held router, or a table-mounted setup, this bit offers the durability and accuracy required for fine joinery and cabinetry.

Key Features

  • TiCo Hi-Density Carbide: Specialized carbide blend offers maximum hardness and heat resistance for extended tool life.
  • Extended Reach: 2-7/8 inch overall length allows for access to deeper grooves and template work.
  • Double Flute Design: Two precision-ground edges ensure fast chip removal and a smooth, superior finish.
  • Plunge Cutting Ready: Tips are relieved to allow for vertical drilling and starting grooves in the center of the material.
  • 1/4 Inch Shank: Compatible with laminate trimmers, hand-held routers, and CNC machines.
  • Precision Geometry: Optimized shear angles reduce cutting resistance and prevent burning.

What's Included:

  • (1) 1/4 In. Double Flute Straight Bit with 1/4 In. Shank (Model 04-110)

Specifications

Model Number 04-110
Overall Diameter (D) 1/4 In.
Shank Diameter (A) 1/4 In.
Carbide Height (h) 1 In.
Overall Length (H) 2-7/8 In.
Number of Flutes 2 (Double Flute)
Max RPM 24,000 RPM
Material TiCo Hi-Density Carbide
Bit Type Straight Plunge
Application Material Wood, Plywood, Composites
Pro-Tip: While this bit offers extended reach (2-7/8"), the 1/4" diameter makes it susceptible to deflection if pushed too hard. For deep grooves, always take multiple shallow passes (approximately 1/8" deep per pass) rather than attempting to cut the full depth at once. This ensures a cleaner finish and prevents tool breakage.
