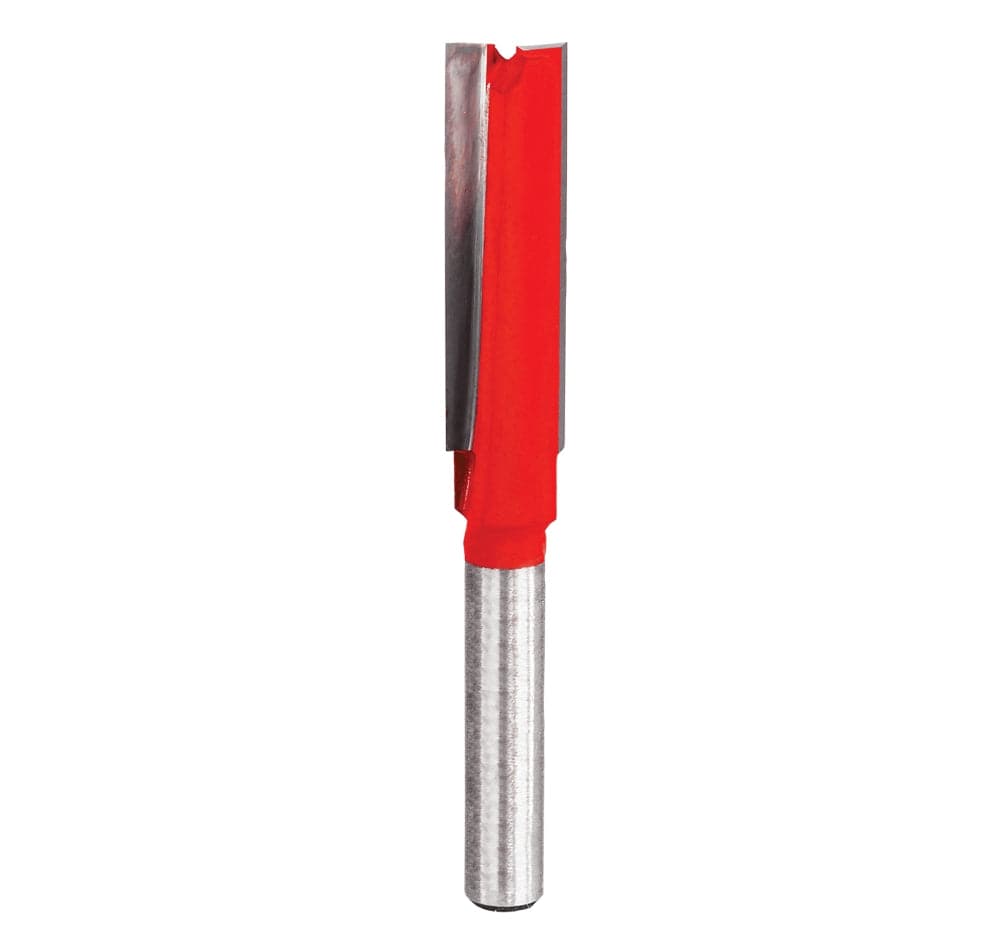

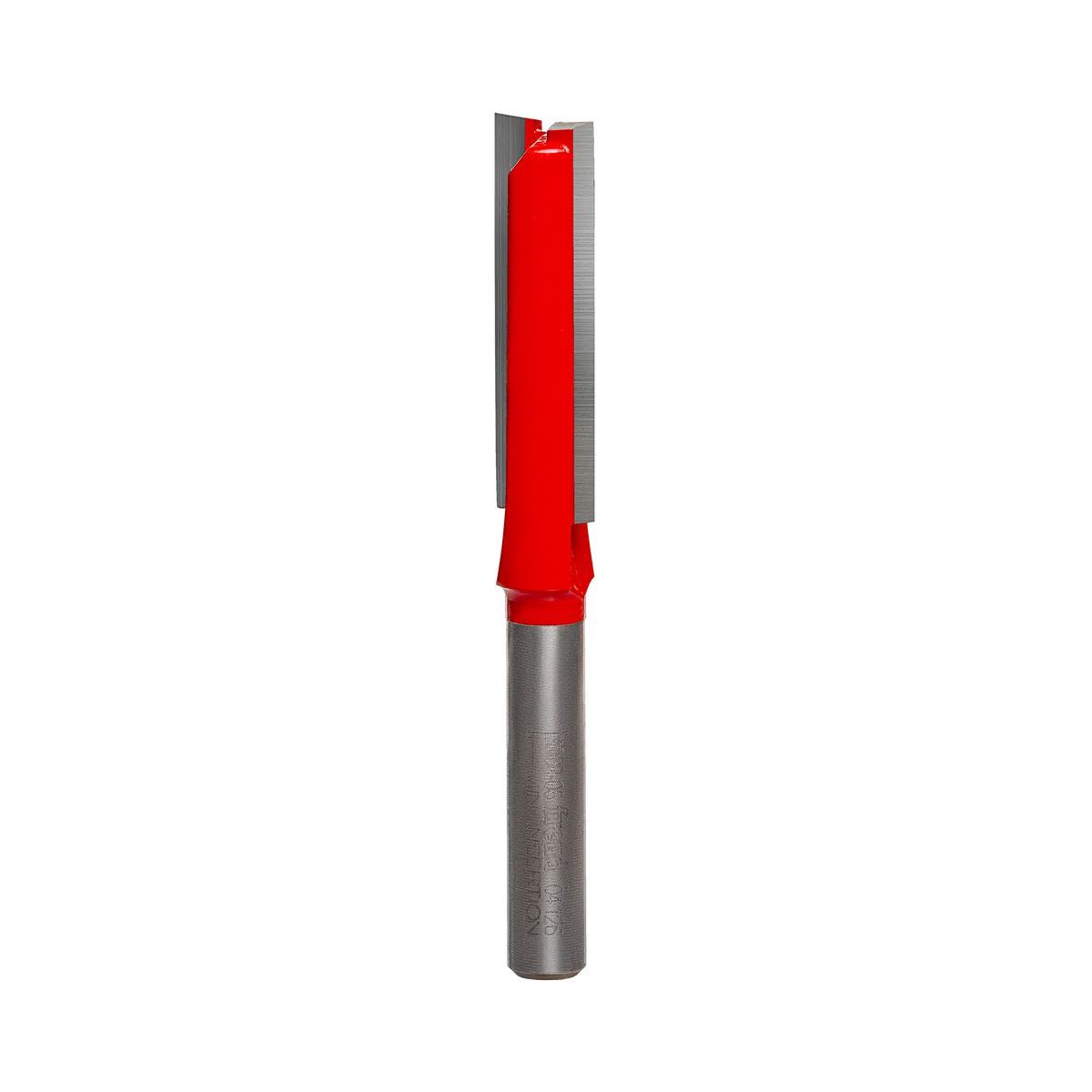

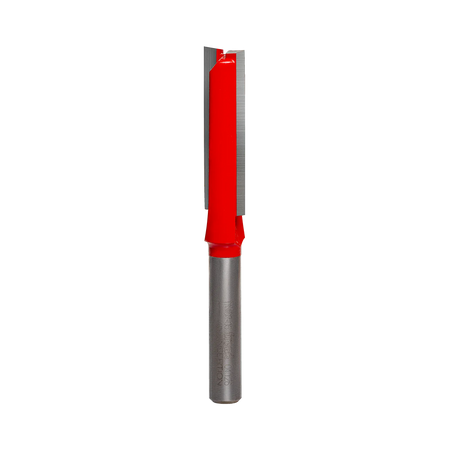

Studio product shot of the Freud 04-126 double flute straight router bit, showing the standard 1/4-inch silver shank and the red Perma-SHIELD coated cutter head with two carbide flutes.

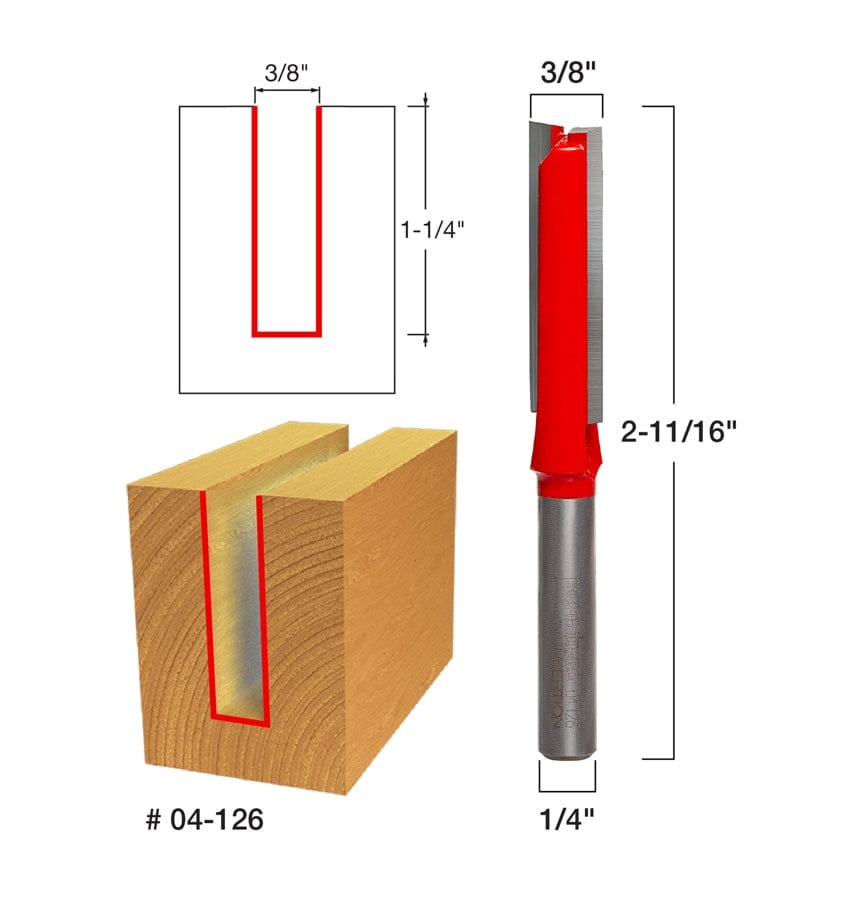

Technical diagram showing a cross-section of a wood cut, indicating a slot width of 3/8 inch and a deep cutting depth of 1-1/4 inch for model number 04-126.
Retail packaging for the Freud 04-126 Double Flute Straight Bit, featuring the red tool in a clear blister pack and highlighting the 3/8 inch diameter and deep 1-1/4 inch cutting height.

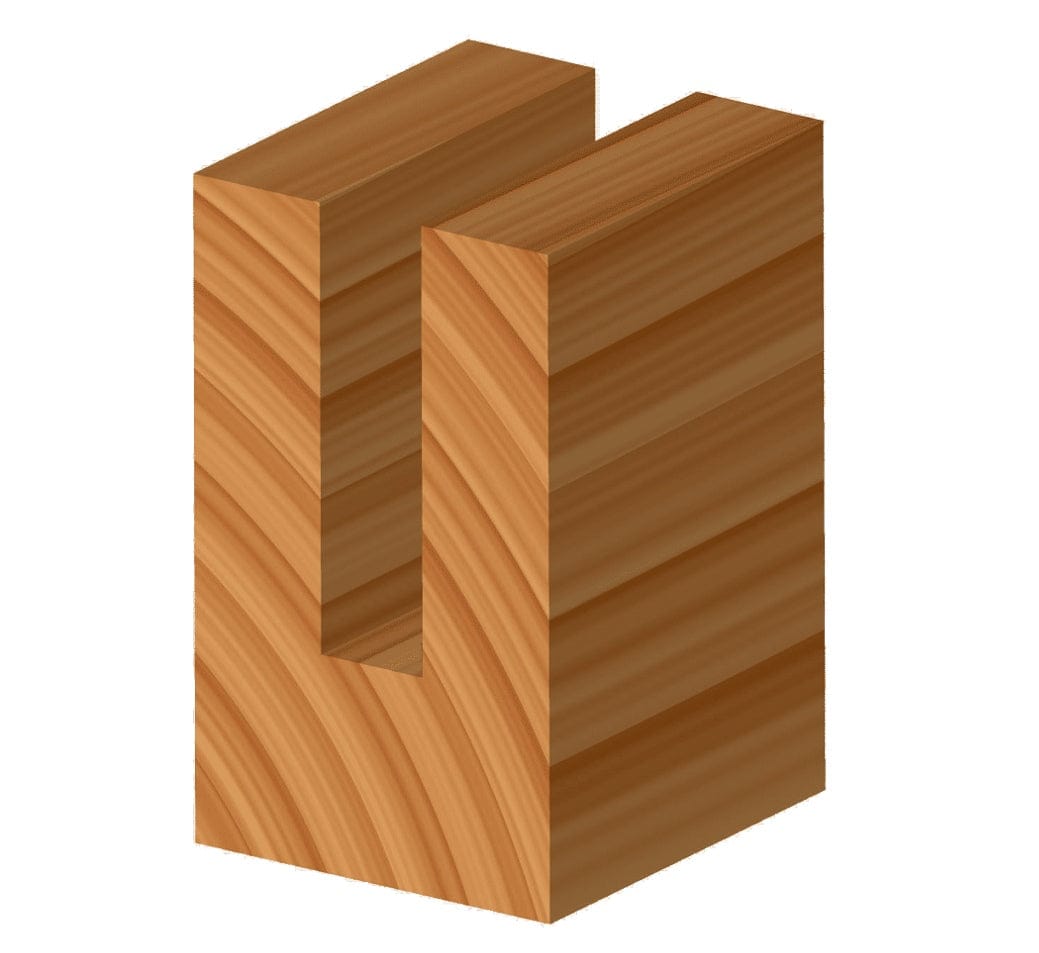

3D computer graphic showing a block of wood with a deep, square channel groove cut into the top surface, illustrating the profile created by the straight bit.

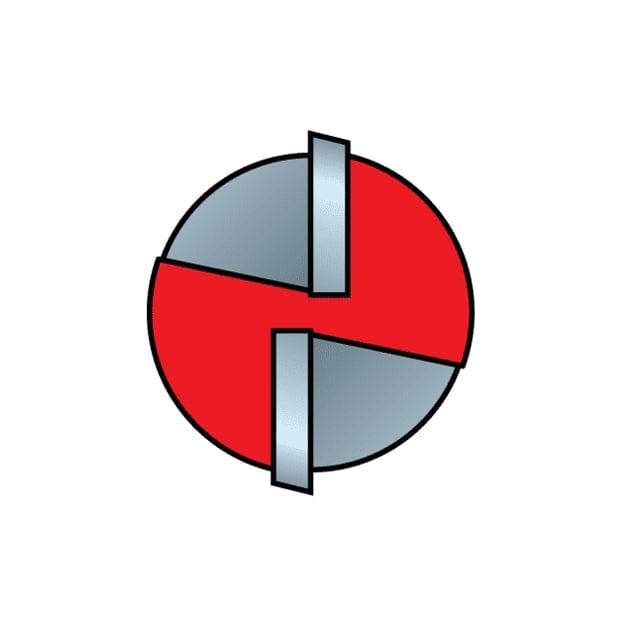

Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Studio product shot of the Freud 04-126 double flute straight router bit, showing the standard 1/4-inch silver shank and the red Perma-SHIELD coated cutter head with two carbide flutes.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 3/8 inch and a deep cutting depth of 1-1/4 inch for model number 04-126.
Retail packaging for the Freud 04-126 Double Flute Straight Bit, featuring the red tool in a clear blister pack and highlighting the 3/8 inch diameter and deep 1-1/4 inch cutting height.
3D computer graphic showing a block of wood with a deep, square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Freud

Freud 04-126 3/8 Inch Double Flute Straight Router Bit 1/4 Inch Shank TiCo Carbide for Deep Grooving Edge Routing Wood Composites

Only 1 left
SKU: 04-126
$15.99
Description

Achieve Deep, Clean Grooves with the Freud 3/8 Inch Double Flute Straight Router Bit

Elevate your woodworking precision with the Freud 04-126 3/8 Inch Double Flute Straight Bit. This professional-grade cutter is designed for general-purpose routing where depth and finish quality are paramount. Featuring a generous 1-1/4 inch carbide cutting height, this bit allows for deeper passes and extended reach compared to standard bits. It is crafted from Freud's exclusive TiCo Hi-Density Carbide, a proprietary formulation engineered to withstand high heat and maintain a razor-sharp edge up to four times longer than standard carbide cutters, ensuring reliable performance in hardwood, softwood, plywood, and abrasive composites.

The 04-126 is built for versatility and superior surface quality. Its computer-balanced double flute geometry utilizes precise hook and shear angles to slice cleanly through wood fibers, minimizing vibration and leaving a smooth finish that often requires no sanding. The carbide tips are relief-ground to facilitate safe and effective plunge cutting, making this tool essential for creating deep mortises, dados, and starting grooves in the center of a workpiece. Whether you are using a CNC machine, a hand-held router, or a table-mounted setup, this bit delivers the accuracy and durability required for fine joinery.

Key Features

  • TiCo Hi-Density Carbide: Specialized carbide blend offers maximum hardness and heat resistance for extended tool life.
  • Deep Cutting Capacity: 1-1/4 inch carbide height allows for deep grooving and mortising applications.
  • Double Flute Design: Two precision-ground edges ensure fast chip removal and a smooth, chatter-free finish.
  • Plunge Cutting Ready: Relieved tips allow for vertical drilling and starting grooves anywhere on the material.
  • 1/4 Inch Shank: Compatible with laminate trimmers, hand-held routers, and tabletop CNC machines.
  • Precision Geometry: Optimized shear angles reduce cutting resistance and prevent burning.

What's Included:

  • (1) 3/8 In. Double Flute Straight Bit with 1/4 In. Shank (Model 04-126)

Specifications

Model Number 04-126
Overall Diameter (D) 3/8 In.
Shank Diameter (A) 1/4 In.
Carbide Height (h) 1-1/4 In.
Overall Length (H) 2-11/16 In.
Number of Flutes 2 (Double Flute)
Max RPM 24,000 RPM
Material TiCo Hi-Density Carbide
Bit Type Straight Plunge
Application Material Wood, Plywood, Composites
Tool Compatibility CNC, Hand-Held, Table-Mounted
Pro-Tip: This bit features a long 1-1/4" cutting height on a 1/4" shank. To avoid tool deflection and potential breakage, never attempt to cut the full depth in a single pass. Instead, make multiple passes of approximately 1/4" to 3/8" depth at a time to ensure a clean, safe cut and prolong the life of the bit.
