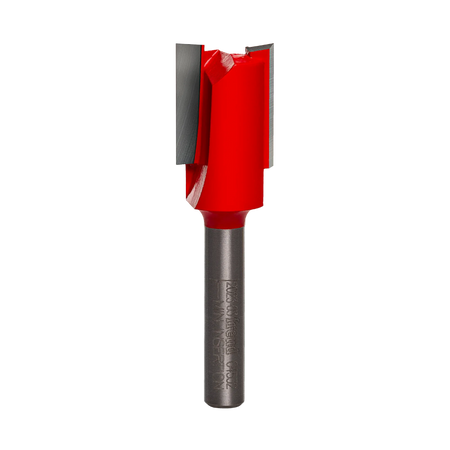

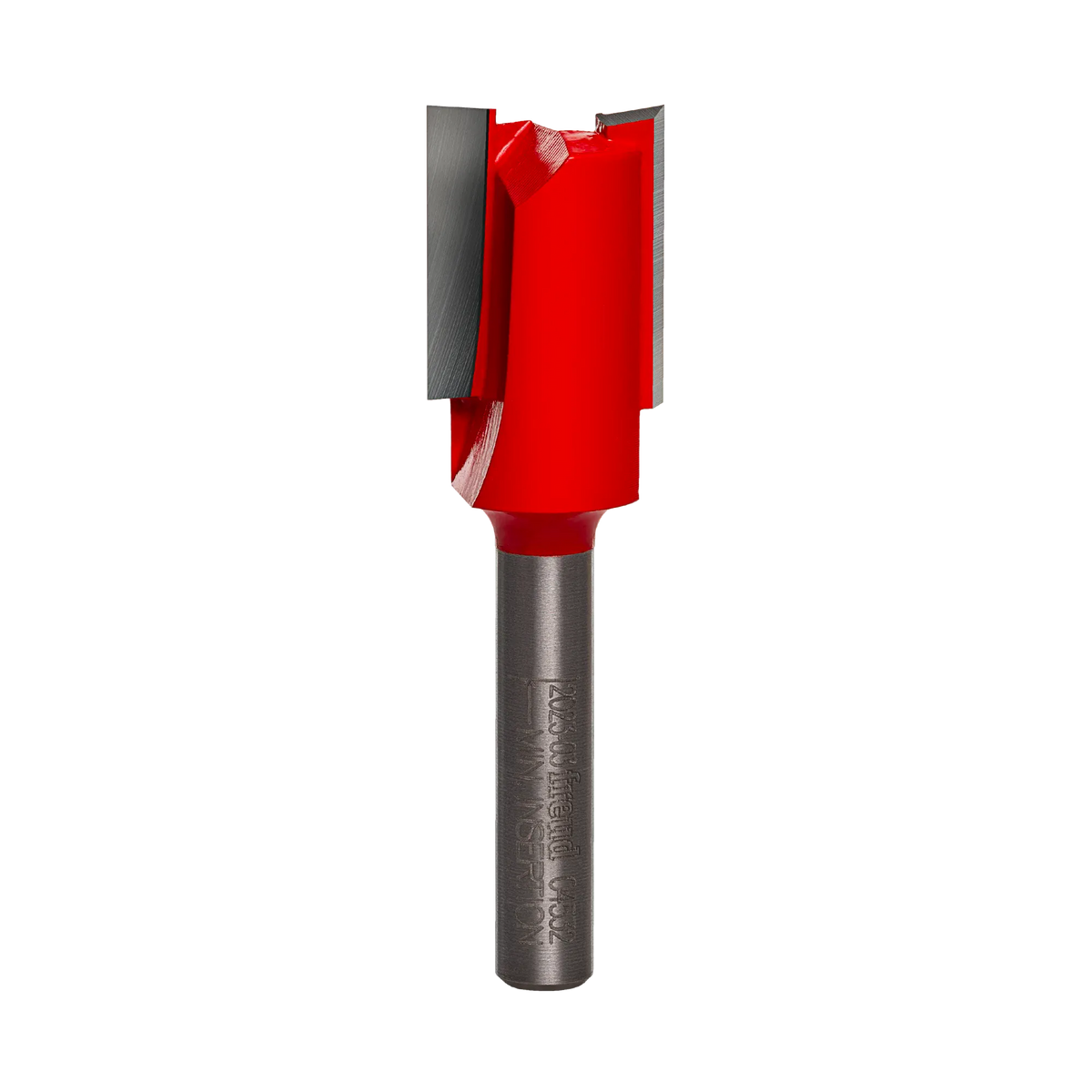

A studio product photograph of the Freud 04-532 double flute straight router bit, showcasing its red cutting head with sharp silver carbide edges and a polished 1/4 inch steel shank.
A technical diagram illustrating the cutting profile of the Freud 04-532 bit, showing a cross-section of a wood block with a precise 15mm wide and 3/4 inch deep straight groove.
A technical 3D rendering of a wooden block featuring a clean, precise straight groove routed through the center to demonstrate the cutting capability of the Freud 04-532 bit.
A technical overhead diagram showing the double flute design of the Freud router bit, highlighting the red body and two silver cutting edges positioned for efficient material removal.
A studio product photograph of the Freud 04-532 double flute straight router bit, showcasing its red cutting head with sharp silver carbide edges and a polished 1/4 inch steel shank.
A studio product photograph of the Freud 04-532 double flute straight router bit, showcasing its red cutting head with sharp silver carbide edges and a polished 1/4 inch steel shank.
A technical diagram illustrating the cutting profile of the Freud 04-532 bit, showing a cross-section of a wood block with a precise 15mm wide and 3/4 inch deep straight groove.
A technical 3D rendering of a wooden block featuring a clean, precise straight groove routed through the center to demonstrate the cutting capability of the Freud 04-532 bit.
A technical overhead diagram showing the double flute design of the Freud router bit, highlighting the red body and two silver cutting edges positioned for efficient material removal.
A studio product photograph of the Freud 04-532 double flute straight router bit, showcasing its red cutting head with sharp silver carbide edges and a polished 1/4 inch steel shank.
Freud

Freud Router Bit 04-532 15mm Double Flute Straight Plunge (1/4 Inch Shank TiCo Carbide 24000 Max RPM Woodworking Grooving Joinery)

Only 1 left
SKU: 04-532
$15.99 USD

Description

Freud precisely the best logo Logout

Freud 04-532 15mm 0.591 Inch Double Flute Straight Plunge Router Bit

The Freud 04-532 is a 15mm (0.591-inch) overall diameter double flute straight plunge router bit engineered for high-precision grooving, dado cutting, and edge-routing joinery. Featuring a 1/4-inch shank and specially relieved carbide tips for fast plunge cuts, this 2-cutter tool removes material quickly without burning wood fibers. Tipped with TiCo™ Hi-Density Micrograin Carbide, it operates at speeds up to 24,000 RPM across solid hardwoods, softwoods, plywood, and composites in CNC machinery, handheld routers, or router tables.

Best Used For:

  • Precision Cabinetry Dadoing & Grooving: Milling 15mm metric dado slots and cabinet back channels into hardwood plywood and MDF sheet stock.
  • Deep Mortise & Pocket Plunging: Executing clean plunge cuts into solid hardwood stock for blind mortise-and-tenon joints and interior face cutouts.
  • Flawless Edge-Routing & Straight Trimming: Slicing straight border edges and template profiles across solid woods, veneers, and composite panels.

Key Performance & Safety Features

  • Double Flute Cutting Geometry: Dual flutes maximize material removal rates while providing balanced, vibration-free tracking.
  • TiCo™ Hi-Density Micrograin Carbide: Proprietary industrial carbide blend maintains a sharp cutting edge up to four times longer than standard carbide.
  • Plunge-Cut Relieved Carbide Tips: End teeth are engineered for low-friction plunge entries during deep mortising and pocketing operations.
  • Optimized Shear & Hook Angles: Precision-milled shear angles shear wood fibers cleanly to eliminate tearout and post-cut sanding steps.
  • Computer-Balanced Anti-Vibration Design: Precision body balance ensures chatter-free passes at high rotational speeds up to 24,000 RPM.
  • Multi-Machine Operational Utility: Formulated for stable performance in automatic CNC routers, portable handheld routers, and stationary tables.

What's Included

  • (1) Freud 04-532 15mm (0.591") Double Flute Straight Plunge Router Bit with 1/4" Shank

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 04-532
Overall Cutting Diameter (D) 0.591 inches (15.0 mm / 19/32" approx)
Shank Diameter (A) 0.250 inches (1/4" / 6.4 mm)
Carbide Cutting Height (h) 0.750 inches (3/4" / 19.1 mm)
Overall Tool Length (H) 2.250 inches (2-1/4" / 57.2 mm)
Number of Carbide Cutters 2 Flute Carbide Cutters (Straight Plunge)
Maximum Operating Speed 24,000 RPM
Cutting Style Design Double Flute Straight / End-Cutting Plunge
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Handheld Routers, Router Tables
Global Trade Item Number GTIN 00008925070213

Pro-Tip: When routing deep 15mm mortises or dado channels, limit each plunge pass depth to half the bit diameter (approximately 5/16 inch) to ensure efficient chip clearance and eliminate heat friction in deep grooves.
