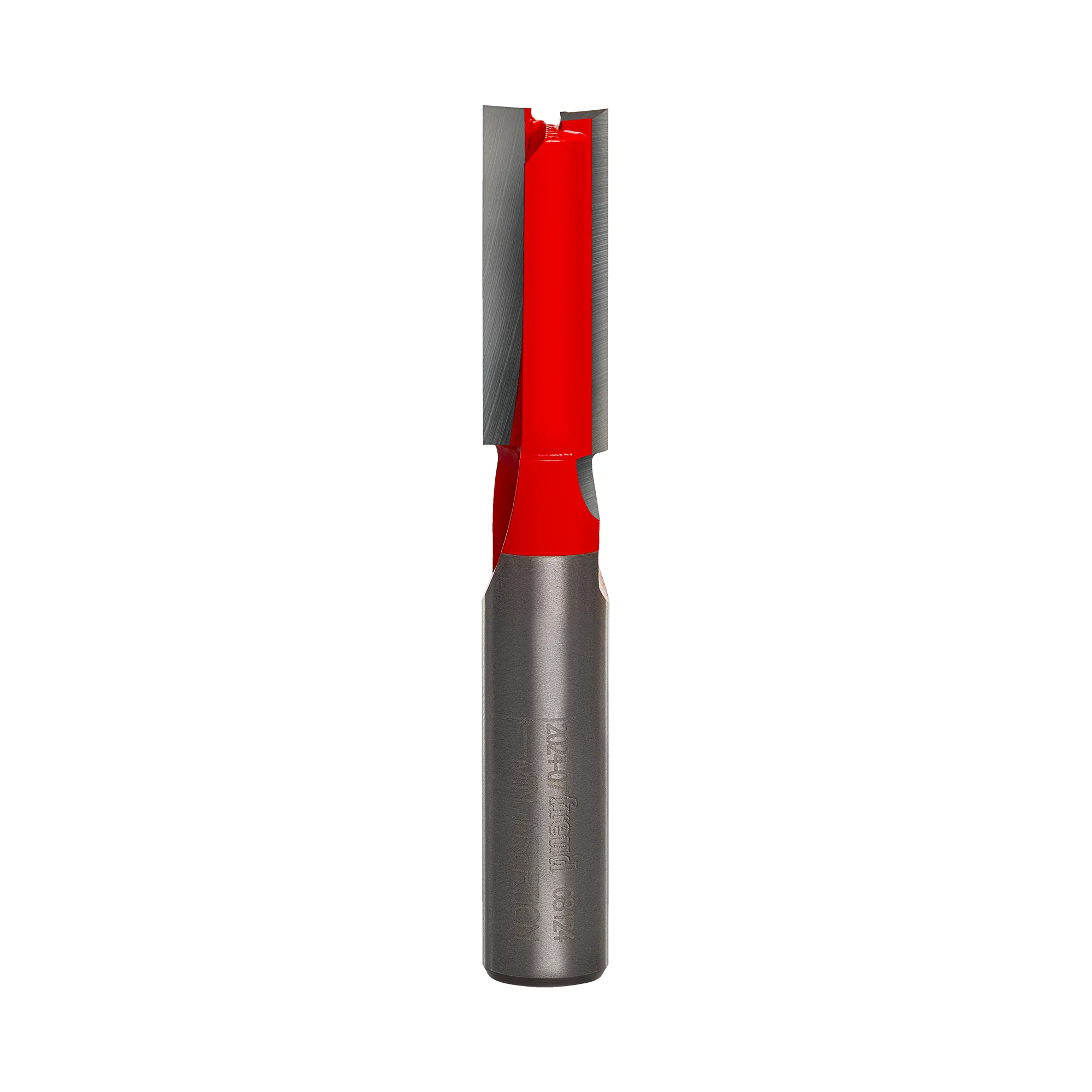

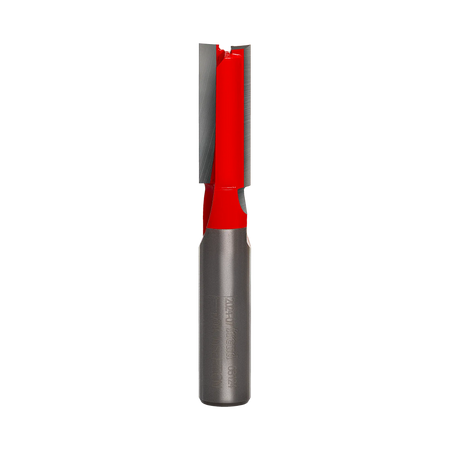

Studio product shot of the Freud 08-124 double flute straight router bit, featuring a silver 3/8-inch shank and a red Perma-SHIELD coated cutter head.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 3/8 inch and a cutting depth of 1 inch for model numbers 04-124, 08-124, and 12-108.
3D computer graphic showing a block of wood with a square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Studio product shot of the Freud 08-124 double flute straight router bit, featuring a silver 3/8-inch shank and a red Perma-SHIELD coated cutter head.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 3/8 inch and a cutting depth of 1 inch for model numbers 04-124, 08-124, and 12-108.
3D computer graphic showing a block of wood with a square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Freud

Freud 08-124 3/8 Inch Double Flute Straight Router Bit 3/8 Inch Shank TiCo Carbide for Grooving Edge Routing Wood Composites

Only 1 left
SKU: 08-124
$13.99

Description

Experience Precision Routing and Enhanced Stability with the Freud 3/8 Inch Double Flute Straight Router Bit

Achieve flawless grooves and superior edge finishes with the Freud 08-124 3/8 Inch Double Flute Straight Bit. This professional-grade cutter is engineered with Freud's exclusive TiCo Hi-Density Carbide, a proprietary blend specifically formulated to maximize hardness and heat resistance. Unlike standard bits that dull quickly, this high-performance material ensures the cutting edge stays sharp up to four times longer, delivering clean, chatter-free cuts in hardwood, softwood, plywood, and abrasive composite materials.

The 08-124 is distinguished by its 3/8-inch shank, offering greater stability and reduced vibration compared to standard 1/4-inch shank bits, making it an excellent choice for users with 3/8-inch collets or CNC setups. Its computer-balanced double flute geometry features precision-ground hook and shear angles that slice efficiently through wood fibers, leaving a smooth surface that requires minimal sanding. Additionally, the tips are relief-ground to allow for safe and effective plunge cutting, making this tool perfect for mortising, dadoing, and general stock removal.

Key Features

  • TiCo Hi-Density Carbide: Specialized carbide blend offers exceptional durability and extends cutting life in tough materials.
  • 3/8 Inch Shank: Provides increased rigidity and stability compared to 1/4-inch shanks for cleaner cuts.
  • Double Flute Geometry: Two precision cutting edges ensure fast chip removal and a smooth, professional finish.
  • Plunge Cutting Capability: Relieved tips allow for vertical drilling and starting grooves in the center of the workpiece.
  • Precision Shear Angles: Optimized geometry reduces cutting resistance and prevents burning on the workpiece.
  • Versatile Application: Perfect for grooving, edge-routing, mortising, and general material removal.

What's Included:

  • (1) 3/8 In. Double Flute Straight Bit with 3/8 In. Shank (Model 08-124)

Specifications

Model Number 08-124
Overall Diameter (D) 3/8 In.
Shank Diameter (A) 3/8 In.
Carbide Height (h) 1 In.
Overall Length (H) 2-1/4 In.
Number of Flutes 2 (Double Flute)
Max RPM 24,000 RPM
Material TiCo Hi-Density Carbide
Bit Type Straight Plunge
Application Material Wood, Plywood, Composites
Tool Compatibility CNC, Hand-Held, Table-Mounted
Pro-Tip: Please double-check your router's collet size before purchasing. This bit features a 3/8-inch shank, which is less common than 1/4-inch or 1/2-inch shanks. It requires a specific 3/8-inch collet or a reducing sleeve to operate safely.
