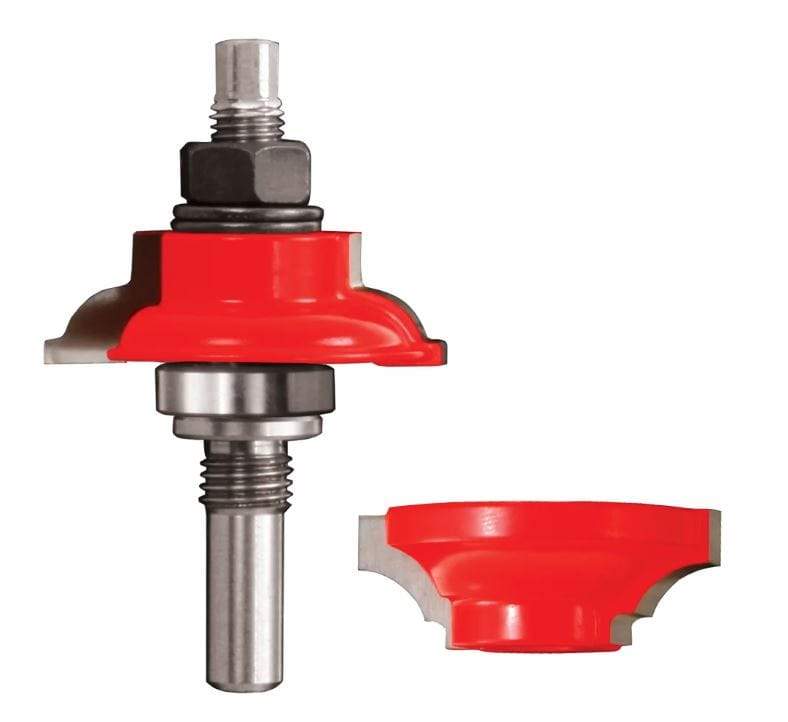

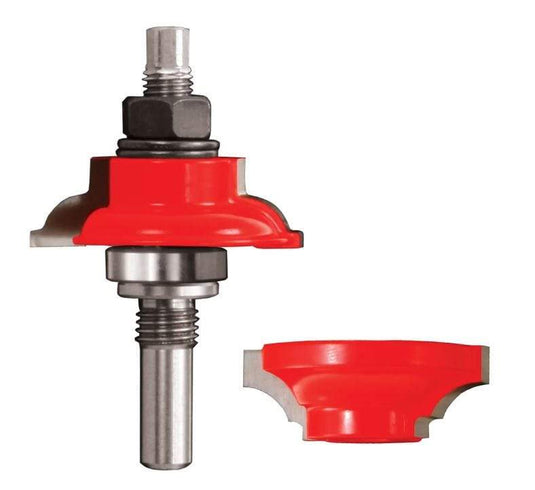

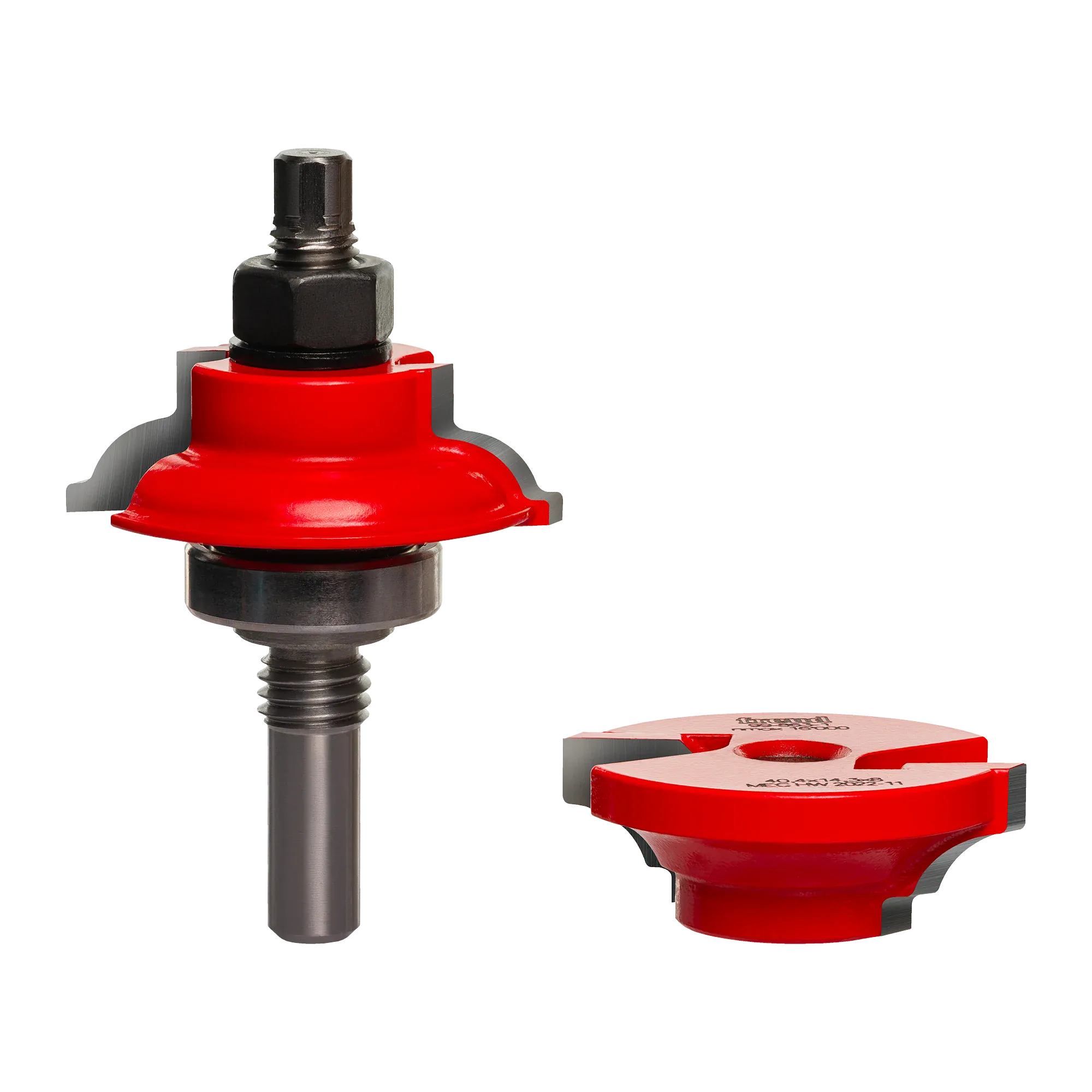

Freud 99-863 1-11/16 Inch Premier Adjustable Rail and Stile Round Over Bead Router Bit 1/2 Inch Shank For Custom Wood Cabinet Doors
Couldn't load pickup availability

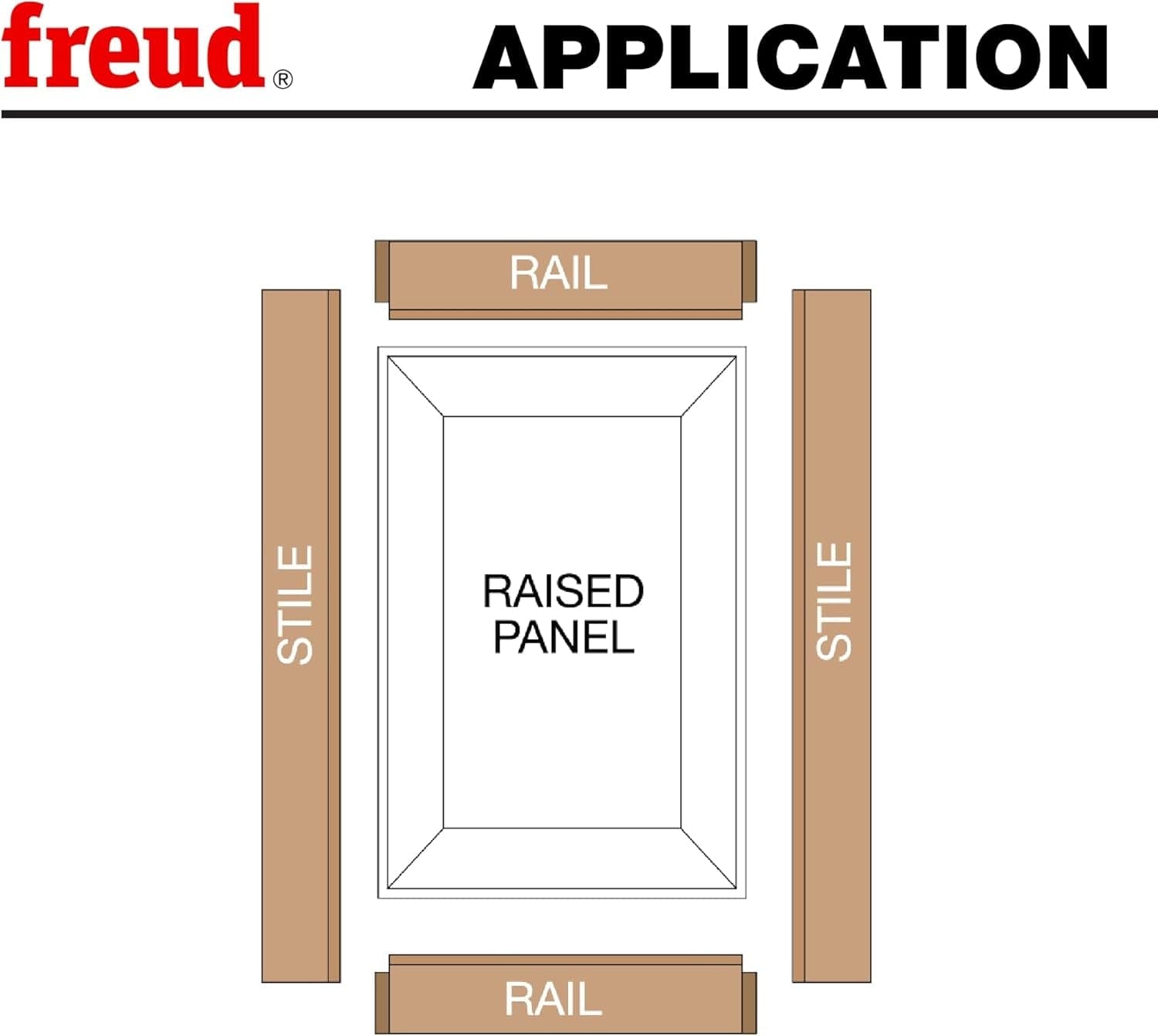

Build Perfect Custom Cabinet Doors with Freud's Adjustable Router Bit System
Elevate your cabinetry projects with the Freud 99-863 1-11/16-Inch Premier Adjustable Rail and Stile Router Bit. Featuring a classic Round Over Bead profile, this highly versatile 1/2-inch shank bit empowers woodworkers to build flawless, professional-grade doors in a wide variety of materials ranging from 5/8-inch to 1-1/4-inch thick. Unlike standard rail and stile sets that limit your design options, this patented Freud system utilizes highly precise adjustable shims. This allows you to easily customize the panel groove width from 7/32-inch for thinner plywood panels up to 3/8-inch for thicker, solid wood raised panels, guaranteeing a tight, rattle-free fit every time.

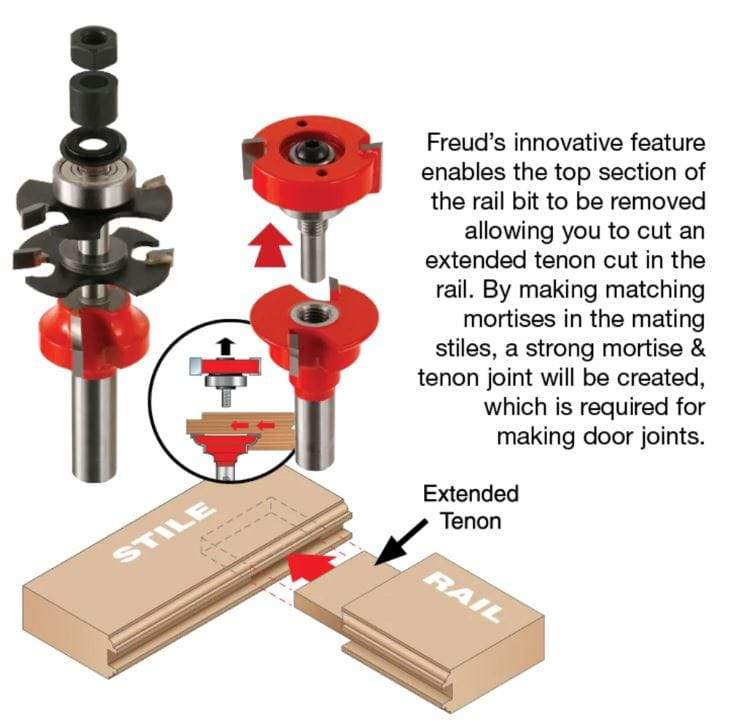

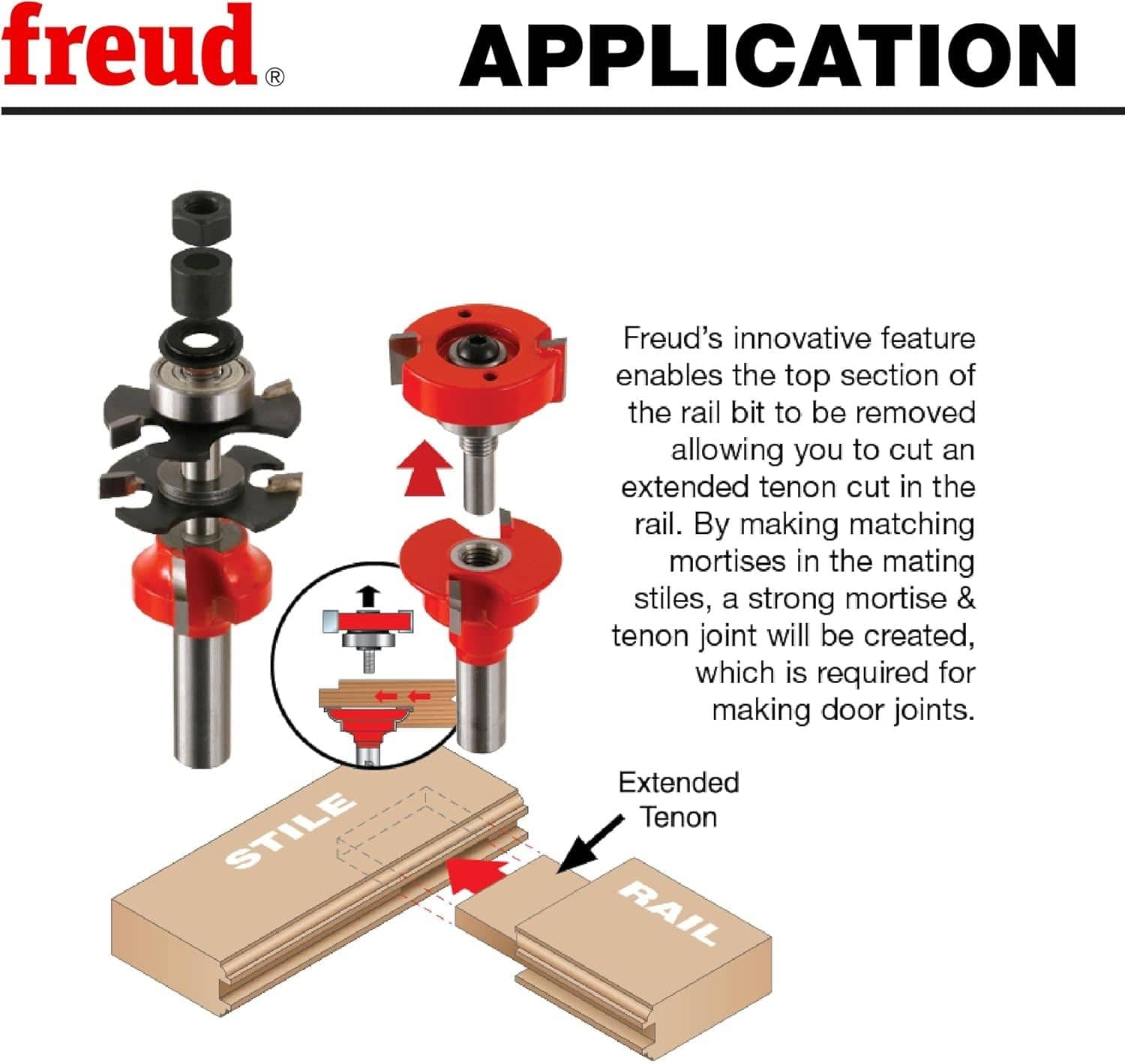

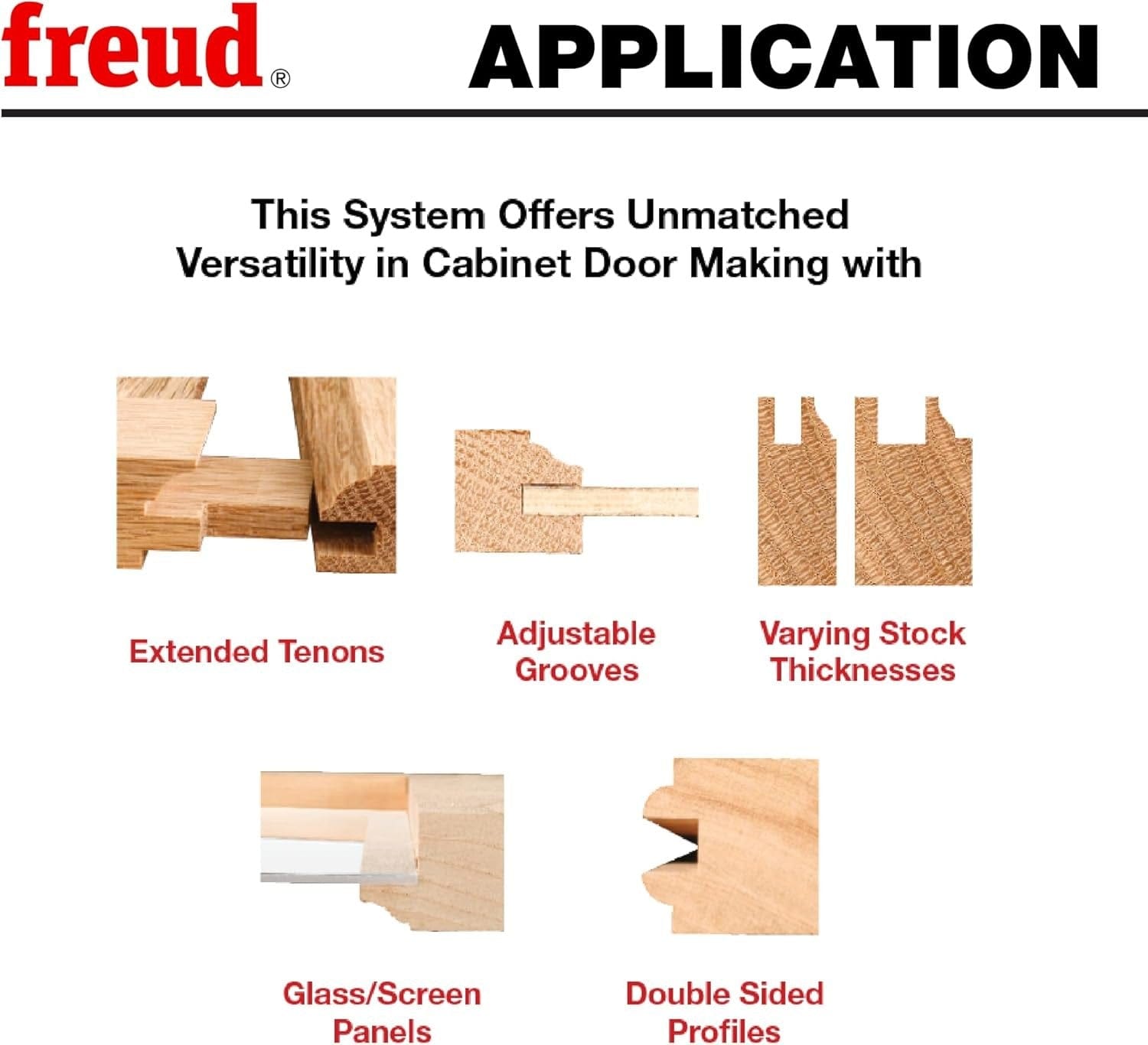

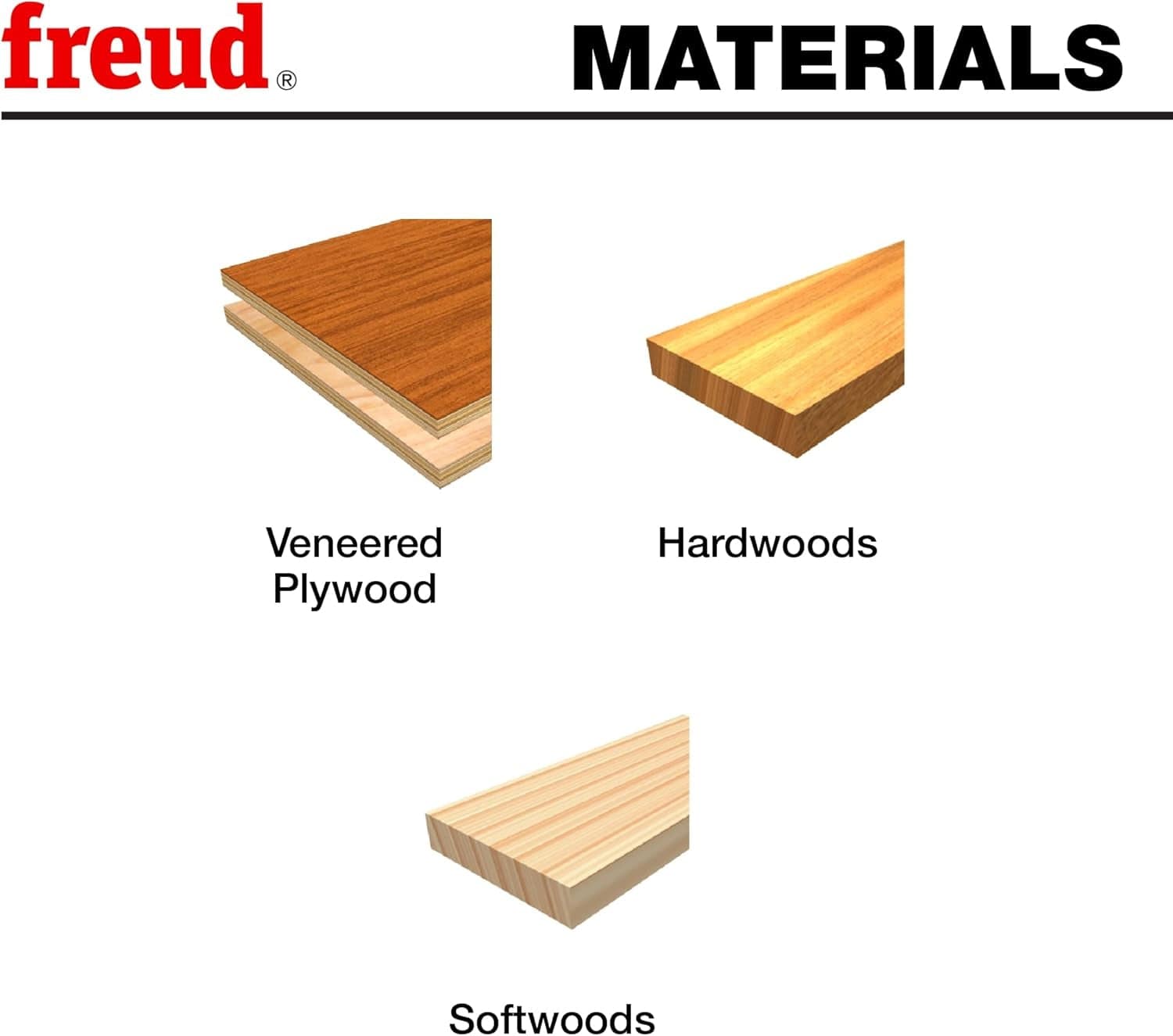

Beyond its adjustable groove capabilities, this premium router bit system features Freud's patented extended tenon technology, which allows you to mill extra-strong, long tenon joints for heavy-duty cabinet and furniture doors. Constructed with Freud's exclusive TiCo Hi-Density Carbide and designed with unique cutter geometry, this bit effortlessly slices through hardwoods and softwoods while completely eliminating tear-out. Finished with a protective Perma-SHIELD non-stick coating to resist heat, friction, and pitch buildup, this heavy-duty bit guarantees maximum cutting life and a flawless material finish. Please note, due to its size and application, this bit is designed exclusively for use in table-mounted routers.
Key Features

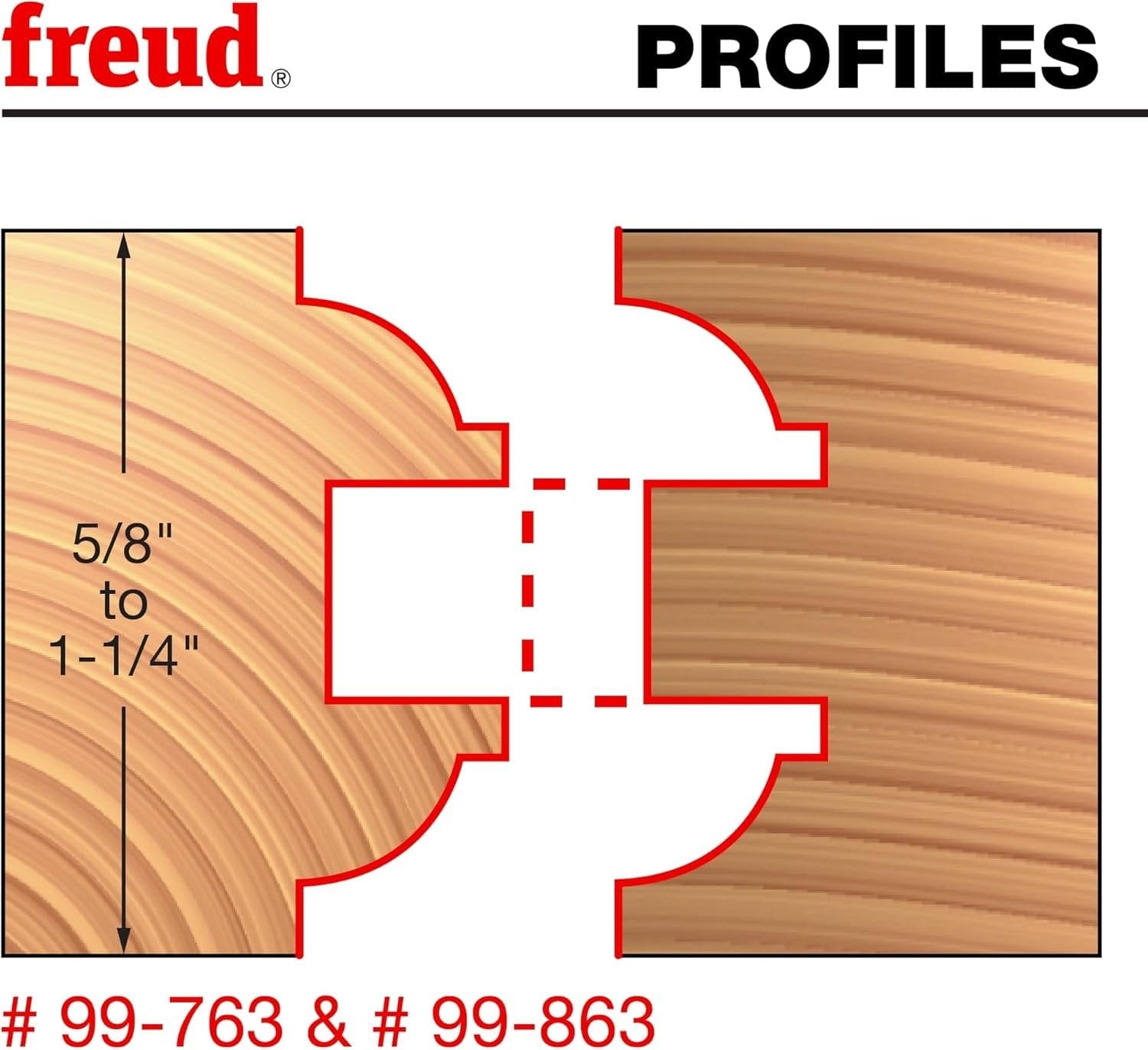

- Build premium rail and stile doors featuring a classic Round Over Bead profile in wood thicknesses ranging from 5/8-inch to 1-1/4-inch.
- Includes precision adjustable shims to perfectly size your panel grooves from 7/32-inch up to 3/8-inch for plywood or solid wood panels.
- Patented Extended Tenon Capability allows for the milling of extra-strong, long tenon joints for maximum structural door integrity.
- Unique cutter geometry and TiCo Hi-Density Carbide construction maximize bit life and eliminate tear-out for a glass-smooth finish.
- Red Perma-SHIELD non-stick coating effectively reduces friction, heat buildup, and gumming during heavy use.

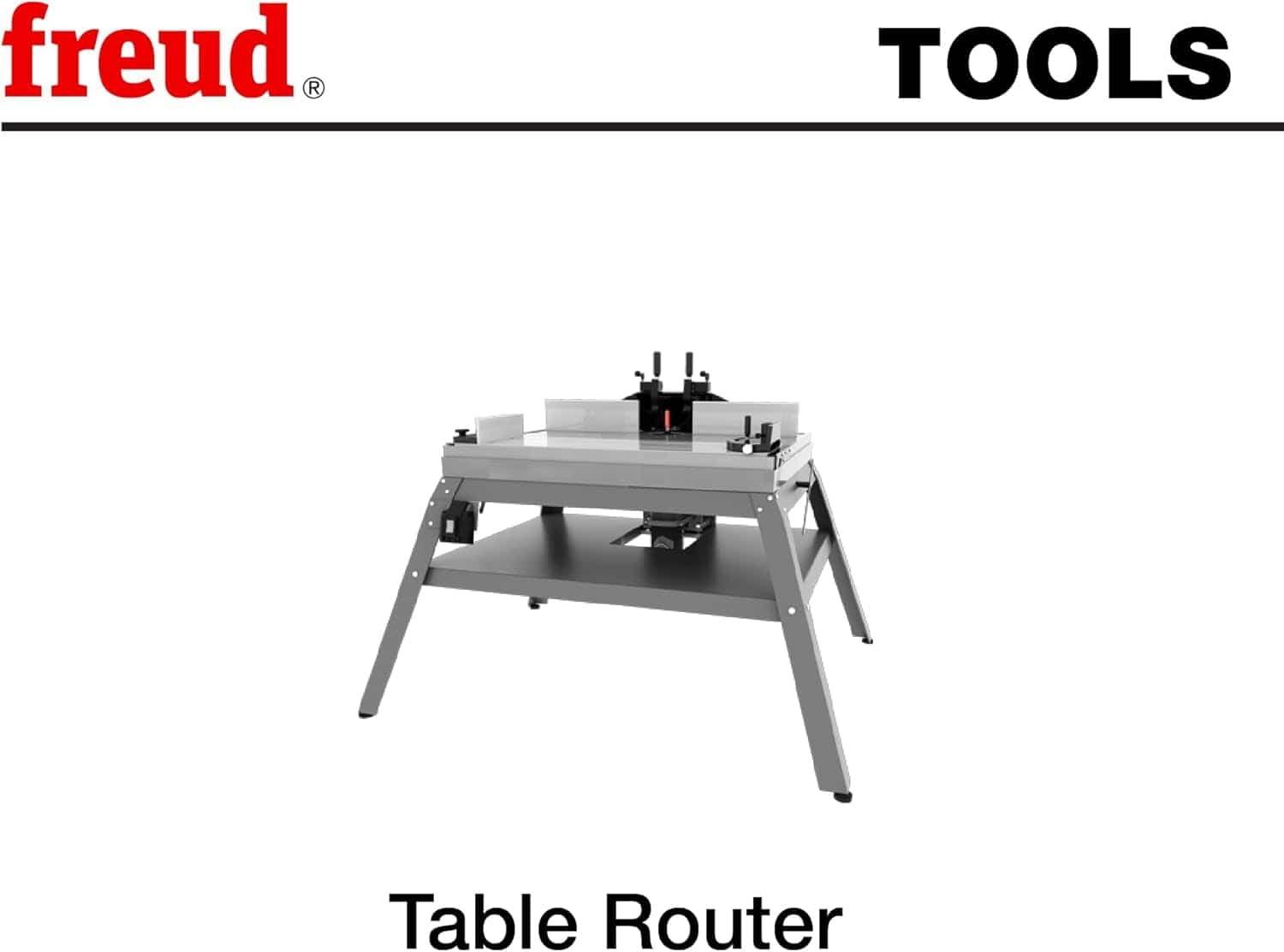

- Designed specifically for use with table-mounted routers to ensure safety, stability, and absolute precision.
What's Included

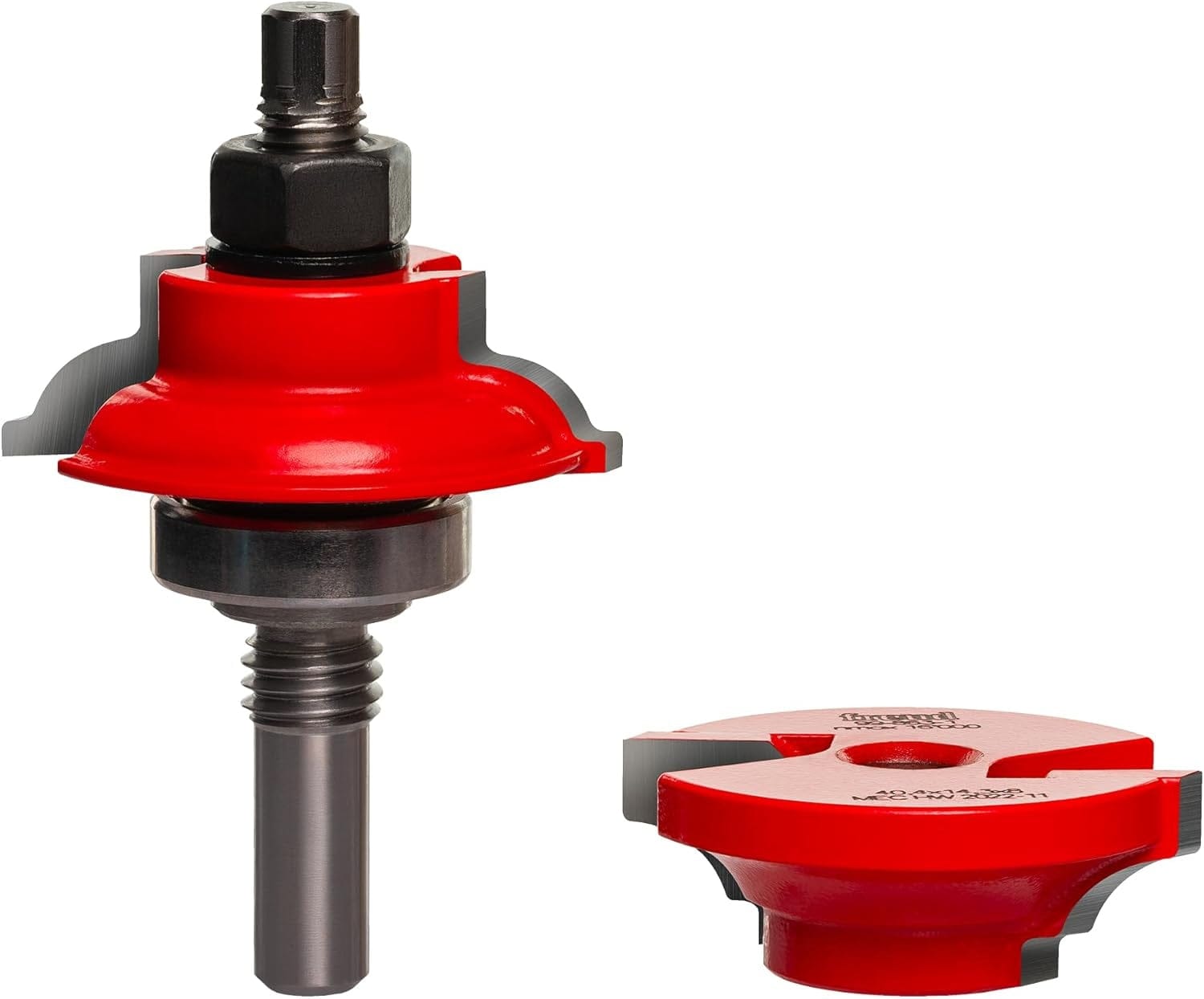

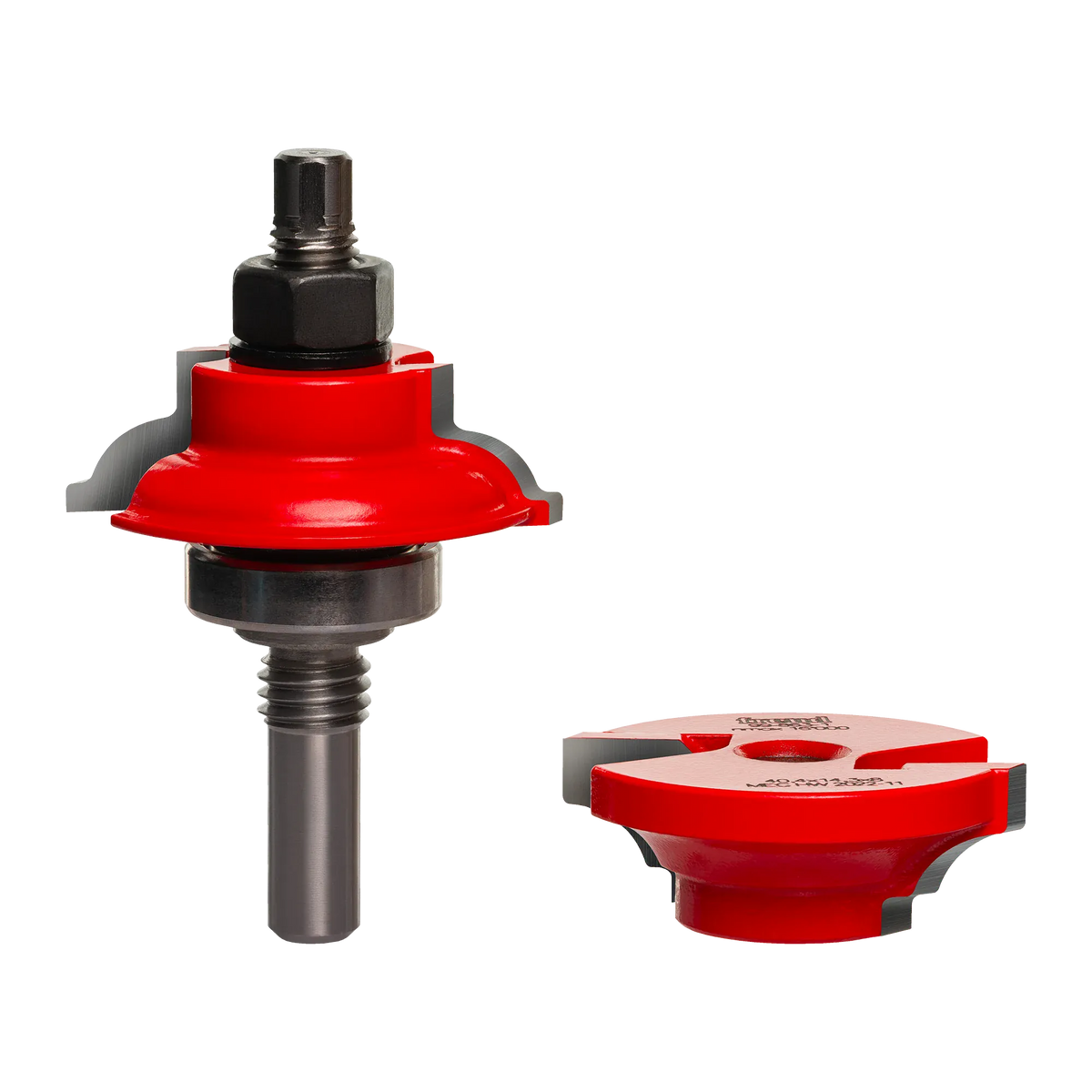

- (1) Freud 1-11/16-Inch Premier Adjustable Rail & Stile Router Bit - Round Over Bead Profile (99-863)
- (1) Set of Precision Adjustable Shims
Specifications
| Brand | Freud |
|---|---|
| Model Number | 99-863 |
| Bit Profile | Round Over Bead (Rail & Stile) |
| Overall Diameter (D) | 1-11/16 Inches |
| Shank Diameter (A) | 1/2 Inch |
| Large Radius (R1) | 9/32 Inch |
| Overall Length (H) | 3-13/16 Inches |
| Material Thickness Range | 5/8 Inch to 1-1/4 Inches |
| Adjustable Groove Range | 7/32 Inch to 3/8 Inch |
| Maximum RPM | 16,000 RPM |
| Cutting Material | TiCo Hi-Density Carbide |
| Coating | Perma-SHIELD Non-Stick |
| Tool Compatibility | Table-Mounted Routers Only |
Pro-Tip
When routing the end grain for your rails to create the matching cope profile, tear-out is a common issue as the bit exits the wood. To prevent this, always use a coping sled or a push block fitted with a scrap wood backer board behind your workpiece. This supports the delicate wood fibers through the entire cut, ensuring a perfectly clean, gap-free joint for your custom cabinet doors.
