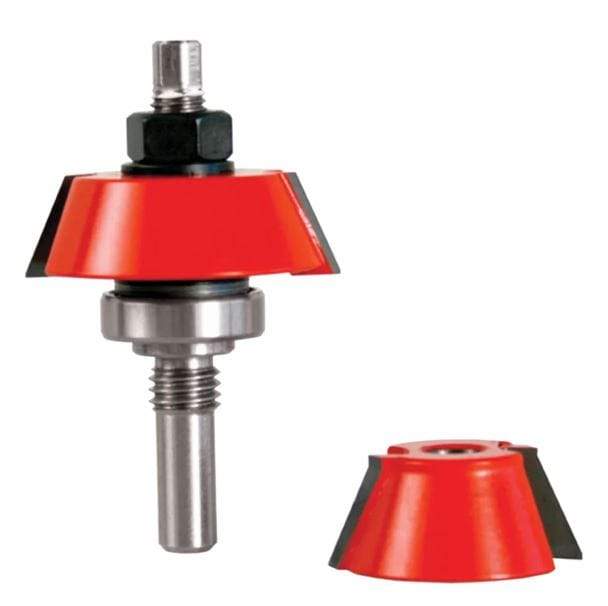

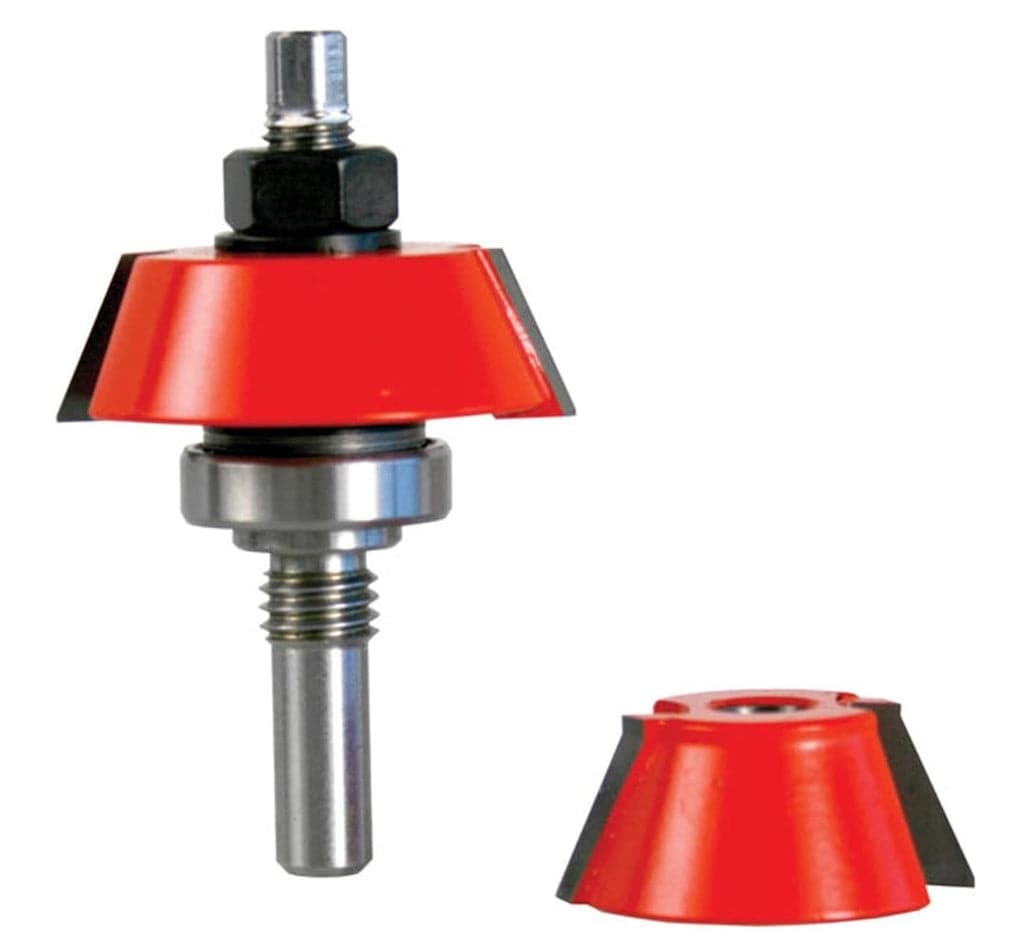

Studio shot of a Freud router bit standing upright, featuring a red body with angled carbide cutters and a top-mounted ball bearing, accompanied by a separate interchangeable cutter head.

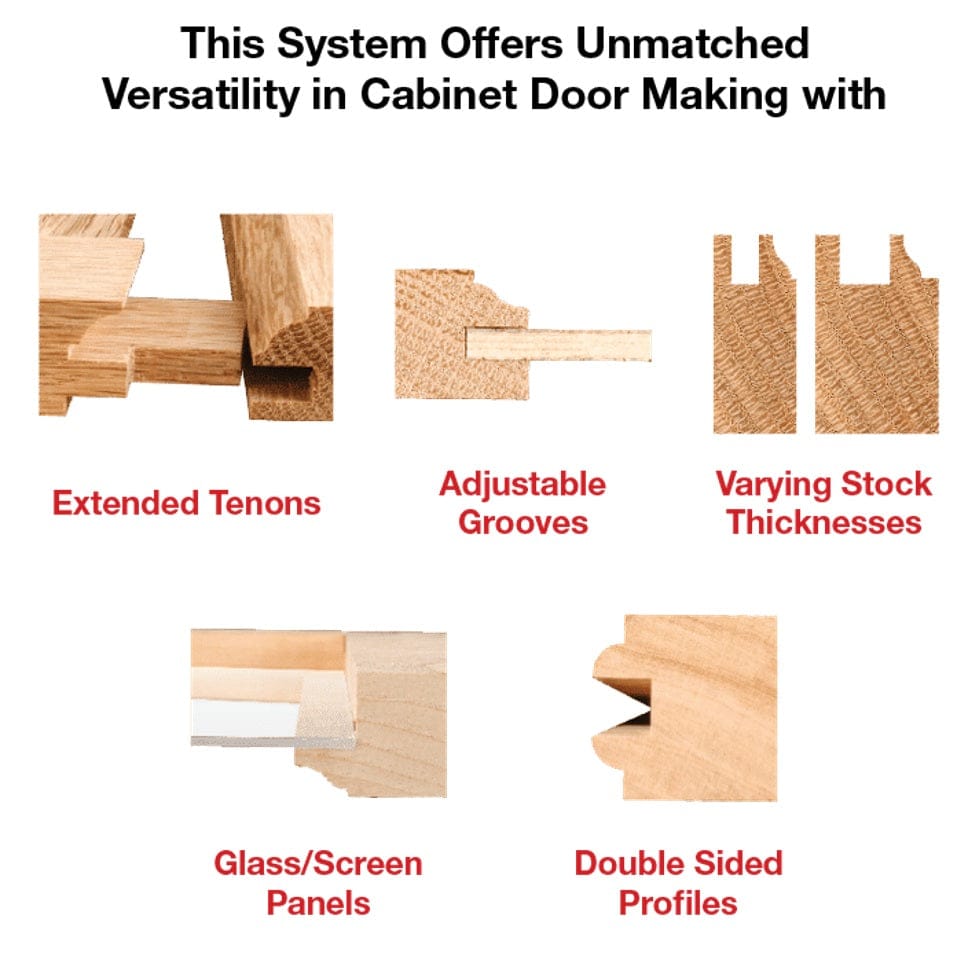

Infographic titled "This System Offers Unmatched Versatility" displaying five features of the bit system, including extended tenons, adjustable grooves, varying stock thicknesses, glass panel capability, and double-sided profiles.

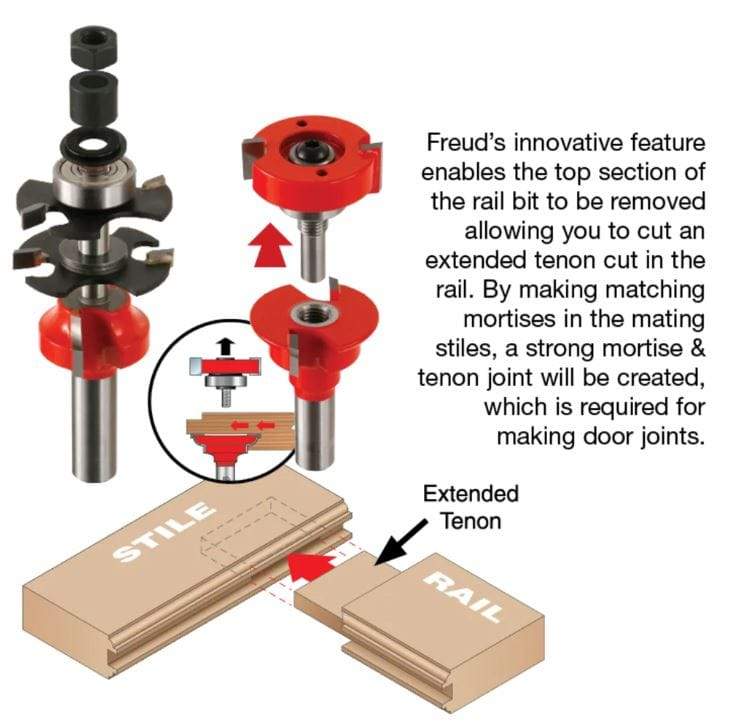

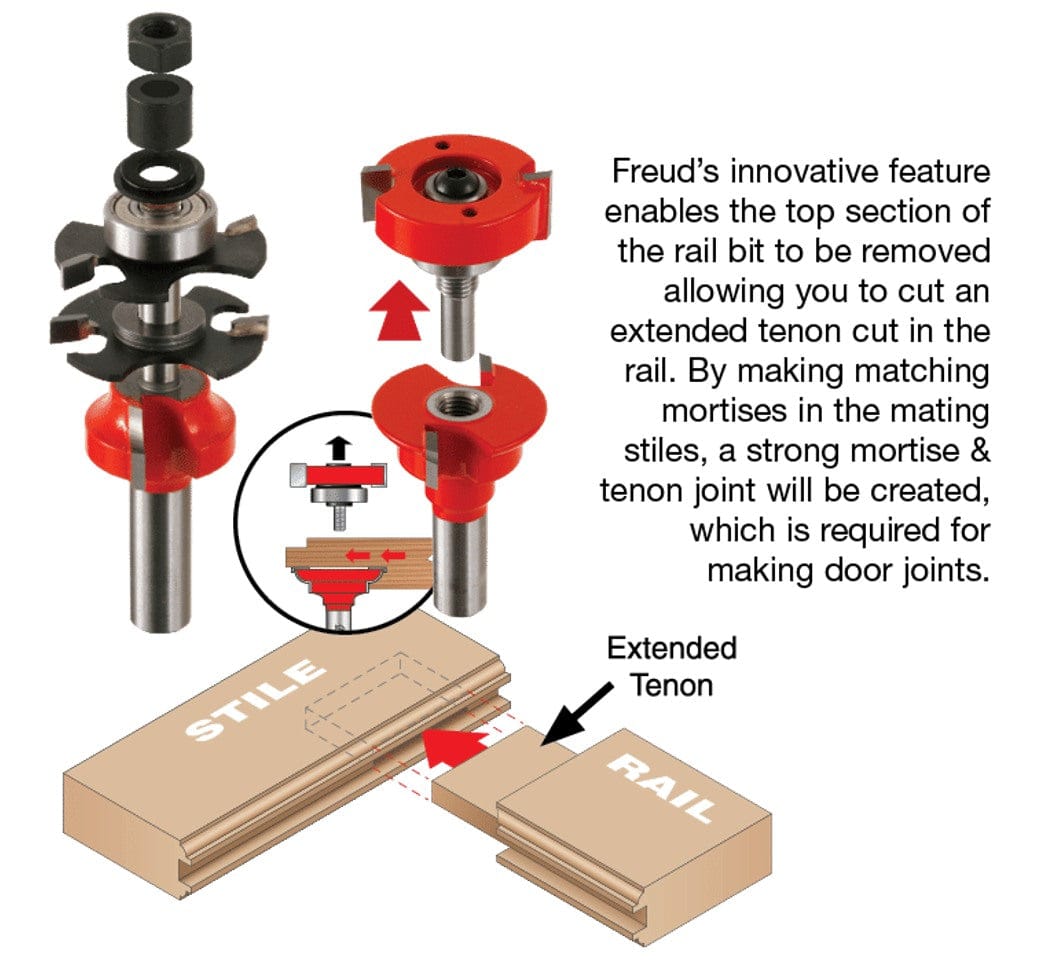

Technical diagram illustrating the adjustable design of the Freud 99-862 bit, showing how the top section can be removed to cut extended tenons for strong mortise and tenon joints.

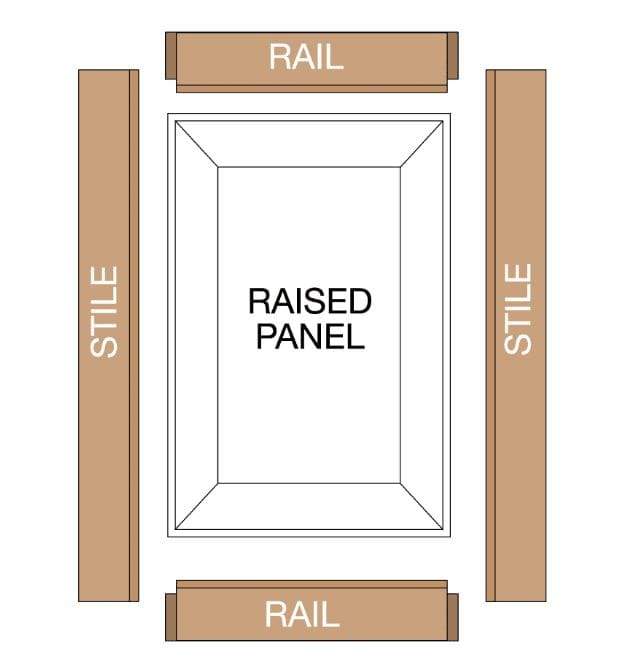

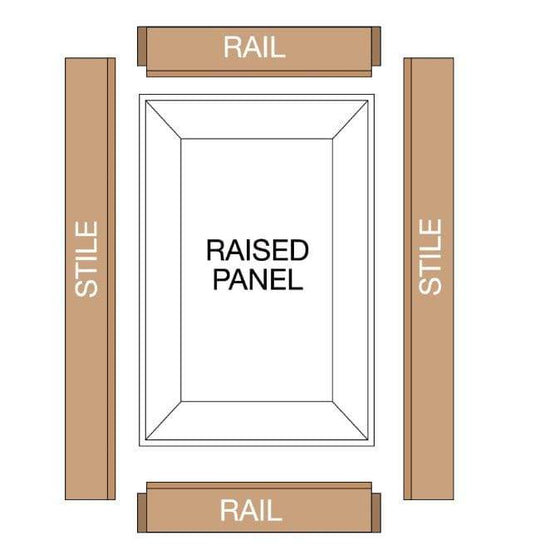

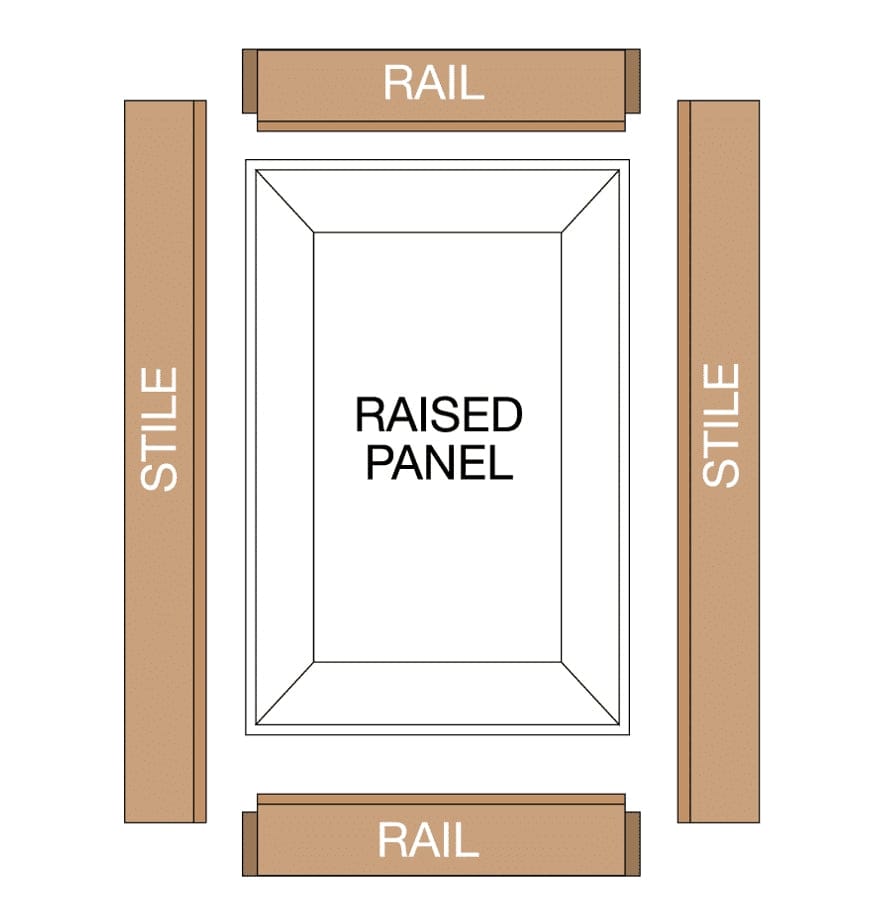

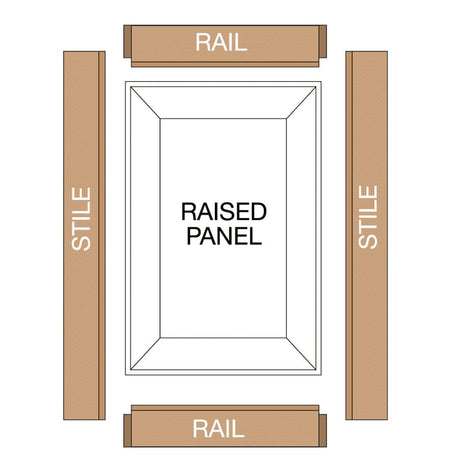

Line drawing of a standard cabinet door frame assembly, labeling the top and bottom pieces as rails, the side pieces as stiles, and the center as the raised panel.

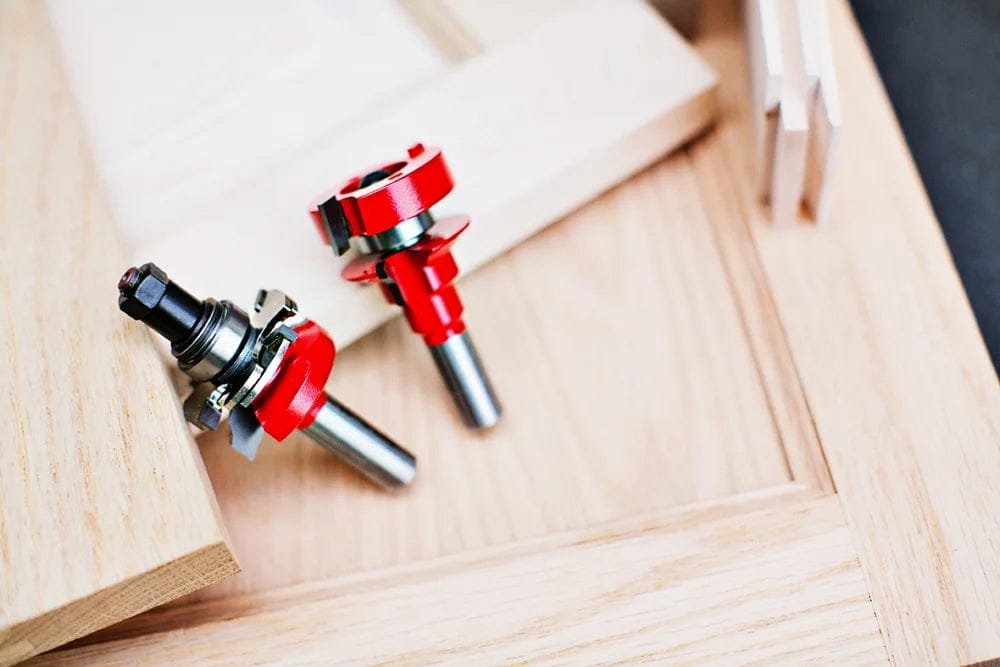

High-angle photograph of two Freud rail and stile router bits resting on unfinished light wood door frame components.
Premier Adjustable Rail & Stile Preview promotional video

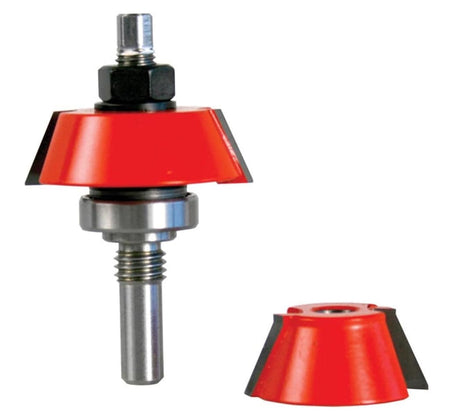

Studio shot of a Freud router bit standing upright, featuring a red body with angled carbide cutters and a top-mounted ball bearing, accompanied by a separate interchangeable cutter head.
Infographic titled "This System Offers Unmatched Versatility" displaying five features of the bit system, including extended tenons, adjustable grooves, varying stock thicknesses, glass panel capability, and double-sided profiles.
Technical diagram illustrating the adjustable design of the Freud 99-862 bit, showing how the top section can be removed to cut extended tenons for strong mortise and tenon joints.
Line drawing of a standard cabinet door frame assembly, labeling the top and bottom pieces as rails, the side pieces as stiles, and the center as the raised panel.
High-angle photograph of two Freud rail and stile router bits resting on unfinished light wood door frame components.
Premier Adjustable Rail & Stile Preview promotional video
Freud

Freud 99-862 Premier Adjustable Rail and Stile Router Bit 1-11/16 Inch Diameter Round Over Bead Profile Cabinet Door Tool

In stock
SKU: 99-862
$59.97 USD
$69.25 USD Sale $59.97 USD

Description

Freud precisely the best logo Logout

Craft Custom Doors with Precision: Freud 99-862 Premier Adjustable Rail and Stile Bit

Achieve flawless joinery and professional aesthetics with the Freud 99-862 Premier Adjustable Rail and Stile Router Bit. This innovative tooling system is engineered to build perfect cabinet doors using stock ranging from 5/8" to 1-1/4" thick, offering unparalleled versatility for your woodworking projects. Featuring a classic round-over bead profile, this bit utilizes Freud's patented technology to produce extra-strong long tenon joints, ensuring your doors remain square and durable for generations. Whether you are working with thin plywood panels or solid wood raised panels, the included adjustable shims allow you to fine-tune the groove width from 7/32" (5.5mm) up to 3/8" (9.5mm) for a rattle-free fit.

Designed for the serious woodworker, the 99-862 features unique cutter geometry that virtually eliminates tear-out, even in cross-grain cuts. The bit is crafted with Freud’s exclusive TiCo™ Hi-Density Carbide for maximum sharpness and extended edge retention, while the Perma-SHIELD® Non-Stick Coating reduces heat and prevents resin buildup. Optimized for table-mounted routers, this adjustable system allows you to mill hardwood or softwood door parts with ease. For added functionality, the system is compatible with optional cutters (sold separately) for double-sided doors or glass panel construction.

Key Features

  • Adjustable Thickness: Builds rail and stile doors in material ranging from 5/8" to 1-1/4" thick.
  • Versatile Groove Width: Includes shims to adjust panel grooves from 7/32" (for plywood) to 3/8" (for solid wood).
  • Extended Tenon Technology: Patented design enables the milling of extra-strong long tenon joints for superior durability.
  • Flawless Finish: Unique cutter geometry is engineered to eliminate tear-out for clean, smooth profiles.
  • TiCo™ Hi-Density Carbide: Proprietary carbide blend ensures long bit life and a mirror-like finish.
  • Perma-SHIELD® Coating: distinctive red coating prevents rust, reduces drag, and resists gumming.

What's Included

(1) Freud 1-11/16" Diameter Premier Adjustable Rail & Stile Bit with 1/2" Shank (99-862)
(1) Set of Adjustable Shims
(1) Instruction Manual

Specifications

Brand Freud
Model Number 99-862
Application Adjustable Rail & Stile Joinery
Profile Style Round Over Bead
Overall Diameter (D) 1-11/16 in
Shank Diameter (A) 1/2 in
Overall Length (H) 3-13/16 in
Carbide Height (h) Adjustable
Minor Height (m) 15/64 in
Radius (R) 13/64 in
Material Thickness 5/8 in to 1-1/4 in
Max RPM 16,000

Pro-Tip: Because this bit is large (1-11/16" diameter) and removes a significant amount of material, always reduce your router's speed to the recommended 16,000 RPM or lower. For the cleanest cuts and to prevent motor strain, make the profile cut in multiple passes rather than trying to remove all the stock at once.
