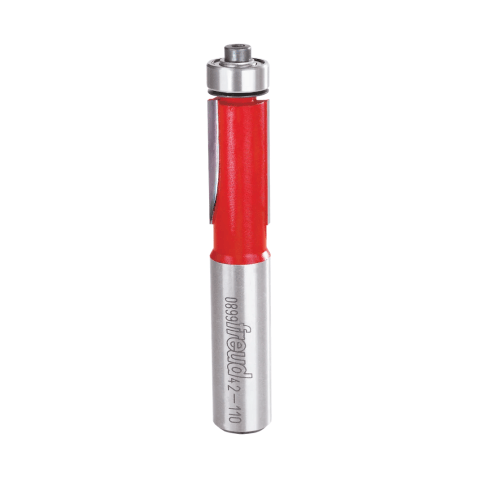

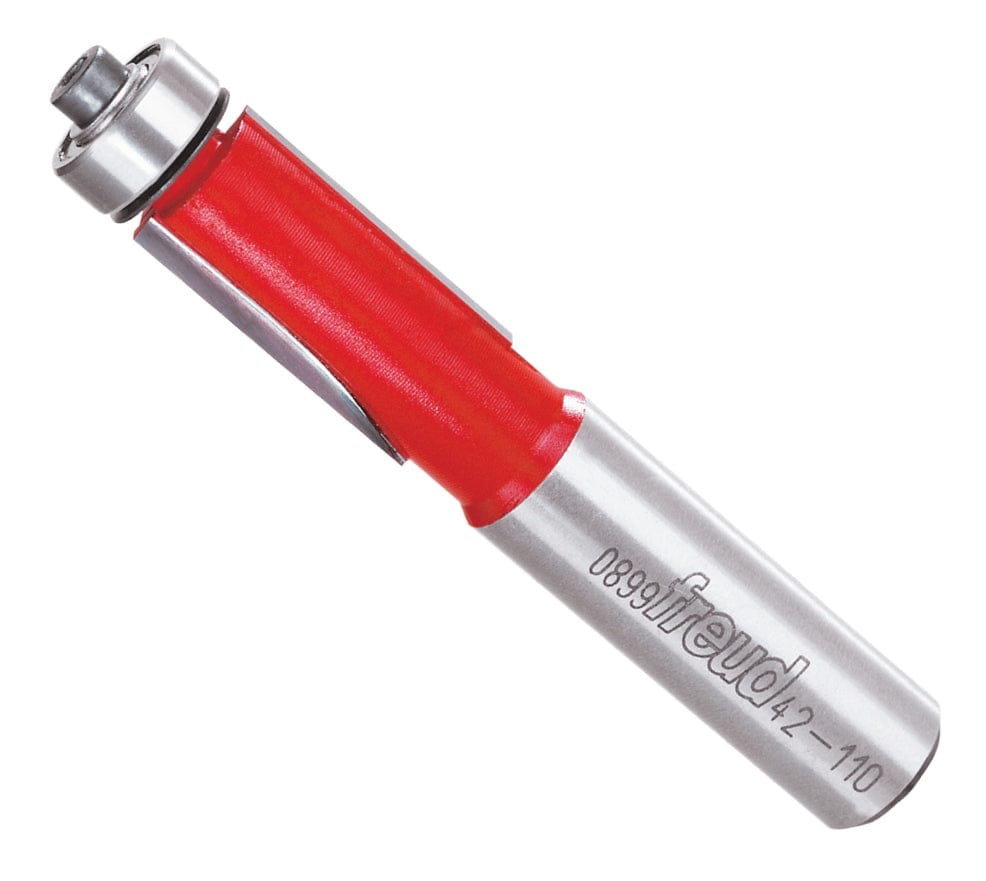

Angled view of the Freud 42-110 1/2 inch bearing flush trim router bit with a top-mounted ball bearing, red Perma-SHIELD coating, and silver 1/2 inch shank.

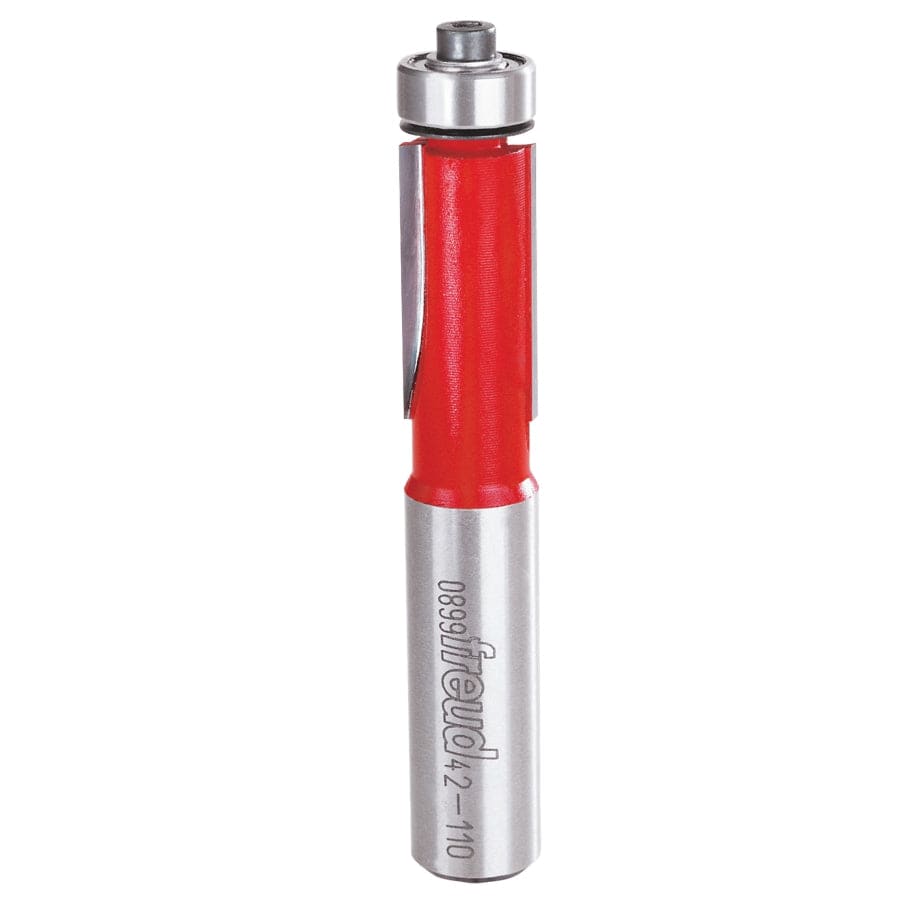

Vertical view of the Freud 42-110 flush trim router bit showing the top-mounted pilot bearing and laser-etched branding on the 1/2 inch silver shank.

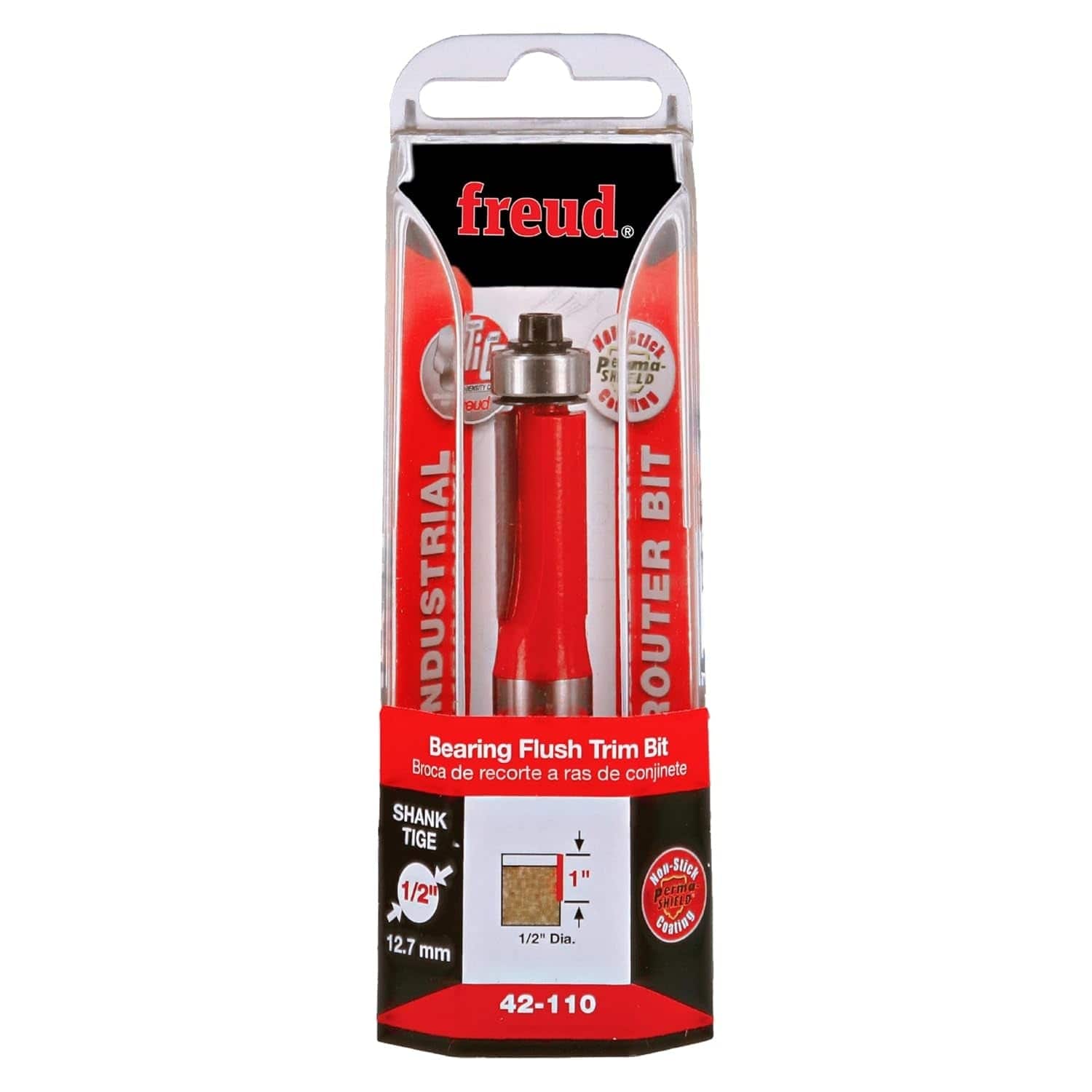

Freud 42-110 1/2 inch bearing flush trim router bit in its protective retail hanging pack, detailing the 1 inch carbide height and 1/2 inch shank diameter.

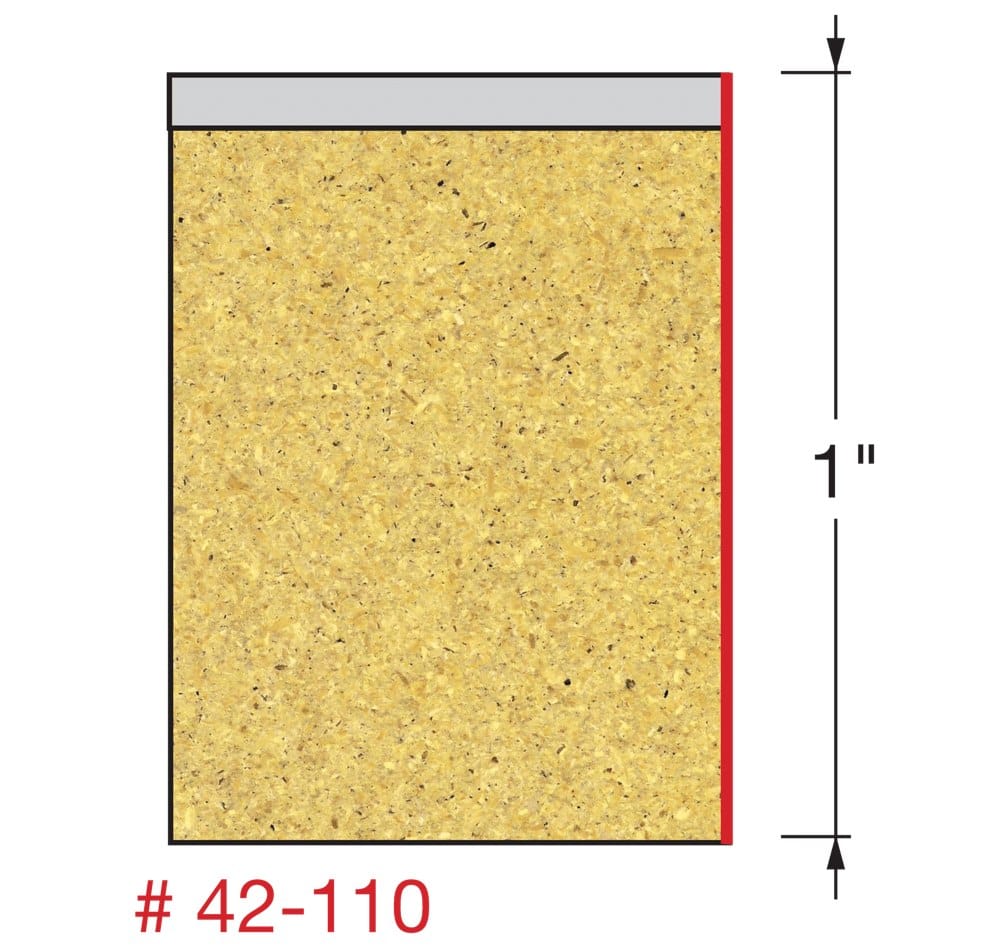

Technical diagram showing a wood composite block with a red line indicating a precise 1 inch flush trim cut corresponding to the Freud 42-110 bit specifications.

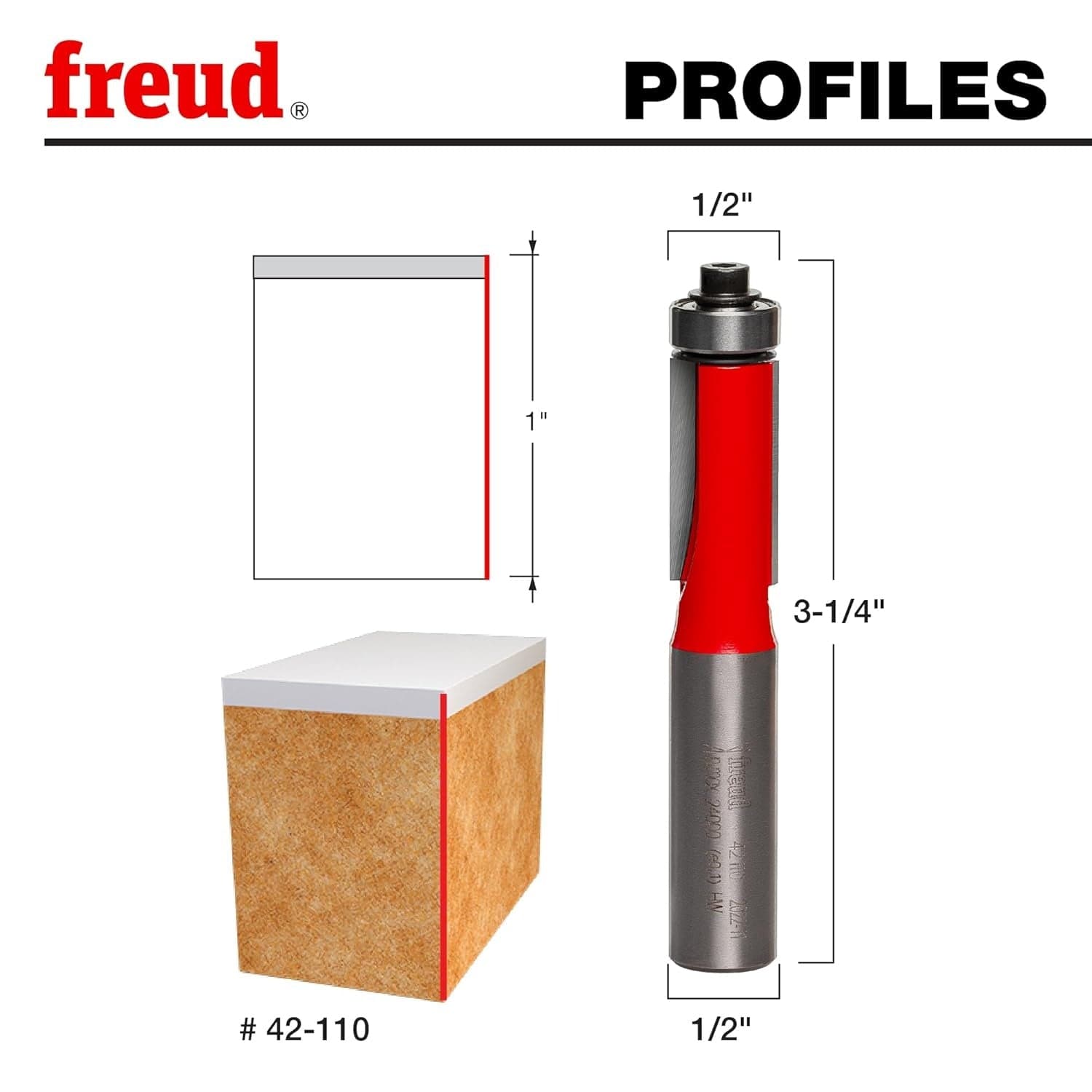

Freud 42-110 profile graphic showing the 1/2 inch diameter, 1 inch cutting height, and 3-1/4 inch overall length next to an illustrated flush trim application.

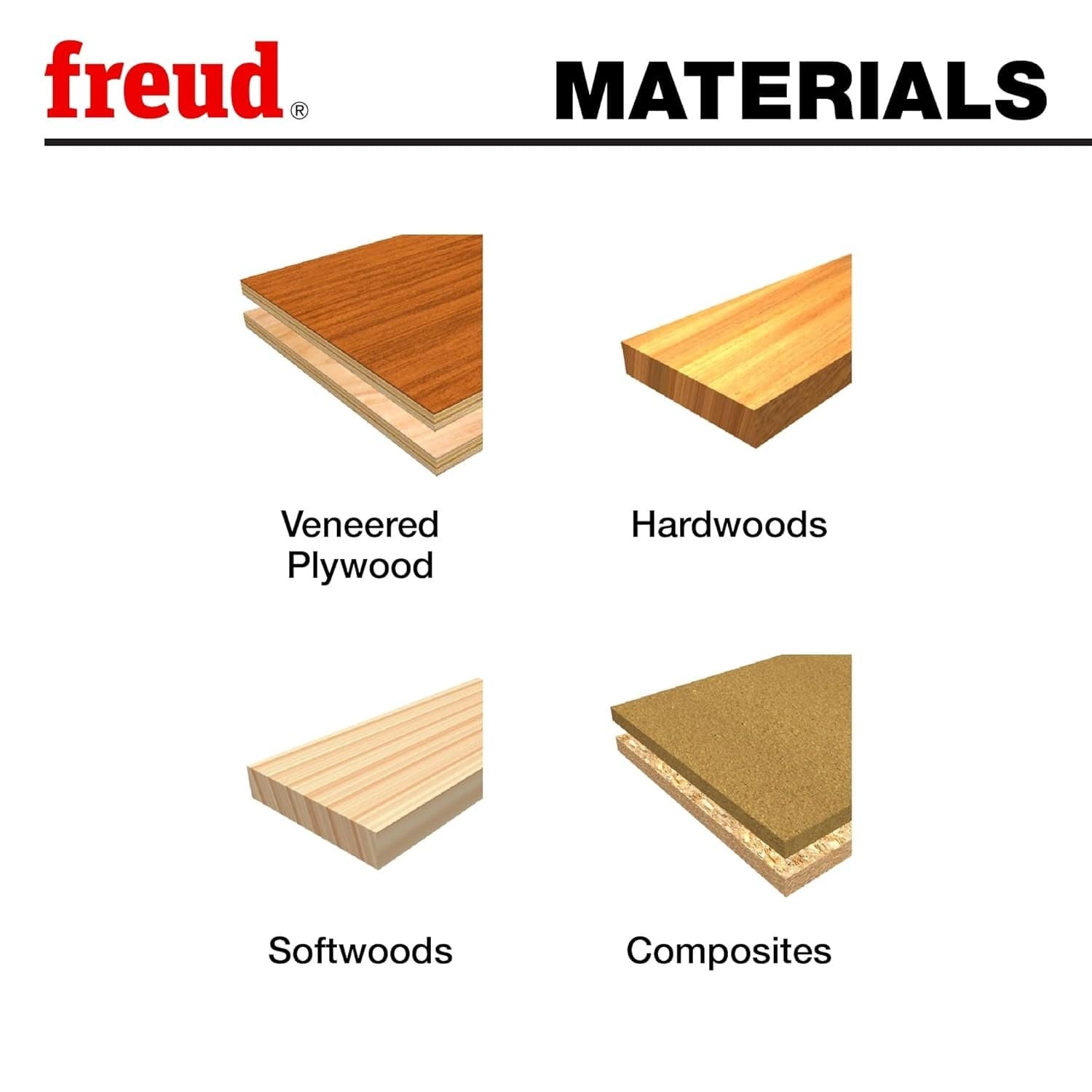

Materials chart for the Freud 42-110 router bit indicating compatibility with veneered plywood, hardwoods, softwoods, and composites.

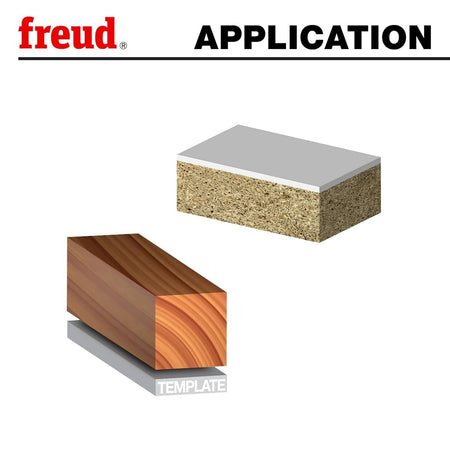

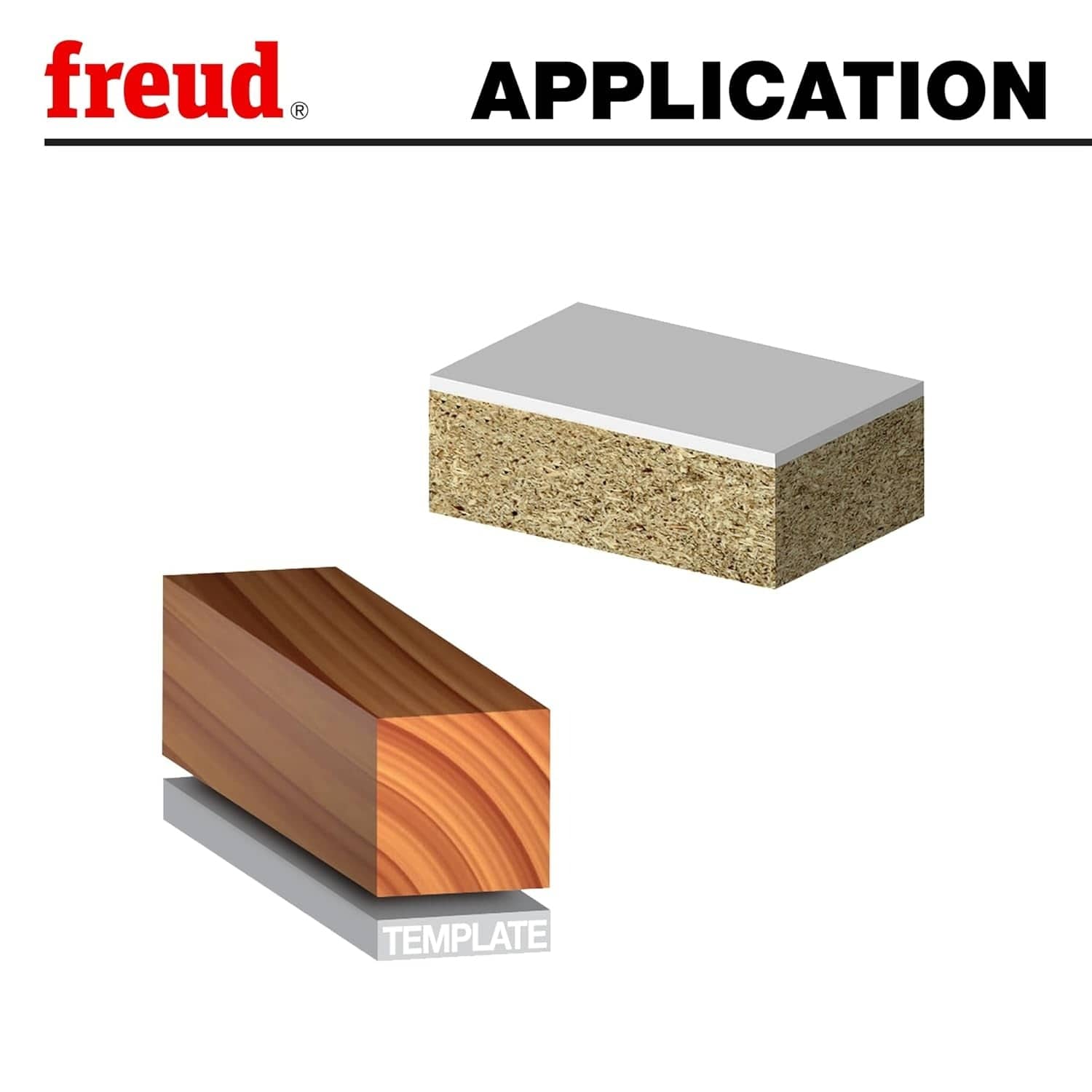

Application graphic showing the Freud 42-110 being used for laminate trimming on a countertop and template routing on a solid wood block.

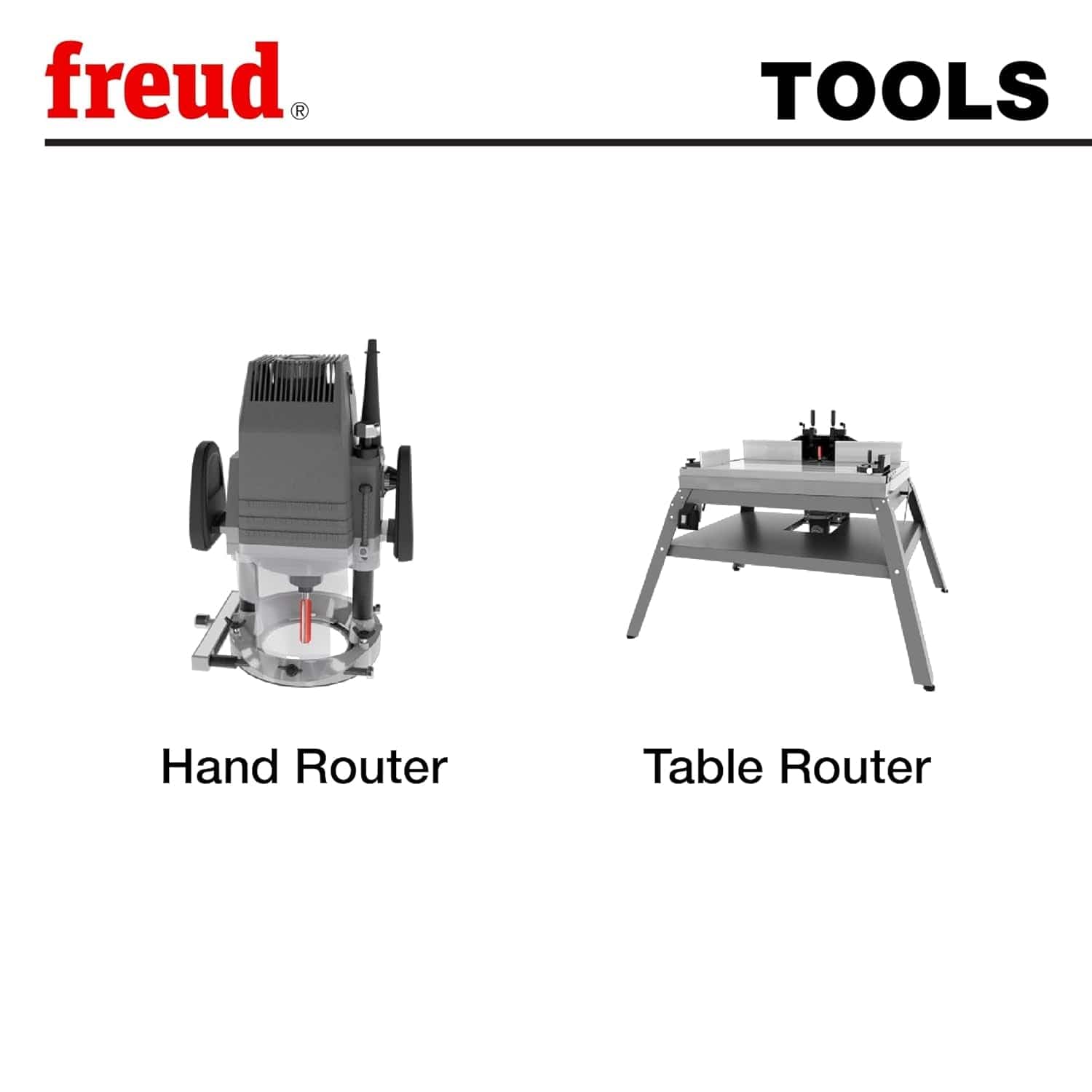

Equipment compatibility chart showing the Freud 42-110 router bit is designed for use with both hand routers and table routers.

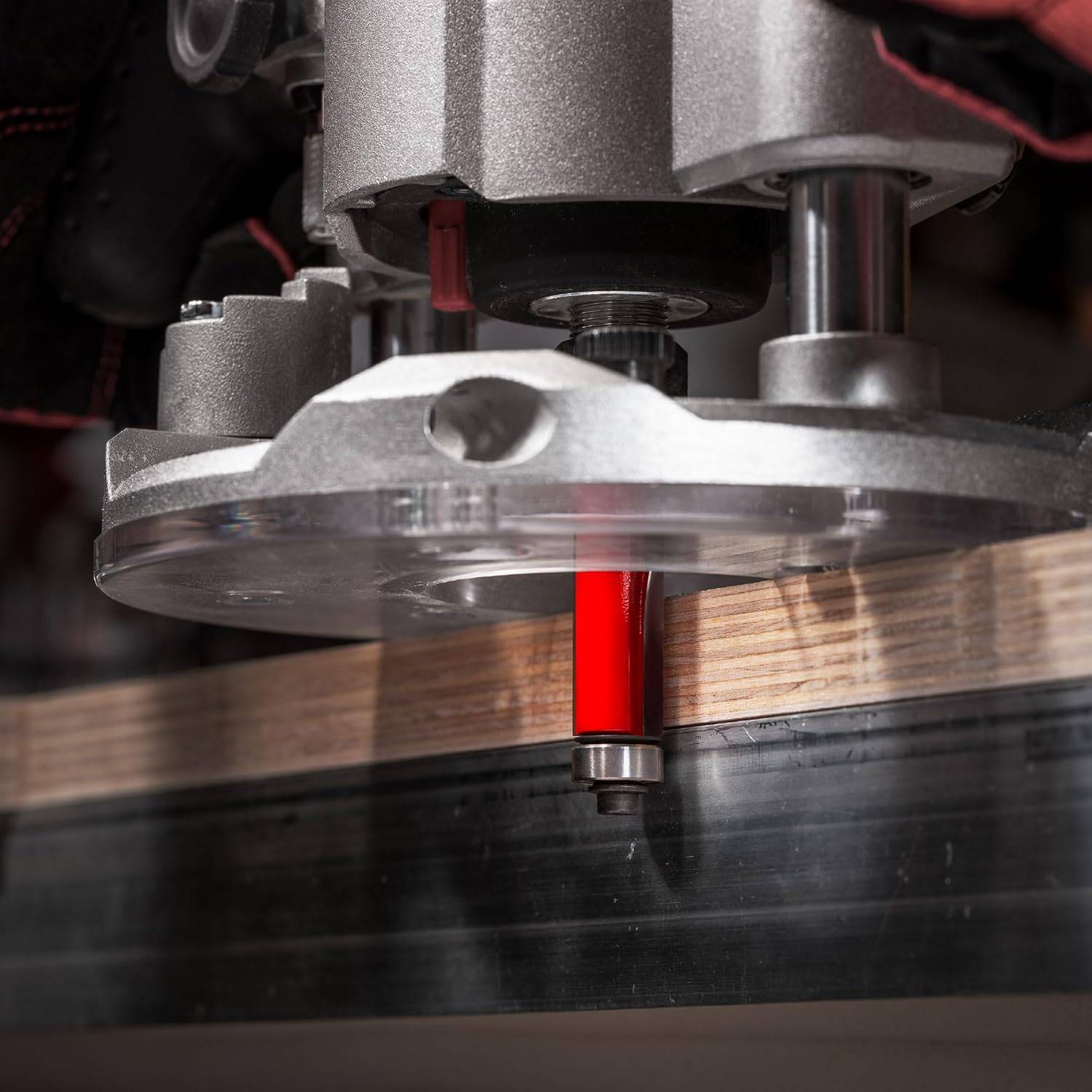

Action shot of the Freud 42-110 bearing flush trim bit mounted in a hand-held router, trimming the edge of a plywood sheet flush with a guide.
Angled view of the Freud 42-110 1/2 inch bearing flush trim router bit with a top-mounted ball bearing, red Perma-SHIELD coating, and silver 1/2 inch shank.
Vertical view of the Freud 42-110 flush trim router bit showing the top-mounted pilot bearing and laser-etched branding on the 1/2 inch silver shank.
Freud 42-110 1/2 inch bearing flush trim router bit in its protective retail hanging pack, detailing the 1 inch carbide height and 1/2 inch shank diameter.
Technical diagram showing a wood composite block with a red line indicating a precise 1 inch flush trim cut corresponding to the Freud 42-110 bit specifications.
Freud 42-110 profile graphic showing the 1/2 inch diameter, 1 inch cutting height, and 3-1/4 inch overall length next to an illustrated flush trim application.
Materials chart for the Freud 42-110 router bit indicating compatibility with veneered plywood, hardwoods, softwoods, and composites.
Application graphic showing the Freud 42-110 being used for laminate trimming on a countertop and template routing on a solid wood block.
Equipment compatibility chart showing the Freud 42-110 router bit is designed for use with both hand routers and table routers.
Action shot of the Freud 42-110 bearing flush trim bit mounted in a hand-held router, trimming the edge of a plywood sheet flush with a guide.
Freud

Freud Flush Trim Router Bit 42-110 1/2 Inch Shank TiCo Carbide Cutter (Steel Ball Bearing Pilot 1 Cutting Length Max 24000 RPM Laminate Patterning)

In stock
SKU: 42-110
$14.00 USD

Description

Freud precisely the best logo Logout

Freud 42-110 1/2" Bearing Flush Trim Router Bit (1/2" Shank)

The Freud 42-110 1/2-inch bearing flush trim router bit delivers mirror-smooth, burn-free edge profiles when trimming plastic laminates, template-patterned casework, and solid hardwood veneers. Engineered with a precision steel ball-bearing pilot guide and Freud's exclusive TiCo™ high-density micrograin carbide, this industrial-grade trimming bit maintains exact edge flushness across workpieces up to a rated maximum rotational speed of 24,000 RPM. Outfitted with an optimized two-flute cutting layout that ejects chips cleanly, an anti-friction non-stick Perma-SHIELD® coating that shields against resin and heat buildup, and a heavy-duty 1/2-inch solid steel shank, it equips commercial countertop fabricators, cabinetmakers, and furniture builders with chatter-free routing performance across both hand-held and table-mounted routers.

Best Used For:

  • Plastic Laminate Countertop Fabrication: Trimming high-pressure laminate (HPL) tops, edge banding, and formica self-edge strips perfectly flush with wood substrates without chipping or burn marks.
  • Template and Pattern Duplication: Following acrylic, MDF, or plywood patterns with the ball-bearing pilot to duplicate intricate curved furniture rails, arches, and custom cabinetry components.
  • Hardwood Edge Banding and Veneer Trimming: Trimming solid wood lippings, hardwood edge bandings, and thick architectural veneers flush with panel faces cleanly.

Key Performance & Safety Features

  • Precision Ball-Bearing Pilot: End-mounted steel ball bearing rolls smoothly along templates and substrate edges to produce perfectly flush edges without marring work surfaces.
  • TiCo™ Hi-Density Carbide: Specially formulated titanium-cobalt matrix resists chemical abrasion and micro-chipping, retaining razor sharpness through high-volume production runs.
  • Perma-SHIELD® Non-Stick Coating: Thermally resistant barrier prevents heat buildup, sheds wood pitch and adhesive gumming, and shields against rust.
  • Optimized Two-Flute Shear Design: Dual-cutter geometry provides fast material clearance and slices through wood fibers smoothly to eliminate surface fuzzing and edge chatter.
  • Multi-Machine Versatility: Dynamically balanced body rated up to 24,000 RPM provides vibration-free operation in hand-held routers and stationary router tables.
  • Heavy-Duty 1/2" Drive Shank: Large-diameter solid alloy steel shank minimizes rotational deflection and provides rigid collet holding security under heavy side loads.

What's Included

  • (1) Freud 42-110 1/2" Bearing Flush Trim Router Bit with 1/2" Shank

Technical Specifications

Manufacturer Brand Freud Tools Inc.
Model Part Number 42-110
Product Tool Classification Bearing-Guided Flush Trim Router Bit
Overall Cutting Diameter 0.500 Inches (1/2 in. / 12.70 mm)
Carbide Cutting Height 1.000 Inches (1 in. / 25.40 mm)
Collet Shank Diameter 0.500 Inches (1/2 in. / 12.70 mm)
Bearing Pilot Outer Diameter 0.500 Inches (1/2 in. / 12.70 mm)
Overall Tool Length 3.250 Inches (3-1/4 in. / 82.55 mm)
Number of Cutters 2 Cutters (Double Flute Design)
Cutting Tip Metallurgy Exclusive TiCo™ High-Density Micrograin Carbide
Maximum Rotational Speed 24,000 RPM
Protective Surface Coating Non-Stick Industrial Perma-SHIELD® Coating
Power Tool Compatibility Hand-Held Routers & Table-Mounted Routers
Suitable for material type Plastic Laminates, Solid Hardwoods, Softwoods, & Plywood

Pro-Tip: Before trimming sticky contact cement or laminate seams, check that the ball bearing spins freely and apply a drop of dry Teflon lubricant; keeping the bearing clean prevents adhesive buildup that could cause the pilot to seize and scorch your finished workpiece edge.
