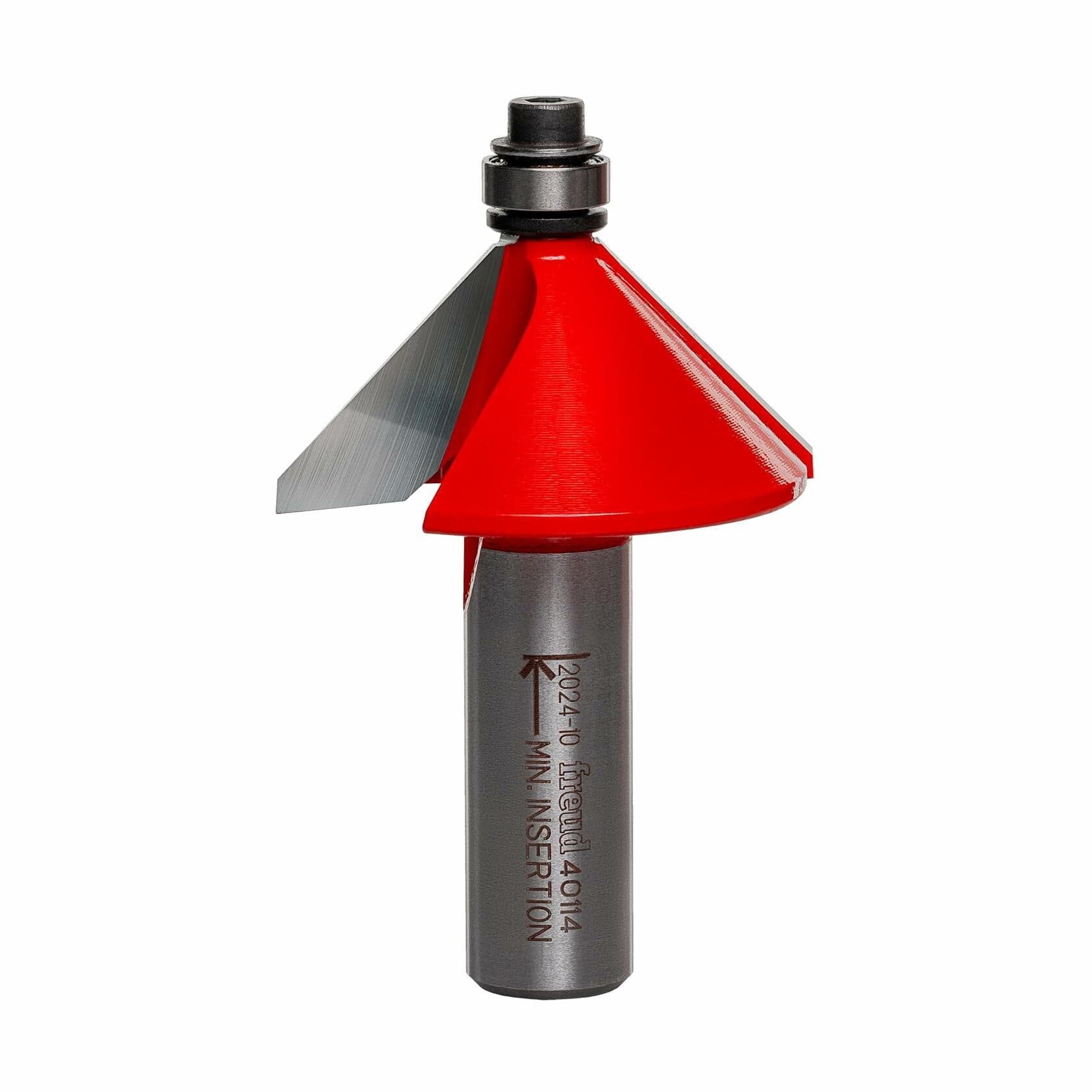

Close-up of Freud 40-114 chamfer router bit with red body, bearing guide, and engraved shank text, designed for creating beveled edges in wood.

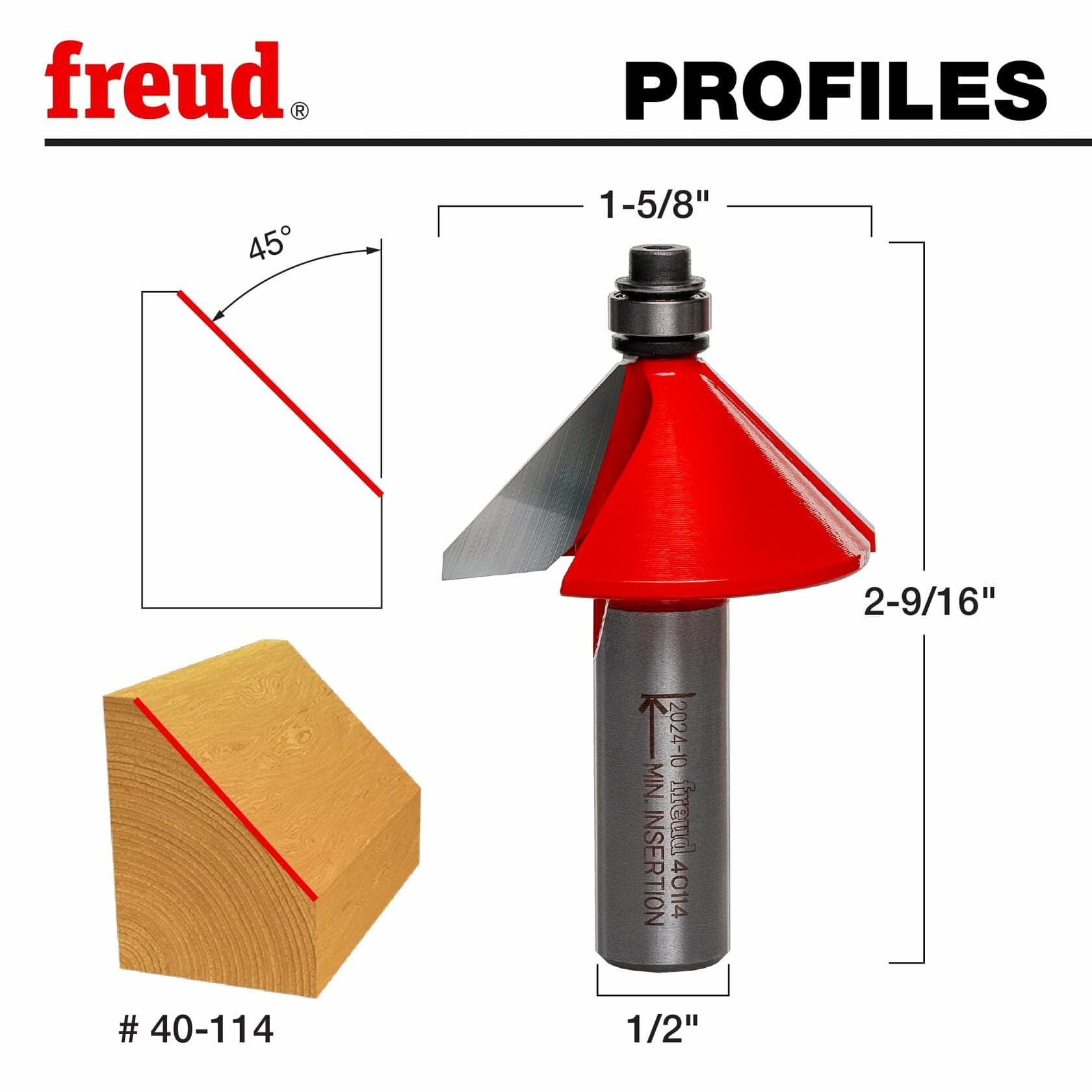

Detailed diagram of Freud 40-114 chamfer router bit with labeled dimensions and cutting profile, showing 45-degree angle and 1-5/8-inch diameter
Freud-branded graphic showing four material types—veneered plywood, hardwoods, softwoods, and composites—commonly used with router bits for woodworking.

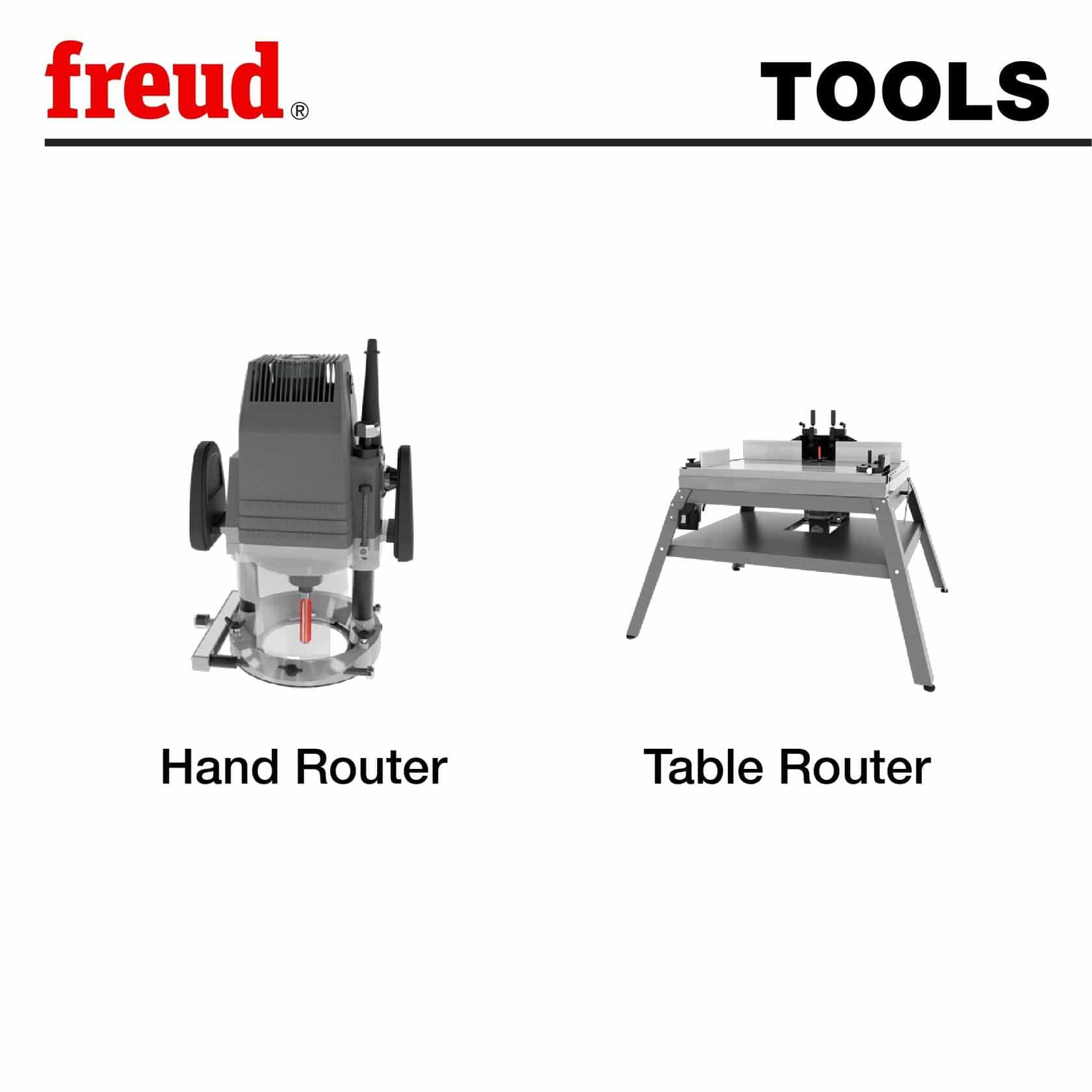

Side-by-side comparison of a hand router and a table router labeled under the Freud brand, illustrating tool options for edge routing applications.

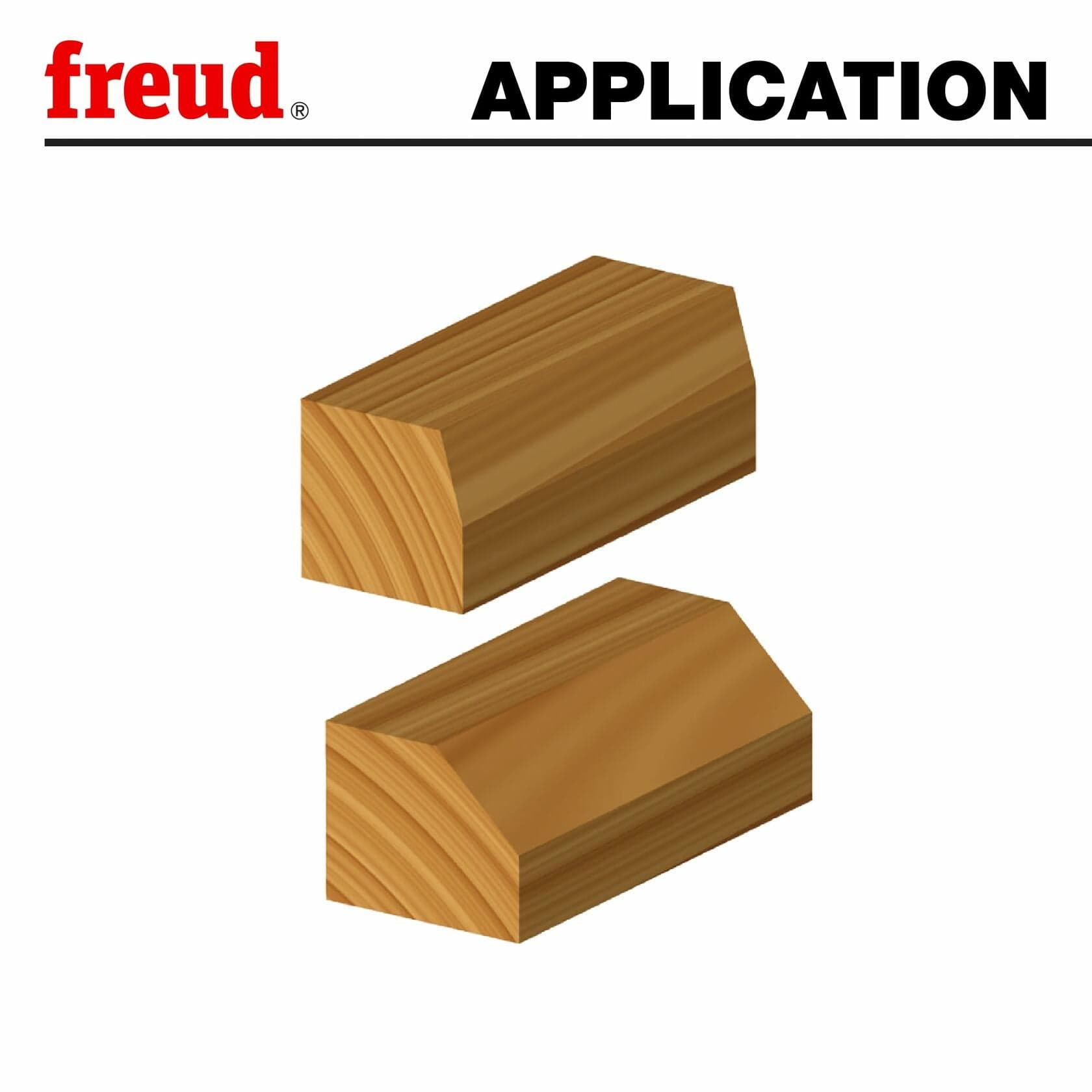

Two wooden boards with beveled edges shown side by side, demonstrating the 45-degree chamfer profile created using the Freud 40-114 router bit
Close-up of Freud 40-114 chamfer router bit with red body, bearing guide, and engraved shank text, designed for creating beveled edges in wood.
Detailed diagram of Freud 40-114 chamfer router bit with labeled dimensions and cutting profile, showing 45-degree angle and 1-5/8-inch diameter
Freud-branded graphic showing four material types—veneered plywood, hardwoods, softwoods, and composites—commonly used with router bits for woodworking.
Side-by-side comparison of a hand router and a table router labeled under the Freud brand, illustrating tool options for edge routing applications.
Two wooden boards with beveled edges shown side by side, demonstrating the 45-degree chamfer profile created using the Freud 40-114 router bit
Freud

Freud 40-114 Chamfer Router Bit 1-5/8-Inch Diameter with TiCo Carbide 1/2-Inch Shank 45° Angle for Joinery Edge Treatment Cabinetry and Furniture Routing

In stock
SKU: 40-114
$29.50
$48.76 Sale $29.50
Description

Precision Chamfering for Clean Edges—Built for Joinery, Cabinetry, and Decorative Woodworking

The Freud 40-114 Chamfer Router Bit is your go-to solution for adding crisp, decorative edges and precision joinery to wood, plywood, and composite materials. Whether you're crafting furniture, trimming cabinetry, or easing edges on multi-sided projects, this 1-5/8" diameter bit delivers smooth, consistent results with a 45° chamfer profile. Built with Freud’s TiCo Hi-Density Carbide, it offers extended sharpness and durability—even in hardwoods and engineered panels. The 1/2" shank ensures stability at high speeds, and the 5/8" cutting height gives you flexibility across a range of routing tasks. Compatible with both hand-held and table-mounted routers, this bit is ideal for woodworkers, cabinetmakers, and finish carpenters who demand clean lines and long-lasting performance.

Key Features

  • Creates a 45° chamfer profile for decorative and functional edge treatment
  • Ideal for joinery, furniture detailing, cabinetry, and multi-sided projects
  • TiCo Hi-Density Carbide ensures long-lasting sharpness and precision
  • 1-5/8" diameter and 5/8" cutting height for versatile edge shaping
  • 1/2" shank provides stability and reduced vibration at high speeds
  • Rated for up to 16,000 RPM for fast, clean cuts
  • Compatible with solid wood, plywood, MDF, and composite panels
  • Works with hand-held and table-mounted routers
  • Adjustable chamfer size by changing bit height or fence position
  • Precision-ground cutting edges for smooth, burn-free finishes

What's Included

  • 1 x Freud 40-114 Chamfer Router Bit (1-5/8" Diameter, 1/2" Shank, 45° Angle)

Specifications

Brand Freud
Model Number 40-114
Bit Diameter 1-5/8 inches
Shank Size 1/2 inch
Cutting Height 5/8 inch
Chamfer Angle 45 degrees
Material TiCo Hi-Density Carbide
Max RPM 16,000
Router Compatibility Hand-held and Table-mounted
Application Joinery, Edge Treatment, Furniture, Cabinetry

Looking to expand your edge profiling options? Consider pairing this chamfer bit with the Freud 99-444 Cove and Bead Router Bit for elegant decorative edges on furniture and trim.
