Freud Entry Interior Door Router Bit System 99269 1/2 Inch Shank 1-7/8 Inch Cutter Set (Mortise Tenon Woodworking Millwork Cabinet Making)

Freud 99-269 1-7/8" Entry & Interior Door Router Bit System with 1/2" Shank

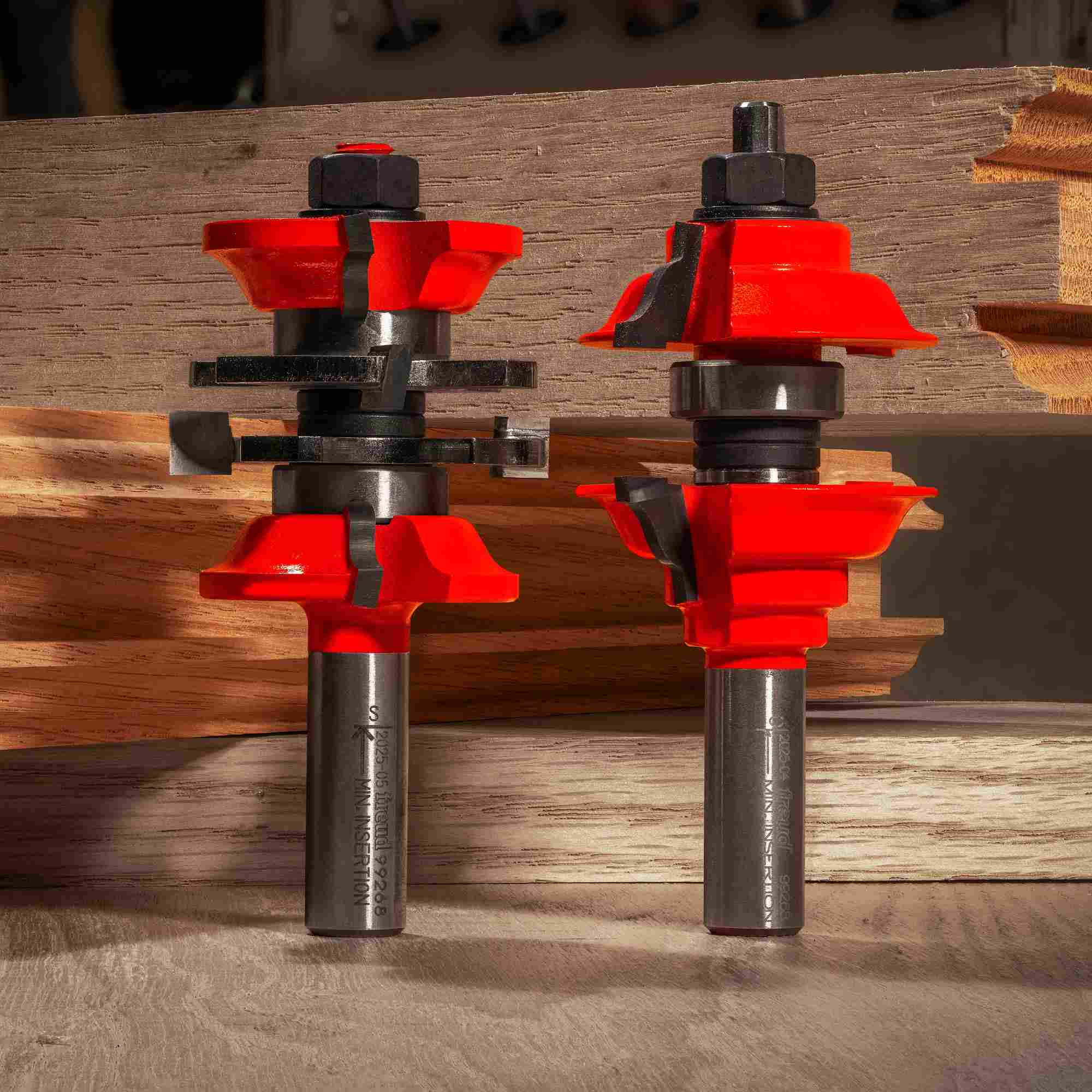

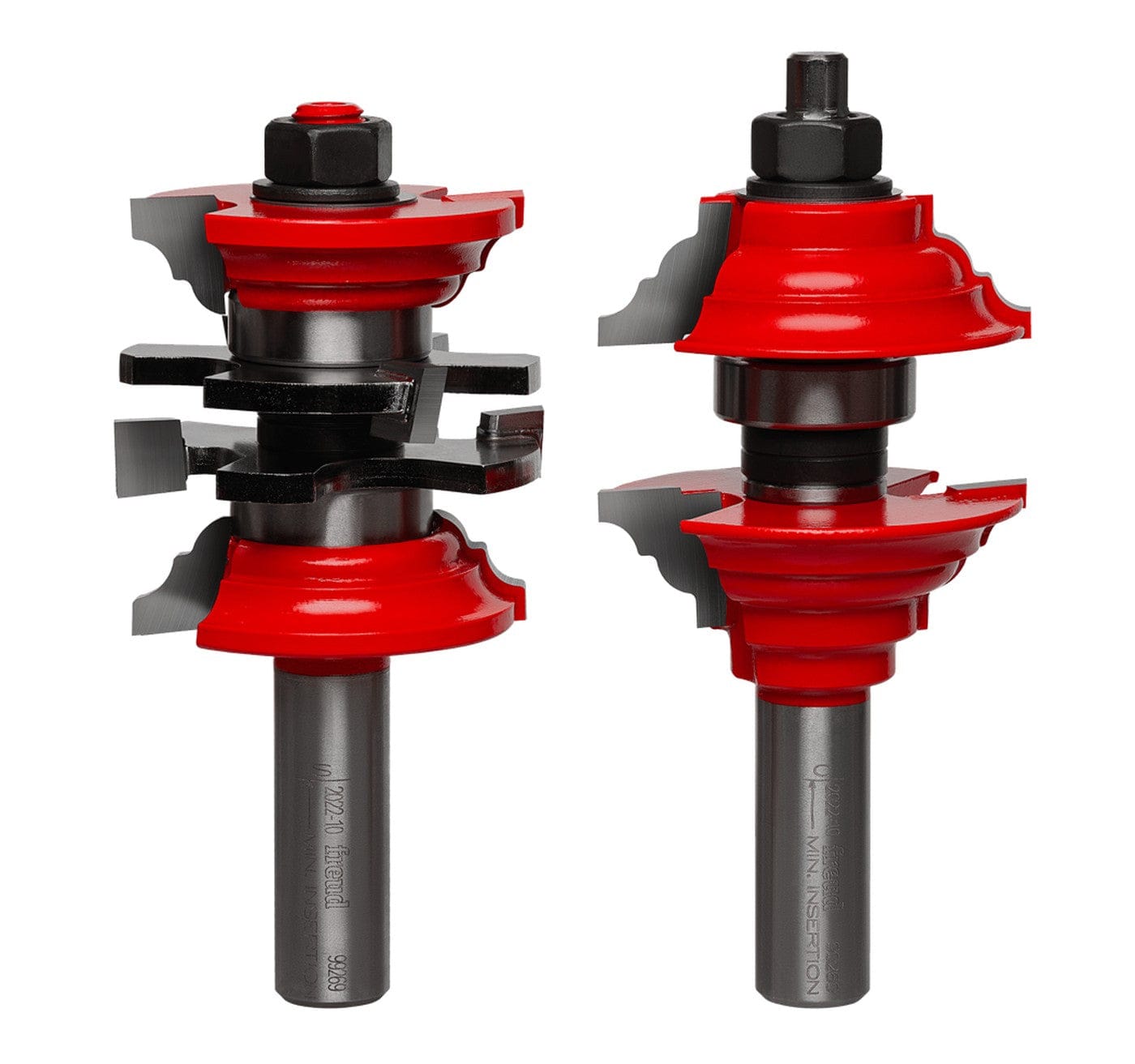

The Freud 99-269 1-7/8-inch entry and interior door router bit system mills matched rail and stile profiles for true mortise and tenon joinery across custom interior and exterior doors. Engineered to accommodate standard 1-3/8-inch and 1-3/4-inch thick door assemblies, this patented matched cutter set features removable top rail bit components to construct custom long tenons for heavy architectural joinery. Outfitted with premium carbide cutting edges, a 1/2-inch heavy-duty precision shank, a 7/8-inch guide bearing, and red Perma-SHIELD non-stick thermal coating that resists heat buildup and gumming, it equips professional woodworkers, cabinetmakers, and millwork shops with gap-free joint precision across table-mounted routing stations.

Best Used For:

• Custom Interior and Entry Door Fabrication: Milling rock-solid rail and stile joints for standard 1-3/8-inch and 1-3/4-inch residential passage and entry doors.
• Architectural Mortise and Tenon Joinery: Constructing heavy, high-integrity framework joints for oversized wooden doors using removable cutter configurations.
• Fine Woodwork and Millwork Production: Shaping professional-grade architectural panels and frame assemblies from solid hardwoods and softwoods.

Key Performance & Safety Features

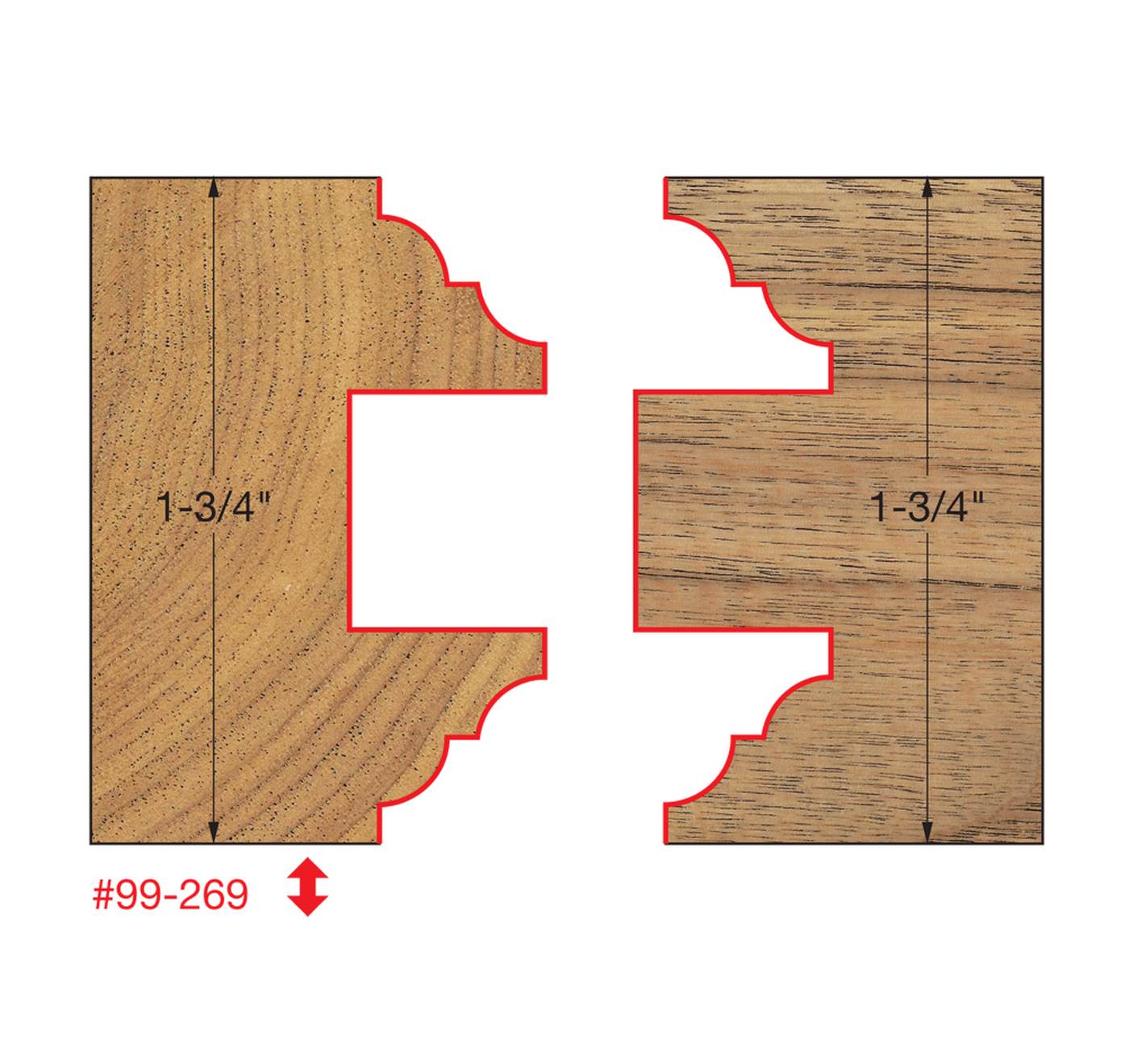

• Matched Rail and Stile Set: Pre-balanced 2-piece cutter combination produces flawless, gap-free rail and stile joints right out of the box.

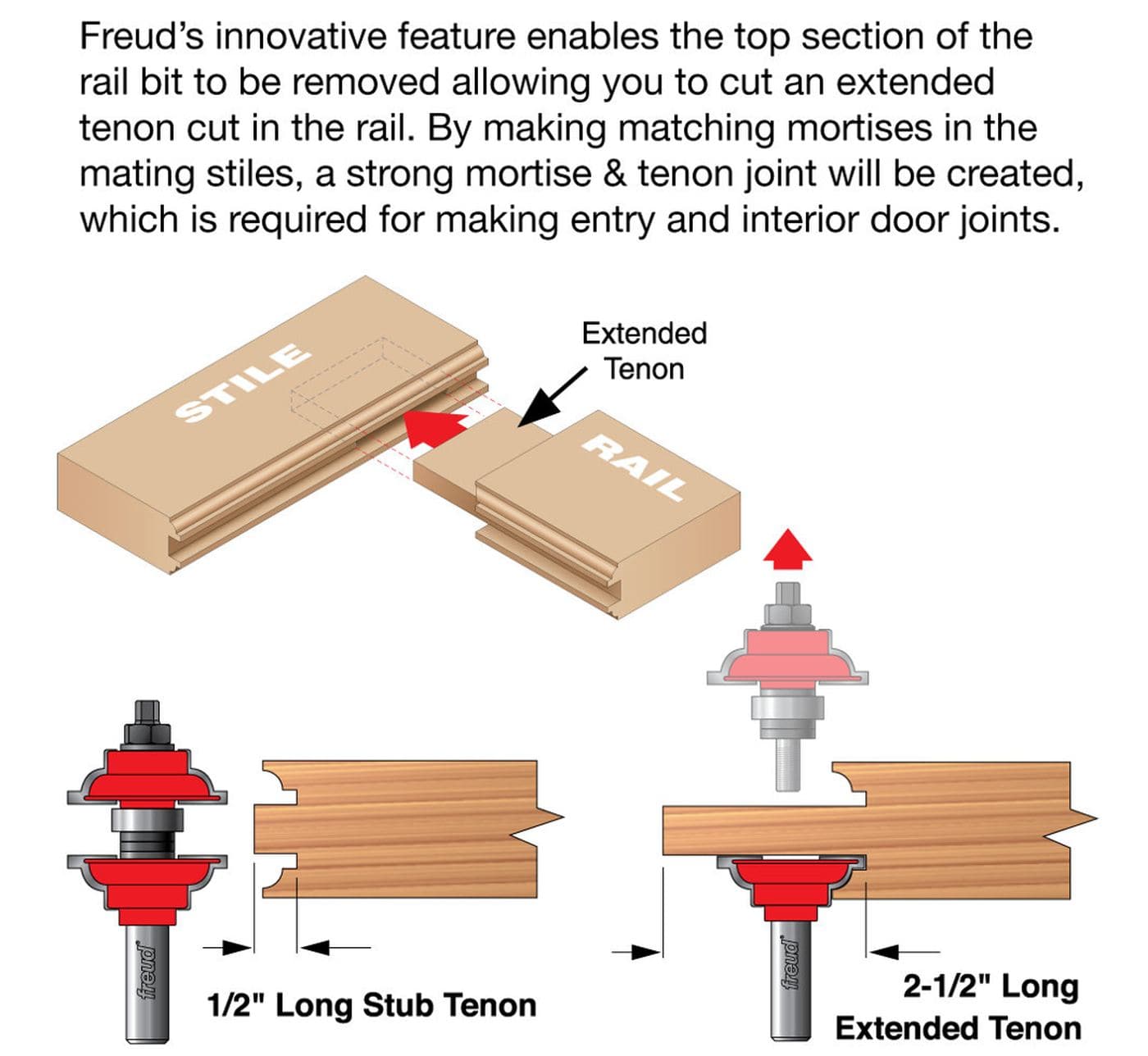

• Adjustable Long Tenon Capability: Removable top rail cutter sections allow woodworkers to mill extended tenons of custom lengths for increased structural strength.
• Versatile Door Thickness Compatibility: Precision-engineered cutting profiles accommodate both standard 1-3/8-inch and heavy 1-3/4-inch door stock.
• Perma-SHIELD Non-Stick Coating: Thermal-resistant finish prevents resin gumming, pitch accumulation, and frictional heat buildup on the bit body.
• Heavy-Duty 1/2" Precision Shank: Rigid shank design minimizes vibration and deflection under heavy feed loads in table-mounted routing setups.
• Safe Table-Mounted Operation: Balanced 2-piece geometry and 16,000 RPM maximum rating provide controlled, vibration-free routing performance.

What's Included

• (1) Freud 99-269 Matched Rail and Stile Router Bit Set for 1-3/8-Inch to 1-3/4-Inch Doors

Technical Specifications

Pro-Tip: When routing large door rails and stiles on a router table, make multiple progressive passes rather than removing full depth at once; multi-pass milling reduces motor strain, eliminates bit chatter, and guarantees flawless, splinter-free mortise and tenon joints.
