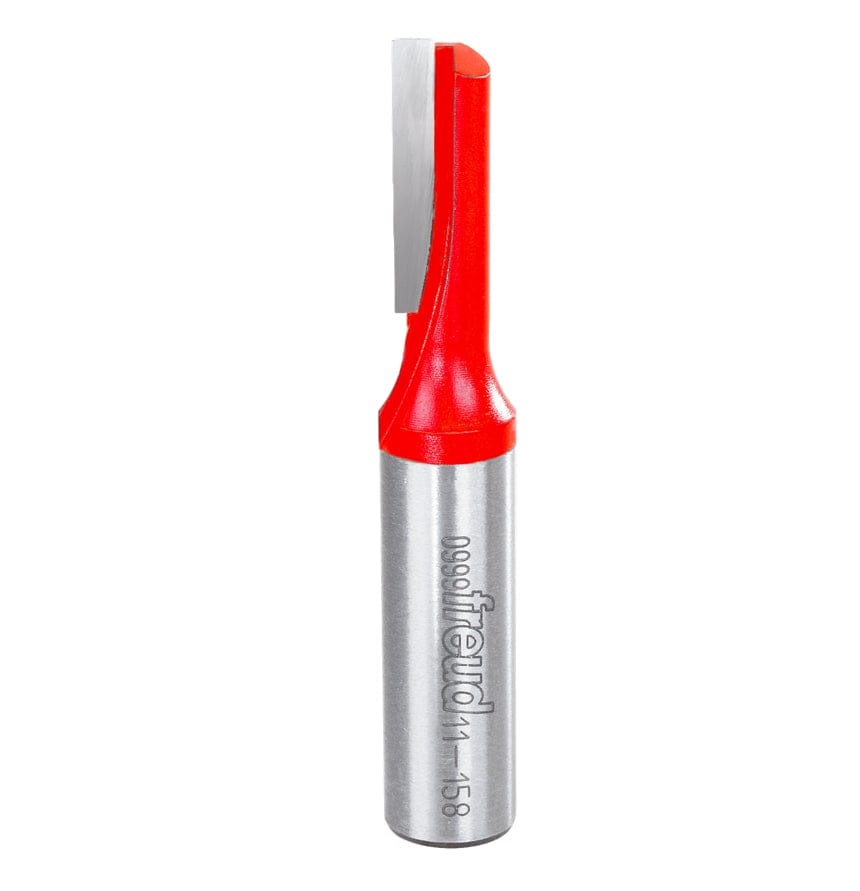

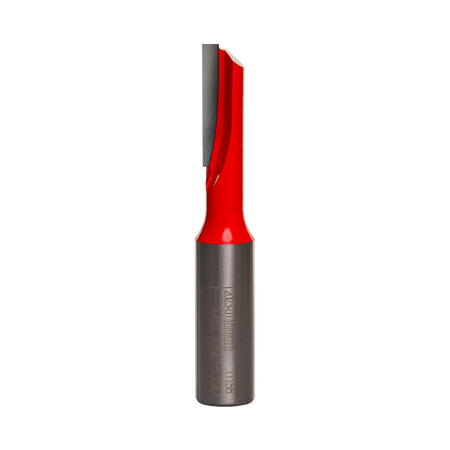

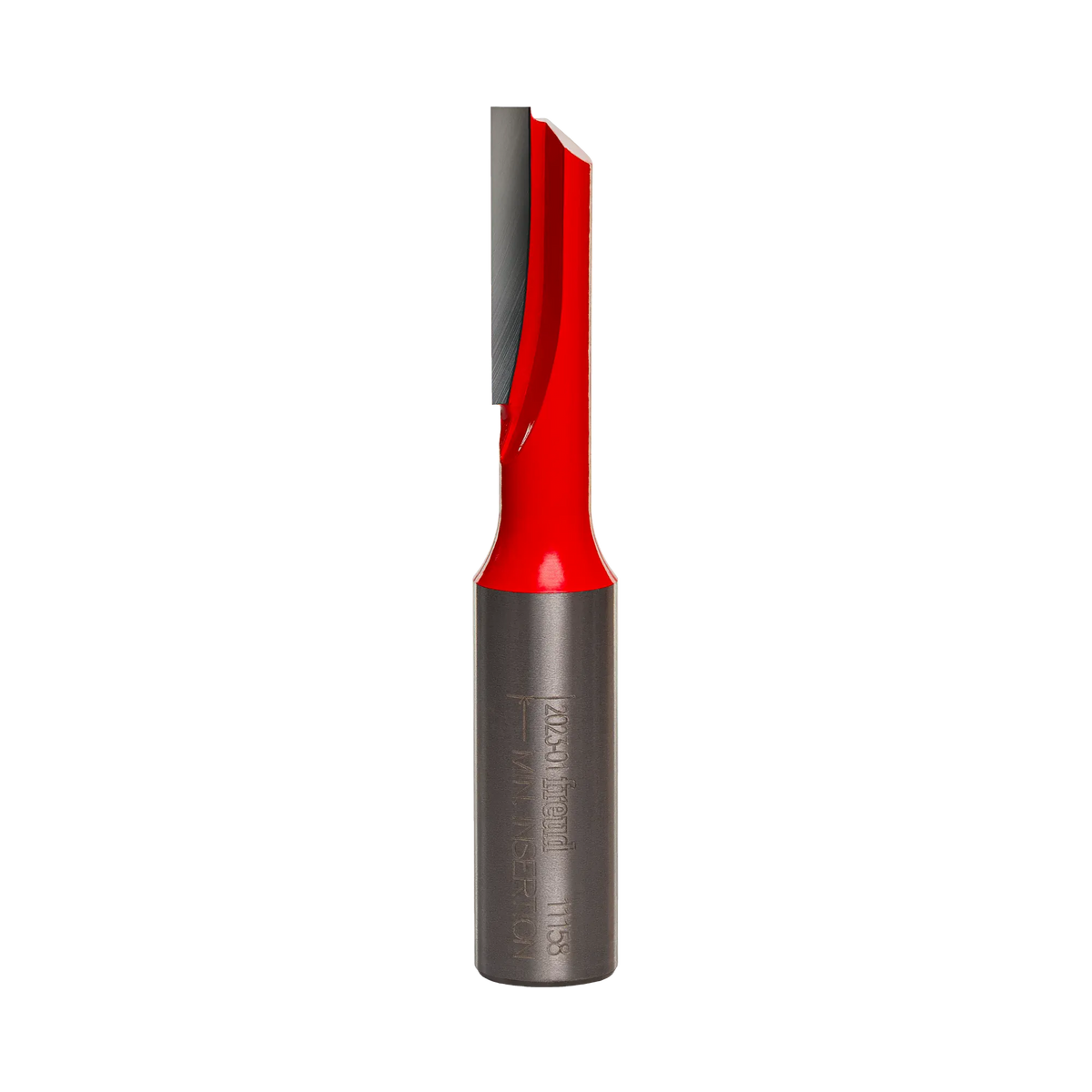

Studio product shot of the Freud 11-158 solid carbide single flute straight router bit, showing the thick 1/2 inch shank transitioning to the thinner 3/8 inch cutting diameter with one distinct spiral cutting edge.

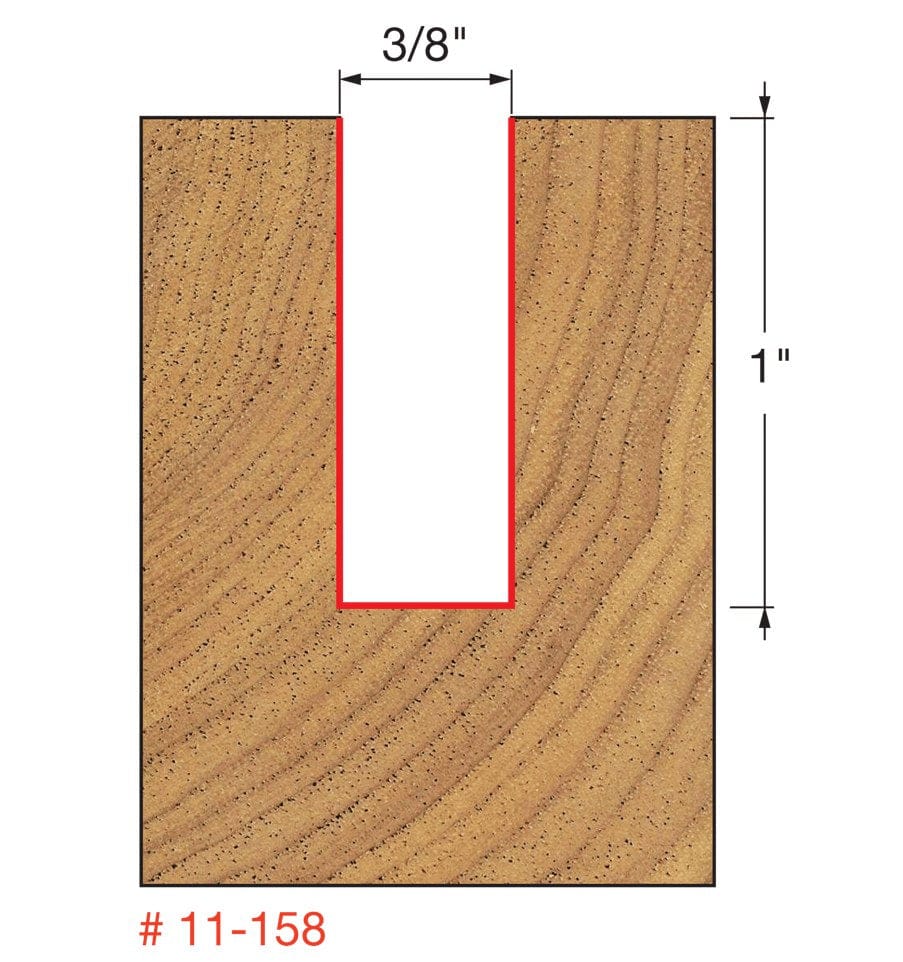

Technical line diagram indicating the specific dimensions for model 11-158, showing a 1/2 inch shank diameter, a 3/8 inch cutting diameter, a 1 inch cutting height, and an overall tool length of 3 inches.

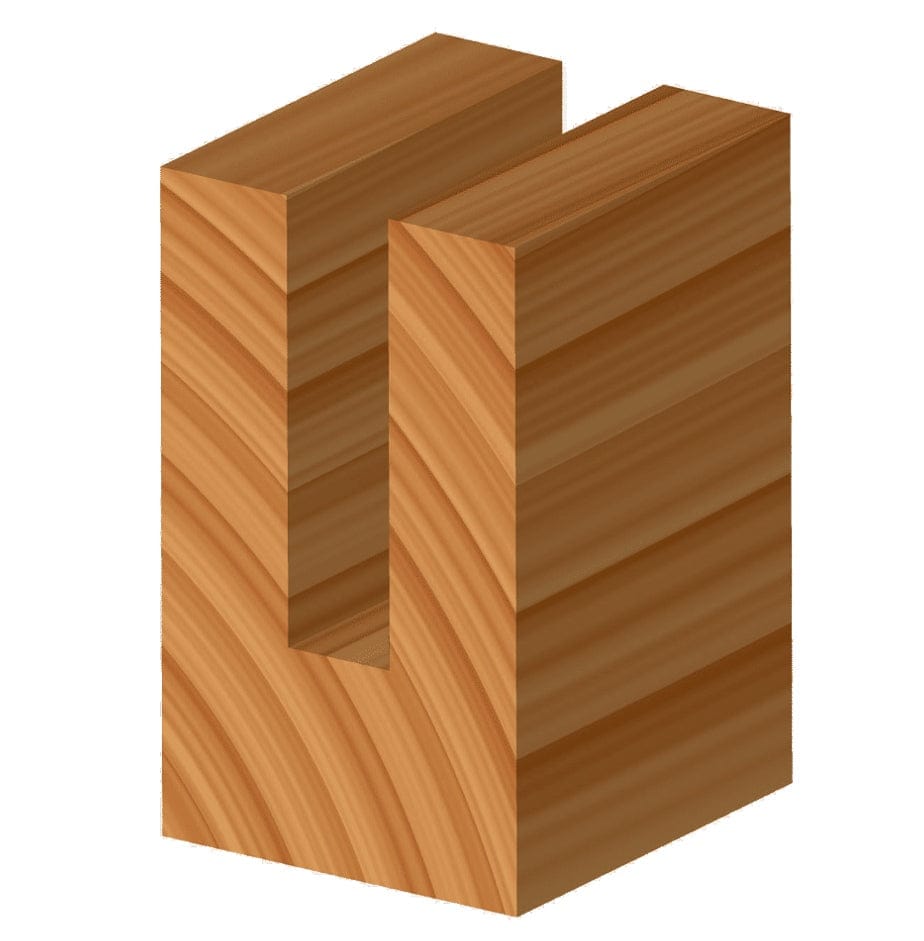

3D computer graphic showing a block of wood with a square channel groove cut into the top surface, illustrating the profile created by the straight bit.

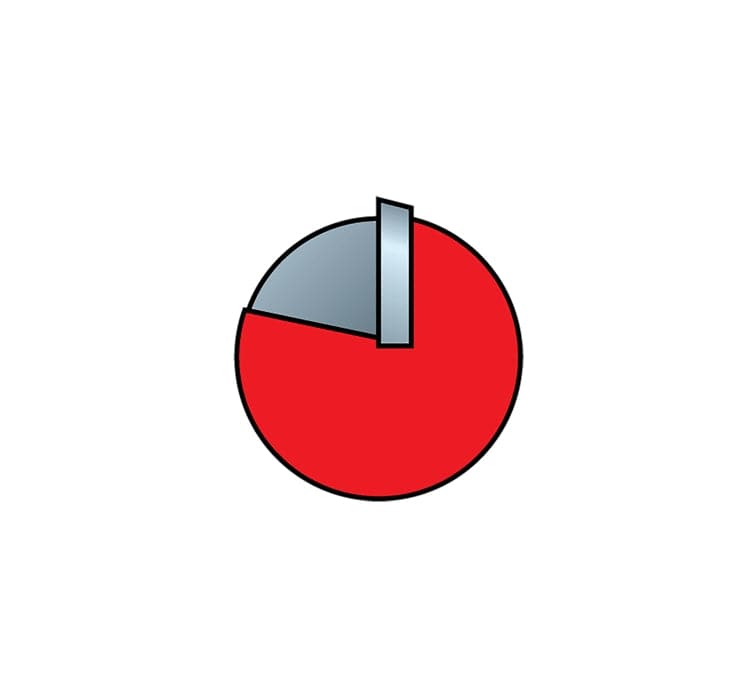

Top-down view diagram of the router bit profile showing the circular 3/8 inch cutting path and the single flute geometry designed for fast chip ejection.
Studio product shot of the Freud 11-158 solid carbide single flute straight router bit, showing the thick 1/2 inch shank transitioning to the thinner 3/8 inch cutting diameter with one distinct spiral cutting edge.
Technical line diagram indicating the specific dimensions for model 11-158, showing a 1/2 inch shank diameter, a 3/8 inch cutting diameter, a 1 inch cutting height, and an overall tool length of 3 inches.
3D computer graphic showing a block of wood with a square channel groove cut into the top surface, illustrating the profile created by the straight bit.
Top-down view diagram of the router bit profile showing the circular 3/8 inch cutting path and the single flute geometry designed for fast chip ejection.
Freud

Freud 11-158 3/8 Inch Diameter Single Flute Straight Router Bit 1/2 Inch Shank Solid Carbide for High Speed Cutting and Chip Clearance

Only 1 left
SKU: 11-158
$10.49
Description

Maximize Production Speed and Chip Clearance with the Freud 3/8 Inch Single Flute Straight Router Bit

Optimize your high-production workflow with the Freud 11-158 3/8 Inch Single Flute Straight Bit. Designed specifically for fast feed rates and efficiency, this bit features a single flute geometry that provides maximum space for chip ejection. This design is crucial when working at high speeds, as it prevents chip clogging and reduces heat buildup, ensuring a cooler cut and extending the life of the tool. It is the ideal choice for rapid stock removal and general-purpose routing where speed is a priority.

Constructed from Freud's Premier Solid Carbide, this bit offers superior hardness and edge retention compared to standard steel cutters. The robust 1/2-inch shank provides the stability needed to minimize vibration during heavy-duty cutting. Whether you are operating a high-speed CNC machine, a table-mounted router, or a hand-held tool, this bit delivers consistent performance in hardwood, softwood, plywood, and composite materials.

Key Features

  • High-Production Design: Single flute geometry allows for faster feed rates and increased productivity.
  • Maximum Chip Clearance: Open flute design ejects debris rapidly to prevent clogging and overheating.
  • Premier Solid Carbide: Micro-grain carbide construction ensures a sharper edge and longer tool life.
  • Versatile Compatibility: Engineered for use on CNC, hand-held, and table-mounted routers.
  • Heavy-Duty Shank: 1/2-inch shank diameter offers excellent stability and reduces chatter.
  • Multi-Material Cutting: Effective in hardwood, softwood, plywood, and various composites.

What's Included:

  • (1) 3/8 In. Single Flute Straight Bit with 1/2 In. Shank (Model 11-158)

Specifications

Model Number 11-158
Overall Diameter (D) 3/8 In.
Shank Diameter (A) 1/2 In.
Carbide Height (h) 1 In.
Overall Length (H) 3 In.
Number of Flutes 1 (Single Flute)
Max RPM 24,000 RPM
Material Premier Solid Carbide
Bit Type Straight Single Flute
Application Material Wood, Plywood, Composites
Pro-Tip: Single flute bits are excellent for plunge cuts and drilling applications because the single flute allows significantly more room for waste material to escape upwards. This prevents the "burning" often seen when trying to plunge with double or triple flute bits.
