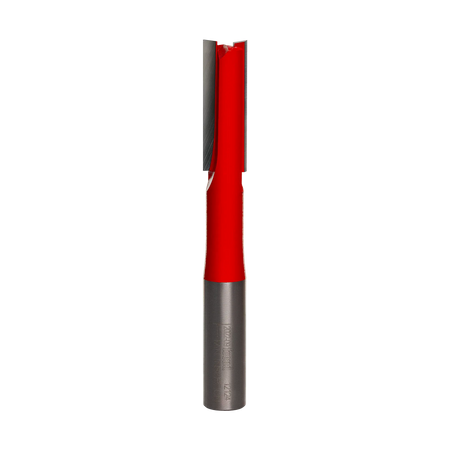

Studio product shot of the Freud 12-122T double flute straight router bit, featuring a thick 1/2-inch silver shank and a tall, red Perma-SHIELD coated cutter head for deep grooving.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 1/2 inch and a deep cutting depth of 1-1/2 inch for model numbers 12-122 and 12-124.
Retail blister pack packaging holding the Freud 12-122 double flute router bit, with labeling highlighting the 1/2 inch diameter, 1-1/2 inch cutting depth, and Perma-SHIELD coating.
3D computer graphic showing a block of wood with a deep, wide square channel groove cut into the top surface, illustrating the deep material removal profile of the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Studio product shot of the Freud 12-122T double flute straight router bit, featuring a thick 1/2-inch silver shank and a tall, red Perma-SHIELD coated cutter head for deep grooving.

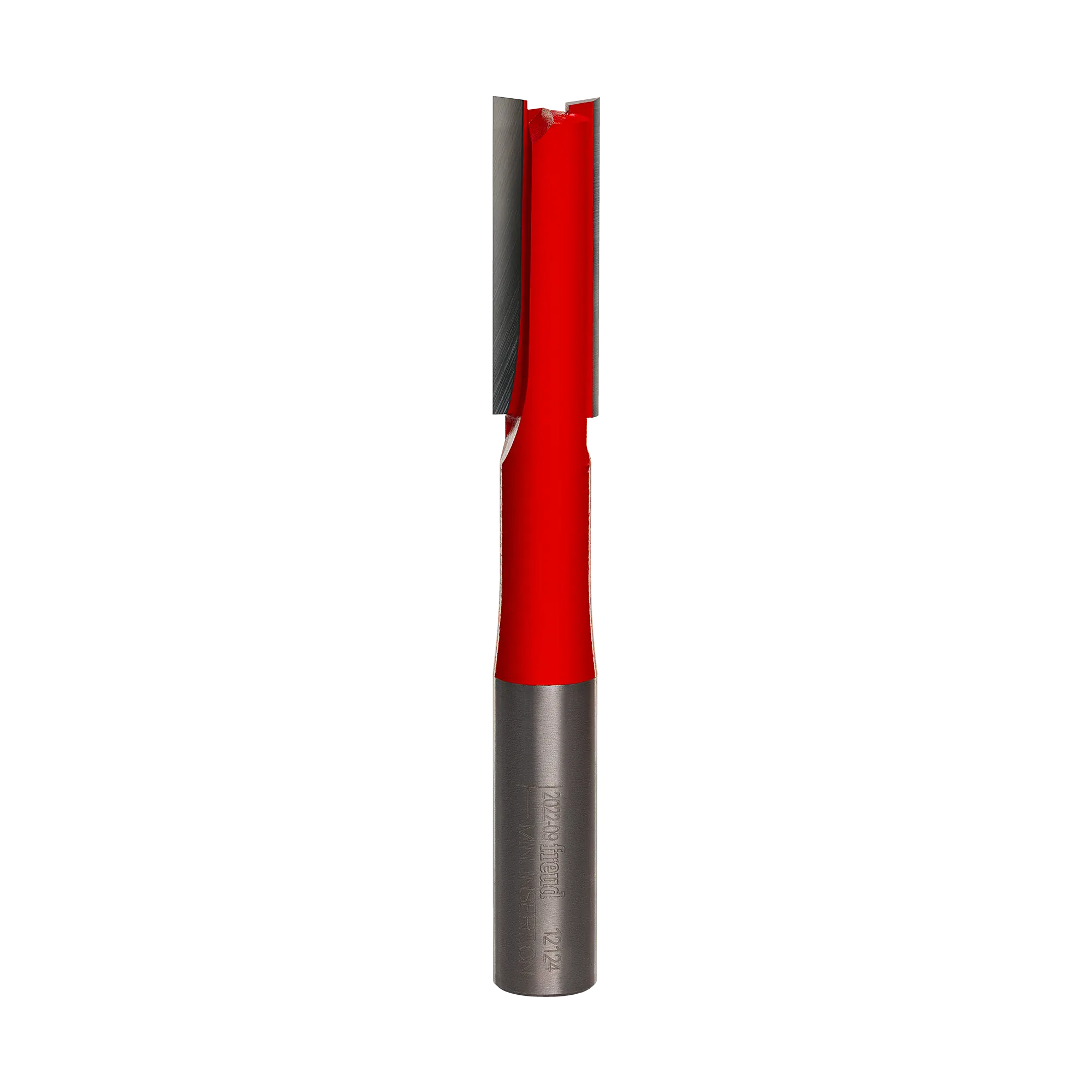

Studio product shot of the Freud 12-122T double flute straight router bit, featuring a thick 1/2-inch silver shank and a tall, red Perma-SHIELD coated cutter head for deep grooving.
Technical diagram showing a cross-section of a wood cut, indicating a slot width of 1/2 inch and a deep cutting depth of 1-1/2 inch for model numbers 12-122 and 12-124.
Retail blister pack packaging holding the Freud 12-122 double flute router bit, with labeling highlighting the 1/2 inch diameter, 1-1/2 inch cutting depth, and Perma-SHIELD coating.
3D computer graphic showing a block of wood with a deep, wide square channel groove cut into the top surface, illustrating the deep material removal profile of the straight bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Studio product shot of the Freud 12-122T double flute straight router bit, featuring a thick 1/2-inch silver shank and a tall, red Perma-SHIELD coated cutter head for deep grooving.
Freud

Freud Straight Router Bit 12-122T 1/2 Inch Double Flute (1/2 Inch Shank Perma-SHIELD TiCo Carbide 24000 RPM Deep Dadoes Mortising Plywood CNC)

Only 1 left
SKU: 12-122T
$12.99 USD

Description

Freud precisely the best logo Logout

Freud 12-122T 1/2 Inch Double Flute Straight Router Bit

The Freud 12-122T is a 1/2-inch overall cutting diameter double flute straight router bit engineered for deep mortise pocketing, thick stock dado jointing, and straight edge profiling. Built with a rigid 1/2-inch shank and an expansive 1-1/2-inch carbide cutting height, this 2-cutter tool features end-relieved tip geometry that enables clean, burn-free plunge entries into timber stock and composite panels. Tipped with TiCo™ Hi-Density Micrograin Carbide, protected by heat-resistant red Perma-SHIELD®, and computer-balanced to eliminate cutter chatter, it operates at rotational speeds up to 24,000 RPM across CNC machinery, router tables, or handheld routers in solid hardwoods, softwoods, plywood, and wood composites.

Best Used For:

  • Deep Mortise & Tenon Joinery: Plunging directly into timber stock to route clean 1/2-inch wide mortise channels for structural furniture and door assemblies.
  • Thick Stock Dado & Groove Milling: Machining 1/2-inch wide deep dado slots and cabinet rabbets across thick plywood sheets and solid hardwood panels.
  • Straight Edge Trimming & Template Profiling: Milling precise, square joint shoulders and straight edge profiles on deep workpiece borders in a single pass.

Key Performance & Safety Features

  • Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating repels pitch buildup, reduces drag friction, and Guards against thermal degradation.
  • Expansive 1-1/2-Inch Carbide Cutting Height: Deep carbide height capacity accommodates deep slotting, mortising, and thick panel edge trimming.
  • Heavy-Duty 1/2-Inch Shank: Rigid 1/2-inch steel shank diameter minimizes tool flex, runout, and cutter vibration during high-torque deep cuts.
  • TiCo™ Hi-Density Micrograin Carbide: Custom-formulated titanium-cobalt micrograin carbide tips maintain edge sharpness under continuous friction.
  • End-Relieved Plunge Cut Tip: Precision-ground end face geometry supports vertical drilling entry for starting internal grooves and blind mortises.
  • 24,000 RPM Maximum Speed Rating: Precision-engineered steel body maintains stable, chatter-free rotation across table-mounted, handheld, and CNC setups.

What's Included

  • (1) Freud 12-122T 1/2" Double Flute Straight Router Bit with 1/2" Shank

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 12-122T (12-122)
Overall Cutting Diameter (D) 0.500 inches (1/2" / 12.7 mm)
Shank Diameter (A) 0.500 inches (1/2" / 12.7 mm)
Carbide Cutting Height (h) 1.500 inches (1-1/2" / 38.1 mm)
Overall Tool Length (H) 3.125 inches (3-1/8" / 79.4 mm)
Number of Carbide Cutters 2 Flute Carbide Cutters
Cutting Style Profile Straight / Plunge Cutting Edge
Body Protective Coating Red Perma-SHIELD® Non-Stick Fluoropolymer
Maximum Operating Speed 24,000 RPM
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Handheld Routers, Router Tables

Pro-Tip: When using an extended 1-1/2-inch cutting height bit for deep dadoes, execute cuts in step-down passes no deeper than 3/8 inch per pass to allow efficient chip ejection and prevent heat build-up inside narrow channels.
