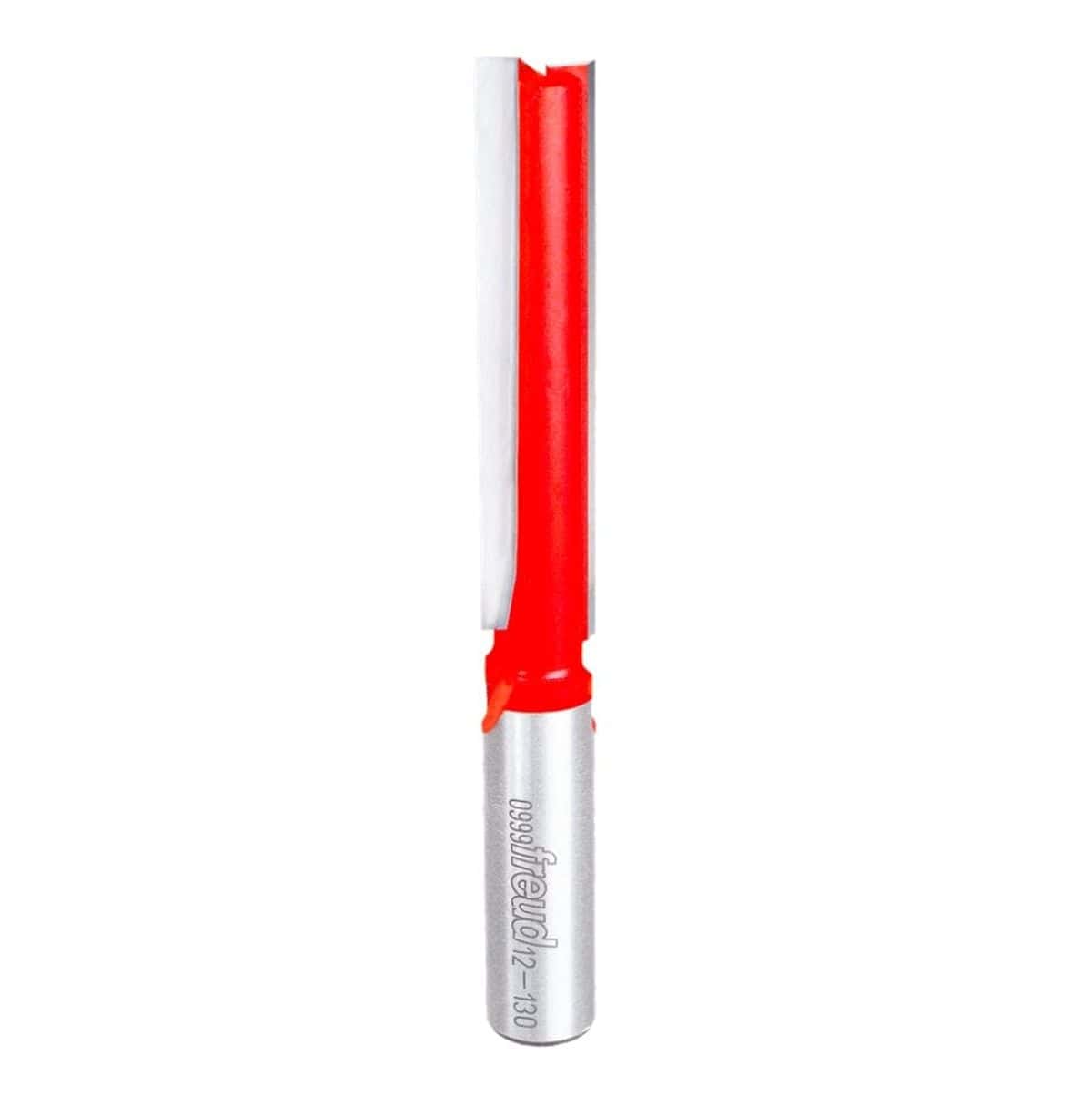

A professional studio photograph of the Freud 12-130T double flute straight router bit, featuring its distinct red Perma-SHIELD coating on the long cutting head and a polished 1/2 inch steel shank.

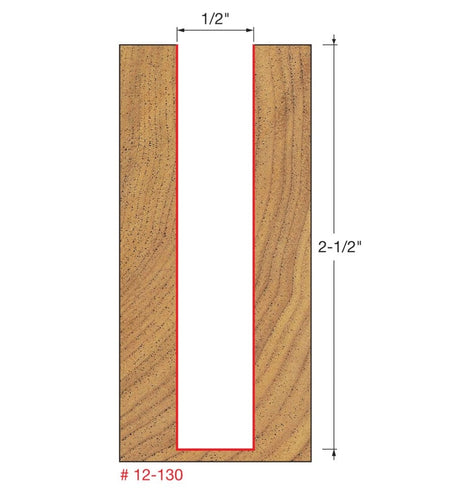

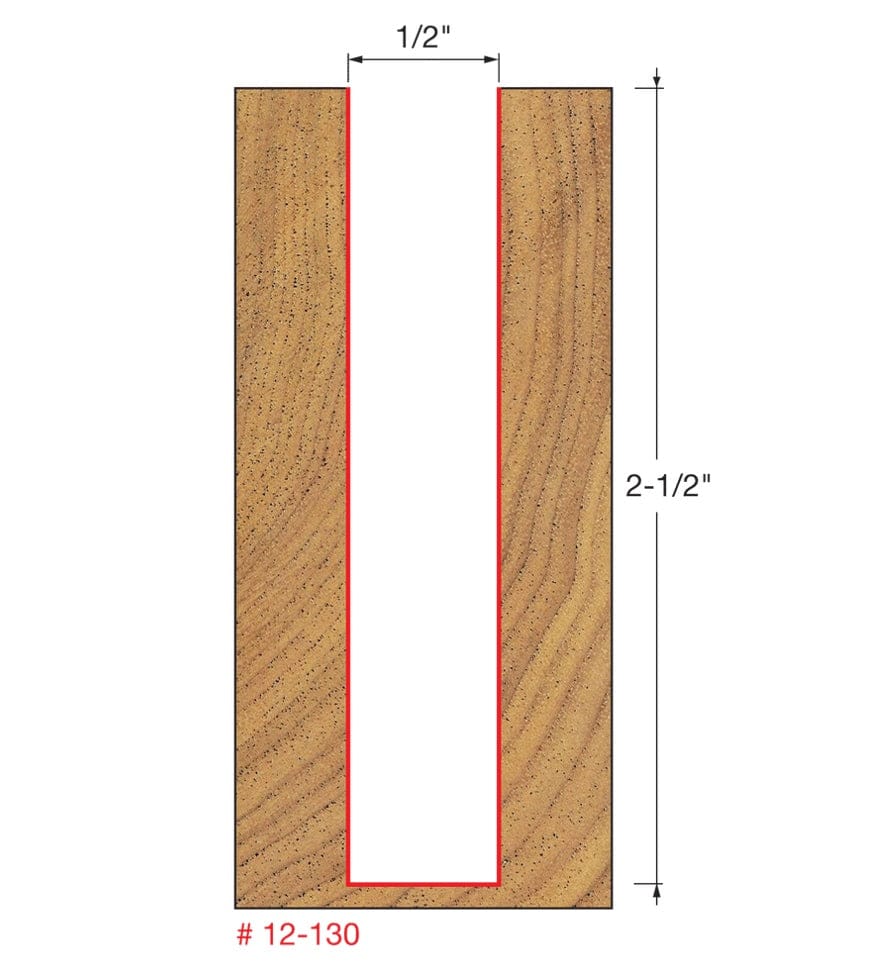

A technical diagram for the Freud 12-130T bit, illustrating a deep straight-walled cut in a wood cross-section that is exactly 1/2 inch wide and 2-1/2 inches deep.

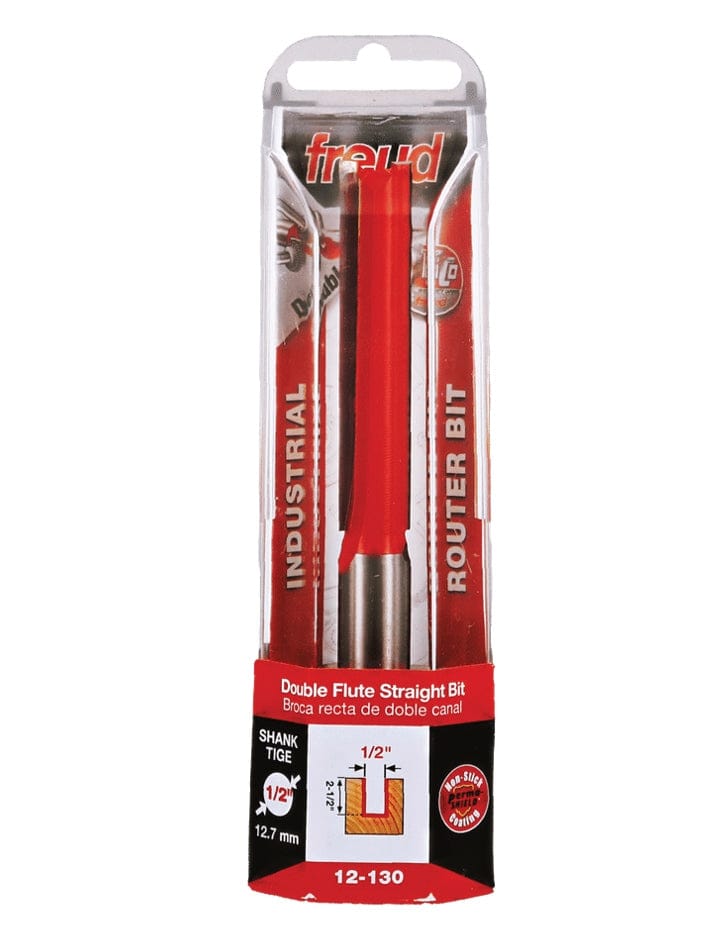

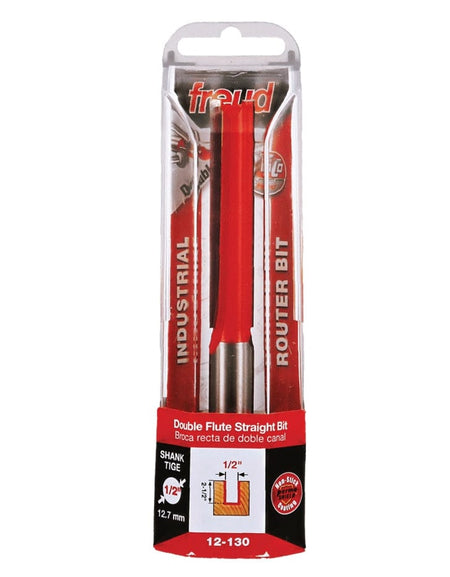

The retail packaging for the Freud 12-130T straight bit, prominently displaying the Industrial Router Bit label, the 1/2 inch shank diameter, and a diagram of the 1/2 inch by 2-1/2 inch cutting profile.

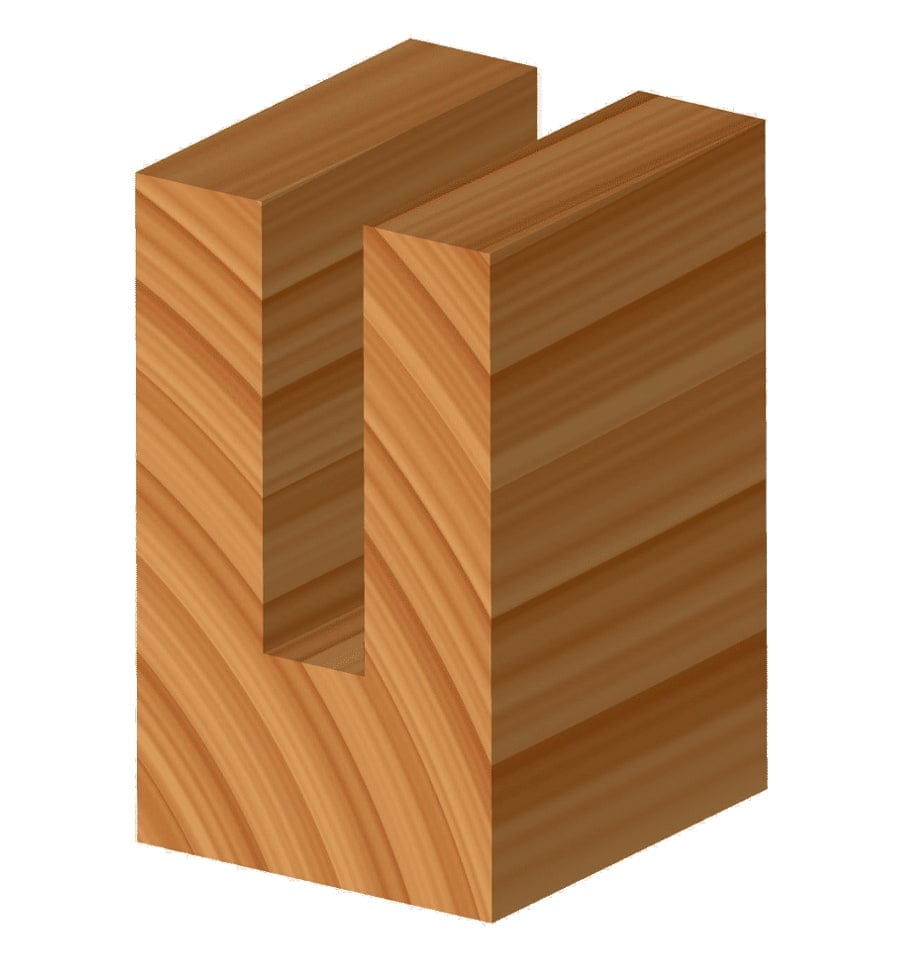

A technical 3D rendering of a wooden block featuring a clean, precise 1/2-inch wide straight groove routed through the center to demonstrate the cutting profile of the Freud 12-130T bit.

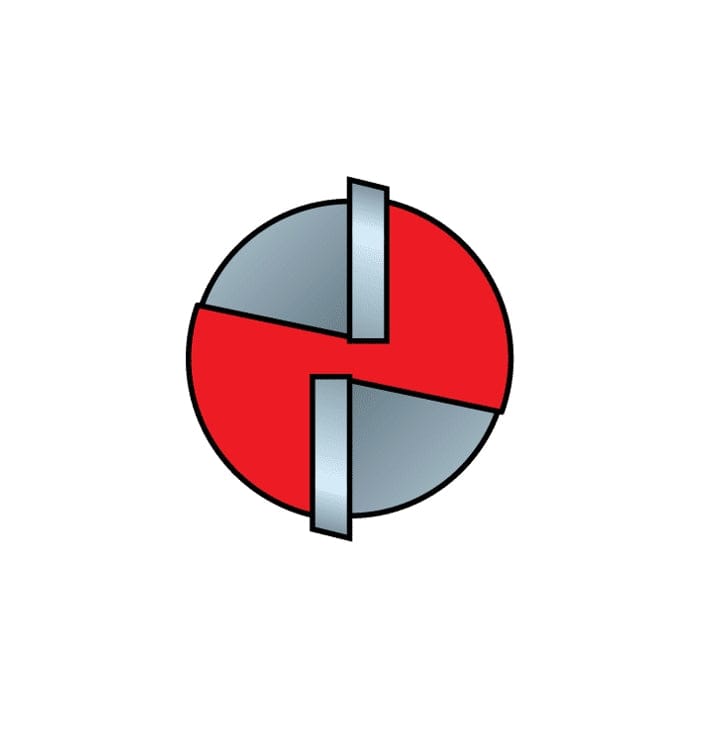

A technical overhead diagram of the Freud 12-130T router bit, highlighting the double-flute geometry and the specialized relief on the carbide tips designed for efficient plunge cutting.
Woodworking with Freud's Double Flute Straight Bit promotional how to video
A professional studio photograph of the Freud 12-130T double flute straight router bit, featuring its distinct red Perma-SHIELD coating on the long cutting head and a polished 1/2 inch steel shank.
A technical diagram for the Freud 12-130T bit, illustrating a deep straight-walled cut in a wood cross-section that is exactly 1/2 inch wide and 2-1/2 inches deep.
The retail packaging for the Freud 12-130T straight bit, prominently displaying the Industrial Router Bit label, the 1/2 inch shank diameter, and a diagram of the 1/2 inch by 2-1/2 inch cutting profile.
A technical 3D rendering of a wooden block featuring a clean, precise 1/2-inch wide straight groove routed through the center to demonstrate the cutting profile of the Freud 12-130T bit.
A technical overhead diagram of the Freud 12-130T router bit, highlighting the double-flute geometry and the specialized relief on the carbide tips designed for efficient plunge cutting.
Woodworking with Freud's Double Flute Straight Bit promotional how to video
Freud

Freud 12-130T 1/2 Inch Double Flute Straight Router Bit 1/2 Inch Shank TiCo Carbide Tipped Woodworking Tool for CNC Handheld and Table Routers

Only 1 left
SKU: 12-130T
$19.95 USD

Description

Freud precisely the best logo Logout

Achieve Industrial-Grade Precision with Freud’s High-Performance Double Flute Straight Bits

The Freud 12-130T 1/2" Double Flute Straight Router Bit is the professional woodworker's go-to solution for general stock removal, deep grooving, and edge-routing. Featuring an optimized double-flute design, this bit provides a superior balance between fast feed rates and a glass-smooth finish. The precise hook and shear angles are engineered to slice through material efficiently, reducing the risk of burning and ensuring a clean edge in hardwoods, softwoods, plywood, and abrasive composites.

Constructed with TiCo™ Hi-Density Carbide, the 12-130T is built to withstand the rigors of high-production environments. The tips are specially relieved to allow for efficient plunge cuts, making it indispensable for mortising and internal routing tasks. Whether you are operating a high-speed CNC machine or using hand-held and table-mounted routers, this bit delivers consistent, vibration-free performance for all your cabinetry and furniture projects.

Key Features

  • Precision Cutting: Optimized hook and shear angles provide fast cutting and a smooth finish.
  • Plunge Capacity: Relieved tips allow for efficient, clean plunge cuts in all wood types.
  • Industrial Carbide: Features TiCo™ Hi-Density Carbide for maximum tool life and sharpness.
  • Versatile Application: Ideal for grooving, edge-routing, and general purpose routing tasks.
  • Universal Machine Use: Designed for peak performance in CNC, hand-held, and table-mounted routers.
  • Multi-Material Compatibility: Cuts through solid hardwoods, softwoods, plywood, and composites.

What's Included

  • (1) Freud 12-130T Double Flute Straight Router Bit

Specifications

Cutting Diameter (D) 1/2 Inch
Carbide Height (h) 2-1/2 Inches
Shank Diameter (A) 1/2 Inch
Overall Length (H) 4-3/8 Inches
Number of Flutes 2 (Z=2)
Bit Material TiCo™ Hi-Density Carbide Tipped
Maximum RPM 16,000 RPM
Application General Stock Removal & Grooving
Machine Type CNC, Hand-held, and Table-mounted
Retail Packaging Individually Packed
Pro-Tip: When using long reach bits like this 2-1/2" carbide height model, always ensure the shank is fully seated in the collet. For deep grooves, use multiple shallow passes (about 1/4" deep per pass) rather than one deep cut to maintain the sharpest edge and prevent bit deflection.
