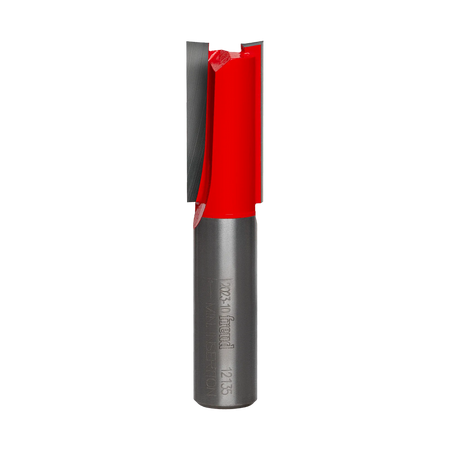

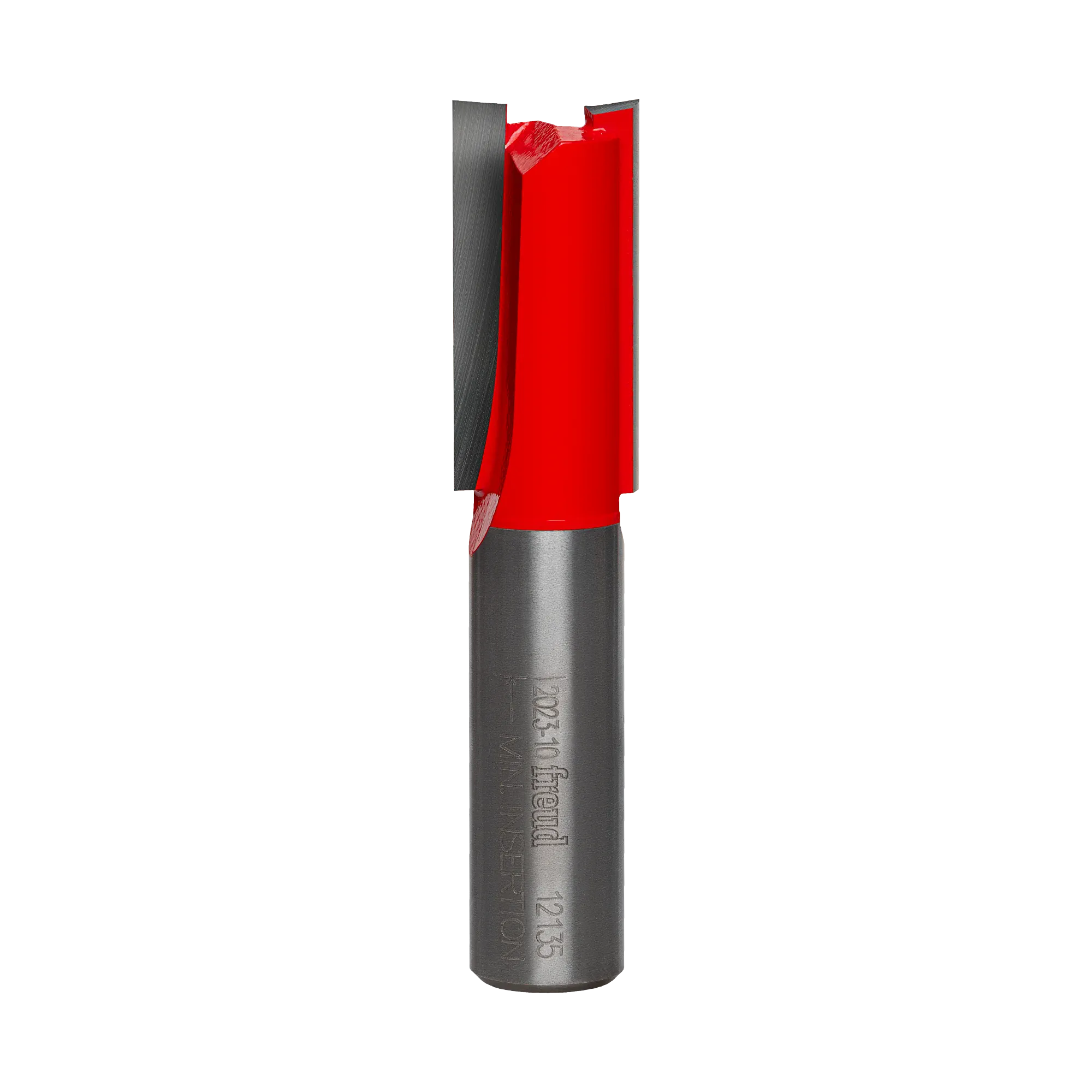

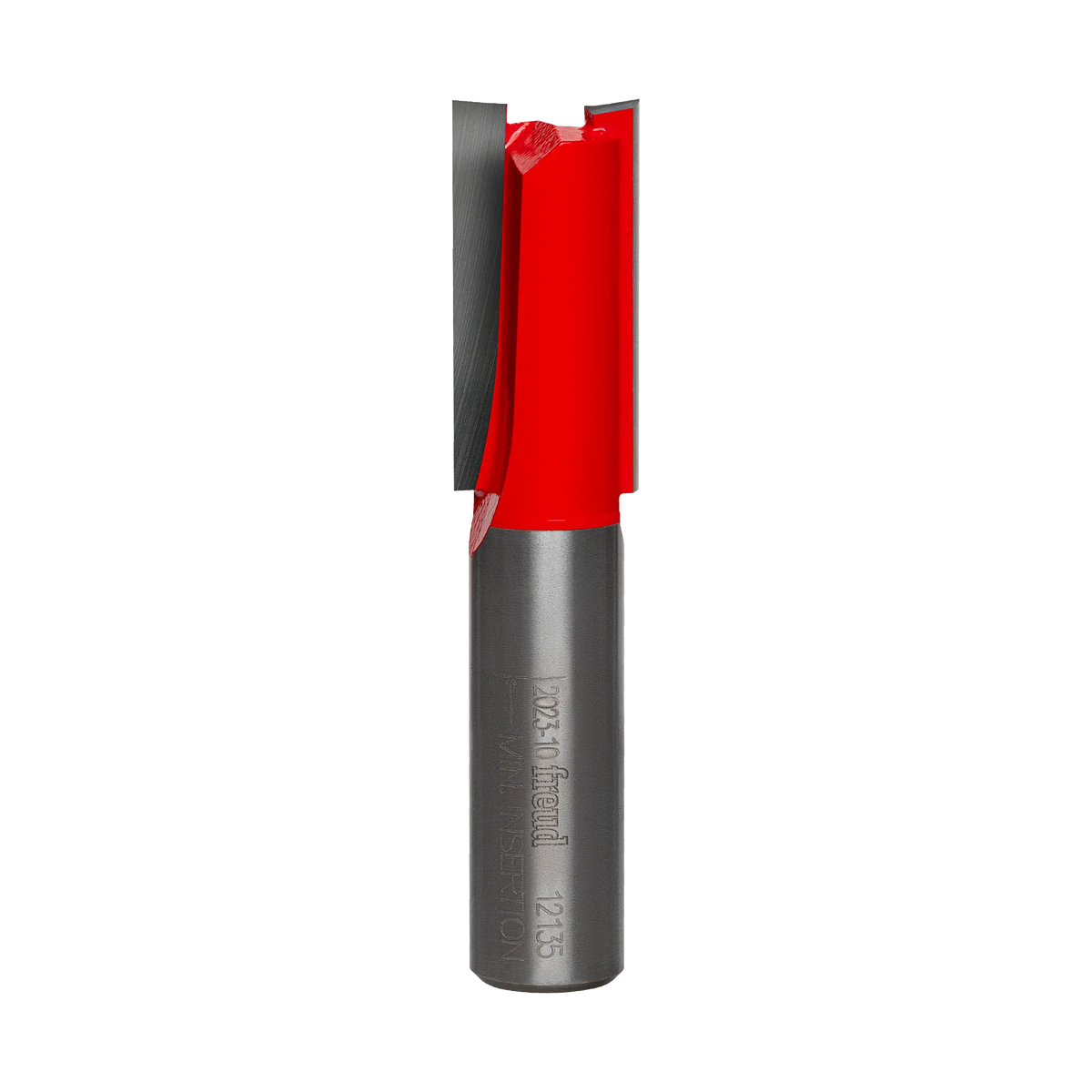

Studio product shot of the Freud 12-135 double flute straight router bit, featuring a 1/2-inch silver shank and a red Perma-SHIELD coated cutter head with a 19/32 inch cutting diameter.
Technical diagram showing a cross-section of a wood cut, indicating a precise slot width of 19/32 inch and a cutting depth of 1-1/4 inch for model number 12-135.
3D computer graphic showing a block of wood with a clean, rectangular channel groove cut into the top surface, illustrating the grooving profile of the bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Graphic titled Materials showing four types of suitable workpieces for this bit: Veneered Plywood, Hardwoods, Softwoods, and Composites.
Graphic illustrating the compatible machinery for this router bit, displaying icons for a hand router, a table router, and a CNC machine.
Studio product shot of the Freud 12-135 double flute straight router bit, featuring a 1/2-inch silver shank and a red Perma-SHIELD coated cutter head with a 19/32 inch cutting diameter.
Studio product shot of the Freud 12-135 double flute straight router bit, featuring a 1/2-inch silver shank and a red Perma-SHIELD coated cutter head with a 19/32 inch cutting diameter.
Technical diagram showing a cross-section of a wood cut, indicating a precise slot width of 19/32 inch and a cutting depth of 1-1/4 inch for model number 12-135.
3D computer graphic showing a block of wood with a clean, rectangular channel groove cut into the top surface, illustrating the grooving profile of the bit.
Top-down diagram of the router bit profile showing the circular cutting path and the arrangement of the two grey carbide cutting flutes against a red background.
Graphic titled Materials showing four types of suitable workpieces for this bit: Veneered Plywood, Hardwoods, Softwoods, and Composites.
Graphic illustrating the compatible machinery for this router bit, displaying icons for a hand router, a table router, and a CNC machine.
Studio product shot of the Freud 12-135 double flute straight router bit, featuring a 1/2-inch silver shank and a red Perma-SHIELD coated cutter head with a 19/32 inch cutting diameter.
Freud

Freud Straight Router Bit 12-135 19/32 Inch Double Flute (1/2 Inch Shank Eclipse Grind TiCo Carbide 16000 RPM Undersized 5/8 Plywood Joinery Dado)

Only 2 left
SKU: 12-135
$22.97 USD

Description

Freud precisely the best logo Logout

Freud 12-135 19/32 Inch Double Flute Straight Router Bit

The Freud 12-135 is a 19/32-inch overall cutting diameter double flute straight router bit engineered to route wobble-free dado joints, shelf slots, and flat-bottom mortises in undersized nominal 5/8-inch plywood stock. Built with a rigid 1/2-inch shank, an Eclipse Grind center-relief tip, and a 1-1/4-inch carbide cutting height, this 2-cutter tool enables clean plunge entries into solid timber and composite sheet goods. Tipped with TiCo™ Hi-Density Micrograin Carbide and computer-balanced to eliminate cutter chatter, it operates at rotational speeds up to 16,000 RPM across CNC machinery, router tables, or handheld routers in solid hardwoods, softwoods, plywood, and wood composites.

Best Used For:

  • Undersized 5/8-Inch Plywood Dadoing: Milling precise 19/32-inch wide dado channels and cabinet shelf slots to match actual sheet thicknesses for gapless glue joints.
  • Plunge Pocketing & Hardware Mortising: Diving directly into veneered sheet stock to route clean interior cutouts, blind mortises, and hardware recesses.
  • Thick Panel Edge Trimming & Joinery: Trimming full-depth 1-1/4-inch timber edges and machining rabbet joints across hardwood panels without tearout.

Key Performance & Safety Features

  • Plywood-Matched 19/32-Inch Diameter: Precision-milled to match true 19/32-inch nominal 5/8-inch plywood sheets for tight, gapless mechanical joints.
  • Eclipse Grind Center-Relief Tip: Specialized plunge-cutting tip geometry permits efficient vertical drilling entry into solid wood panels and composite sheets.
  • Heavy-Duty 1/2-Inch Shank: Rigid 1/2-inch steel shank diameter minimizes tool flex, runout, and cutter vibration during heavy routing passes.
  • TiCo™ Hi-Density Micrograin Carbide: Custom-formulated titanium-cobalt micrograin carbide edges resist abrasive glues and thermal wear.
  • Dual-Flute Precision Balance: Computer-balanced twin cutters distribute chip load evenly to produce smooth sidewalls and flat bottom cuts.
  • 16,000 RPM Maximum Speed Rating: Precision-engineered steel body maintains stable, chatter-free rotation across table-mounted, handheld, and CNC setups.

What's Included

  • (1) Freud 12-135 19/32" Double Flute Straight Router Bit with 1/2" Shank

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 12-135
Overall Cutting Diameter (D) 0.594 inches (19/32" / 15.1 mm)
Shank Diameter (A) 0.500 inches (1/2" / 12.7 mm)
Carbide Cutting Height (h) 1.250 inches (1-1/4" / 31.8 mm)
Overall Tool Length (H) 2.875 inches (2-7/8" / 73.0 mm)
Cutter Tooth Grind Profile Eclipse Grind Center-Relief Technology
Number of Carbide Cutters 2 Flute Carbide Cutters
Cutting Style Profile Straight / Plunge Cutting Edge
Maximum Operating Speed 16,000 RPM
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Handheld Routers, Router Tables

Pro-Tip: Always measure your sheet stock with digital calipers prior to cutting; nominal 5/8-inch hardwood cabinet plywood routinely measures exactly 19/32 inch, making this exact-diameter bit the ultimate choice for tight, gapless cabinet joints without glue lines.
