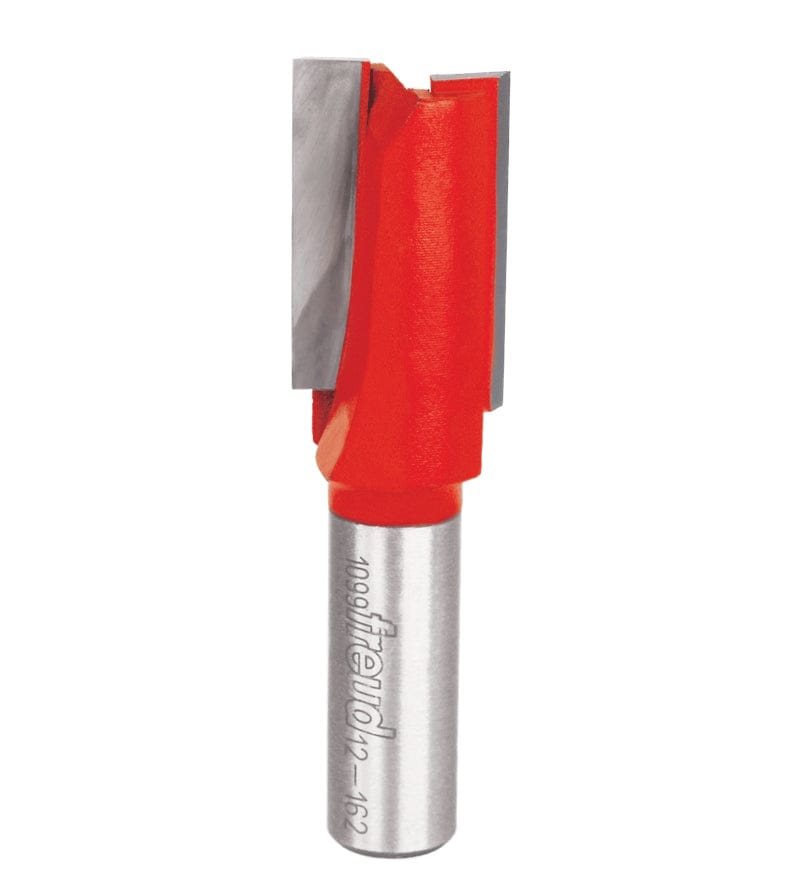

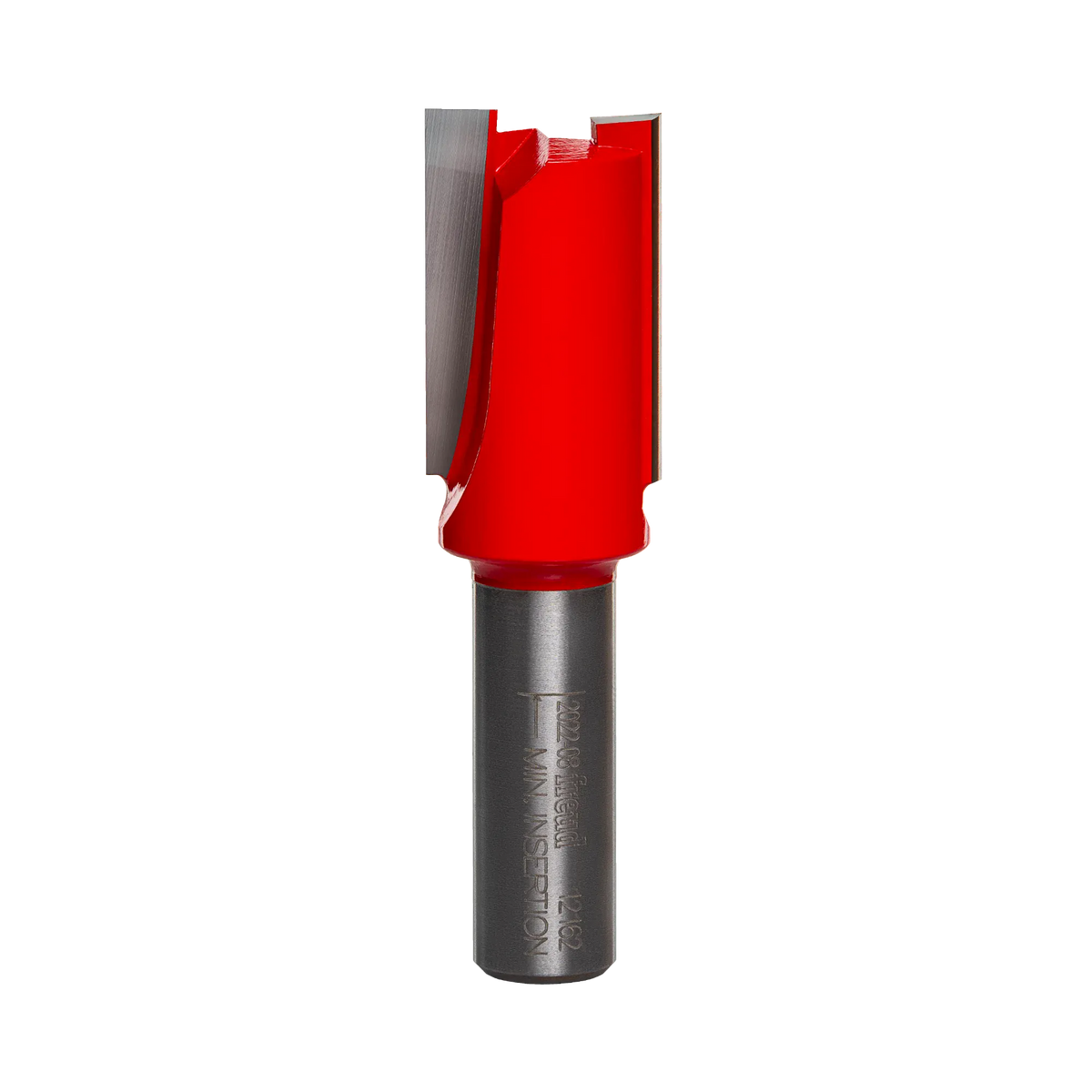

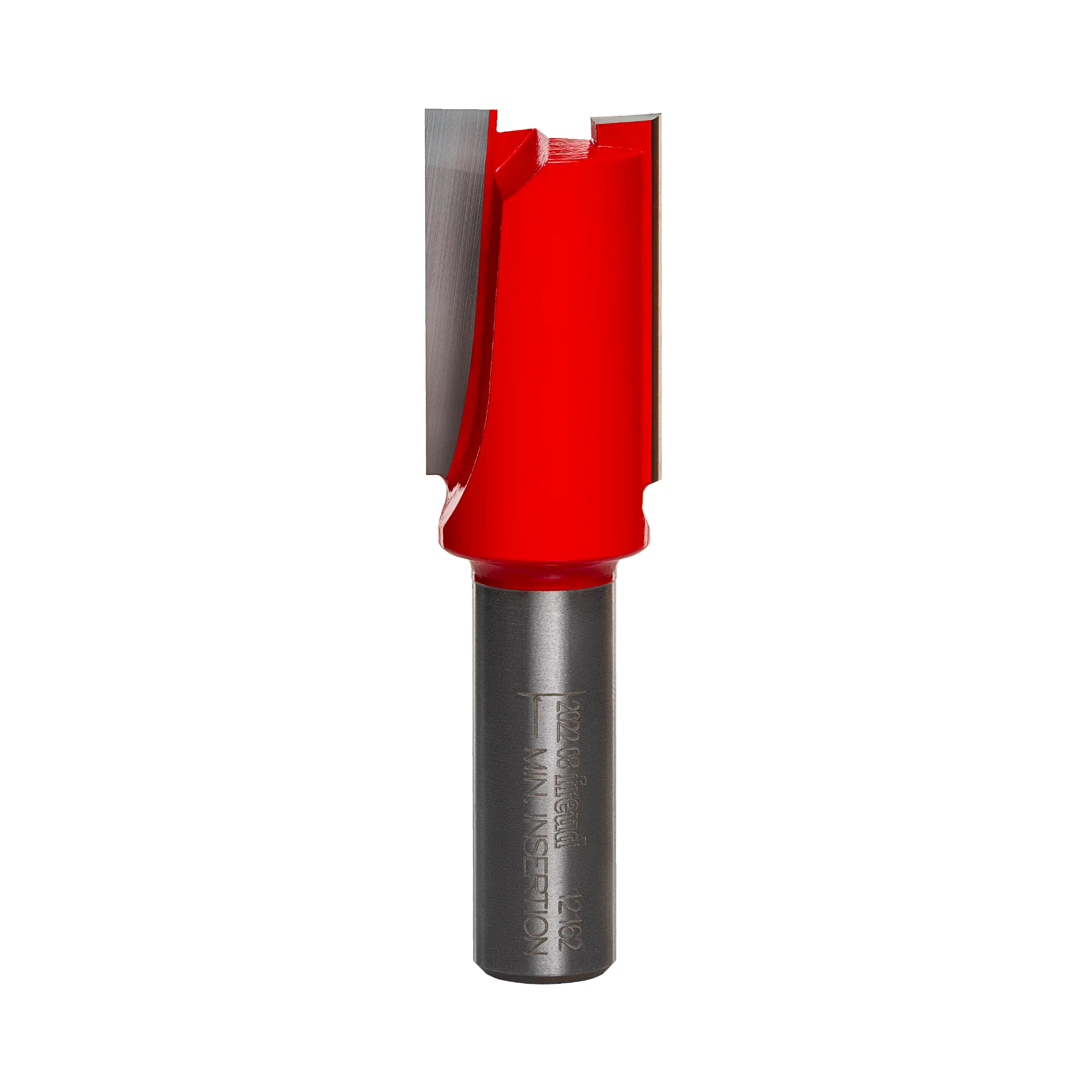

A studio product view of the Freud 12-162 double flute straight router bit, featuring a red cutting head with sharp silver carbide edges and a polished steel shank.

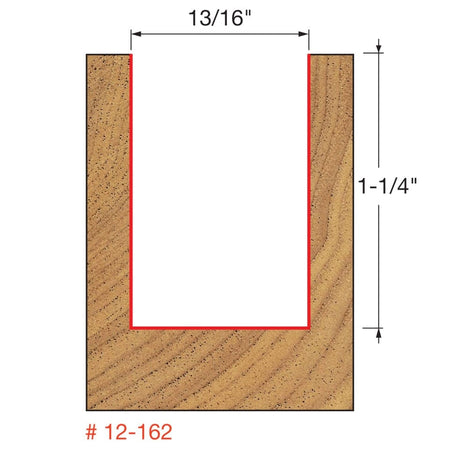

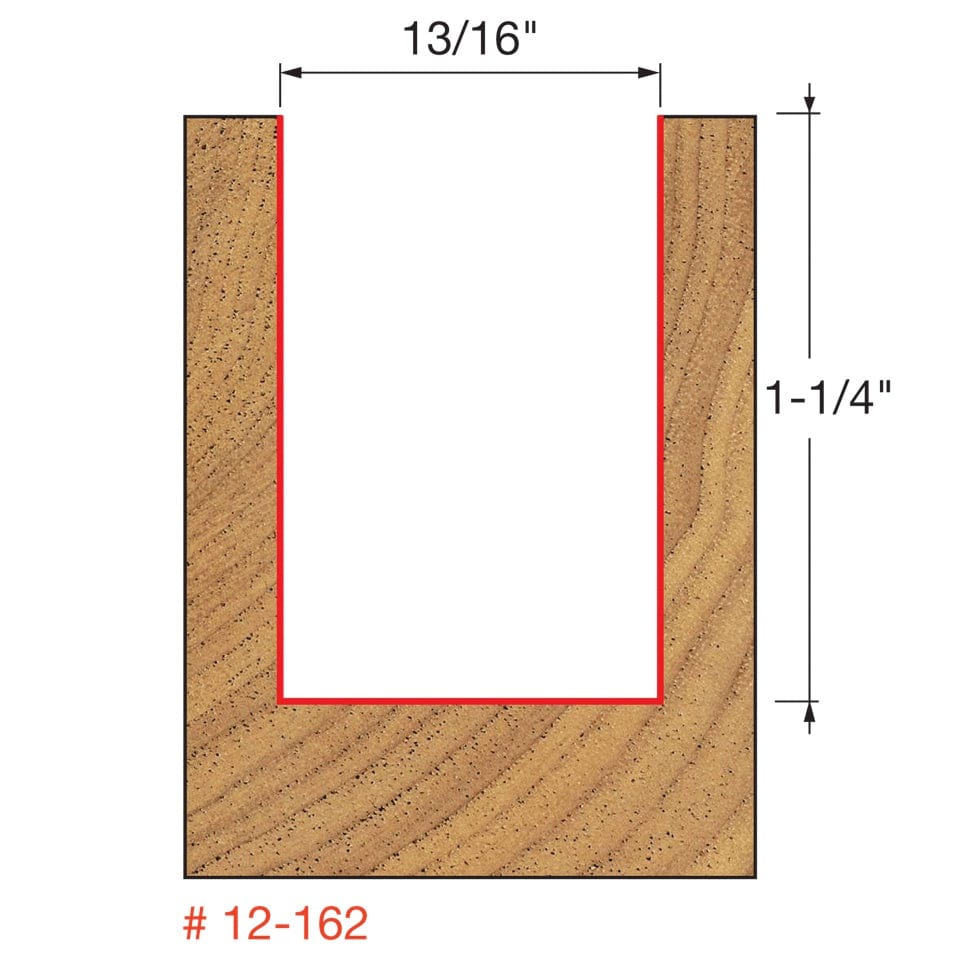

A technical diagram illustrating the cutting profile of the Freud 12-162 bit, showing a cross-section of wood with a straight cut that is 13/16 of an inch wide and 1-1/4 inches deep.

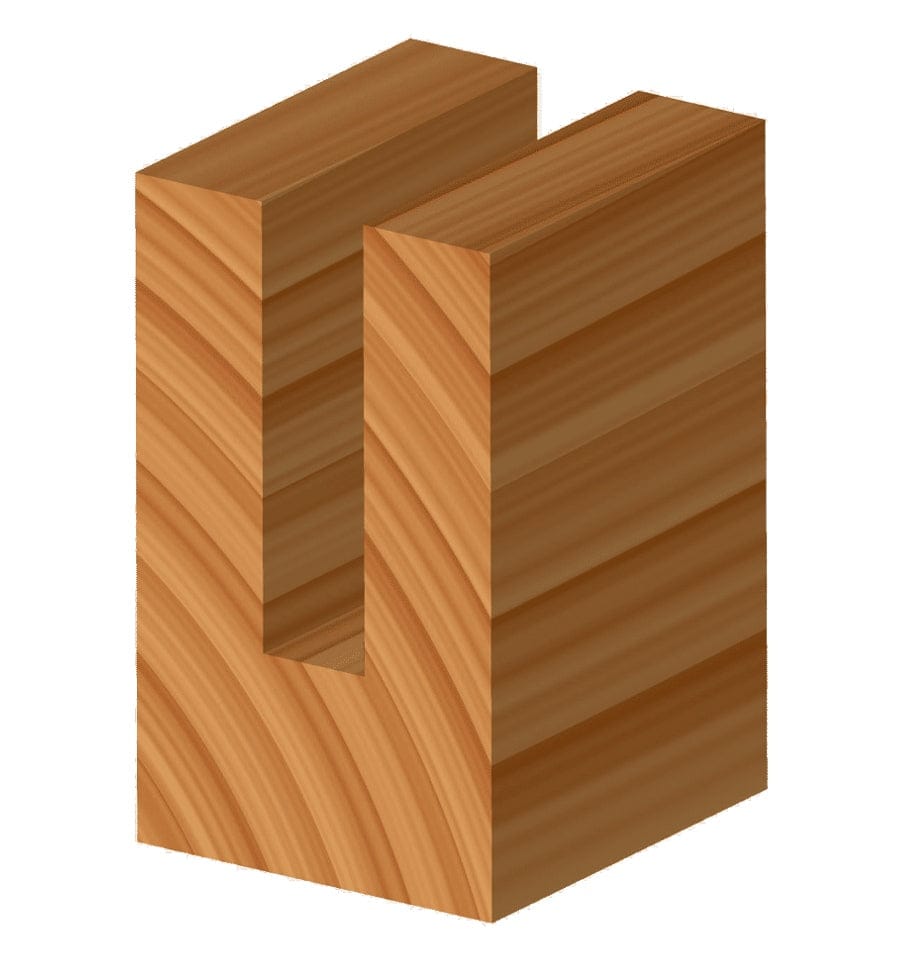

A technical 3D rendering of a wooden block featuring a clean, precise straight groove routed through the center to demonstrate the cutting capability of the Freud 12-162 bit.

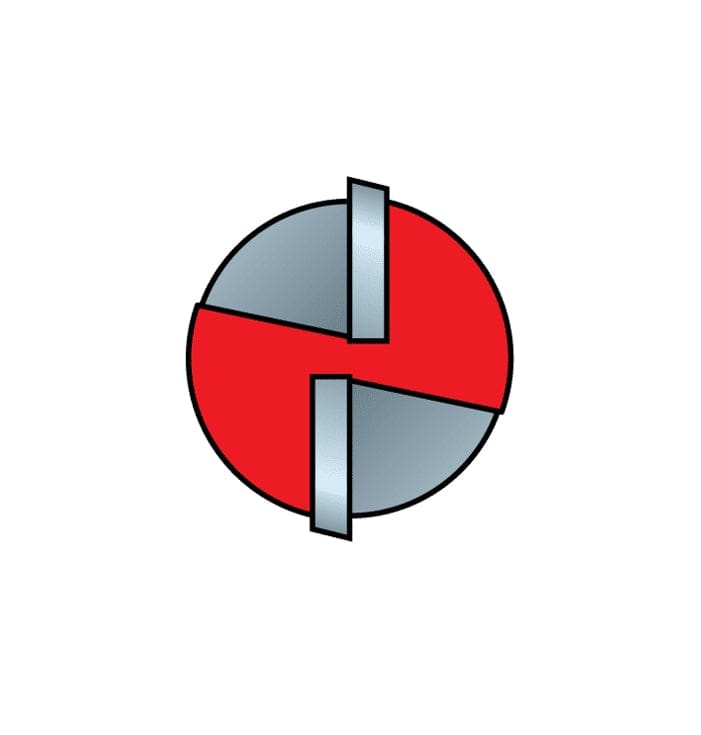

A technical overhead diagram showing the double flute design of the Freud router bit, highlighting the red body and two silver cutting edges positioned for efficient material removal.
A studio product view of the Freud 12-162 double flute straight router bit, featuring a red cutting head with sharp silver carbide edges and a polished steel shank.
A studio product view of the Freud 12-162 double flute straight router bit, featuring a red cutting head with sharp silver carbide edges and a polished steel shank.
A technical diagram illustrating the cutting profile of the Freud 12-162 bit, showing a cross-section of wood with a straight cut that is 13/16 of an inch wide and 1-1/4 inches deep.
A technical 3D rendering of a wooden block featuring a clean, precise straight groove routed through the center to demonstrate the cutting capability of the Freud 12-162 bit.
A technical overhead diagram showing the double flute design of the Freud router bit, highlighting the red body and two silver cutting edges positioned for efficient material removal.
A studio product view of the Freud 12-162 double flute straight router bit, featuring a red cutting head with sharp silver carbide edges and a polished steel shank.
Freud

Freud 12-162 13/16 Inch Double Flute Straight Router Bit 1/2 Inch Shank Eclipse Grind TiCo Carbide Woodworking Tool for Grooving Plywood Dadoes

Only 1 left
SKU: 12-162
$19.49 USD

Description

Freud precisely the best logo Logout

Achieve Industrial-Grade Precision with Freud’s Eclipse Grind Double Flute Technology

The Freud 12-162 Double Flute Straight Bit is a premium woodworking solution engineered for high-performance grooving, edge-routing, and general joinery tasks. Featuring Freud’s specialized Eclipse Grind, this 13/16-inch diameter bit provides exceptionally clean cuts in hardwood, softwood, plywood, and various composite materials. Its precise hook and shear angles are designed to deliver a glass-smooth finish while maintaining fast cutting speeds, making it an essential tool for professional cabinetry and furniture manufacturing where accuracy is non-negotiable.

Built for longevity, the 12-162 is constructed with TiCo™ Hi-Density Carbide to withstand the rigors of heavy shop use. The bit’s tips are strategically relieved to allow for efficient, burn-free plunge cuts, which is ideal for creating deep mortises or interior pockets. With a robust 1/2-inch shank for maximum stability, this industrial bit is optimized for peak performance across CNC machines, table-mounted routers, and hand-held portable routers, ensuring vibration-free operation even at high RPMs.

Key Features

  • TiCo™ Hi-Density Carbide: Specialized industrial carbide for a sharper edge and significantly longer cutting life.
  • Eclipse Grind Design: Optimized geometry for superior finish quality and cleaner edges in diverse wood types.
  • Plunge Cut Relief: Specially relieved tips support effortless plunging for mortising and pocketing applications.
  • Precise Shear Angles: Engineered hook and shear angles provide fast material removal with minimal friction.
  • Universal Routing: Perfect for high-speed use in CNC, hand-held, and table-mounted routers.
  • Multi-Material Versatility: Delivers clean cuts in solid wood, plywood, veneers, and composites.
  • Dual-Cutter Balance: Two high-precision cutters ensure smooth operation and reduced chatter during heavy routing.

What's Included

  • (1) Freud 12-162 13/16" Double Flute Straight Router Bit

Specifications

Shank Diameter (A) 1/2 Inch
Overall Diameter (D) 13/16 Inch
Carbide Height (h) 1-1/4 Inches
Overall Length (H) 3 Inches
Number of Cutters 2
Maximum RPM 24,000 RPM
Bit Material TiCo™ Hi-Density Carbide
Grind Type Eclipse Grind
Flute Design Double Flute
Ideal Application Grooving, Edge-Routing, & Dadoes
Pro-Tip: When routing deep dadoes or grooves, always clear chips frequently to prevent heat buildup. For the absolute cleanest finish in delicate plywood, consider a shallow "climb cut" for your final pass to prevent any possible grain tear-out.
