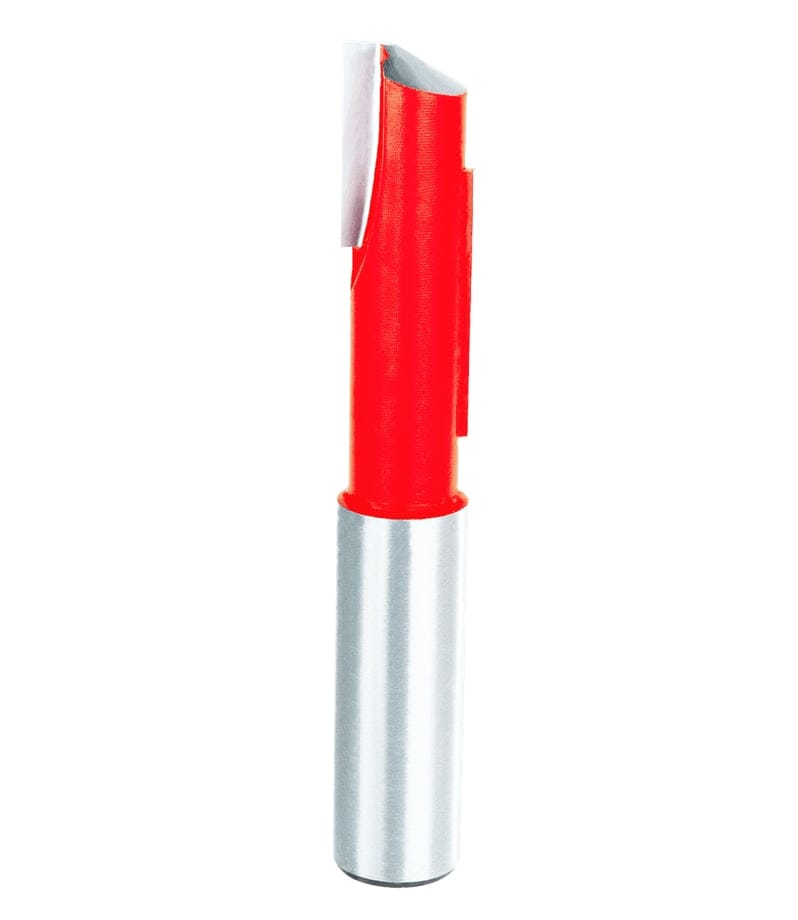

A high-resolution studio photograph of the Freud 14-104 stagger flute router bit, showcasing its bright red body, offset silver carbide cutting edges, and a polished 1/2-inch steel shank.

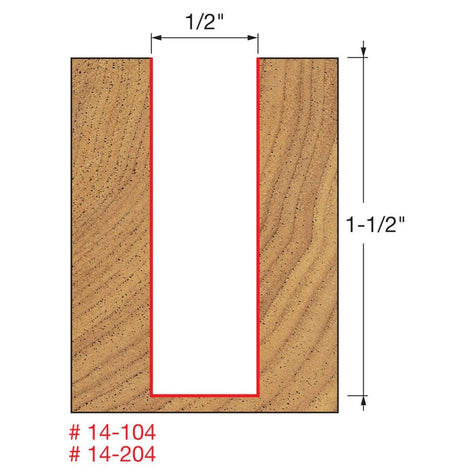

A technical diagram for the Freud 14-104 bit, illustrating a precise straight-walled cut in a wood cross-section that is 1/2 of an inch wide and 1-1/2 inches deep.

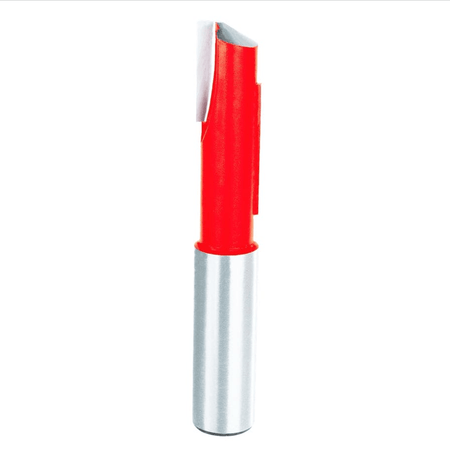

A high-resolution studio photograph of the Freud 14-104 stagger flute router bit, showcasing its bright red body, offset silver carbide cutting edges, and a polished 1/2-inch steel shank.

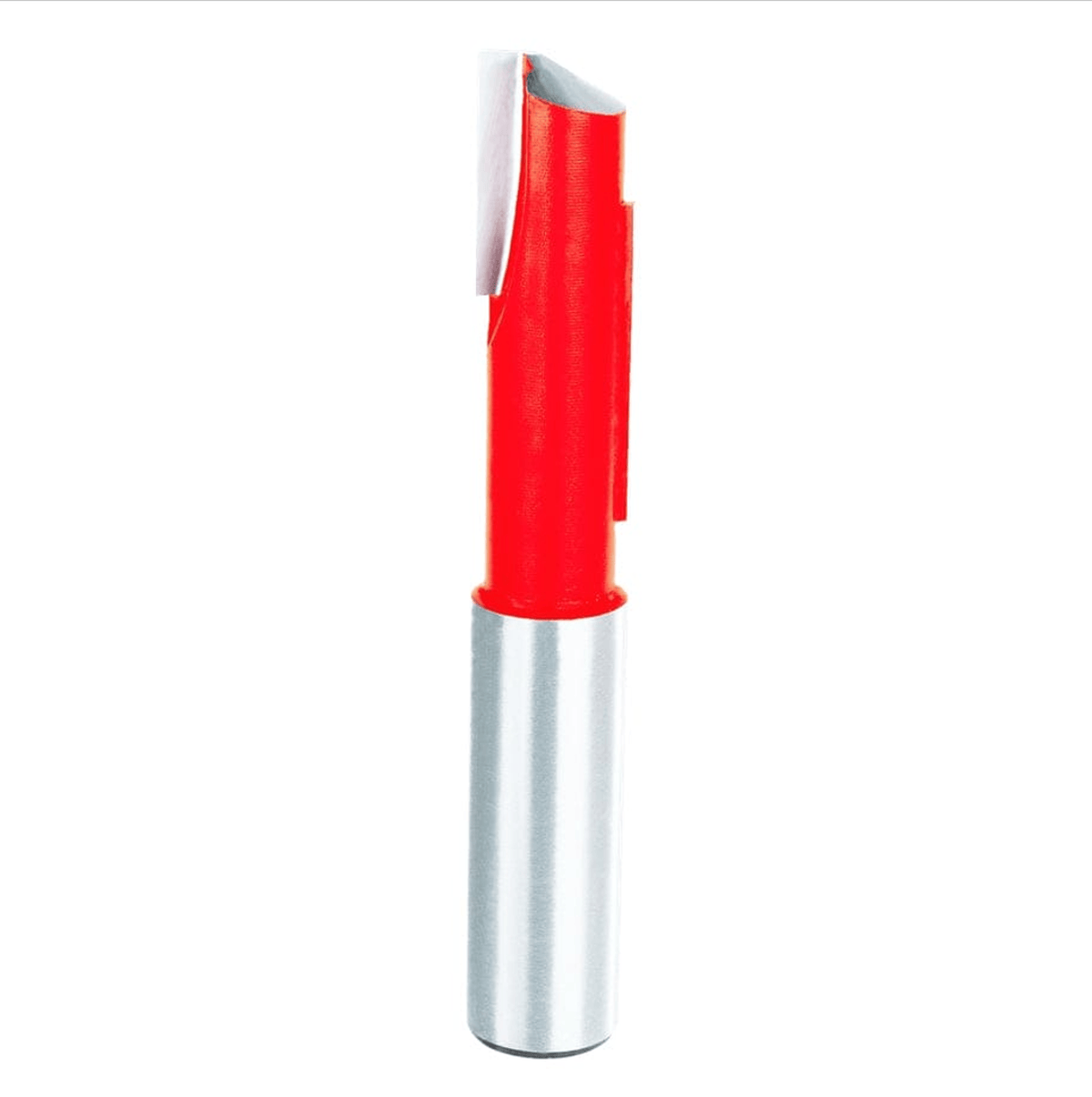

A high-resolution studio photograph of the Freud 14-104 stagger flute router bit, showcasing its bright red body, offset silver carbide cutting edges, and a polished 1/2-inch steel shank.

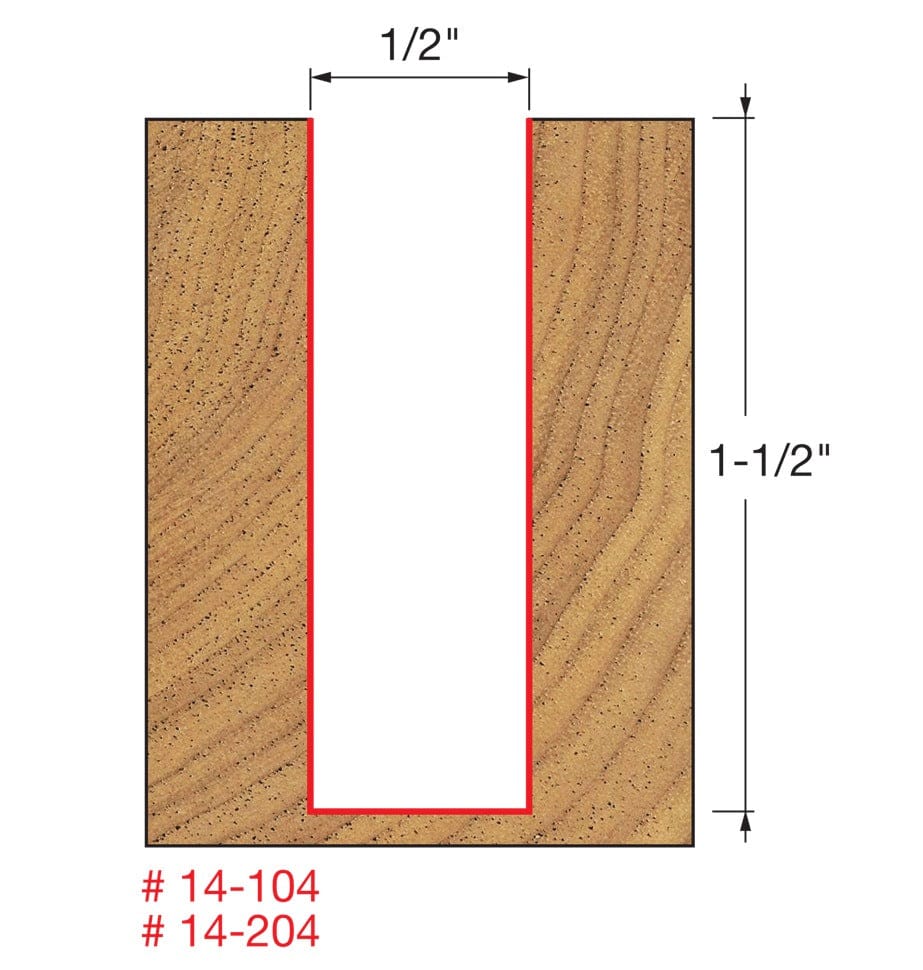

A technical diagram for the Freud 14-104 bit, illustrating a precise straight-walled cut in a wood cross-section that is 1/2 of an inch wide and 1-1/2 inches deep.
A high-resolution studio photograph of the Freud 14-104 stagger flute router bit, showcasing its bright red body, offset silver carbide cutting edges, and a polished 1/2-inch steel shank.
Freud

Freud 14-104 1/2 Inch Stagger Flute Router Bit 1/2 Inch Shank TiCo Carbide Woodworking Tool for High Speed CNC Plunging and Composite Grooving

Only 1 left
SKU: 14-104
$18.79 USD

Description

Freud precisely the best logo Logout

Achieve Industrial Efficiency with Freud’s High-Performance Stagger Flute Router Bits

The Freud 14-104 1/2" Stagger Flute Router Bit is the ultimate hybrid solution for woodworkers who demand both speed and precision. By combining the perfect balance of a double-flute bit with the aggressive material removal and chip clearance of a single-flute tool, this bit allows for exceptionally fast feed rates without sacrificing cut quality. The vertically offset cutting edges work in tandem to "step" through material, making it ideal for deep grooving and heavy stock removal in hardwoods, softwoods, plywood, and abrasive composite materials.

Engineered for the rigors of high-production environments, the 14-104 is optimized for use in CNC machines, table-mounted routers, and hand-held units. Each bit features Freud’s TiCo™ Hi-Density Carbide for maximum durability and a specialized Perma-SHIELD® Non-Stick Coating that protects the tool from heat, corrosion, and resin buildup. The precision-balanced design ensures vibration-free operation at high speeds, providing the professional-grade reliability required for demanding woodworking and millwork projects.

Key Features

  • Hybrid Stagger Design: Offers the balance of a double-flute bit with the rapid cutting speed of a single-flute tool.
  • TiCo™ Hi-Density Carbide: Industrial-grade carbide formula ensures a sharper edge and significantly longer cutting life.
  • Perma-SHIELD® Coating: Non-stick red coating reduces blade drag and prevents heat collection and pitch buildup.
  • Universal Material Cutting: Effortlessly routs through all hardwoods, softwoods, plywood, and wood-based composites.
  • Versatile Machine Compatibility: Designed for peak performance in CNC, hand-held, and table-mounted portable routers.
  • Industrial Durability: Built to withstand high-production routing and deep plunging applications.

What's Included

  • (1) Freud 14-104 1/2" Diameter Stagger Flute Router Bit (1/2" Shank)

Specifications

Product Model 14-104
Overall Diameter (D) 1/2 Inch
Shank Diameter (A) 1/2 Inch
Carbide Height (h) 1-1/2 Inches
Overall Length (H) 3-1/4 Inches
Number of Cutters 2
Maximum RPM 24,000 RPM
Bit Material TiCo™ Hi-Density Carbide
Flute Design Stagger Flute
Ideal Application Fast cuts in any wood or composites
Pro-Tip: To get the most out of your stagger flute bit, maintain a consistent feed rate. Because these bits clear chips so effectively, they are less likely to burn wood at higher speeds, but they perform best when you avoid stopping the router while the bit is in contact with the material.
