Freud Stagger Tooth Router Bit 14-106 1/2 Inch Diameter (1/2 Inch Shank TiCo Carbide 2-1/8 Inch Cut 24000 RPM Deep Mortising Hardwood)

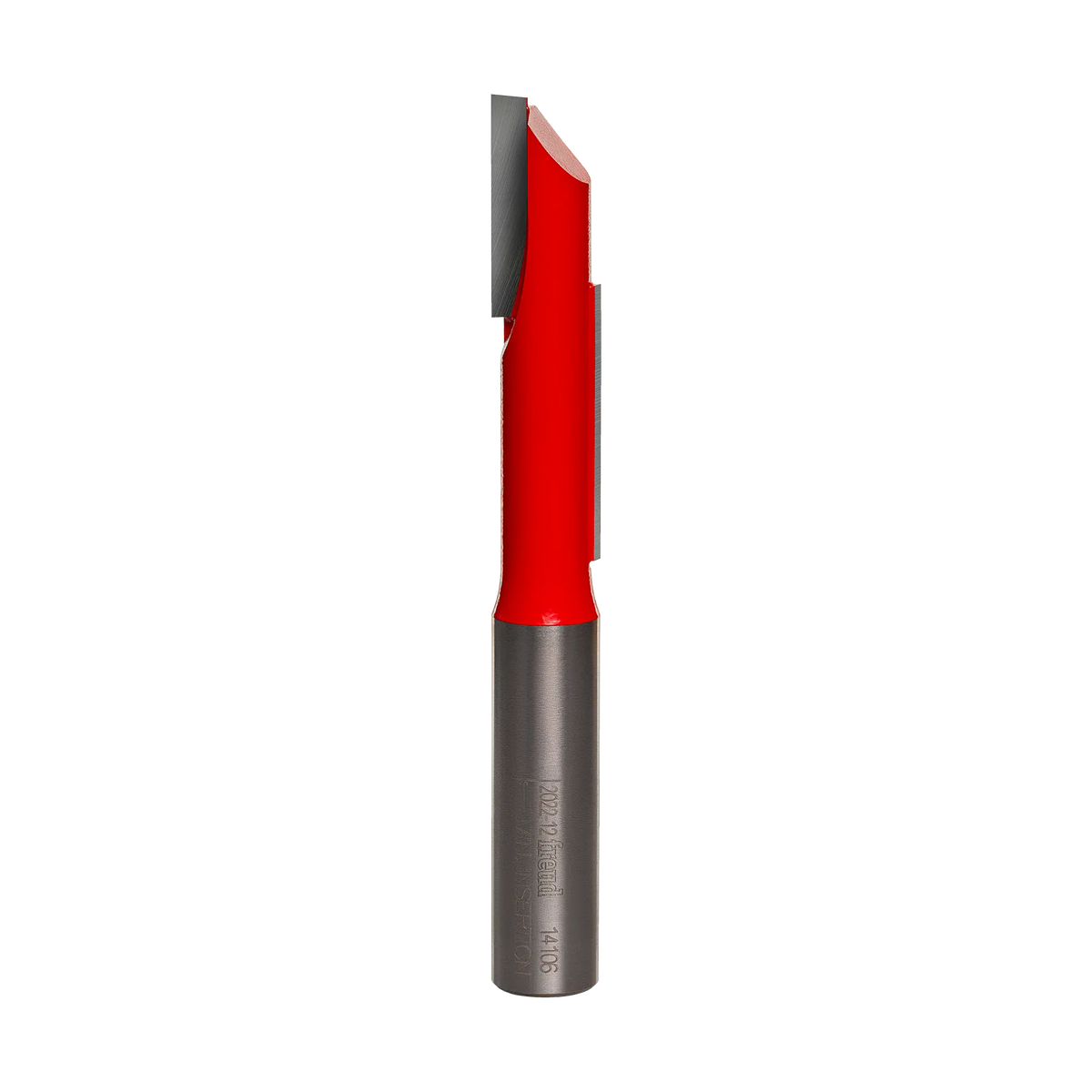

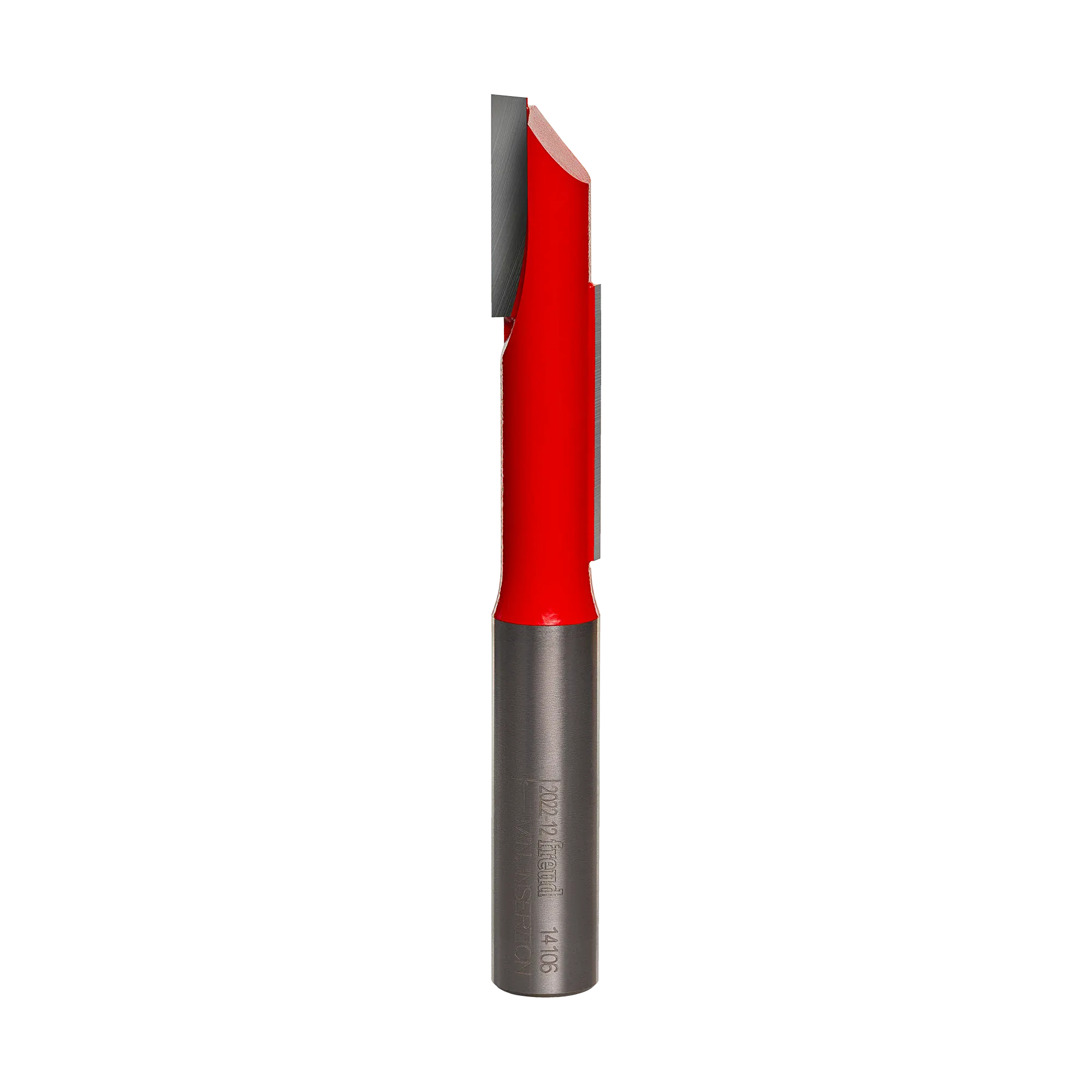

Freud 14-106 1/2 Inch Diameter Stagger Tooth Straight Router Bit

The Freud 14-106 is a 1/2-inch overall cutting diameter stagger-tooth straight router bit engineered to execute deep mortising, thick stock grooving, and high-volume material removal. Built with a robust 1/2-inch shank and an expansive 2-1/8-inch carbide cutting height, this tool features vertically offset cutting edges that combine the rapid chip evacuation of a single-flute design with the smooth surface finish of a double-flute bit. Tipped with TiCo™ Hi-Density Micrograin Carbide and computer-balanced to eliminate vibration, it operates reliably at rotational speeds up to 24,000 RPM across CNC machinery, router tables, or heavy-duty handheld routers in solid hardwoods, softwoods, plywood, and wood composites.

Best Used For:

• Deep Mortise & Tenon Joinery: Plunging directly into thick timber stock to route clean, deep mortise pockets for structural furniture and heavy door assemblies.
• Thick Stock Dado & Groove Milling: Machining precision 1/2-inch wide dado channels and long joinery slots across heavy hardwood panels without chip packing.
• High-Volume CNC Material Removal: Executing rapid interior pocketing and clearance passes where accelerated chip ejection and smooth sidewall finishes are strictly required.

Key Performance & Safety Features

• Stagger-Tooth Cutting Geometry: Vertically offset carbide edges optimize chip clearance dynamics to reduce thermal friction while maintaining a clean double-flute finish.
• TiCo™ Hi-Density Micrograin Carbide: Custom-formulated titanium-cobalt micrograin carbide edges resist abrasive wear during deep, continuous cutting operations.
• Expansive 2-1/8-Inch Cutting Height: Deep carbide cutting length accommodates single-pass or multi-pass routing through exceptionally thick hardwood stock.
• Heavy-Duty 1/2-Inch Shank: Rigid 1/2-inch steel shank diameter minimizes tool flex, runout, and cutter vibration during high-torque deep slotting.
• 4-Inch Extended Overall Length: Generous tool body profile allows extended reach into deep recesses and complex structural joinery pockets.
• 24,000 RPM Maximum Speed Rating: Precision-balanced steel body ensures stable, chatter-free rotation under demanding axial loads and feed rates.

What's Included

• (1) Freud 14-106 1/2" Stagger Tooth Straight Router Bit with 1/2" Shank

Technical Specifications

Pro-Tip: When executing deep 2-1/8-inch mortises, always step down your plunge passes in 1/4-inch depth increments to maximize chip evacuation and prevent intense thermal stress on the staggered carbide tips.
