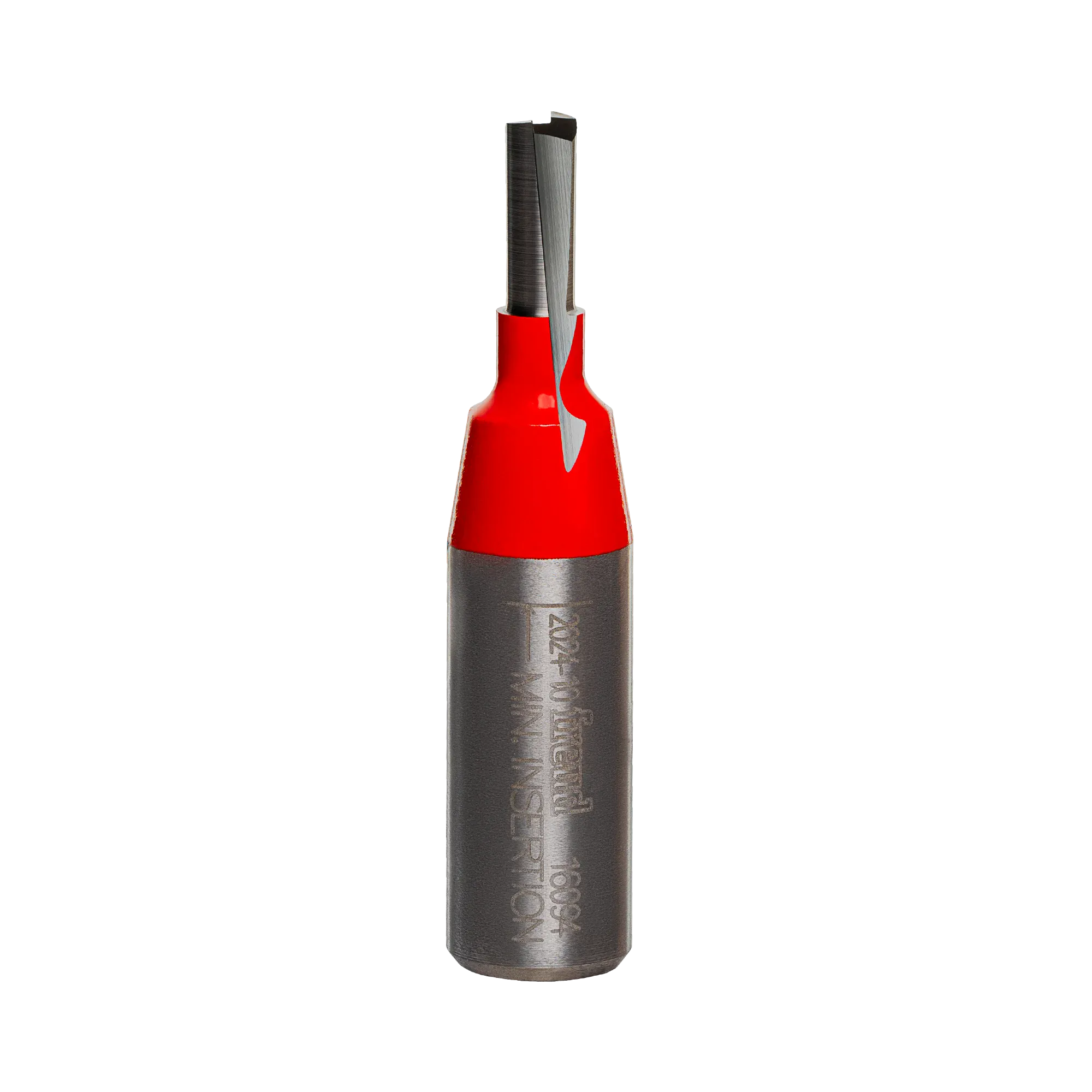

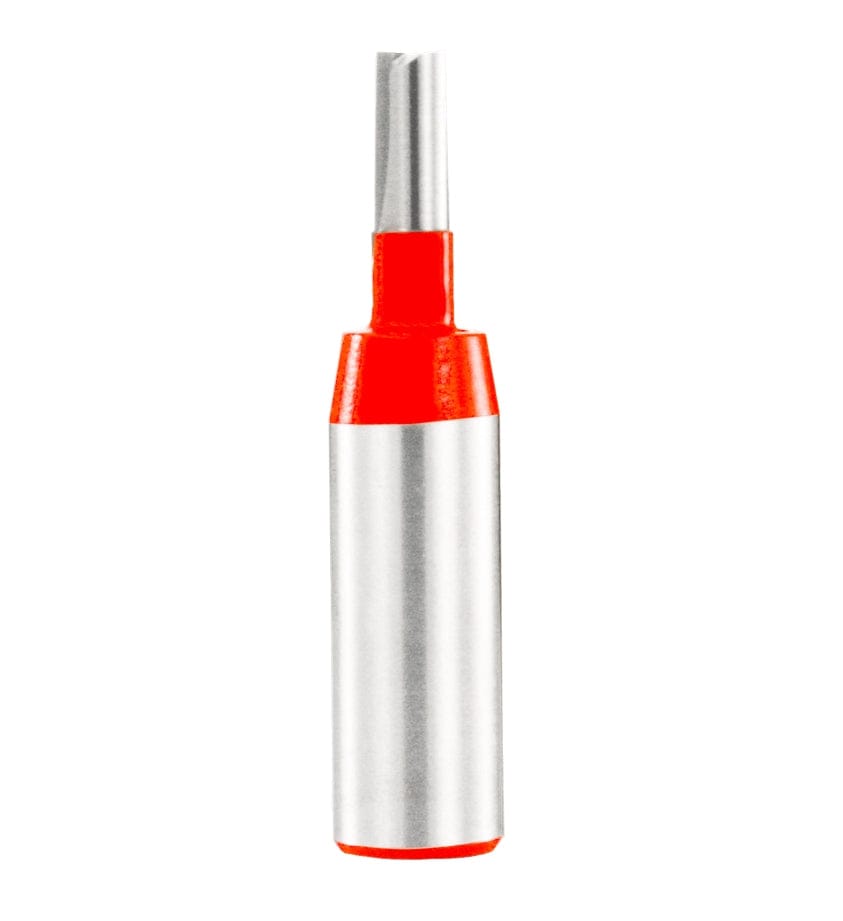

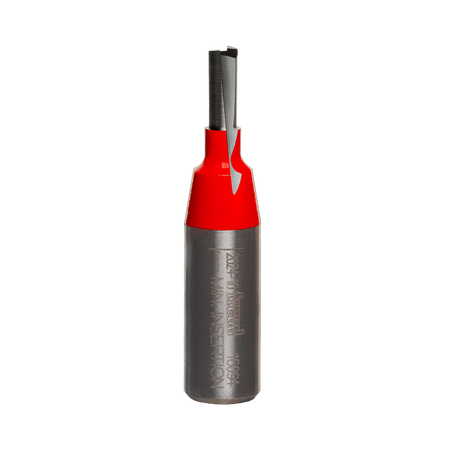

Freud 16-094 Downshear Plywood Mortising Router Bit 7/32 Inch Diameter 1/2 Inch Shank TiCo Carbide Tipped Tool for Clean Hinges and Dado Grooves

Only 1 left
SKU: 16-094
$22.99 USD

Description

Freud precisely the best logo Logout

Master Flawless Joinery with Freud’s Precision Downshear Plywood Mortising Bit

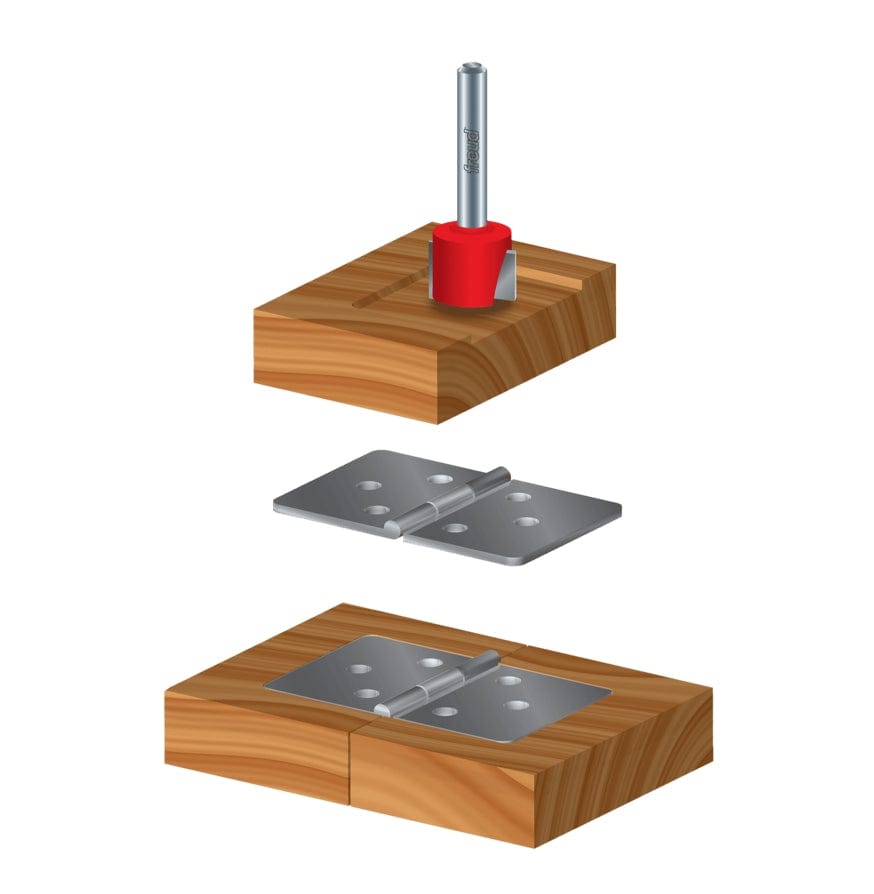

The Freud 16-094 Downshear Plywood Mortising Bit is a specialized solution for woodworkers who demand splinter-free results in challenging materials. Featuring a unique downshear design, this bit effectively pushes wood fibers downward during the rotation, ensuring a perfectly clean top surface even when working with delicate veneers or thin plywood. Whether you are routing precise mortises for high-end hinges and hardware or cutting clean-edged dadoes for cabinetry, this bit eliminates the need for post-cut cleanup or edge repair.

Engineered for high-production environments, this bit is constructed with Freud's proprietary TiCo™ Hi-Density Carbide and protected by the signature non-stick Perma-SHIELD® Coating. This combination reduces friction and heat buildup, extending tool life and protecting against resin and pitch collection. Designed with deep center gullets, the 16-094 allows for maximum material removal and rapid chip evacuation without loading, making it ideal for use in CNC machines, hand-held routers, or table-mounted setups.

Key Features

  • Downshear Technology: Slices wood fibers downward to prevent top-surface splintering in plywood and veneers.
  • Fast Chip Evacuation: Deep center gullets allow for aggressive material removal without chip loading or overheating.
  • TiCo™ Hi-Density Carbide: Specialized industrial-grade carbide formulation for maximum durability and sharpness.
  • Perma-SHIELD® Coating: Non-stick red coating reduces blade drag and protects the bit from corrosion and pitch buildup.
  • Multi-Machine Versatility: Fully compatible with CNC systems, as well as hand-held and table-mounted portable routers.
  • Industrial Balancing: Computer-balanced to ensure vibration-free operation at high speeds up to 24,000 RPM.

What's Included

  • (1) Freud 16-094 7/32" Diameter Downshear Plywood Mortising Bit (1/2" Shank)

Specifications

Manufacturer Freud
Part Number 16-094

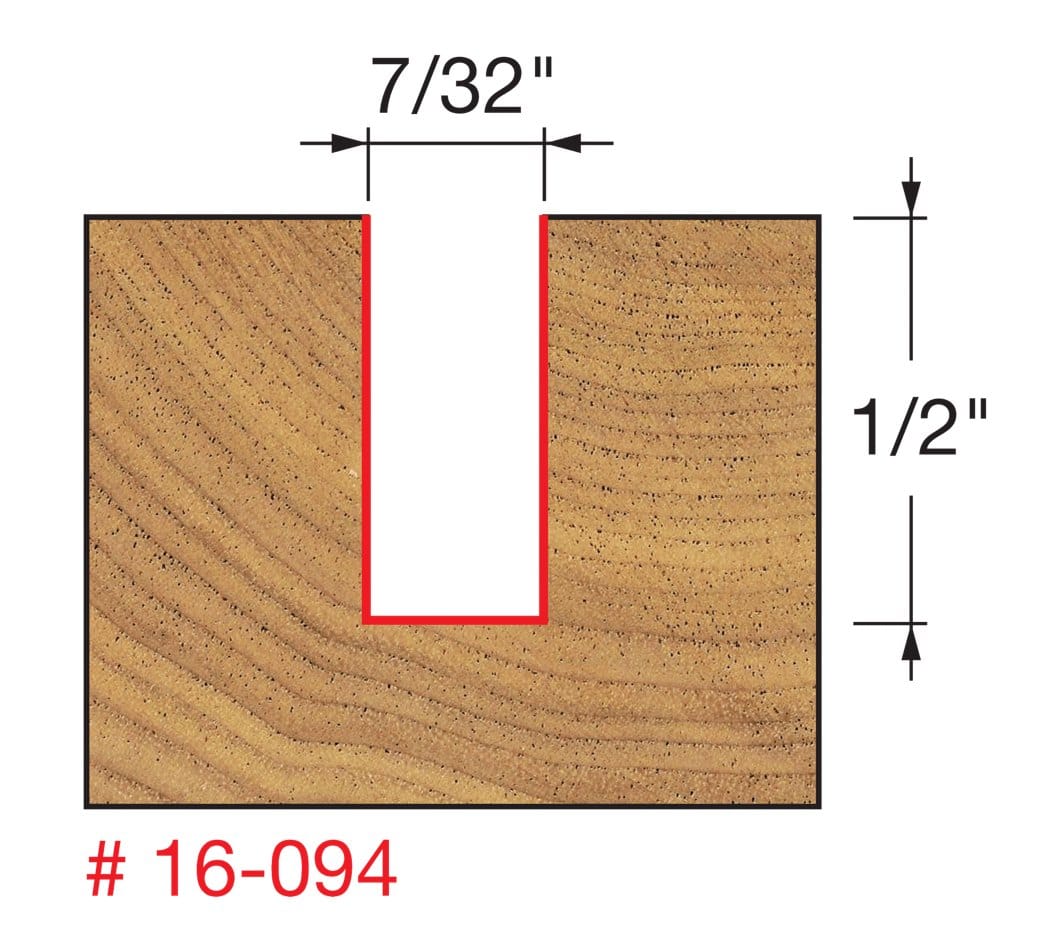

Overall Diameter (D) 7/32 Inch
Shank Diameter (A) 1/2 Inch
Carbide Height (h) 1/2 Inch
Overall Length (H) 2-1/4 Inches
Number of Cutters 2
Maximum RPM 24,000 RPM
Bit Material TiCo™ Carbide Tipped
Ideal Application 1/4" Plywood Grooves & Mortises
Pro-Tip: Because downshear bits push chips toward the bottom of the cut, they are unmatched for top-surface quality but can build up heat in deep pockets. When routing deep mortises, use multiple shallow passes to allow the deep gullets to evacuate chips effectively and keep the carbide edge cool for a longer tool life!
