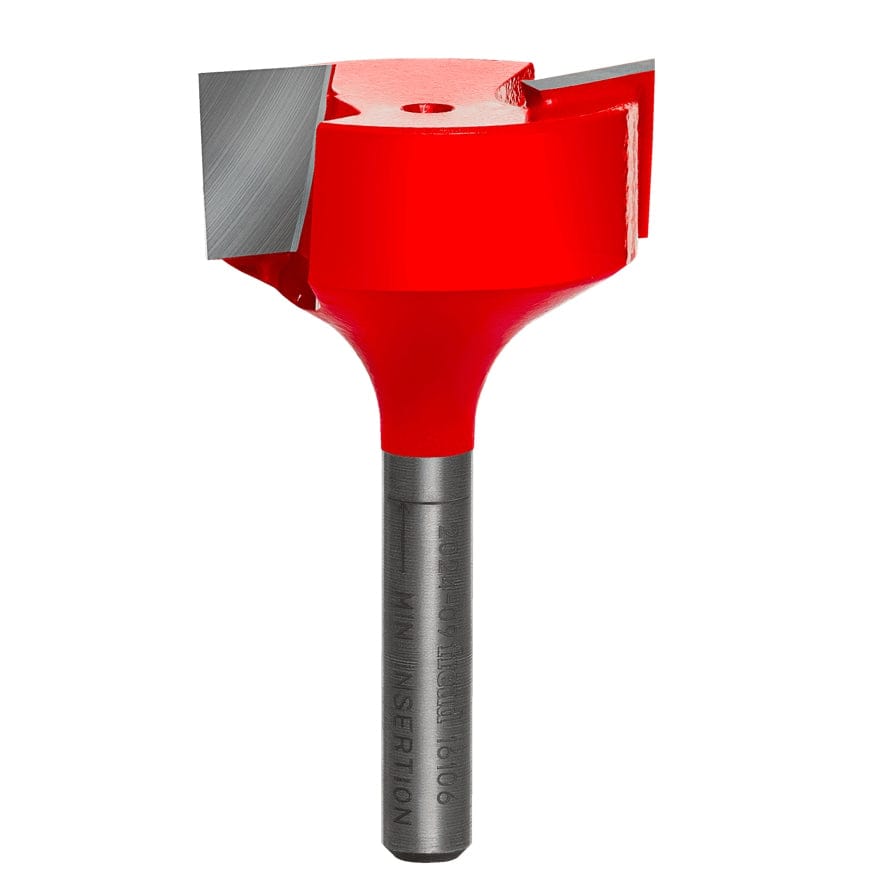

A high-resolution studio view of the Freud 16-106 mortising router bit, featuring a bright red body with sharp silver carbide cutting edges and a polished 1/4 inch steel shank.
Product packaging for the Freud 16-106 mortising bit, showing the red carbide-tipped tool in a clear plastic container with labels indicating industrial quality, a 1-1/4 inch diameter, and a 1/4 inch shank.
A technical diagram of the Freud 16-106 router bit showing its physical dimensions, including a 1-1/4 inch overall diameter, 2-1/8 inch overall length, and 29/64 inch carbide height, alongside a cross-section of a finished mortise cut.
A technical illustration demonstrating the use of the Freud mortising bit to create precise, flat-bottomed recesses in wood for mounting metal hinges.
An infographic showcasing the step-by-step process of using a mortising bit to rout a recess and flush-mount a standard door hinge into a wooden workpiece.
A high-resolution studio view of the Freud 16-106 mortising router bit, featuring a bright red body with sharp silver carbide cutting edges and a polished 1/4 inch steel shank.
Product packaging for the Freud 16-106 mortising bit, showing the red carbide-tipped tool in a clear plastic container with labels indicating industrial quality, a 1-1/4 inch diameter, and a 1/4 inch shank.
A technical diagram of the Freud 16-106 router bit showing its physical dimensions, including a 1-1/4 inch overall diameter, 2-1/8 inch overall length, and 29/64 inch carbide height, alongside a cross-section of a finished mortise cut.
A technical illustration demonstrating the use of the Freud mortising bit to create precise, flat-bottomed recesses in wood for mounting metal hinges.
An infographic showcasing the step-by-step process of using a mortising bit to rout a recess and flush-mount a standard door hinge into a wooden workpiece.
Freud

Freud Mortising Router Bit 16-106 1-1/4 Inch Down Shear (1/4 Inch Shank TiCo Carbide Perma-SHIELD 18000 RPM CNC Spoilboard Surfacing Dadoes)

Only 1 left
SKU: 16-106
$25.97 USD

Description

Freud precisely the best logo Logout

Freud 16-106 1-1/4 Inch Down Shear Mortising Router Bit

The Freud 16-106 is a 1-1/4-inch overall diameter down shear mortising router bit engineered to machine clean, splinter-free hinge recesses, flat-bottom dadoes, and leveled CNC spoilboards. Built with a 1/4-inch shank and a 0.45-inch cutting height, this 2-cutter tool utilizes a down-shear cutting action that forces wood fibers downward to eliminate top-surface tearout. Tipped with TiCo™ Hi-Density Micrograin Carbide and protected by a heat-resistant Perma-SHIELD® non-stick coating, it operates reliably at rotational speeds up to 18,000 RPM across CNC machinery, router tables, or handheld routers in solid hardwoods, softwoods, plywood, and veneers.

Best Used For:

  • Hinge & Hardware Mortising: Routing shallow, crisp-edged Mortises for cabinet hinges, lock faceplates, and architectural door hardware.
  • Flat-Bottom Dado & Groove Jointing: Machining wide, flat-bottomed dado channels and joinery slots in cabinet carcasses and shelving units.
  • CNC Spoilboard Surfacing: Flattening and resurfacing MDF CNC router beds to ensure uniform z-axis calibration across the entire cutting surface.

Key Performance & Safety Features

  • Down-Shear Cutter Geometry: Shear-angled carbide tips push surface wood fibers down to ensure a clean, tear-free top edge profile.
  • Deep Clearance Center Gullets: Deeply milled chip gullets allow fast waste evacuation to prevent thermal pitch buildup and chip loading.
  • TiCo™ Hi-Density Micrograin Carbide: Custom-formulated titanium-cobalt micrograin carbide edges deliver exceptional durability and sharpness retention.
  • Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating guards against thermal friction, resin accumulation, and rust corrosion.
  • Precision Dual-Flute Cutters: Two ground carbide cutters produce smooth, vibration-free passes across wide surface cutting widths.
  • 18,000 RPM Maximum Speed Limit: Precision-balanced body design enables stable, chatter-free rotation under demanding feed rates.

What's Included

  • (1) Freud 16-106 1-1/4" Down Shear Mortising Router Bit with 1/4" Shank

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 16-106
Overall Cutting Diameter (D) 1.250 inches (1-1/4" / 31.8 mm)
Shank Diameter (A) 0.250 inches (1/4" / 6.4 mm)
Carbide Cutting Height (h) 0.450 inches (29/64" / 11.4 mm)
Overall Tool Length (H) 2.125 inches (2-1/8" / 54.0 mm)
Cutter Flute Angle Geometry Down Shear Cutting Style
Number of Carbide Cutters 2 Flute Carbide Cutters
Maximum Operating Speed 18,000 RPM
Body Protective Coating Red Perma-SHIELD® Non-Stick Fluoropolymer
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Handheld Routers, Router Tables

Pro-Tip: Due to the down-shear angle pushing chips downwards into the pocket, make mortising passes using shallow depth increments to ensure chips clear freely out of deep mortises without pack-up.
