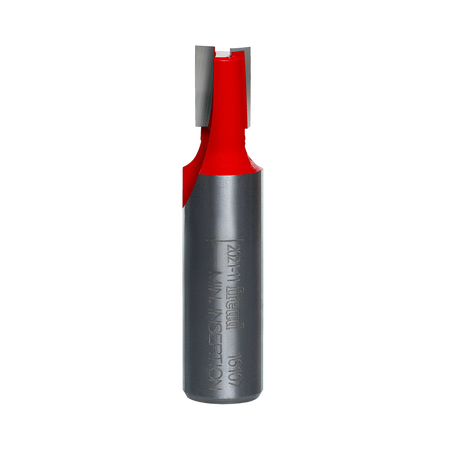

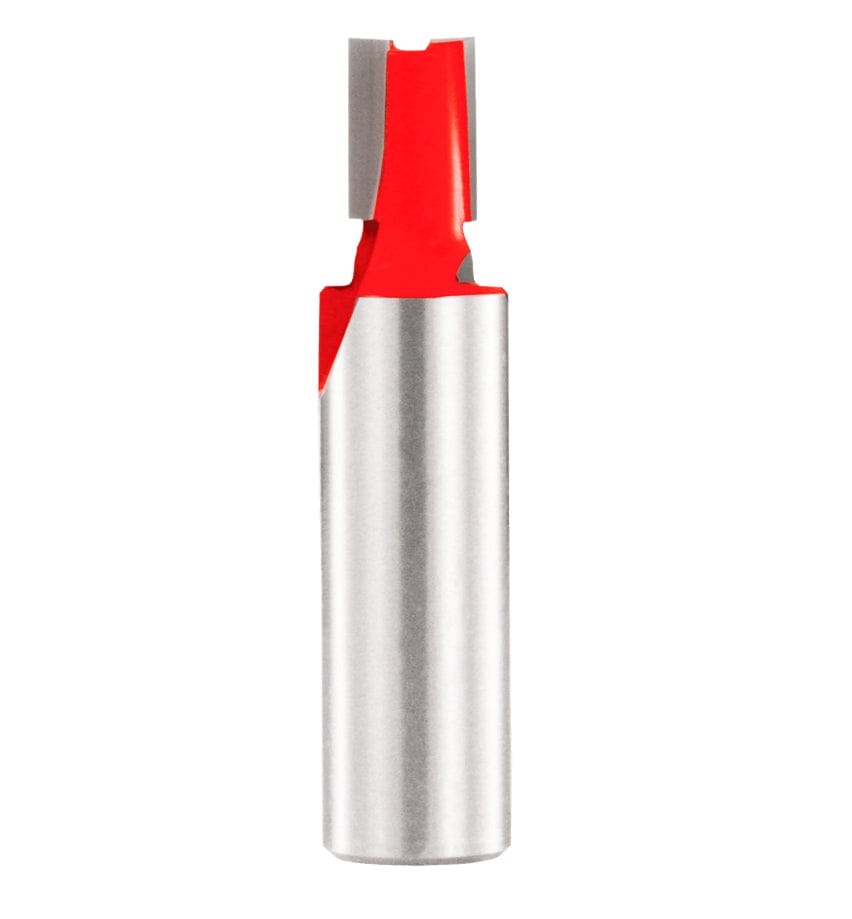

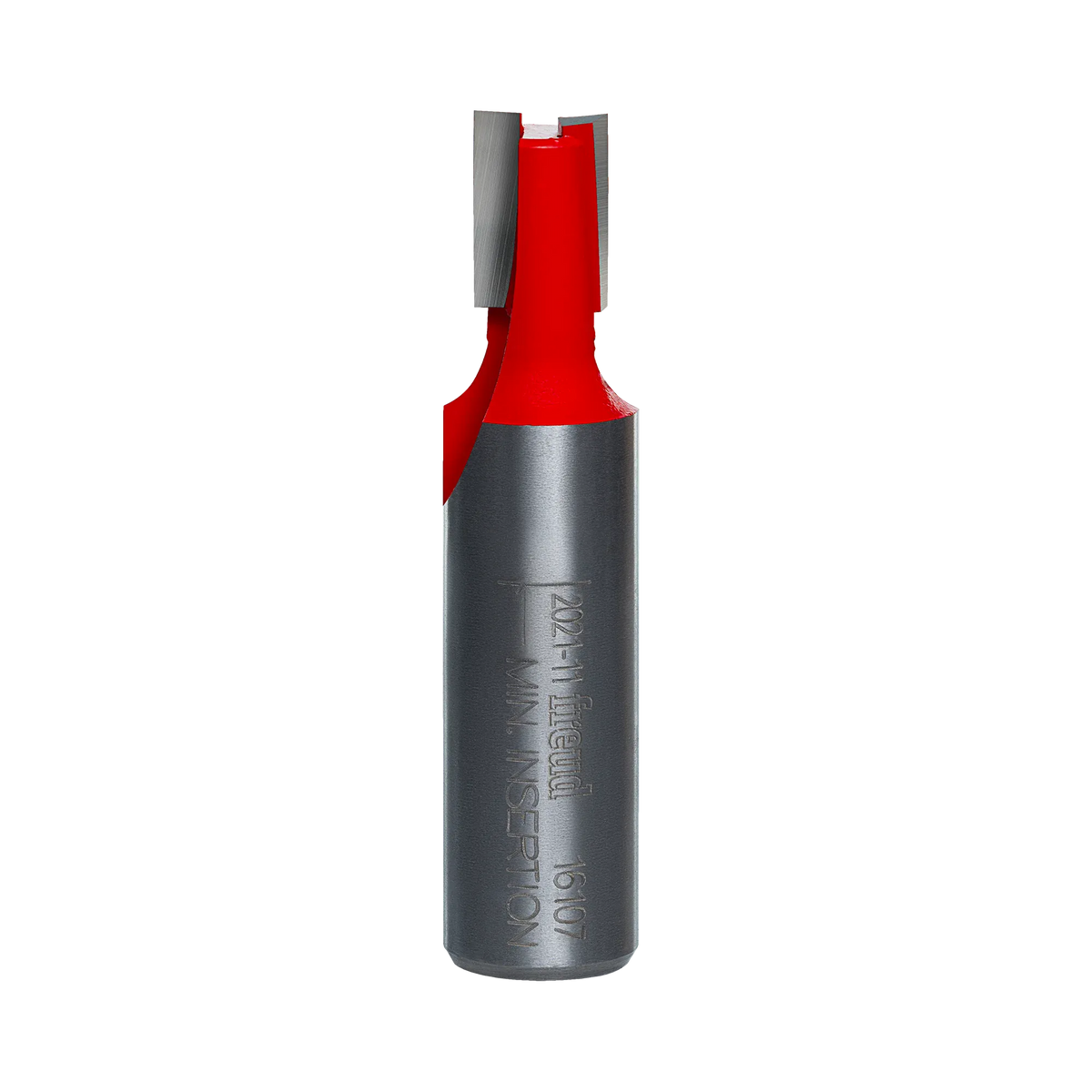

A studio product view of the Freud 16-107 mortising router bit, featuring a polished 1/2 inch steel shank and a bright red head with sharp carbide cutting edges.

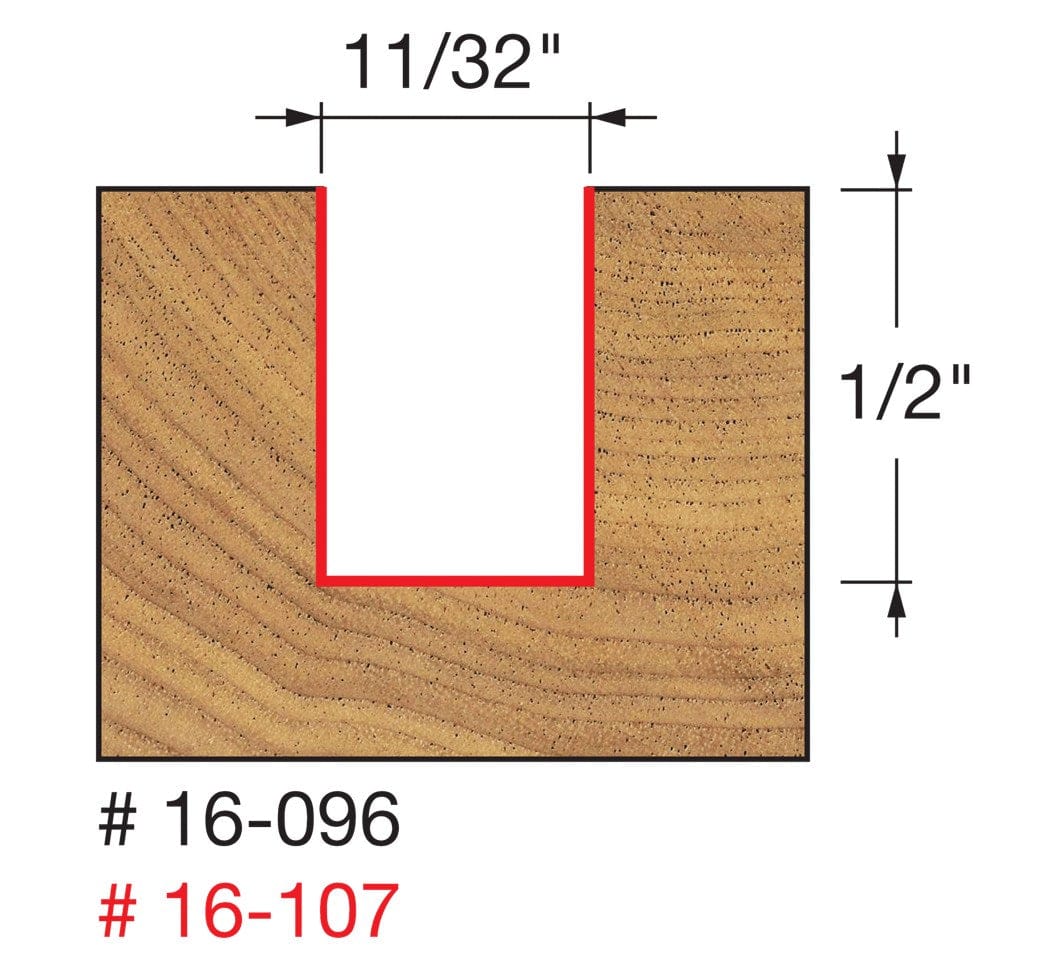

A technical diagram showing a cross-section of a mortise cut into wood, with red lines indicating a width of 11/32 of an inch and a depth of 1/2 of an inch for the Freud 16-107 bit.

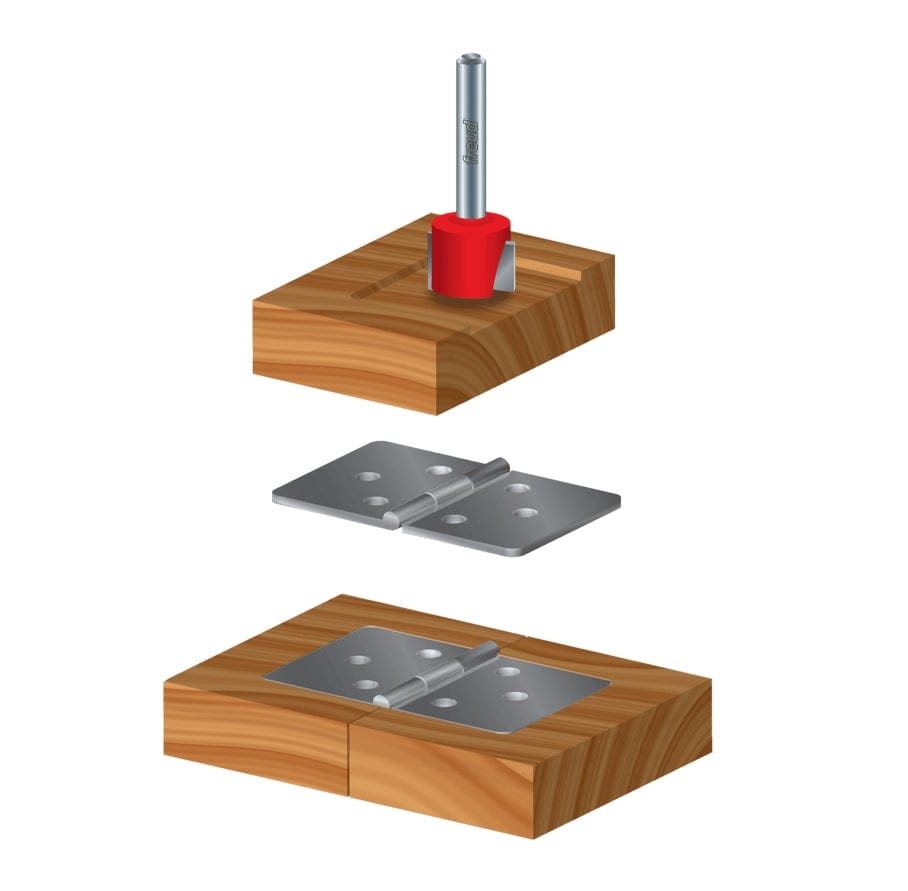

A technical illustration demonstrating how the Freud mortising router bit is used to create a precise, flat-bottomed recess in a wooden workpiece for mounting a metal hinge.

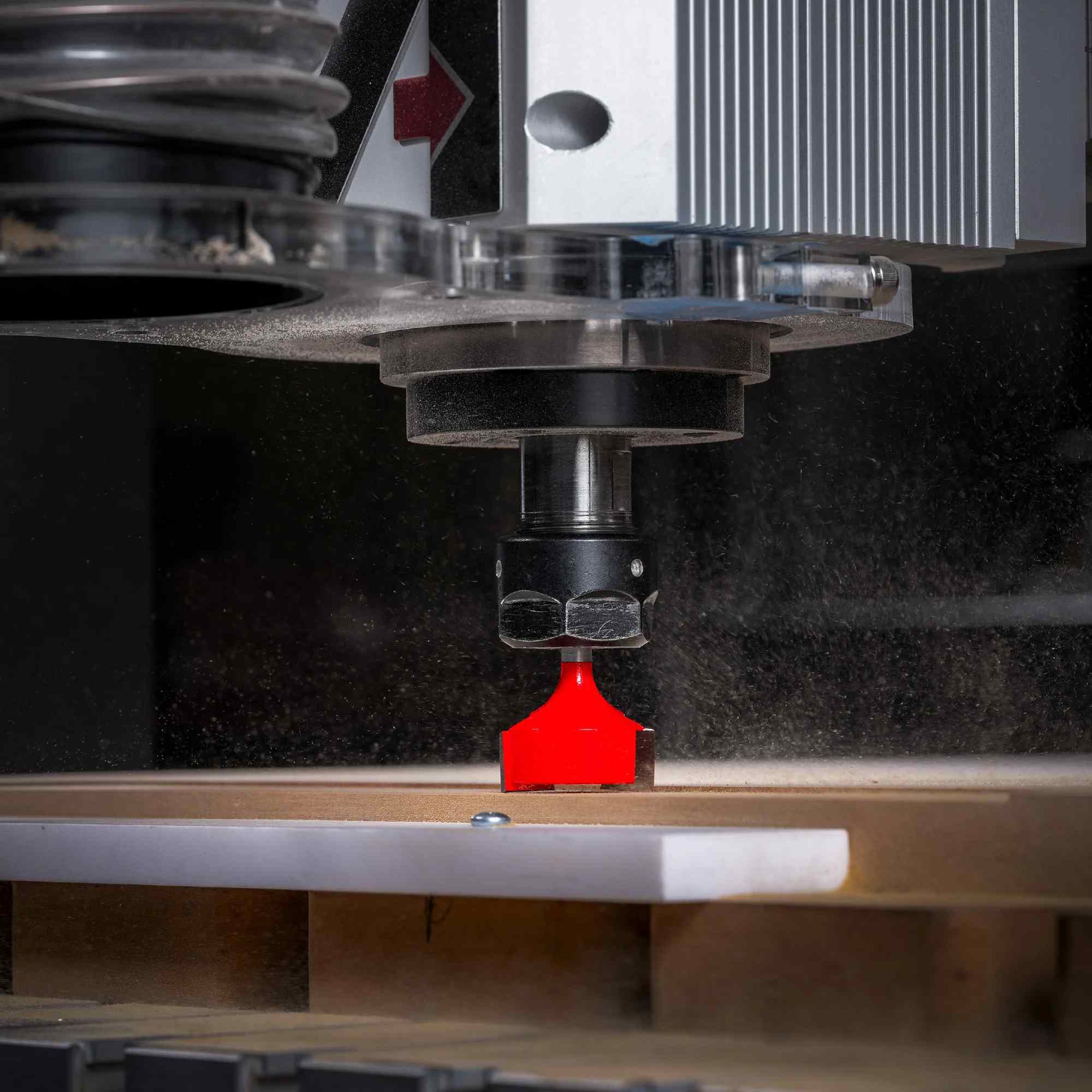

A high-performance CNC router machine in operation, showing the red Freud mortising bit surfacing a wooden board while creating fine wood dust.
A studio product view of the Freud 16-107 mortising router bit, featuring a polished 1/2 inch steel shank and a bright red head with sharp carbide cutting edges.
A studio product view of the Freud 16-107 mortising router bit, featuring a polished 1/2 inch steel shank and a bright red head with sharp carbide cutting edges.
A technical diagram showing a cross-section of a mortise cut into wood, with red lines indicating a width of 11/32 of an inch and a depth of 1/2 of an inch for the Freud 16-107 bit.
A technical illustration demonstrating how the Freud mortising router bit is used to create a precise, flat-bottomed recess in a wooden workpiece for mounting a metal hinge.
A high-performance CNC router machine in operation, showing the red Freud mortising bit surfacing a wooden board while creating fine wood dust.
A studio product view of the Freud 16-107 mortising router bit, featuring a polished 1/2 inch steel shank and a bright red head with sharp carbide cutting edges.
Freud

Freud Mortising Router Bit 16-107 11/32 Inch Down Shear (1/2 Inch Shank TiCo Carbide Perma-SHIELD 24000 RPM Plywood Hardware Grooves Dadoes)

Only 1 left
SKU: 16-107
$19.49 USD

Description

Freud precisely the best logo Logout

Freud 16-107 11/32 Inch Down Shear Mortising Router Bit

The Freud 16-107 is an 11/32-inch overall diameter down shear mortising router bit engineered to cut undersized 3/8-inch plywood grooves, hinge pockets, and flat-bottom dadoes without surface splintering. Built with a heavy-duty 1/2-inch shank and a 1/2-inch carbide cutting height, this 2-flute tool features down-shear cutter geometry that forces top wood fibers downward to eliminate tearout. Tipped with TiCo™ Hi-Density Micrograin Carbide and coated with thermal-resistant Perma-SHIELD® non-stick coating, it operates stably at rotational speeds up to 24,000 RPM across CNC machinery, router tables, or handheld routers in plywood, veneers, and solid timber.

Best Used For:

  • Undersized 3/8-Inch Plywood Dadoing: Milling precise 11/32-inch wide dado grooves to achieve snug mechanical joints with modern undersized nominal 3/8-inch sheet goods.
  • Cabinet Hardware & Hinge Mortising: Routing clean, flat-bottom mortises for cabinet faceplate hardware, recessed brackets, and door hinges.
  • Fine Veneer & Laminate Slotting: Cutting tearout-free channels and joinery slots across delicate surface veneers and laminated timber panels.

Key Performance & Safety Features

  • Down-Shear Cutter Geometry: Shear-angled carbide tips push surface wood fibers down to ensure a clean, tear-free top edge profile.
  • Deep Clearance Center Gullets: Deeply milled chip gullets allow fast waste evacuation to prevent thermal pitch buildup and chip loading.
  • TiCo™ Hi-Density Micrograin Carbide: Custom-formulated titanium-cobalt micrograin carbide edges deliver exceptional durability and sharpness retention.
  • Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating guards against thermal friction, resin accumulation, and rust corrosion.
  • Heavy-Duty 1/2-Inch Shank: Rigid 1/2-inch steel shank diameter minimizes tool flex, runout, and cutter vibration during high-speed routing.
  • 24,000 RPM Maximum Speed Limit: Precision-balanced body design enables stable, chatter-free rotation under demanding feed rates.

What's Included

  • (1) Freud 16-107 11/32" Down Shear Mortising Router Bit with 1/2" Shank

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 16-107
Overall Cutting Diameter (D) 0.344 inches (11/32" / 8.7 mm)
Shank Diameter (A) 0.500 inches (1/2" / 12.7 mm)
Carbide Cutting Height (h) 0.500 inches (1/2" / 12.7 mm)
Overall Tool Length (H) 2.250 inches (2-1/4" / 57.2 mm)
Cutter Flute Angle Geometry Down-Shear Cutting Style
Number of Carbide Cutters 2 Flute Carbide Cutters
Maximum Operating Speed 24,000 RPM
Body Protective Coating Red Perma-SHIELD® Non-Stick Fluoropolymer
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Handheld Routers, Router Tables

Pro-Tip: Due to the down-shear angle pushing chips downwards into the pocket, make mortising passes using shallow depth increments to ensure chips clear freely out of deep mortises without pack-up.
