Freud Router Bit 20-502 1/2 Inch 90 Degree Top Bearing V Grooving (1/4 Inch Shank TiCo Carbide Perma-SHIELD 24000 RPM Signmaking Engraving Wood)

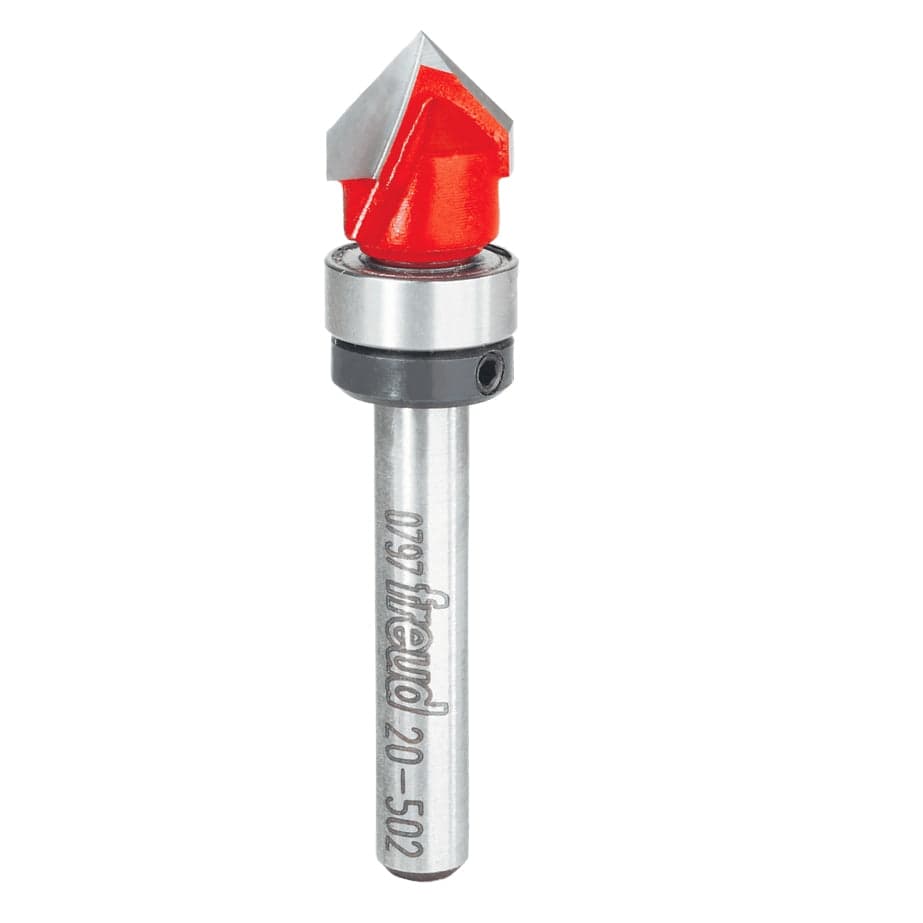

Freud 20-502 1/2 Inch 90 Degree Top Bearing V Grooving Router Bit

The Freud 20-502 is a 1/2-inch overall diameter 90-degree top-bearing V-grooving router bit engineered to follow overhead templates, guide stencils, and pattern boards for clean signmaking and decorative joinery. Built with a 1/4-inch shank and top-mounted guide bearing, this 2-flute cutter produces sharp 90-degree profile lines and edge chamfers in solid hardwoods, softwoods, plywood, plastics, and composites. Tipped with TiCo™ Hi-Density Micrograin Carbide and protected by a heat-resistant Perma-SHIELD® non-stick coating, it operates safely at rotational speeds up to 24,000 RPM across handheld routers or router tables.

Best Used For:

• Pattern & Template-Guided Signmaking: Following overhead lettering templates and custom pattern guides to rout uniform 90-degree V-groove lettering on wooden plaques.
• Decorative Cabinet & Panel Veining: Routing fine accent lines, faux panel seams, and geometric veining profiles across furniture components using top templates.
• Template-Guided Edge Chamfering: Machining uniform 45-degree edge chamfers along straight or curved workpiece edges following top pattern guides.

Key Performance & Safety Features

• Top-Mounted Ball Bearing Guide: Precision steel bearing rides flush against templates for accurate, error-free pattern-guided routing.

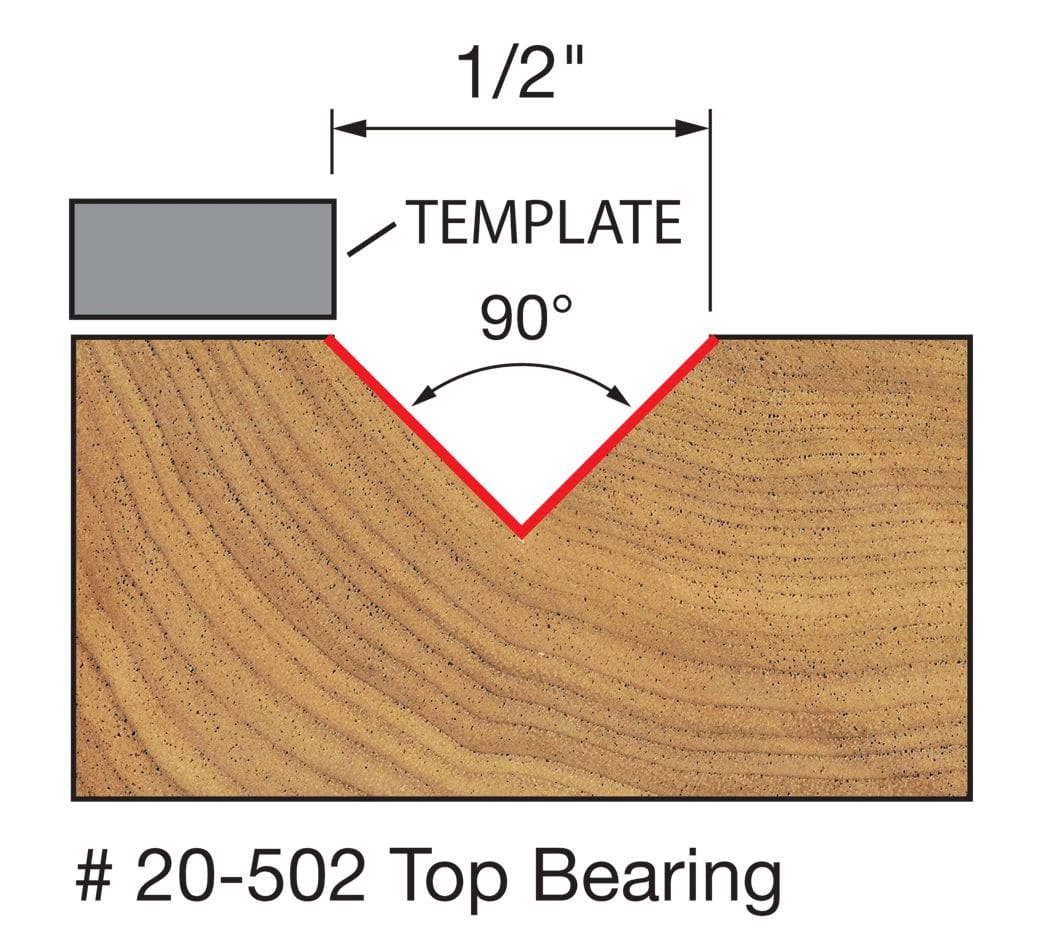

• Precision 90-Degree Profile Geometry: Ground to an exact 90-degree angle to produce clean V-grooves and sharp chamfers without surface tearout.
• TiCo™ Hi-Density Micrograin Carbide: Custom titanium-cobalt carbide formulation maintains high edge retention under heavy production friction.
• Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating guards against thermal friction, pitch accumulation, and rust corrosion.
• Precision Dual-Flute Cutters: Two cutter flutes provide efficient chip removal and smooth surface finishes in plunge or lateral routing passes.
• Computer-Balanced Anti-Vibration Body: Precision body balancing eliminates chatter and ensures smooth rotational tracking at speeds up to 24,000 RPM.

What's Included

• (1) Freud 20-502 1/2" 90° Top Bearing V-Grooving Router Bit with 1/4" Shank
• (1) Top-Mounted Precision Steel Ball Bearing Guide

Technical Specifications

Pro-Tip: Secure your template firmly to the workpiece surface using double-sided tape and ensure the top bearing rides fully on the template edge before plunging to avoid cut deviation.
