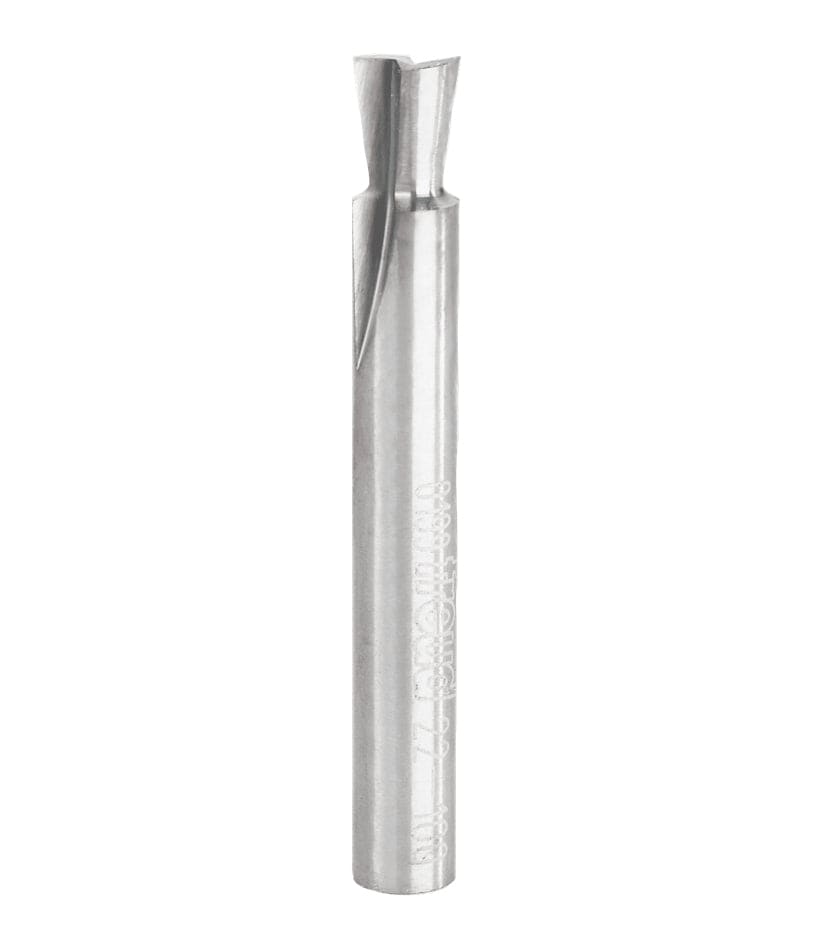

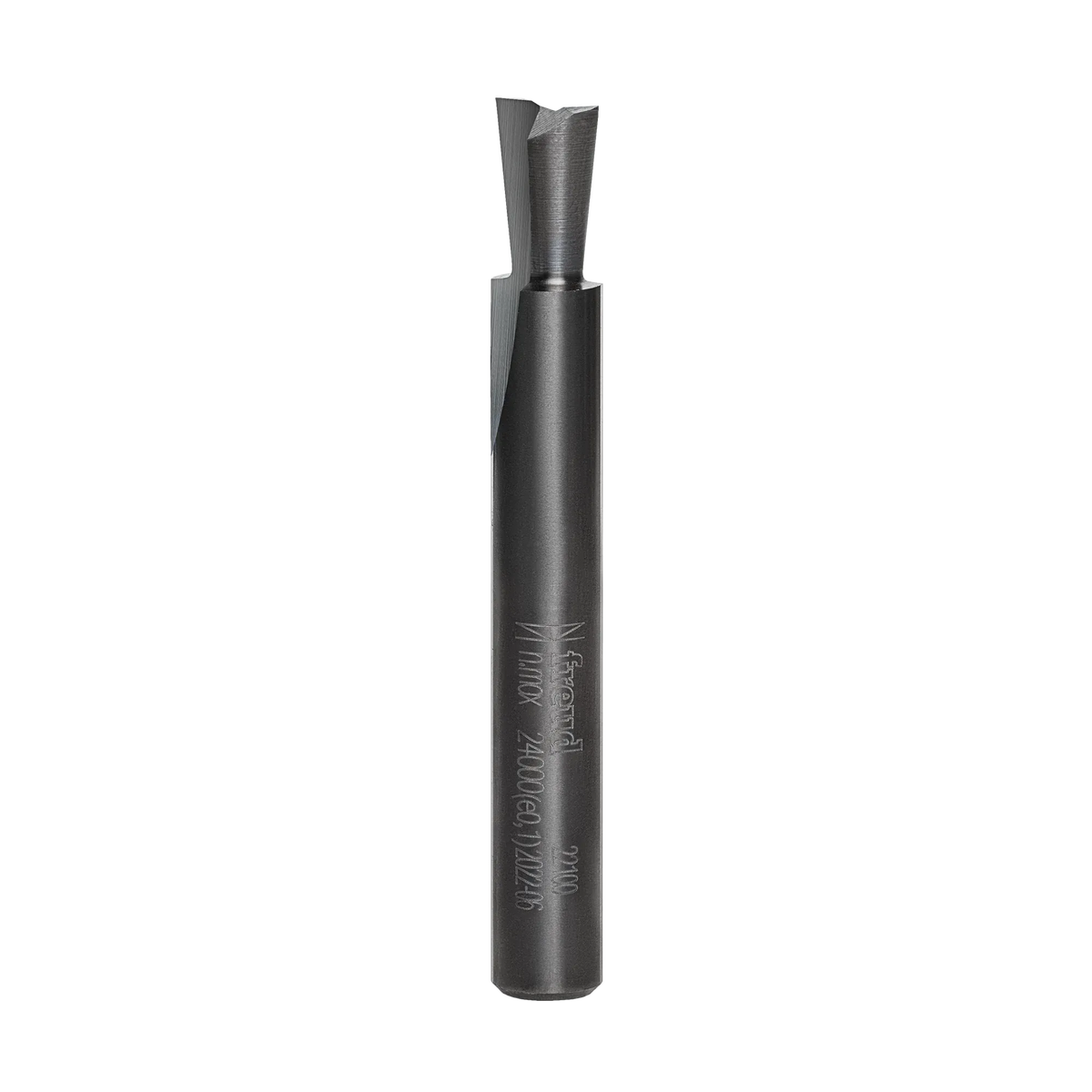

Studio product view of the Freud 22-100 router bit, featuring a 1/4 inch silver shank and a slender dovetail cutting head with laser-etched model numbers.
Retail packaging view for the Freud 22-100 dovetail bit, displaying the red and black branding, a diagram of the 7.5 degree cut profile, and icons indicating the 1/4 inch shank and Perma-SHIELD coating.

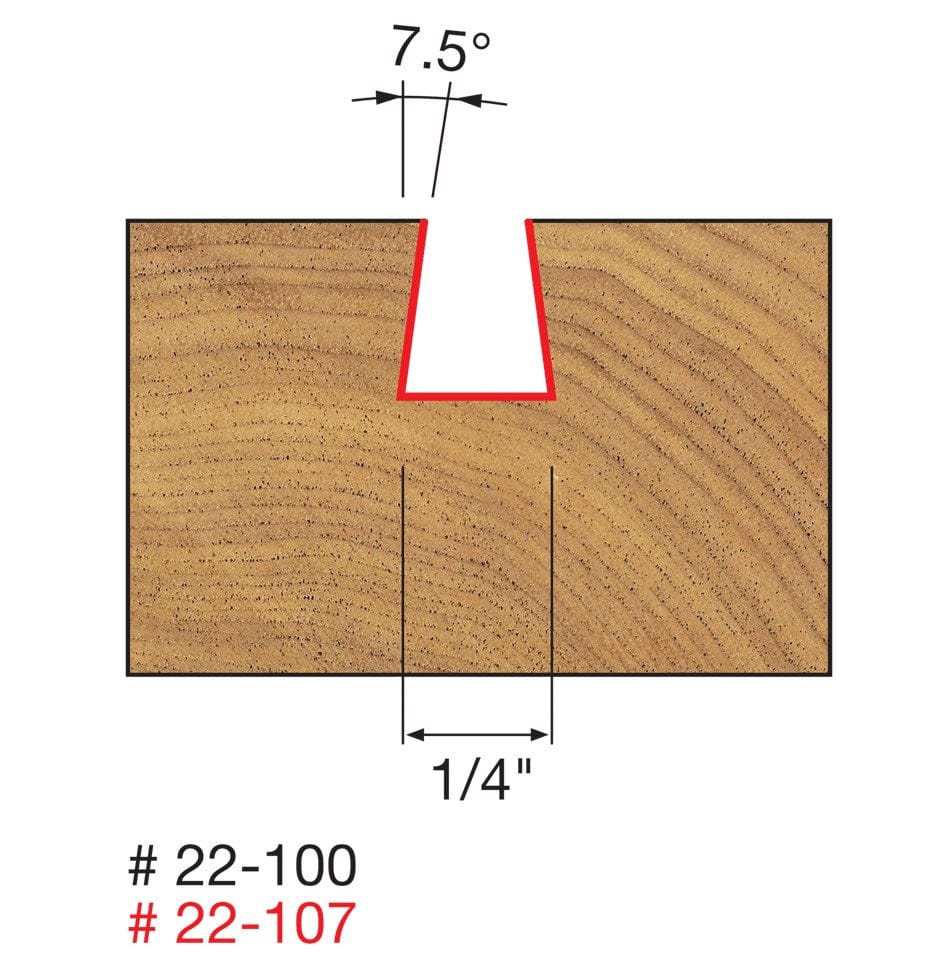

Technical diagram illustrating the cutting profile of the Freud 22-100 dovetail bit, showing a cross-section of a cut with a 1/4 inch bottom width and 7.5-degree angled sidewalls.

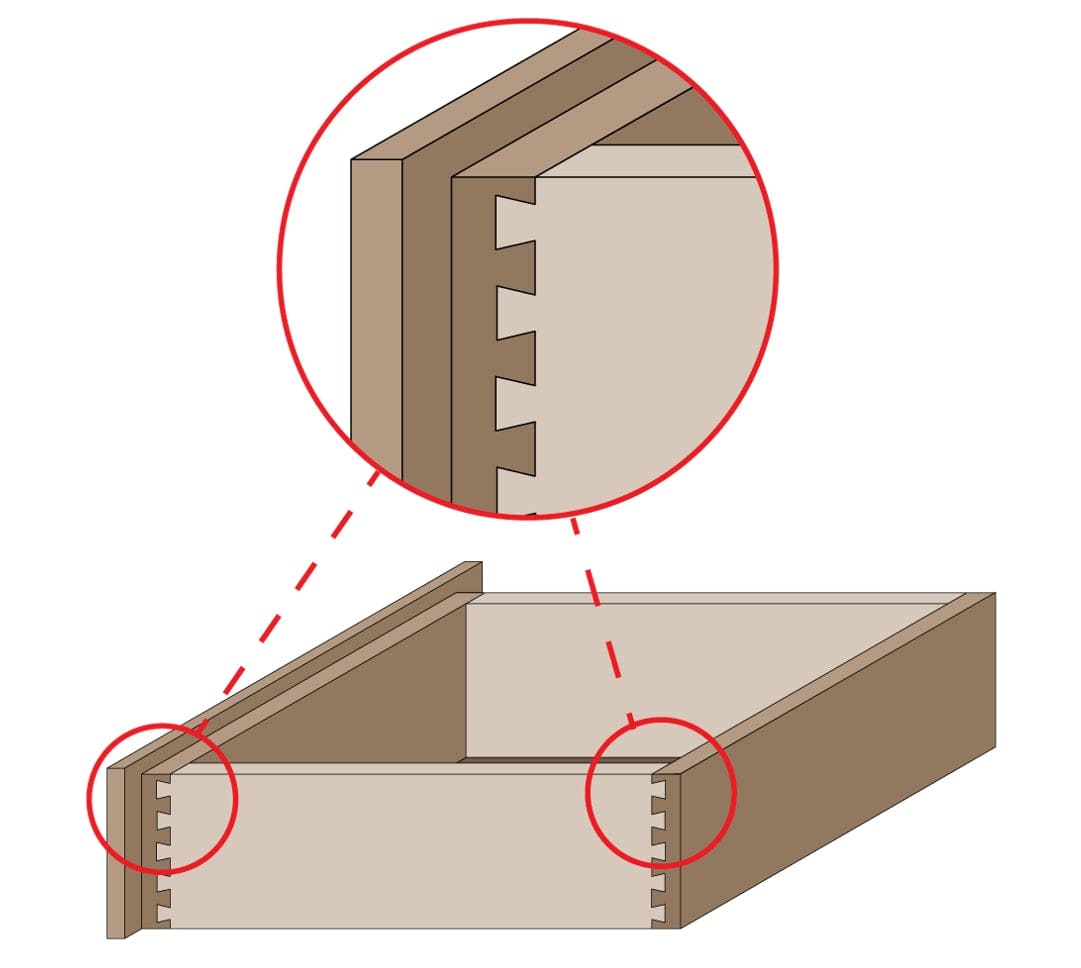

Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.
Studio product view of the Freud 22-100 router bit, featuring a 1/4 inch silver shank and a slender dovetail cutting head with laser-etched model numbers.
Studio product view of the Freud 22-100 router bit, featuring a 1/4 inch silver shank and a slender dovetail cutting head with laser-etched model numbers.
Retail packaging view for the Freud 22-100 dovetail bit, displaying the red and black branding, a diagram of the 7.5 degree cut profile, and icons indicating the 1/4 inch shank and Perma-SHIELD coating.
Technical diagram illustrating the cutting profile of the Freud 22-100 dovetail bit, showing a cross-section of a cut with a 1/4 inch bottom width and 7.5-degree angled sidewalls.
Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.
Studio product view of the Freud 22-100 router bit, featuring a 1/4 inch silver shank and a slender dovetail cutting head with laser-etched model numbers.
Freud

Freud 22-100 1/4 Inch Dovetail Router Bit 7.5 Degree Angle 1/4 Inch Shank Joinery Box Joint Drawer Making Perma-SHIELD Carbide Tipped

Only 2 left
SKU: 22-100
$16.79 USD

Description

Freud precisely the best logo Logout

Craft Delicate, Indestructible Joints with Freud's Precision 1/4-Inch Dovetail Bit

Create exquisite, traditional joinery in your finest woodworking projects with the Freud 22-100 1/4-Inch Dovetail Router Bit. Featuring a precise 7.5-degree cutting angle, this bit is engineered for crafting small, elegant dovetail joints found in jewelry boxes, humidors, and small drawers. Whether you are using a standard dovetail jig or routing freehand, this tool cuts clean, smooth, interlocking joints in hardwood, softwood, plywood, and composite materials, ensuring a fit that is both structurally sound and visually stunning.

Designed for professional durability, the 22-100 is tipped with Freud's exclusive TiCo Hi-Density Carbide, offering a sharper edge and significantly longer cutting life than standard bits. The body is coated with Freud's signature Red Perma-SHIELD® Non-Stick Coating, a thermal barrier that reduces friction, prevents heat buildup, and resists pitch accumulation for burn-free cuts. With a standard 1/4-inch shank and a balanced design capable of speeds up to 24,000 RPM, this versatile bit delivers flawless results in CNC, hand-held, and table-mounted routers.

Key Features

  • 7.5-Degree Dovetail Angle: Perfect profile for delicate joinery in thinner stock.
  • Perma-SHIELD® Coating: Non-stick red coating resists heat, rust, and pitch buildup.
  • TiCo Hi-Density Carbide: Specially formulated carbide maximizes cutting life and finish quality.
  • Versatile Material Compatibility: Cuts cleanly through plywood, hardwoods, softwoods, and composites.
  • Multi-Machine Use: Designed for use on CNC, hand-held, and table-mounted routers.
  • Jig Compatible: Fits many popular dovetail jigs requiring a 1/4" diameter bit.
  • 1/4-Inch Shank: Standard shank size fits most trim and compact routers.

What's Included:

  • (1) 1/4" Dia. 7.5° Dovetail Router Bit with 1/4" Shank (22-100)

Specifications

Manufacturer Freud
Part Number 22-100
Bit Type Dovetail
Overall Diameter (D) 1/4 Inch
Dovetail Angle (d) 7.5 Degrees
Shank Diameter (A) 1/4 Inch
Overall Length (H) 2 Inches
Carbide Height (h) 5/16 Inch
Number of Cutters 2
Max RPM 24,000
Coating Perma-SHIELD® Non-Stick
Pro-Tip: When cutting dovetails, especially in expensive hardwoods, "tear-out" is your biggest enemy. To prevent this, always use a "backer board"—a scrap piece of wood clamped behind your workpiece where the router bit exits the cut. This supports the wood fibers and ensures a crisp, clean edge on your tails and pins.
