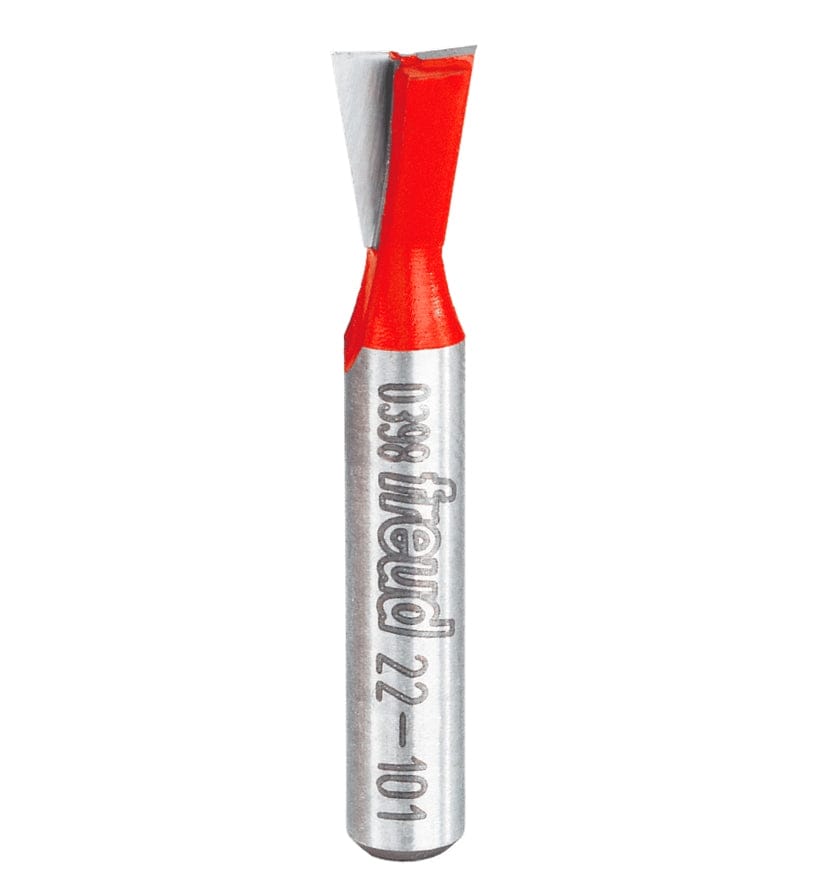

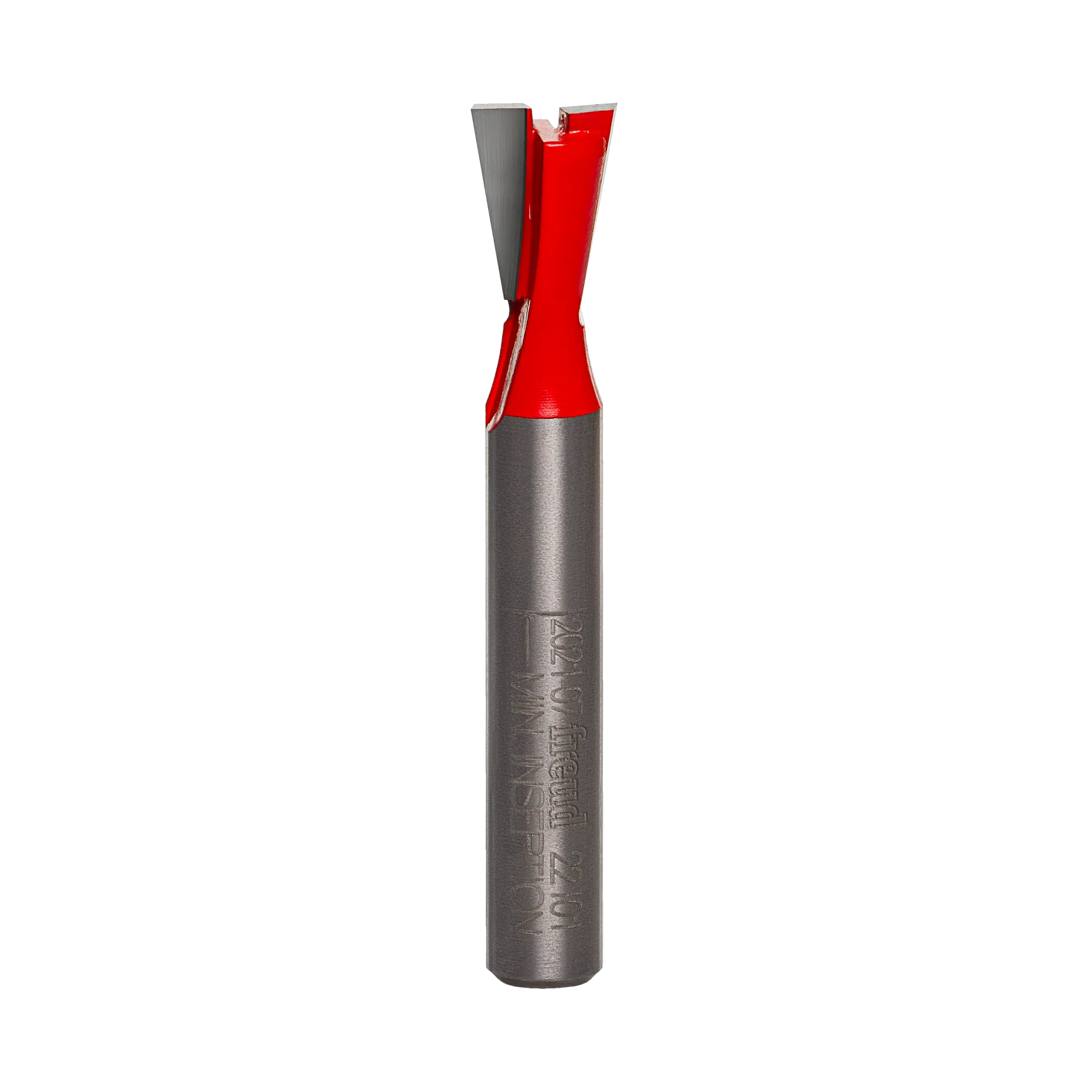

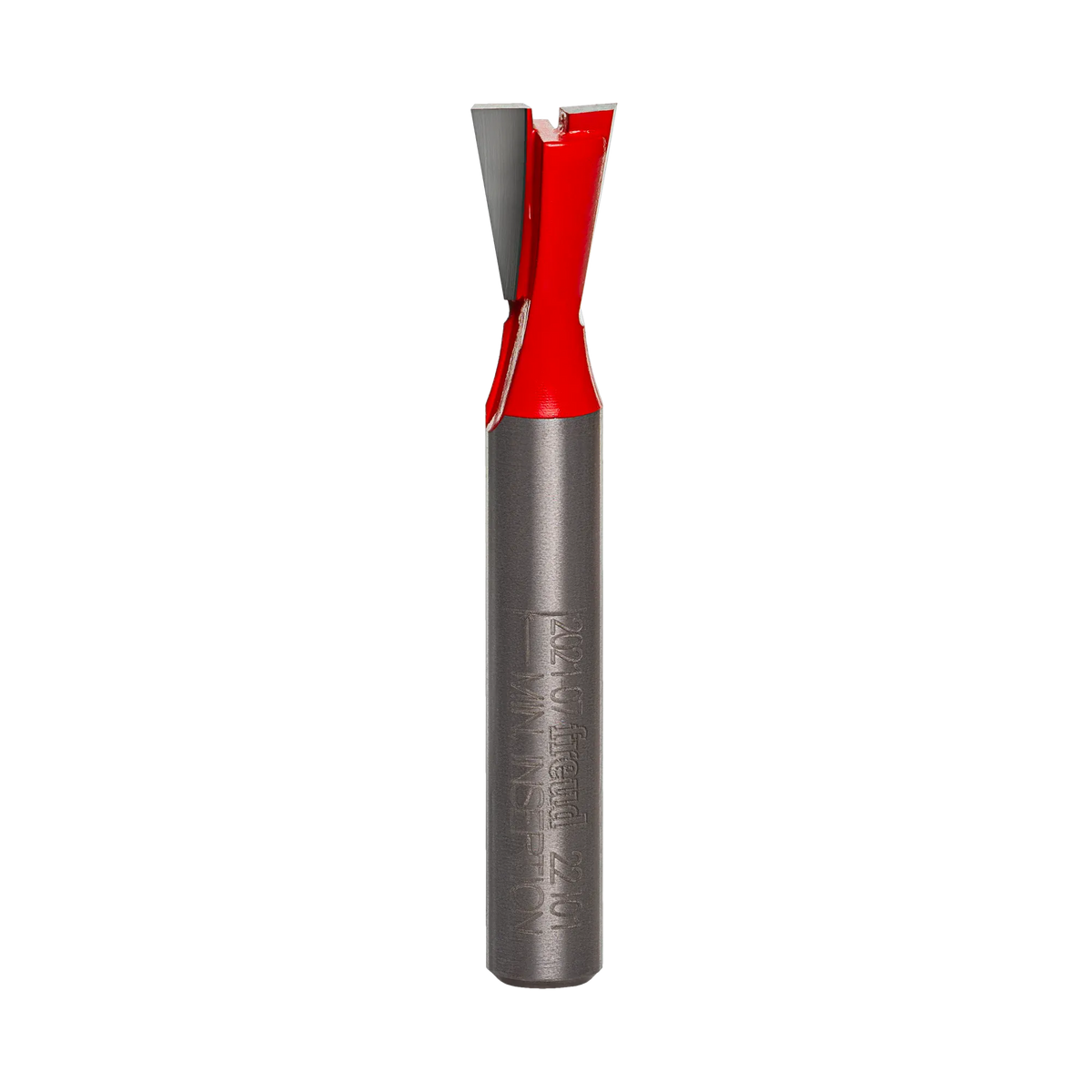

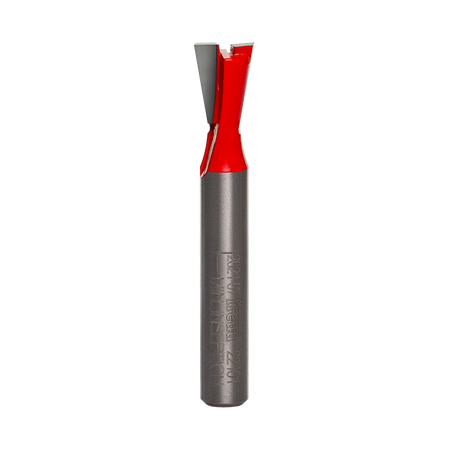

Studio product view of the Freud 22-101 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.

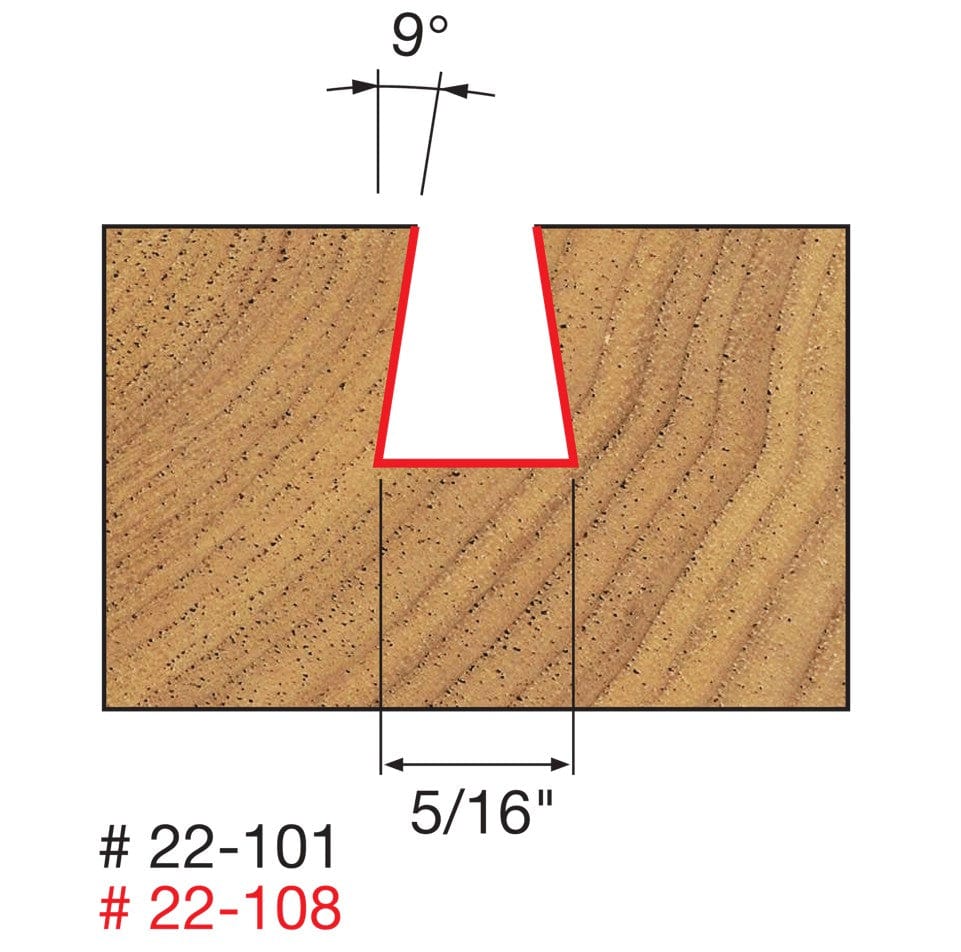

Technical diagram illustrating the cutting profile of the Freud 22-101 dovetail bit, showing a cross-section of a cut with a 5/16 inch bottom width and 9-degree angled sidewalls.

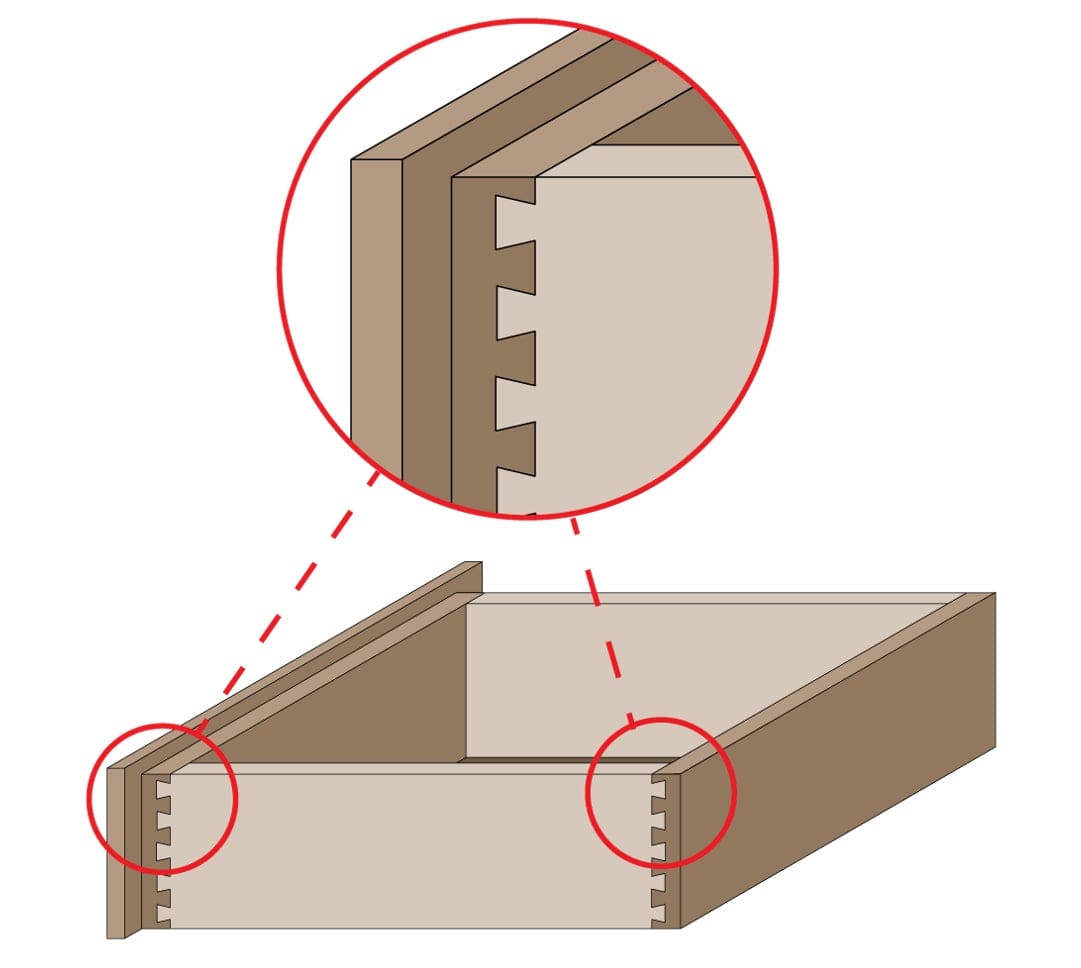

Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.
Studio product view of the Freud 22-101 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.
Studio product view of the Freud 22-101 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.
Technical diagram illustrating the cutting profile of the Freud 22-101 dovetail bit, showing a cross-section of a cut with a 5/16 inch bottom width and 9-degree angled sidewalls.
Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.
Studio product view of the Freud 22-101 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.
Freud

Freud 22-101 5/16 Inch Dovetail Router Bit 9 Degree Angle 1/4 Inch Shank Joinery Box Joint Drawer Making Perma-SHIELD Carbide Tipped

Only 1 left
SKU: 22-101
$16.99 USD

Description

Freud precisely the best logo Logout

Create Strong, Elegant Drawer Joints with Freud's Precision 5/16-Inch Dovetail Bit

Elevate your woodworking projects with the classic strength and beauty of traditional joinery using the Freud 22-101 5/16-Inch Dovetail Router Bit. Designed with a 9-degree cutting angle, this bit is the ideal choice for crafting tight, interlocking joints for smaller drawers, jewelry boxes, and exposed furniture details where a refined look is essential. Whether you are using a commercial dovetail jig or routing freehand, this tool cuts smooth, intricate joints in hardwood, softwood, plywood, and composite materials, ensuring your creations are as durable as they are attractive.

Engineered for professional longevity and performance, the 22-101 features Freud's exclusive TiCo Hi-Density Carbide, providing a razor-sharp edge that outlasts standard bits. The body is protected by Freud's signature Red Perma-SHIELD® Non-Stick Coating, which minimizes friction and prevents the buildup of heat and pitch, ensuring burn-free cuts even in resinous woods. With a standard 1/4-inch shank and a precision-balanced design capable of 24,000 RPM, this versatile bit delivers flawless results in CNC, hand-held, and table-mounted routers.

Key Features

  • 9-Degree Dovetail Angle: Specific angle designed for strong, interlocking joints in thinner stock.
  • Perma-SHIELD® Coating: Non-stick red coating resists heat, rust, and pitch buildup.
  • TiCo Hi-Density Carbide: Specially formulated carbide maximizes cutting life and finish quality.
  • Versatile Material Compatibility: Cuts cleanly through plywood, hardwoods, softwoods, and composites.
  • Multi-Machine Use: Designed for use on CNC, hand-held, and table-mounted routers.
  • Jig Compatible: Compatible with many popular dovetail jigs requiring a 5/16" bit.
  • 1/4-Inch Shank: Standard shank size fits most trim and compact routers.

What's Included:

  • (1) 5/16" Dia. 9° Dovetail Router Bit with 1/4" Shank (22-101)

Specifications

Manufacturer Freud
Part Number 22-101
Bit Type Dovetail
Overall Diameter (D) 5/16 Inch
Dovetail Angle (d) 9 Degrees
Shank Diameter (A) 1/4 Inch
Overall Length (H) 1-7/8 Inches
Carbide Height (h) 3/8 Inch
Number of Cutters 2
Max RPM 24,000
Coating Perma-SHIELD® Non-Stick
Pro-Tip: When routing dovetails, the fit is critical. Remember that adjusting the bit height changes the tightness of the joint. If the joint is too loose, lower the bit slightly to expose more of the wider part of the dovetail. If it is too tight to assemble, raise the bit slightly. Always use a scrap piece of wood of the same thickness to dial in your settings before cutting your project material.
