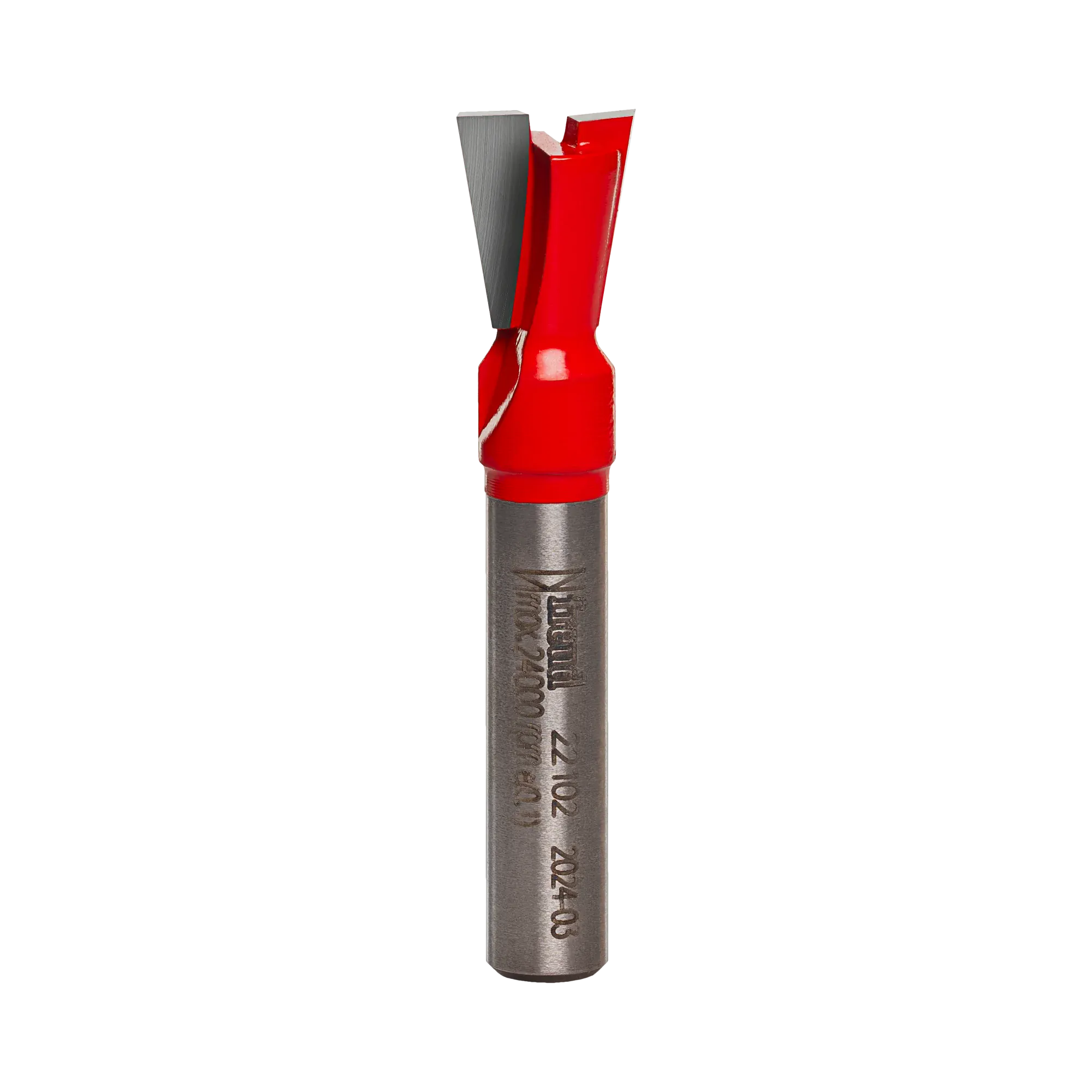

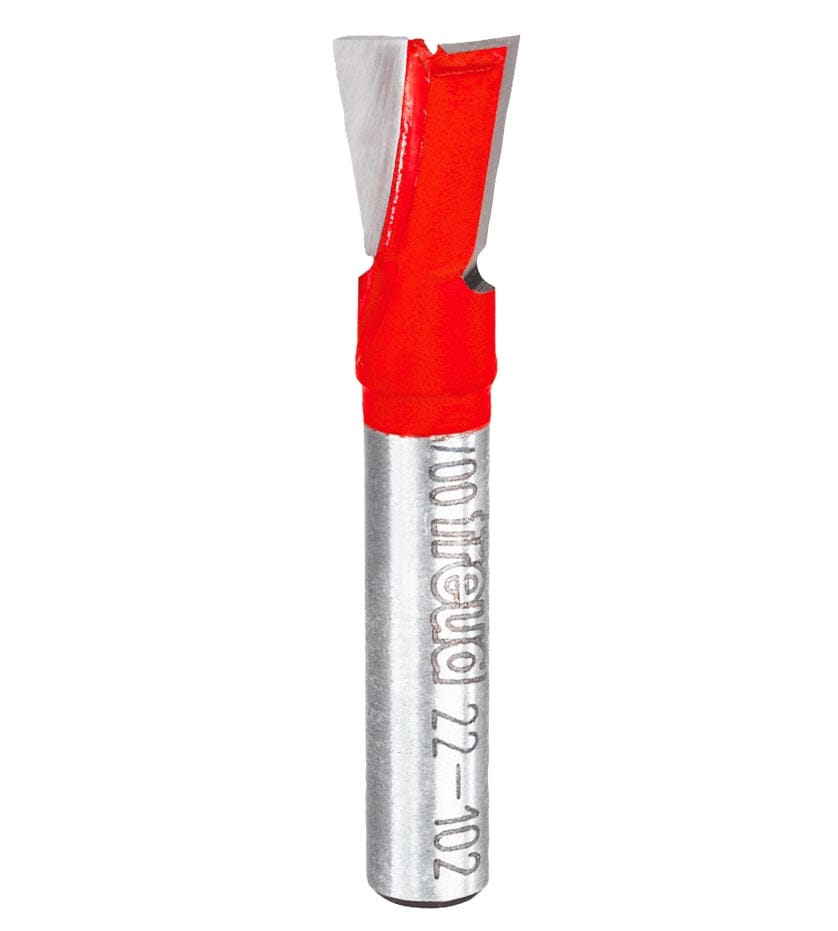

Studio product view of the Freud 22-102 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.

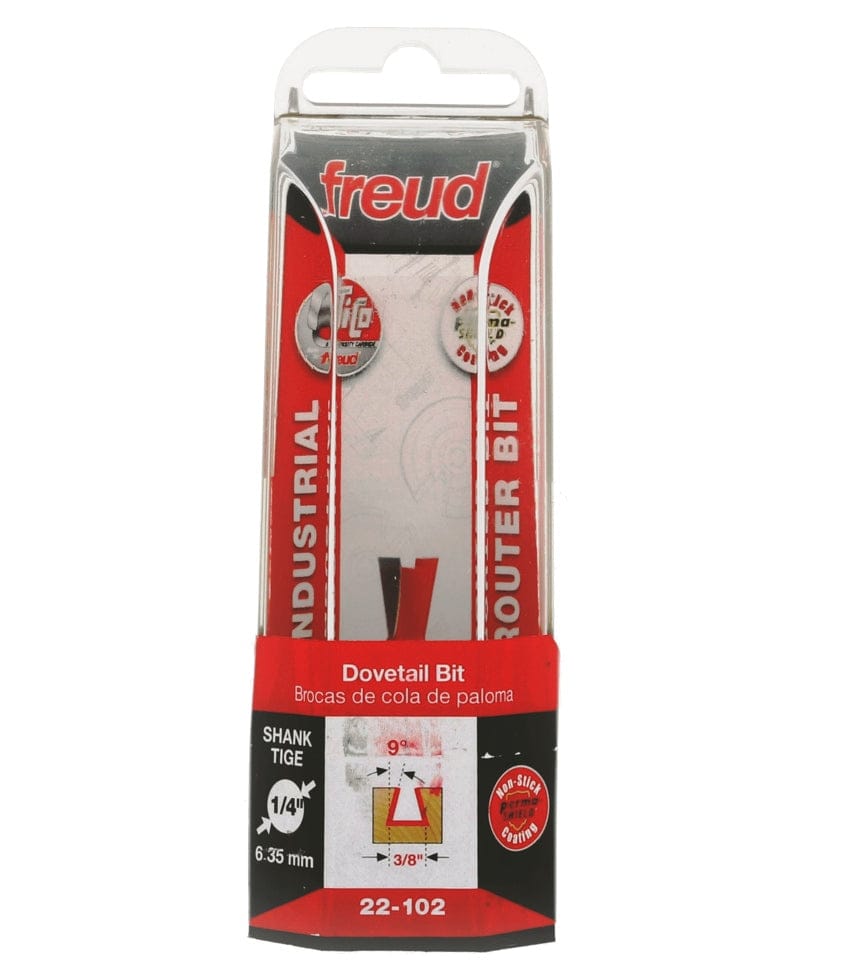

Retail packaging view for the Freud 22-102 dovetail bit, displaying the red and black branding, a diagram of the 3/8 inch width and 9 degree cut profile, and icons indicating the 1/4 inch shank.

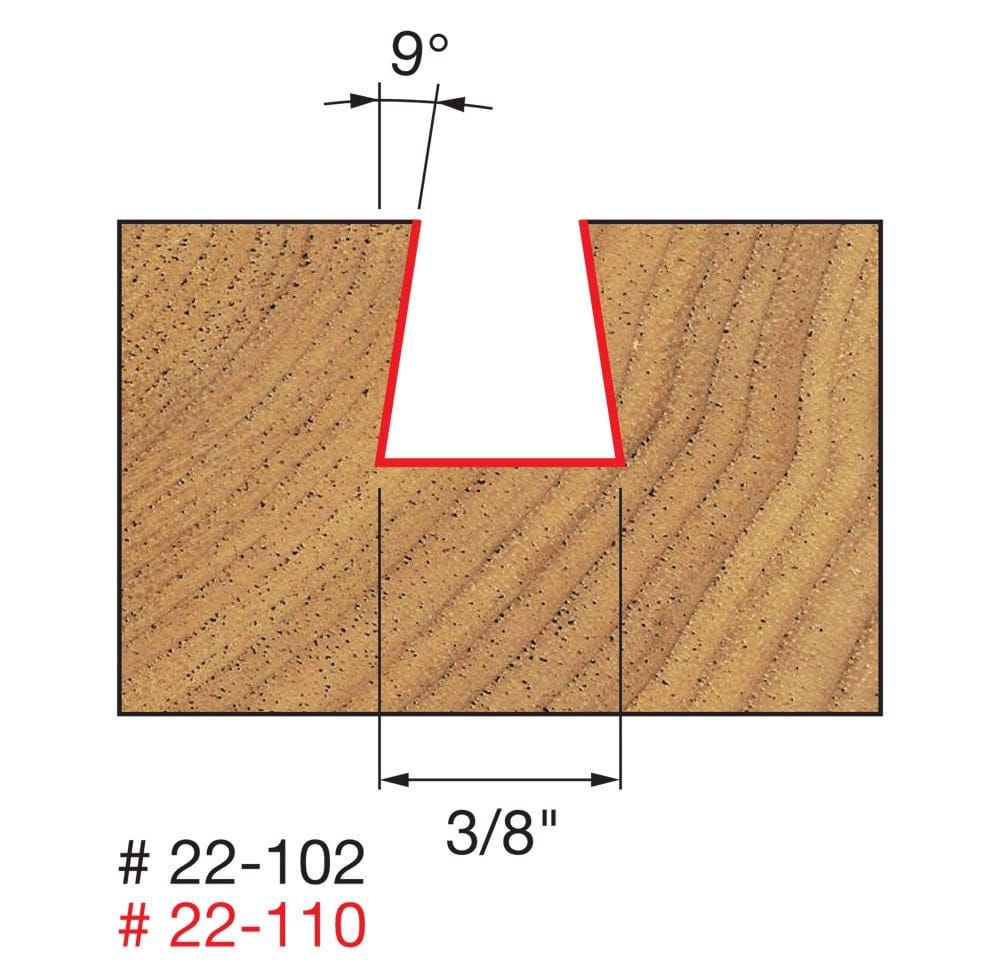

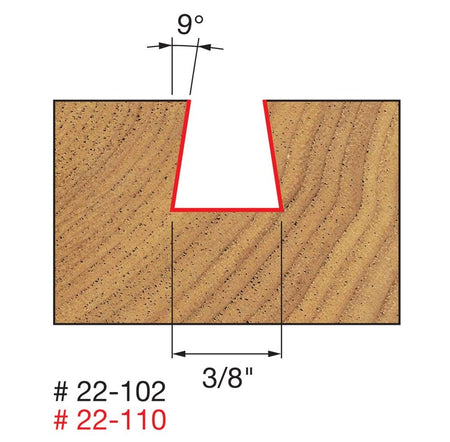

Technical diagram illustrating the cutting profile of the Freud 22-102 dovetail bit, showing a cross-section of a cut with a 3/8 inch bottom width and 9-degree angled sidewalls.

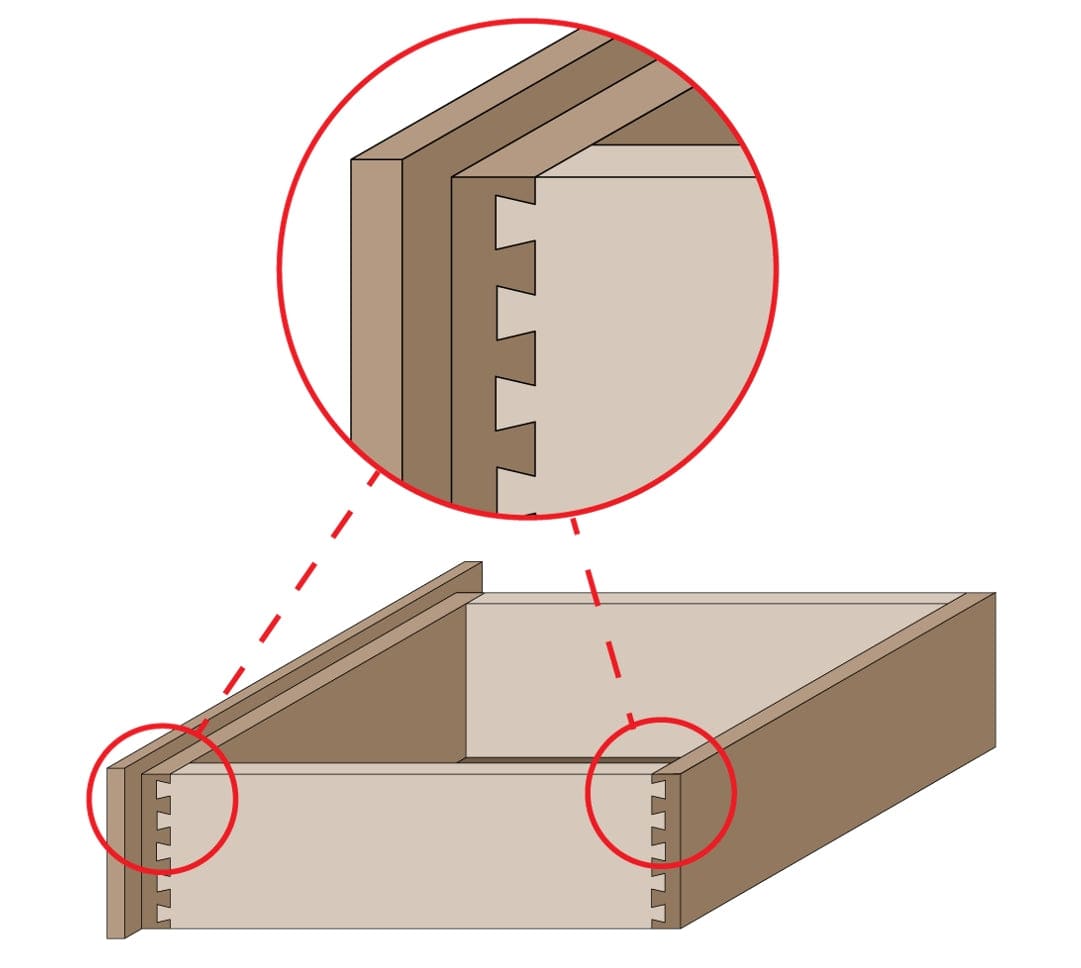

Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.
Studio product view of the Freud 22-102 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.
Studio product view of the Freud 22-102 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.
Retail packaging view for the Freud 22-102 dovetail bit, displaying the red and black branding, a diagram of the 3/8 inch width and 9 degree cut profile, and icons indicating the 1/4 inch shank.
Technical diagram illustrating the cutting profile of the Freud 22-102 dovetail bit, showing a cross-section of a cut with a 3/8 inch bottom width and 9-degree angled sidewalls.
Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.
Studio product view of the Freud 22-102 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.
Freud

Freud 22-102 3/8 Inch Dovetail Router Bit 9 Degree Angle 1/4 Inch Shank Joinery Box Joint Drawer Making Perma-SHIELD Carbide Tipped

Only 1 left
SKU: 22-102
$16.99 USD

Description

Freud precisely the best logo Logout

Craft Classic, Strong Dovetail Joints with Freud's Precision 3/8-Inch Router Bit

Achieve the perfect blend of strength and aesthetics in your cabinetry projects with the Freud 22-102 3/8-Inch Dovetail Router Bit. Featuring a 9-degree cutting angle, this bit is expertly designed for creating clean, interlocking joints in drawers, jewelry boxes, and exposed furniture features. Whether you are using a commercial dovetail jig or routing freehand, the 22-102 delivers smooth, intricate cuts in hardwood, softwood, plywood, and composites. It is the ideal choice for woodworkers looking to produce joints that are not only structurally superior but also visually striking.

Built for professional reliability, the 22-102 is engineered with Freud's exclusive TiCo Hi-Density Carbide to ensure a razor-sharp edge that withstands the rigors of daily shop use. The bit is fully coated with Freud's signature Red Perma-SHIELD® Non-Stick Coating, a high-performance thermal barrier that drastically reduces friction, heat buildup, and pitch accumulation, preventing burns on sensitive hardwoods. With a standard 1/4-inch shank and a precision-balanced design rated for 24,000 RPM, this versatile tool performs flawlessly in CNC machines, as well as hand-held and table-mounted routers.

Key Features

  • 9-Degree Dovetail Angle: Ideal geometry for strong, tight-fitting joints in standard drawer stock.
  • Perma-SHIELD® Coating: Non-stick red coating resists heat, rust, and pitch buildup for cleaner cuts.
  • TiCo Hi-Density Carbide: Specially formulated carbide maximizes cutting life and finish quality.
  • Versatile Material Compatibility: Cuts cleanly through plywood, hardwoods, softwoods, and composites.
  • Multi-Machine Use: Designed for use on CNC, hand-held, and table-mounted routers.
  • Jig Compatible: Compatible with many popular dovetail jigs requiring a 3/8" diameter bit.
  • 1/4-Inch Shank: Standard shank size fits most trim and compact routers.

What's Included:

  • (1) 3/8" Dia. 9° Dovetail Router Bit with 1/4" Shank (22-102)

Specifications

Manufacturer Freud
Part Number 22-102
Bit Type Dovetail
Overall Diameter (D) 3/8 Inch
Dovetail Angle (d) 9 Degrees
Shank Diameter (A) 1/4 Inch
Overall Length (H) 1-7/8 Inches
Carbide Height (h) 3/8 Inch
Number of Cutters 2
Max RPM 24,000
Coating Perma-SHIELD® Non-Stick
Pro-Tip: The 9-degree angle is a versatile middle ground for dovetails. If you are routing through-dovetails where the end grain is exposed, sanding can sometimes alter the fit. To avoid a loose joint later, make your cuts just a hair tighter (raise the bit slightly less than full depth) to account for final sanding and finishing.
