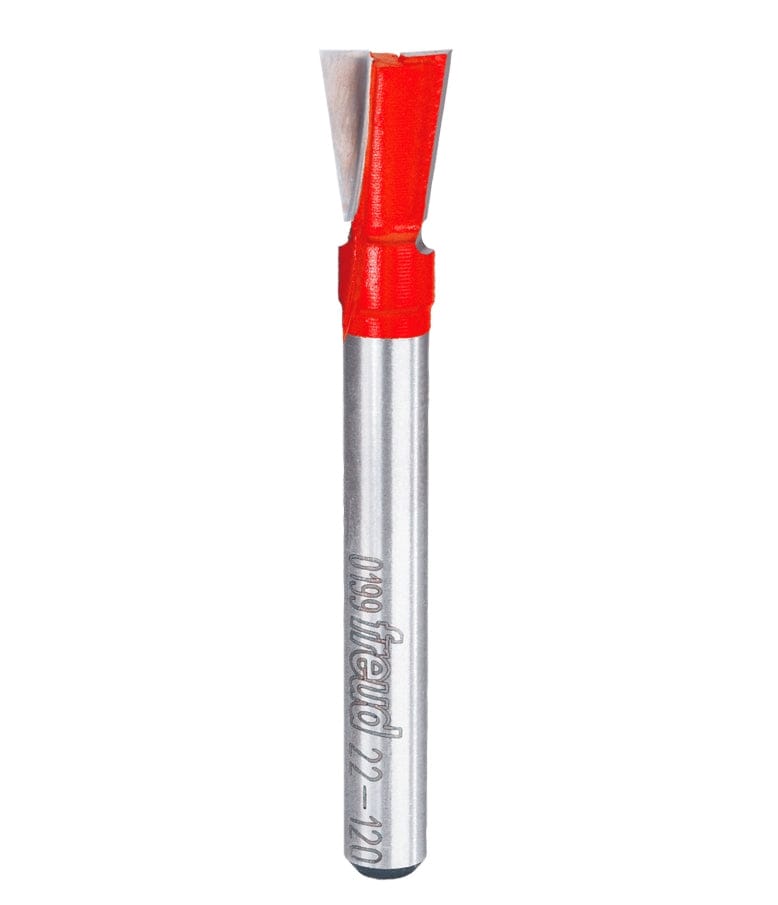

Studio product view of the Freud 22-120 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.

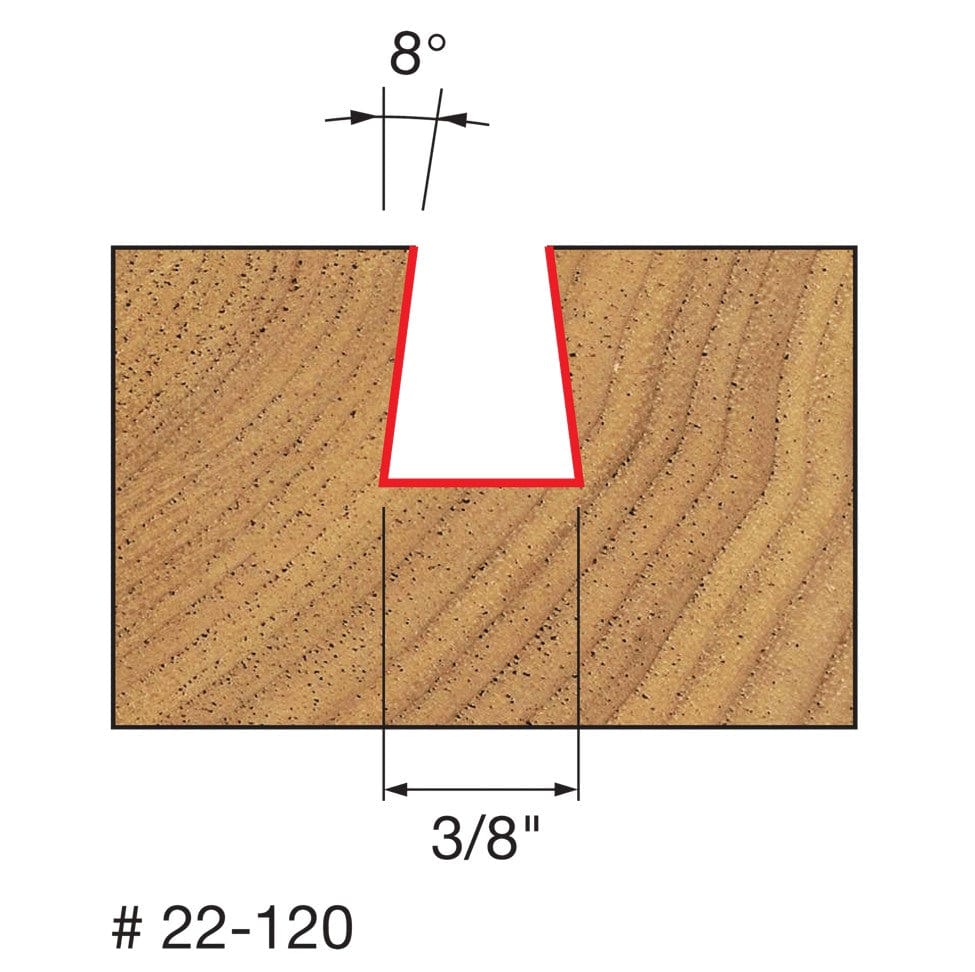

Technical diagram illustrating the cutting profile of the Freud 22-120 dovetail bit, showing a cross-section of a cut with a 3/8 inch bottom width and 8-degree angled sidewalls.

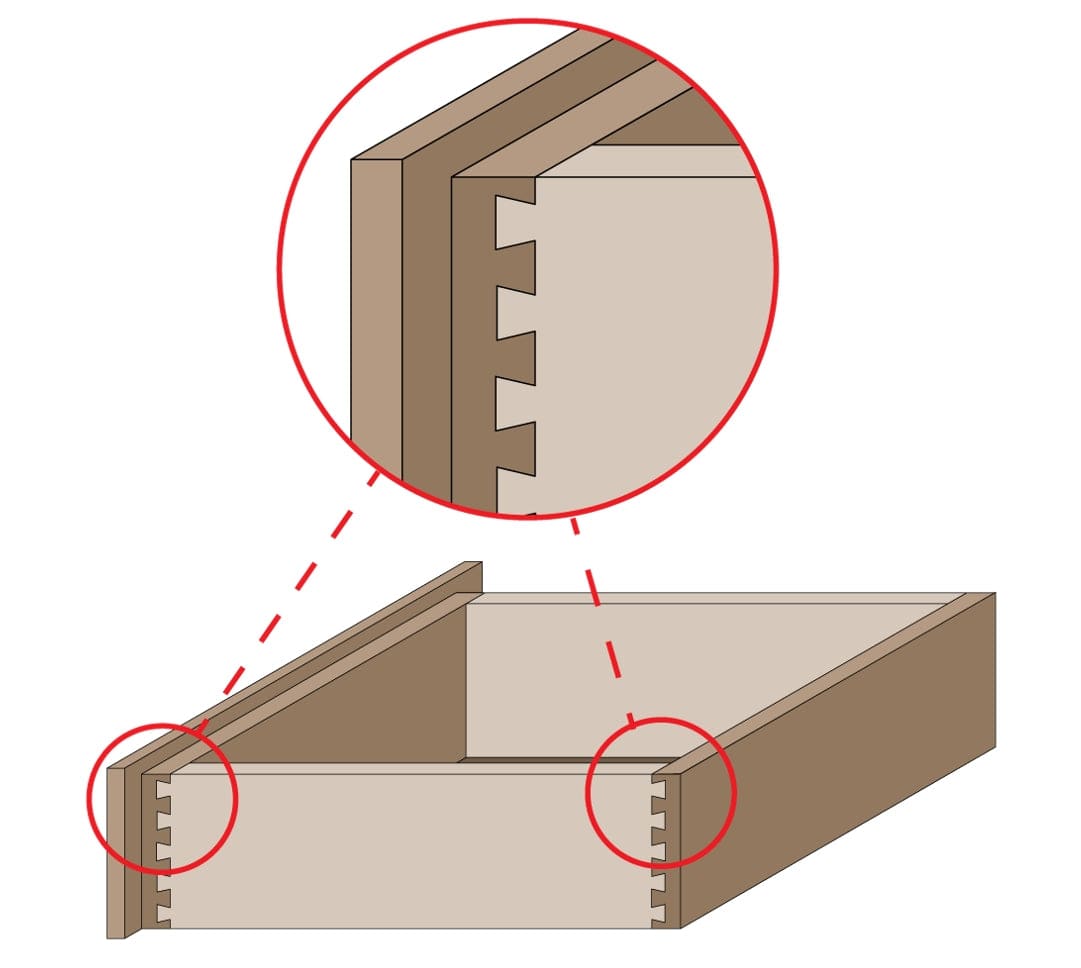

Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.

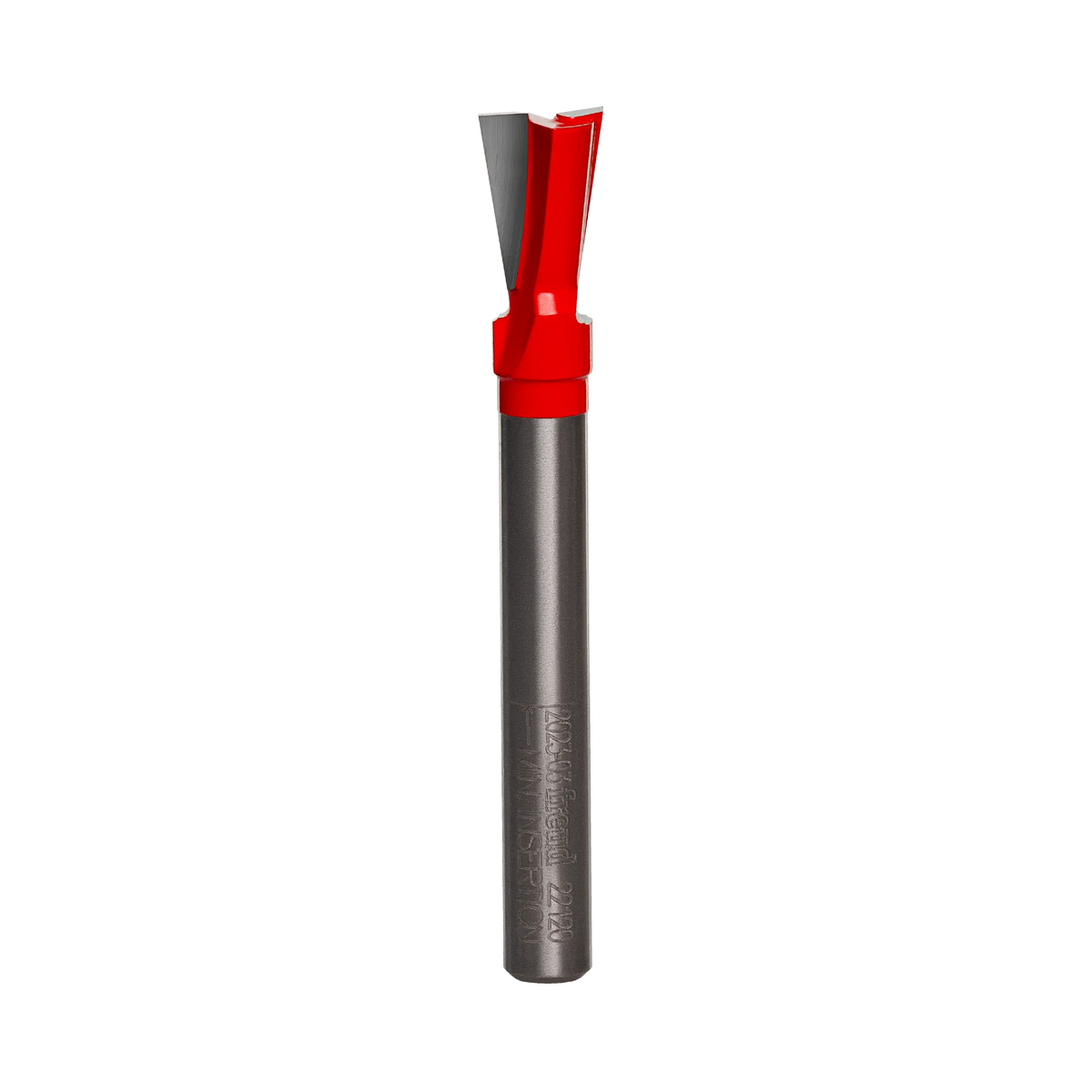

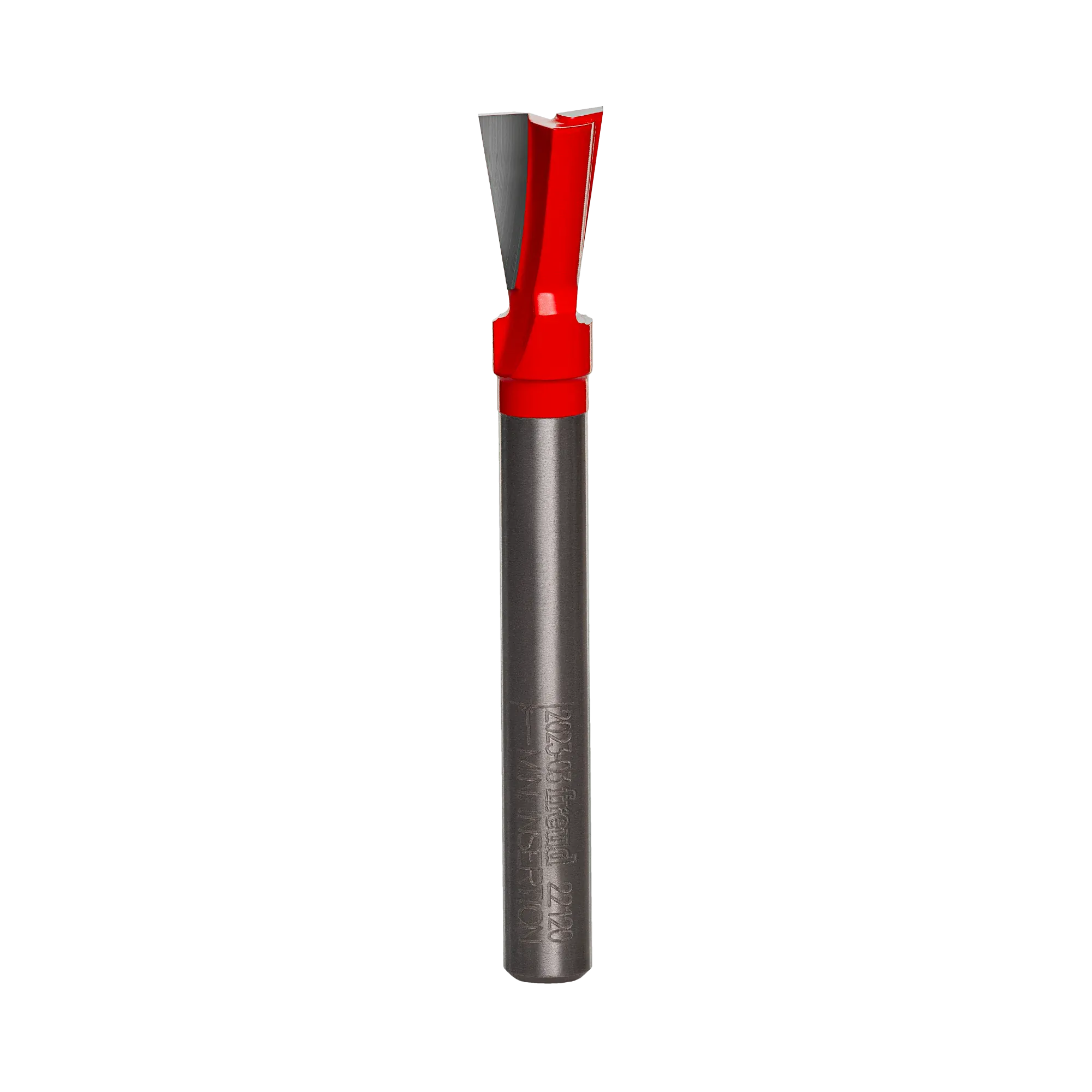

Studio product view of the Freud 22-120 router bit, featuring a 1/4 inch silver shank and a red Perma-SHIELD coated dovetail cutting head with angled carbide tips.
Technical diagram illustrating the cutting profile of the Freud 22-120 dovetail bit, showing a cross-section of a cut with a 3/8 inch bottom width and 8-degree angled sidewalls.
Illustration demonstrating the assembly of a wooden drawer using dovetail joints, with a magnified view detailing the interlocking fit created by the router bit.
Freud

Freud 22-120 3/8 Inch Dovetail Router Bit 8 Degree Angle 1/4 Inch Shank Joinery Box Joint Drawer Making Perma-SHIELD Carbide Tipped

Only 1 left
SKU: 22-120
$15.99
Description

Create Classic, Indestructible Joints with Freud's Precision 3/8-Inch Dovetail Bit

Master the art of traditional joinery with the Freud 22-120 3/8-Inch Dovetail Router Bit. Designed for woodworkers who demand both strength and aesthetics, this bit features an 8-degree angle profile, making it the perfect choice for creating elegant, tight-fitting dovetail joints for drawers, jewelry boxes, and exposed furniture details. Whether you are using a standard dovetail jig or routing freehand, this tool cuts clean, smooth intricate joints in hardwood, softwood, plywood, and composite materials, ensuring your projects stand the test of time.

Engineered for durability and precision, the 22-120 is crafted with Freud's exclusive TiCo Hi-Density Carbide, offering a sharper edge and significantly longer cutting life than standard bits. The body is shielded by Freud's signature Red Perma-SHIELD® Non-Stick Coating, which reduces friction, prevents heat buildup, and resists pitch accumulation for burn-free cuts. With a standard 1/4-inch shank and a balanced design capable of speeds up to 24,000 RPM, this versatile bit performs flawlessly in CNC, hand-held, and table-mounted routers, delivering professional results on every pass.

Key Features

  • 8-Degree Dovetail Angle: Ideal for creating strong, attractive joints in drawers and boxes.
  • Perma-SHIELD® Coating: Non-stick red coating resists heat, rust, and pitch buildup.
  • TiCo Hi-Density Carbide: Specially formulated carbide maximizes cutting life and finish quality.
  • Versatile Compatibility: Cuts cleanly through plywood, hardwoods, softwoods, and composites.
  • Multi-Machine Use: Designed for use on CNC, hand-held, and table-mounted routers.
  • Jig Compatible: Fits many popular dovetail jigs requiring a 3/8" diameter bit.
  • 1/4-Inch Shank: Standard shank size fits most trim and compact routers.

What's Included:

  • (1) 3/8" Dia. 8° Dovetail Router Bit with 1/4" Shank (22-120)

Specifications

Manufacturer Freud
Part Number 22-120
Bit Type Dovetail
Overall Diameter (D) 3/8 Inch
Dovetail Angle (d) 8 Degrees
Shank Diameter (A) 1/4 Inch
Overall Length (H) 2-1/2 Inches
Carbide Height (h) 1/2 Inch
Number of Cutters 2
Max RPM 24,000
Coating Perma-SHIELD® Non-Stick
Pro-Tip: The tightness of a dovetail joint is actually controlled by the depth of the router bit. If your joint is too loose, increase the depth of cut slightly (lower the bit). If the joint is too tight and won't assemble, decrease the depth (raise the bit). Always make small adjustments and test on scrap wood first!
