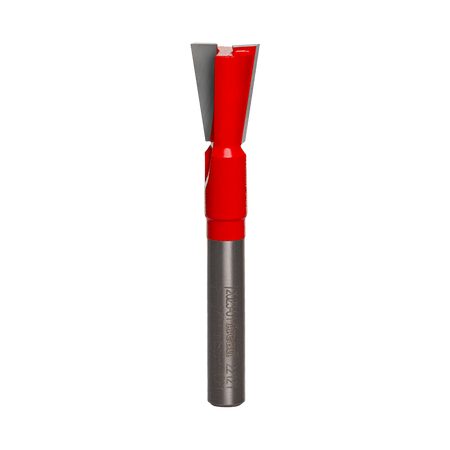

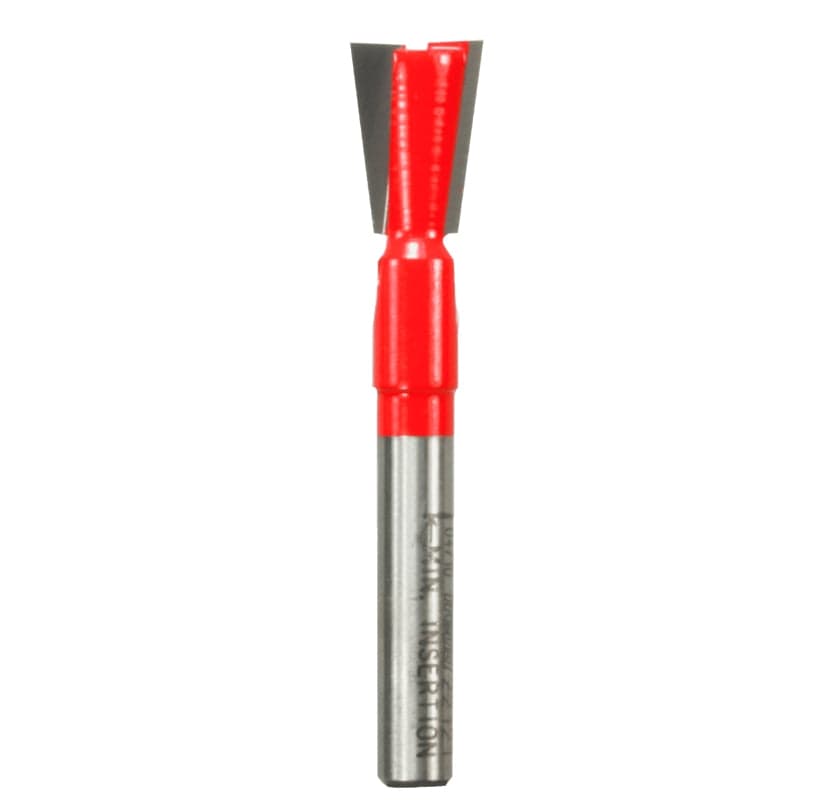

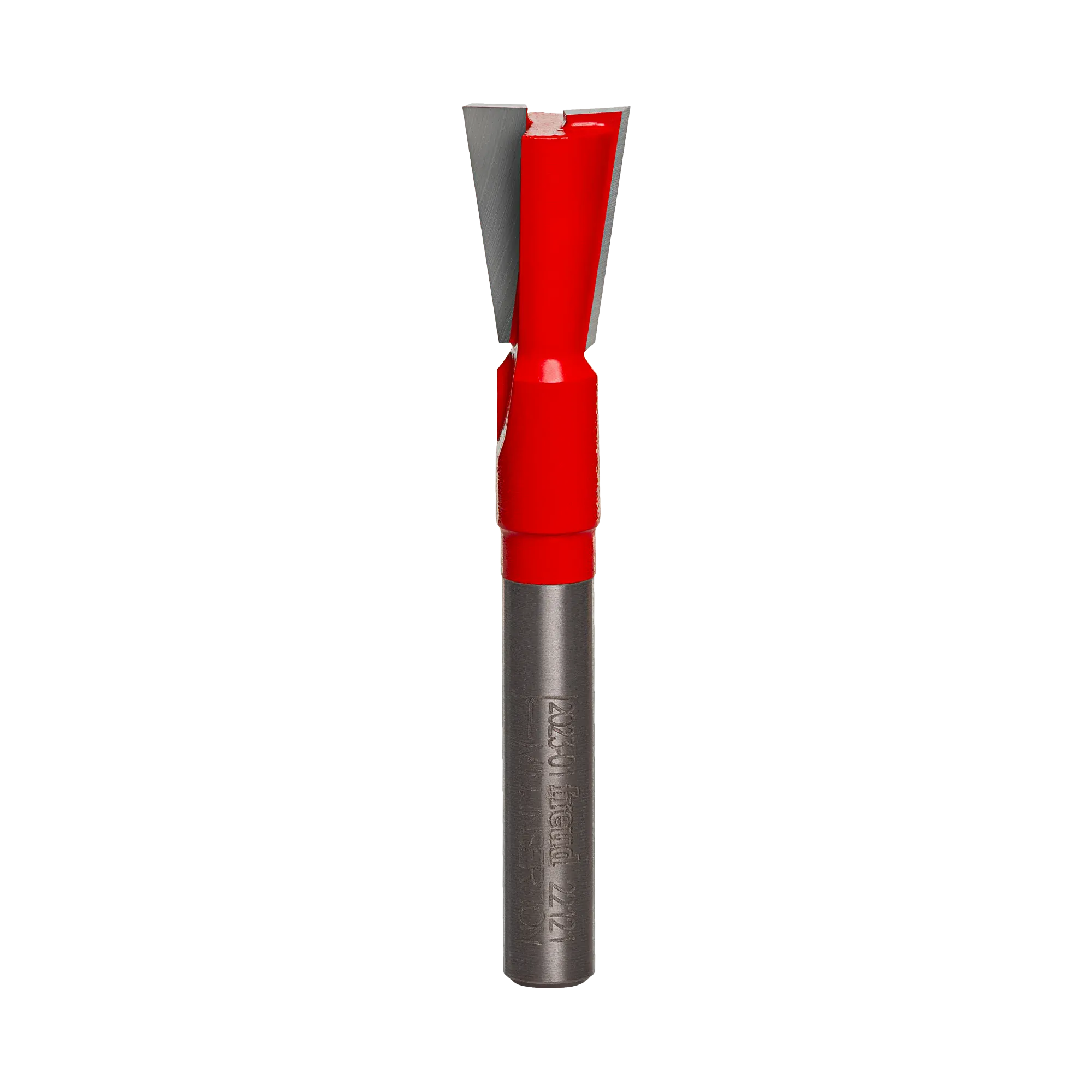

Studio shot of the Freud 22-121 Dovetail router bit featuring a red Perma-SHIELD body, two carbide cutters, and 1/4 inch silver shank.

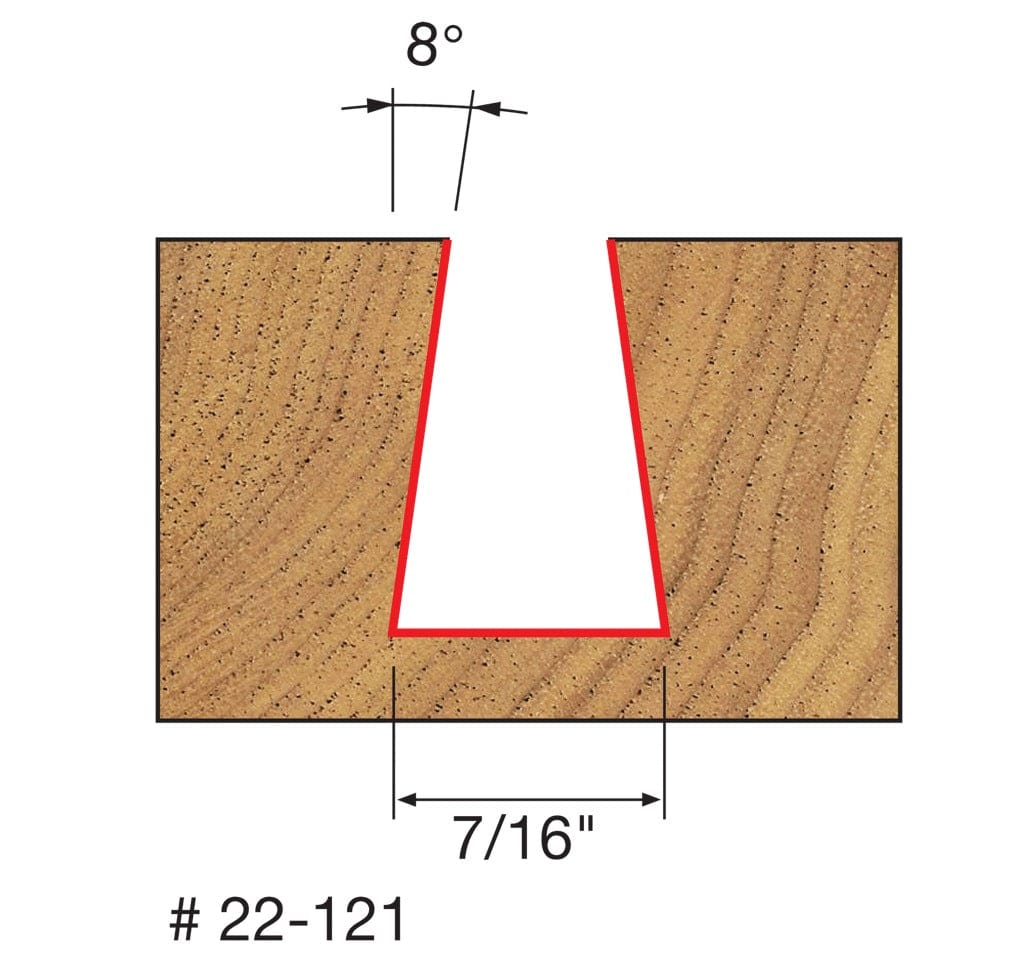

Technical profile diagram illustrating the dovetail groove cut made by the Freud 22-121 bit, specifying an 8 degree angle and 7/16 inch width.

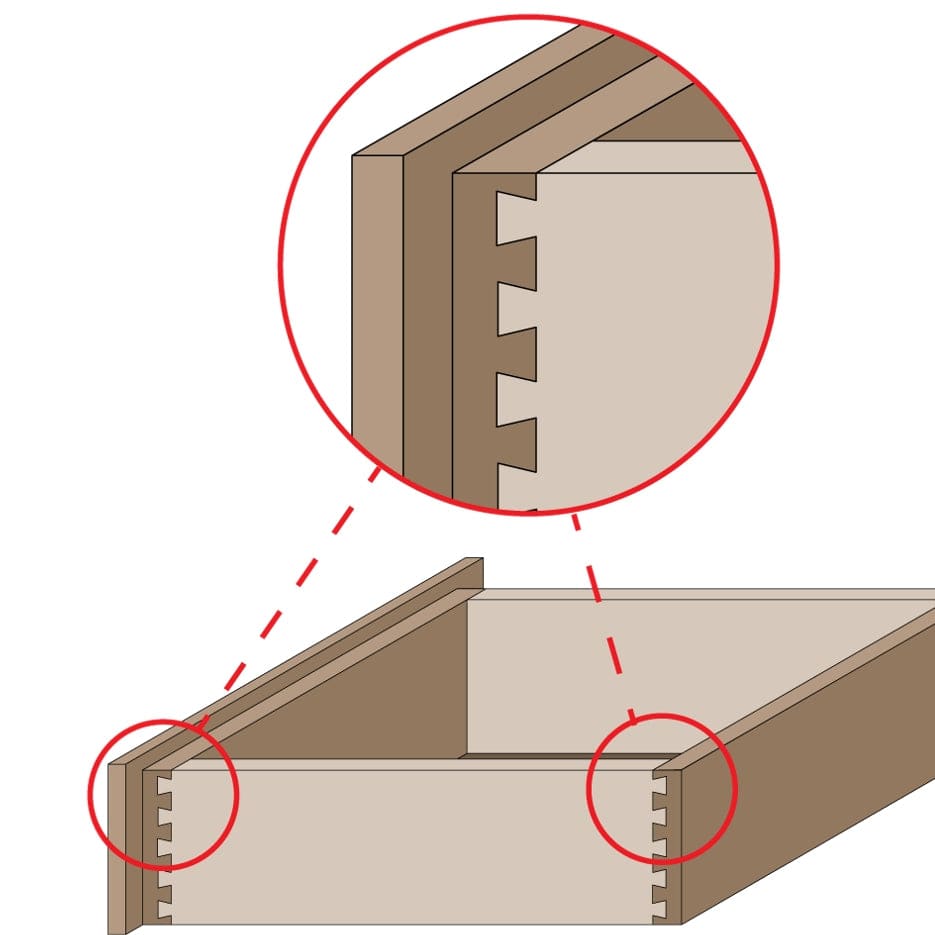

Illustration showing a wooden drawer assembly with strong dovetail joints, highlighting the interlocking connection created by the router bit.
Studio shot of the Freud 22-121 Dovetail router bit featuring a red Perma-SHIELD body, two carbide cutters, and 1/4 inch silver shank.
Studio shot of the Freud 22-121 Dovetail router bit featuring a red Perma-SHIELD body, two carbide cutters, and 1/4 inch silver shank.
Technical profile diagram illustrating the dovetail groove cut made by the Freud 22-121 bit, specifying an 8 degree angle and 7/16 inch width.
Illustration showing a wooden drawer assembly with strong dovetail joints, highlighting the interlocking connection created by the router bit.
Studio shot of the Freud 22-121 Dovetail router bit featuring a red Perma-SHIELD body, two carbide cutters, and 1/4 inch silver shank.
Freud

Freud 22-121 7/16 Inch Diameter 8 Degree Dovetail Router Bit 1/4 Inch Shank Carbide Tipped Jointing Tool for Drawer Boxes and Furniture

Only 1 left
SKU: 22-121
$14.49 USD

Description

Freud precisely the best logo Logout

Create Strong, Classic Joints with the Freud 8-Degree Dovetail Router Bit

Achieve professional-grade joinery with the Freud 22-121 7/16" Diameter Dovetail Router Bit. Recognized as the gold standard for drawer construction and box making, the dovetail joint offers superior mechanical strength and an attractive, traditional aesthetic. This bit is precision-ground to an 8-degree angle, making it compatible with many popular dovetail jigs on the market. Whether you are building heirloom-quality furniture or custom kitchen drawers, this tool allows you to route clean, intricate joints in hardwood, softwood, plywood, and composite materials.

Engineered for performance and longevity, the 22-121 features Freud’s high-performance TiCo™ Hi-Density Carbide. This proprietary blend ensures a sharper cutting edge that resists wear even after prolonged use. The bit is coated in Freud’s exclusive Red Perma-SHIELD® Non-Stick Coating, which dramatically reduces friction and prevents heat buildup, rust, and pitch adhesion. With a standard 1/4" shank, this versatile bit is safe and effective for use in CNC, hand-held, and table-mounted routers.

Key Features

  • Precision Geometry: Cuts smooth 8-degree dovetail angles for tight, gap-free joints.
  • Versatile Compatibility: Designed to work seamlessly with many popular dovetail jigs.
  • TiCo™ Hi-Density Carbide: Specially formulated carbide stays sharper longer than standard bits.
  • Perma-SHIELD® Coating: Non-stick red coating protects against heat, rust, and resin buildup.
  • Multi-Machine Use: Suitable for CNC, hand-held, and table-mounted routers.
  • Wide Material Range: Cuts cleanly through plywood, softwoods, hardwoods, and composites.
  • Shear Angle Design: Slices through wood fibers for a clean finish with minimal tear-out.

What's Included

(1) Freud 22-121 7/16" Diameter 8-Degree Dovetail Router Bit

Specifications

Overall Diameter (D) 7/16"
Shank Diameter (A) 1/4"
Carbide Height (h) 5/8"
Overall Length (H) 2-3/8"
Angle (d) 8°
Number of Cutters 2
Max RPM 24,000
Profile Design Dovetail
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide
Country of Origin Italy

Pro-Tip: When setting up your dovetail jig, the depth of cut is critical. If the joint is too tight, lower the bit slightly; if it's too loose, raise the bit. Always run a test cut on scrap pieces of the same thickness as your project material to dial in the perfect fit before cutting your actual drawer sides.
