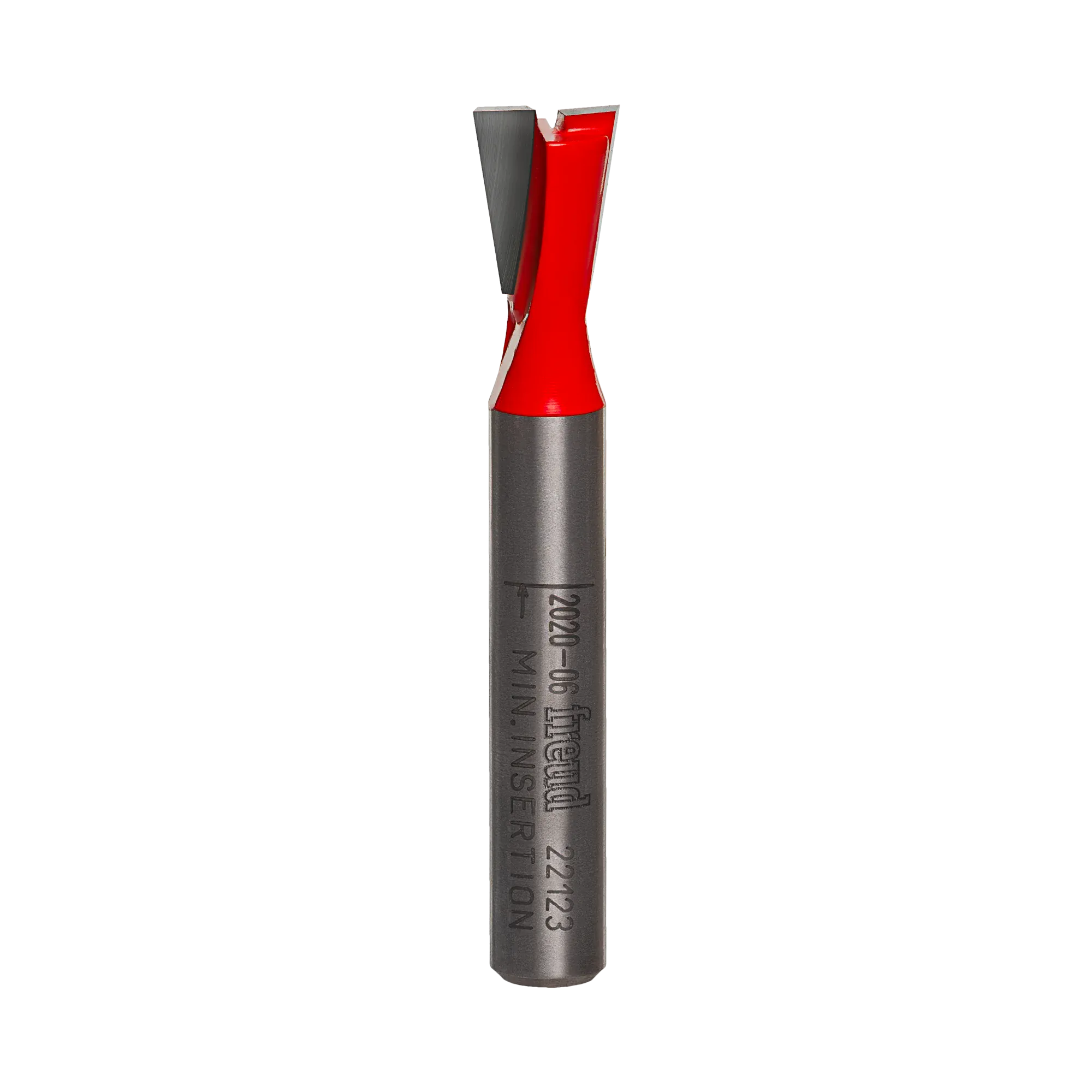

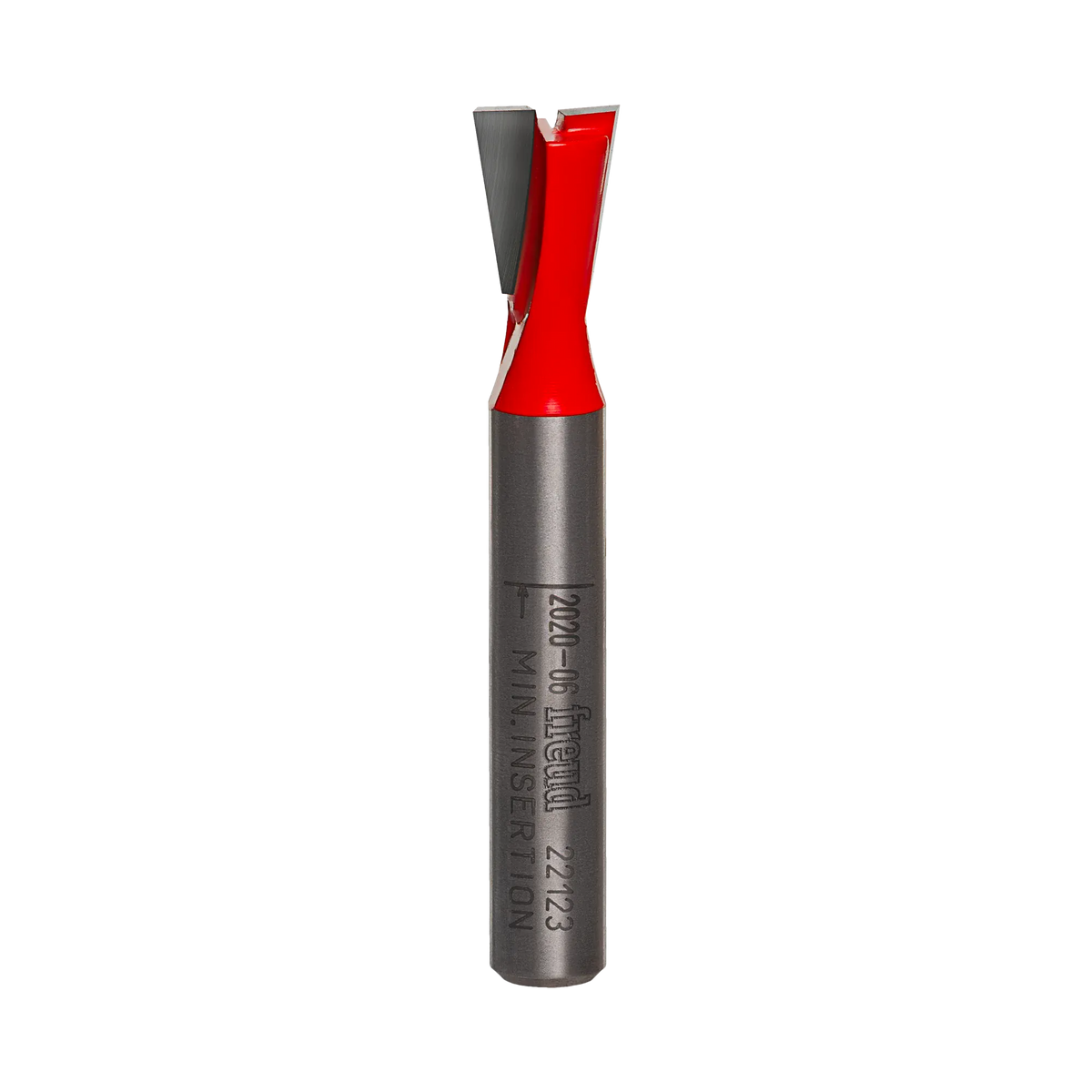

A high-resolution studio photograph of the Freud 22-123 dovetail router bit, showcasing its red Perma-SHIELD coating on the cutting head, sharp silver TiCo carbide edges, and a polished 1/4 inch steel shank.

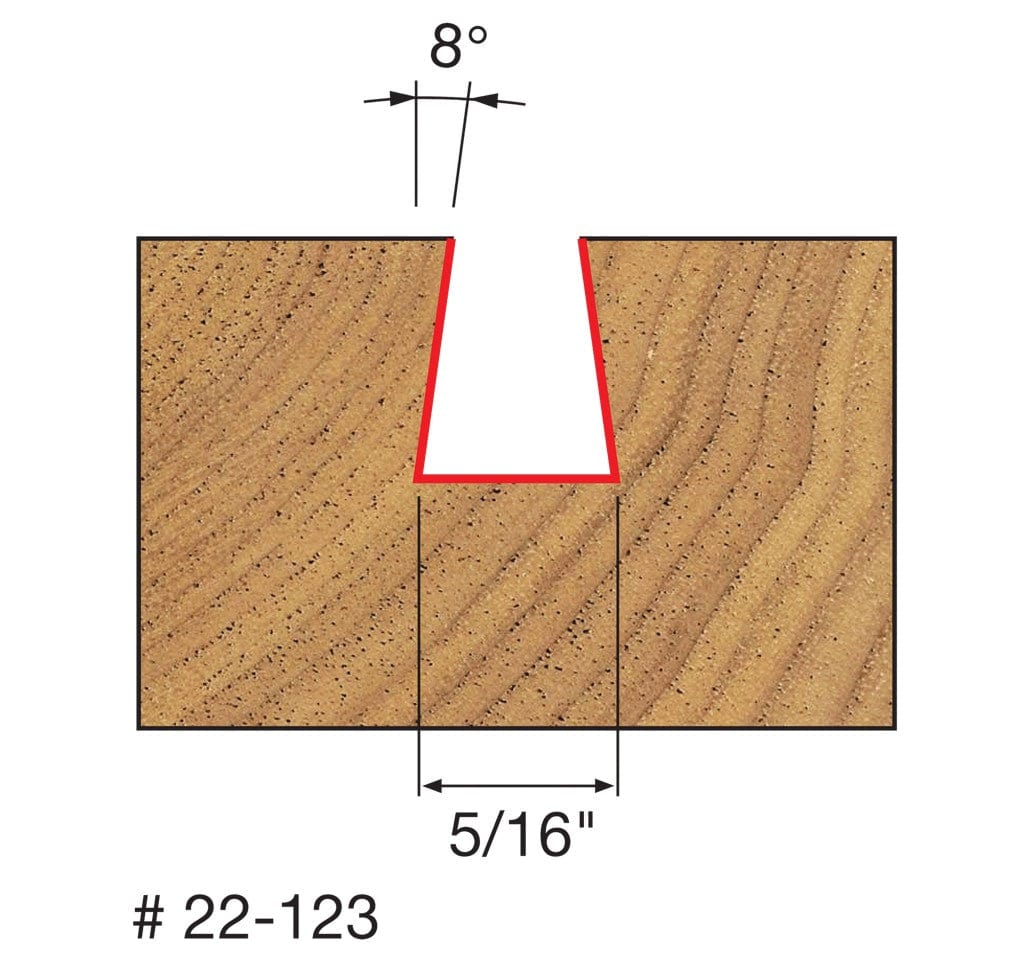

A technical diagram for the Freud 22-123 bit, illustrating a cross-section of a wood block with a precise 8-degree angled dovetail cut that is 5/16 of an inch wide at the base and 3/8 of an inch deep.

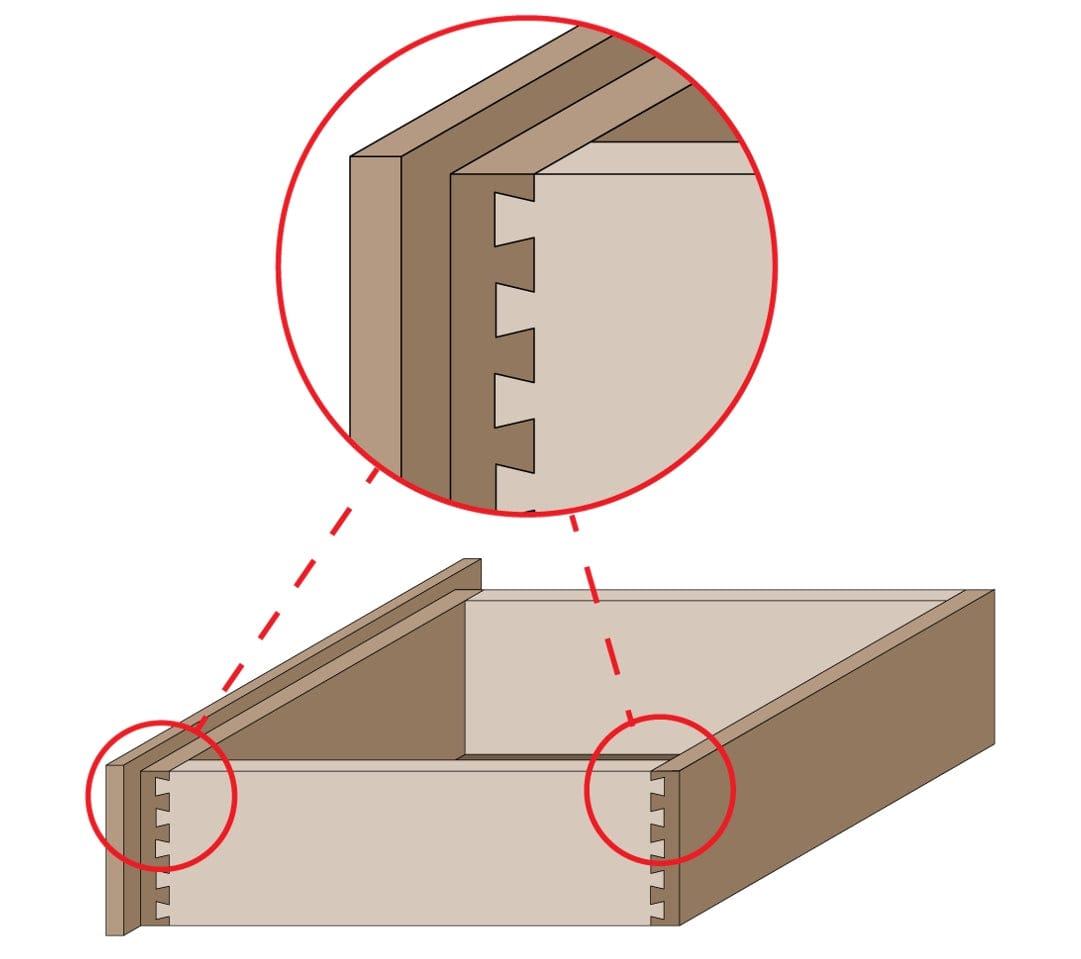

A technical instructional diagram showing a perspective view of a wooden drawer box with a circular callout that highlights the precise, interlocking dovetail joints created using the Freud 22-123 bit.
A high-resolution studio photograph of the Freud 22-123 dovetail router bit, showcasing its red Perma-SHIELD coating on the cutting head, sharp silver TiCo carbide edges, and a polished 1/4 inch steel shank.
A high-resolution studio photograph of the Freud 22-123 dovetail router bit, showcasing its red Perma-SHIELD coating on the cutting head, sharp silver TiCo carbide edges, and a polished 1/4 inch steel shank.
A technical diagram for the Freud 22-123 bit, illustrating a cross-section of a wood block with a precise 8-degree angled dovetail cut that is 5/16 of an inch wide at the base and 3/8 of an inch deep.
A technical instructional diagram showing a perspective view of a wooden drawer box with a circular callout that highlights the precise, interlocking dovetail joints created using the Freud 22-123 bit.
A high-resolution studio photograph of the Freud 22-123 dovetail router bit, showcasing its red Perma-SHIELD coating on the cutting head, sharp silver TiCo carbide edges, and a polished 1/4 inch steel shank.
Freud

Freud 22-123 5/16 Inch Diameter 8-Degree Dovetail Router Bit 1/4 Inch Shank TiCo Carbide Tipped Joinery Tool for Furniture Drawers and Boxes

Only 1 left
SKU: 22-123
$18.79 USD

Description

Freud precisely the best logo Logout

Master Traditional Joinery with Freud’s Precision Dovetail Router Bits

The Freud 22-123 5/16" Dovetail Router Bit is the definitive choice for woodworkers seeking to create exceptionally strong and visually stunning joints for drawers, jewelry boxes, and exposed furniture projects. Designed with an 8-degree angle, this bit is specifically engineered to produce the intricate, interlocking joints that have been a hallmark of quality craftsmanship for centuries. Whether you are a professional cabinet maker or a dedicated hobbyist, this bit ensures that every cut is clean, accurate, and ready for a perfect friction fit.

What sets the Freud 22-123 apart is its industrial-grade construction featuring TiCo™ Hi-Density Carbide and a protective Perma-SHIELD® Non-Stick Coating. This advanced coating drastically reduces friction and heat buildup, preventing the resin gumming and corrosion that can lead to bit failure. Precision-ground and computer-balanced, this bit delivers vibration-free operation even at high speeds, making it ideal for use in CNC machines, hand-held routers, and table-mounted setups.

Key Features

  • Jig Compatibility: Seamlessly matches with many popular dovetail jigs for fast, repeatable production.
  • TiCo™ Carbide Tipped: High-density carbide ensures a flawless finish and significantly longer bit life.
  • Perma-SHIELD® Coating: Non-stick red coating protects the tool from heat, corrosion, and pitch buildup.
  • Multi-Material Precision: Effortlessly cuts through hardwoods, softwoods, veneered plywood, and composites.
  • Versatile Operation: Optimized for use in CNC, hand-held, and table-mounted portable routers.
  • Vibration-Free Cutting: Computer-balanced and precision-ground for incredibly smooth joinery cuts.

What's Included

  • (1) Freud 22-123 5/16" Diameter 8-Degree Dovetail Router Bit (1/4" Shank)

Specifications

Overall Diameter (D) 5/16 Inch
Shank Diameter (A) 1/4 Inch
Angle (d) 8 Degrees
Carbide Height (h) 3/8 Inch
Overall Length (H) 1-7/8 Inches
Number of Cutters 2
Maximum RPM 24,000 RPM
Bit Material TiCo™ Hi-Density Carbide Tipped
Coating Perma-SHIELD® Non-Stick
Application Traditional Joinery (Drawers/Boxes)
Pro-Tip: To achieve the cleanest dovetail joints, always use a backing board when routing to prevent blowout at the end of the cut. Additionally, keeping your bit clean with a dedicated blade and bit cleaner will maintain the effectiveness of the Perma-SHIELD coating and extend the life of the carbide edges!
