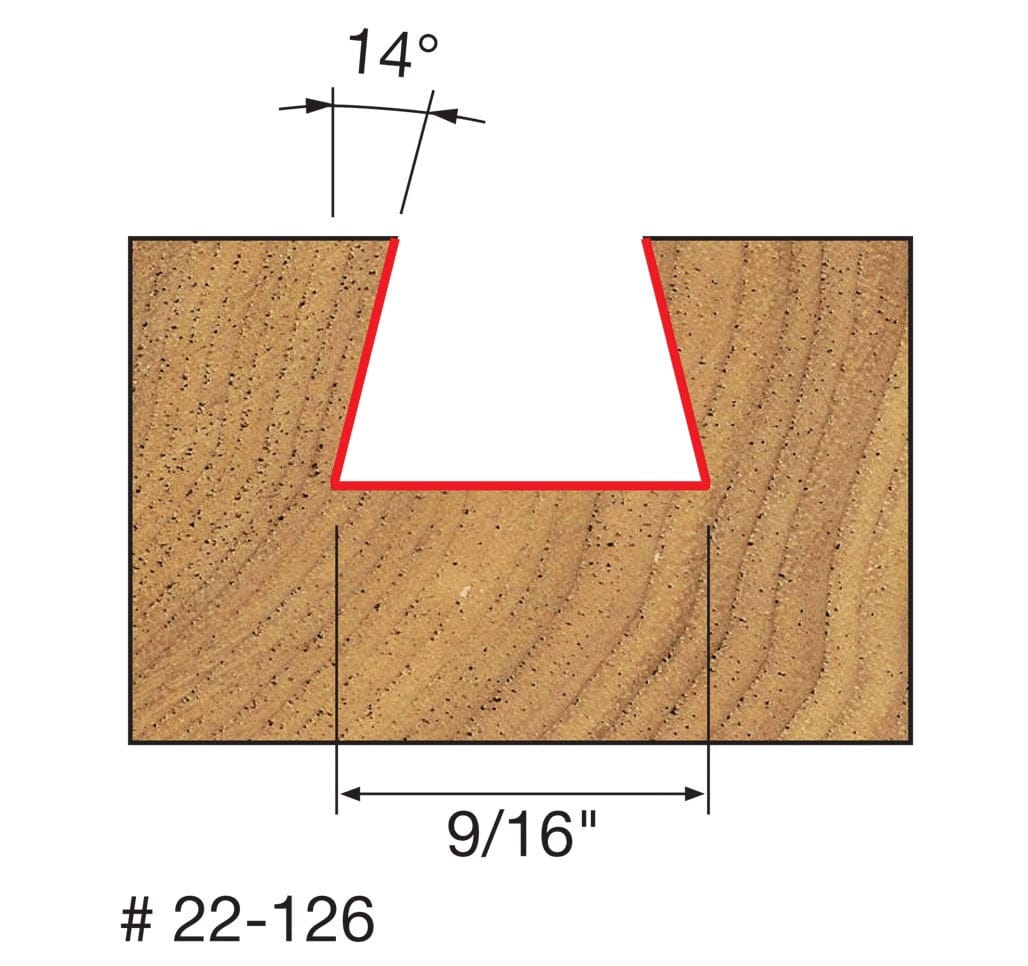

A technical diagram for the Freud 22-126 bit, illustrating a cross-section of a wood block with a precise 14-degree angled dovetail cut that is 9/16 of an inch wide at the base.
A technical instructional diagram showing a perspective view of a wooden drawer box with a circular callout that highlights the precise, interlocking dovetail joints created using the Freud 22-126 bit.
A professional studio photograph of the Freud 22-126 dovetail router bit, featuring its bright red Perma-SHIELD coating on the cutting head, sharp silver TiCo carbide edges, and a polished 1/4 inch steel shank.
A technical diagram for the Freud 22-126 bit, illustrating a cross-section of a wood block with a precise 14-degree angled dovetail cut that is 9/16 of an inch wide at the base.
A technical instructional diagram showing a perspective view of a wooden drawer box with a circular callout that highlights the precise, interlocking dovetail joints created using the Freud 22-126 bit.
Freud

Freud 22-126 9/16 Inch 14-Degree Dovetail Router Bit 1/4 Inch Shank TiCo Carbide Tipped Joinery Tool for Furniture Drawers and Storage Boxes

Only 1 left
SKU: 22-126
$14.49 USD

Description

Master Professional-Grade Joinery with the Freud 22-126 Precision Dovetail Bit

The Freud 22-126 9/16" Dovetail Router Bit is the essential tool for woodworkers dedicated to crafting strong, visually stunning joints for drawers, jewelry boxes, and exposed furniture pieces. Engineered with a 14-degree angle, this bit is specifically designed to create the intricate, interlocking dovetail joints that are the hallmark of traditional, high-quality craftsmanship. Its 9/16" diameter is optimized to provide the perfect balance of strength and aesthetic detail, ensuring your joinery is as durable as it is beautiful.

Built for industrial performance, this bit features Freud’s TiCo™ Hi-Density Carbide for maximum edge retention and a mirror-smooth finish on every cut. To ensure long-lasting durability, the bit is treated with a non-stick Perma-SHIELD® Coating, which prevents heat buildup, corrosion, and resin gumming—even during high-volume production. Whether you are using a CNC machine, a hand-held router, or a table-mounted setup, the 22-126 delivers vibration-free operation and is fully compatible with most popular dovetail jigs.

Key Features

  • Jig Compatibility: Expertly designed to work seamlessly with many popular dovetail jigs for repeatable precision.
  • TiCo™ Carbide Tipped: High-density carbide ensures a flawless finish and a significantly longer tool life.
  • Perma-SHIELD® Coating: Advanced non-stick red coating protects the tool from heat, corrosion, and pitch buildup.
  • Multi-Material Precision: Effortlessly routs through hardwoods, softwoods, plywood, and abrasive composites.
  • Versatile Operation: Optimized for use in CNC, hand-held, and table-mounted portable routers.
  • Traditional Strength: Ideal for creating the strong, attractive joints required for high-end furniture and millwork.

What's Included

  • (1) Freud 22-126 9/16" 14-Degree Dovetail Router Bit (1/4" Shank)

Specifications

Overall Diameter (D) 9/16 Inch
Shank Diameter (A) 1/4 Inch
Angle (d) 14 Degrees
Carbide Height (h) 3/8 Inch
Overall Length (H) 2 Inches
Number of Cutters 2
Maximum RPM 24,000 RPM
Bit Material TiCo™ Hi-Density Carbide Tipped
Coating Perma-SHIELD® Non-Stick
Application Furniture Joinery (Drawers/Boxes)
Pro-Tip: To ensure the longest possible life for your dovetail bit, always use a dedicated blade and bit cleaner to remove resin and pitch buildup after each use. This maintains the non-stick properties of the Perma-SHIELD coating and keeps your carbide edges cutting cooler and sharper for longer!
