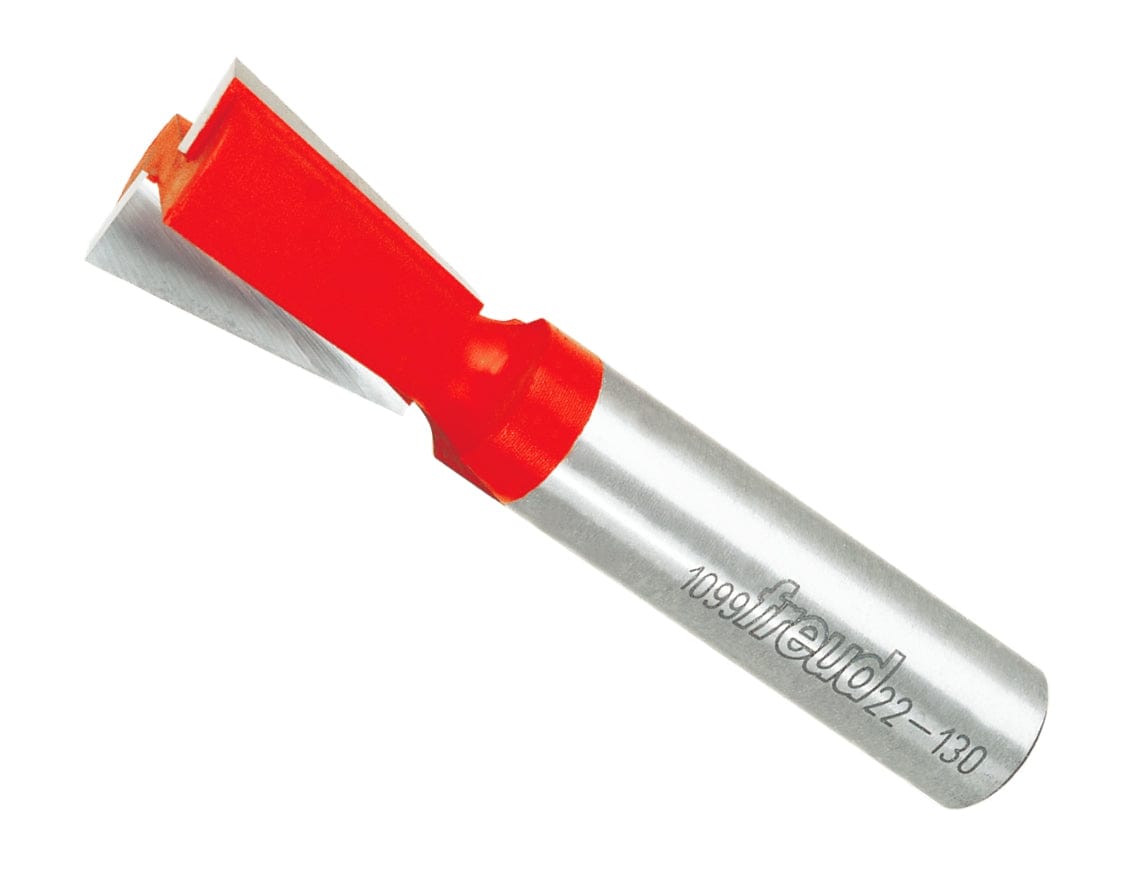

Freud 22-130 11/16 Inch Diameter 8-Degree Dovetail Router Bit 1/2 Inch Shank TiCo Carbide Tipped Tool for Precision Woodworking Jigs and CNC

Only 1 left
SKU: 22-130
$19.97 USD

Description

Freud precisely the best logo Logout

Master the Art of Traditional Joinery with Industrial Precision and Lasting Durability

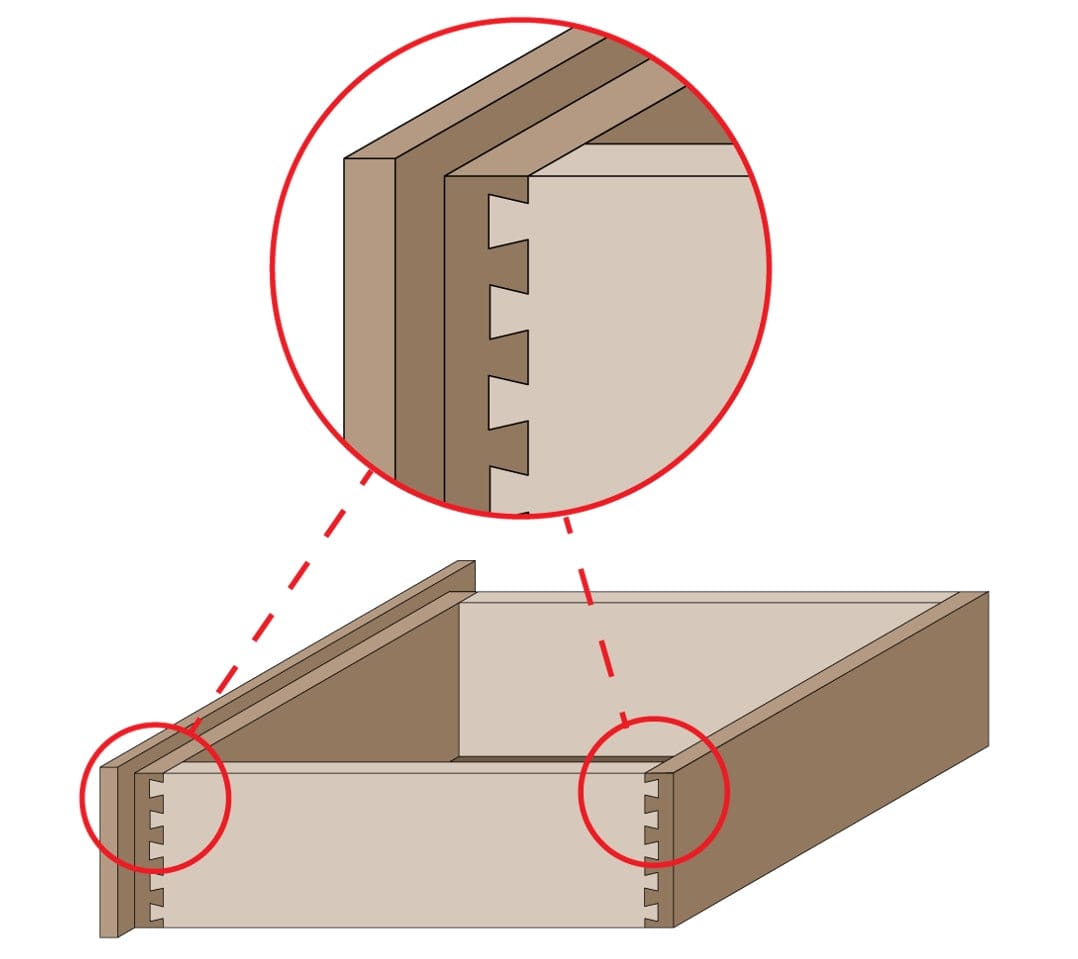

Elevate the structural integrity and aesthetic appeal of your woodworking projects with the Freud 22-130 11/16" 8-Degree Dovetail Router Bit. As the gold standard for creating strong, interlocking joints, this bit is the essential choice for crafting high-end drawers, jewelry boxes, and exposed furniture joinery. Specifically engineered to be compatible with a wide array of popular dovetail jigs, it allows for seamless integration into your existing workflow, ensuring that every tail and pin fits with laser-like accuracy for a professional, heirloom-quality finish.

Forged with TiCo™ Hi-Density Carbide, this bit is designed to maintain a razor-sharp edge significantly longer than standard alternatives, even when slicing through abrasive plywoods and dense hardwoods. The advanced 2-flute design ensures rapid material removal while the signature Red Perma-SHIELD® Non-Stick Coating prevents pitch buildup and reduces friction-induced heat. This combination not only protects your workpiece from unsightly burn marks but also extends the life of the bit. Balanced for vibration-free operation at high speeds, the 22-130 performs flawlessly across CNC machines, hand-held routers, and table-mounted setups.

Key Features

  • Traditional Joint Excellence: Specifically designed to produce smooth, intricate dovetail joints for drawers and boxes.
  • Universal Jig Compatibility: Engineered to work effortlessly with most popular dovetailing jigs on the market.
  • TiCo™ Hi-Density Carbide: Specialized micrograin carbide blend provides maximum cutting life and a superior finish.
  • Perma-SHIELD® Coating: Non-stick red coating protects the bit from heat, corrosion, and resin accumulation.
  • Vibration-Free Performance: Computer-balanced to ensure smooth, chatter-free operation at high RPMs.
  • Versatile Application: Effortlessly cuts through all composition materials, plywoods, hardwoods, and softwoods.

What's Included

(1) Freud 22-130 11/16" Diameter 8-Degree Dovetail Router Bit with 1/2" Shank

Specifications

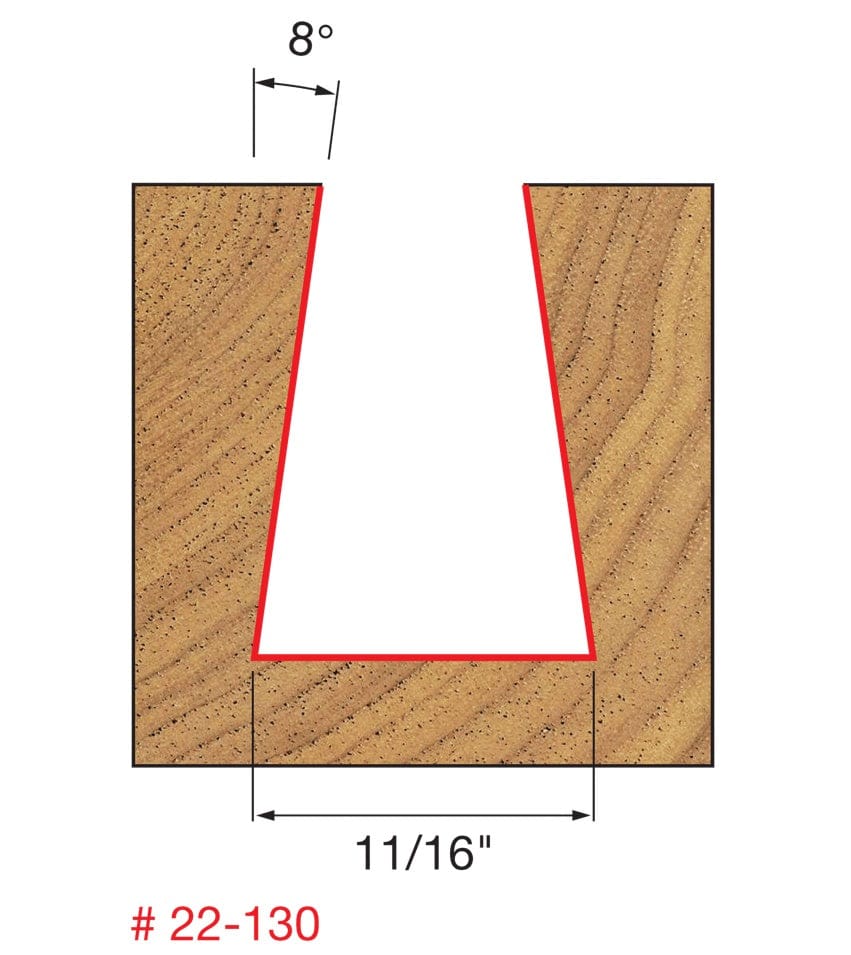

Overall Diameter (D) 11/16"
Shank Diameter (A) 1/2"
Angle (d) 8 Degrees
Carbide Height (h) 1"
Overall Length (H) 3-1/8"
Number of Cutters 2
Max RPM 24,000
Blade Material TiCo™ Hi-Density Carbide
Body Coating Perma-SHIELD® Non-Stick
Application Dovetail Joinery

Pro-Tip: To reduce the risk of bit breakage and ensure the cleanest finish on your dovetail joints, always pre-cut your dovetail grooves with a straight router bit first. This removes the majority of the waste material, allowing the dovetail bit to perform its final shaping pass with minimal stress and heat buildup.
