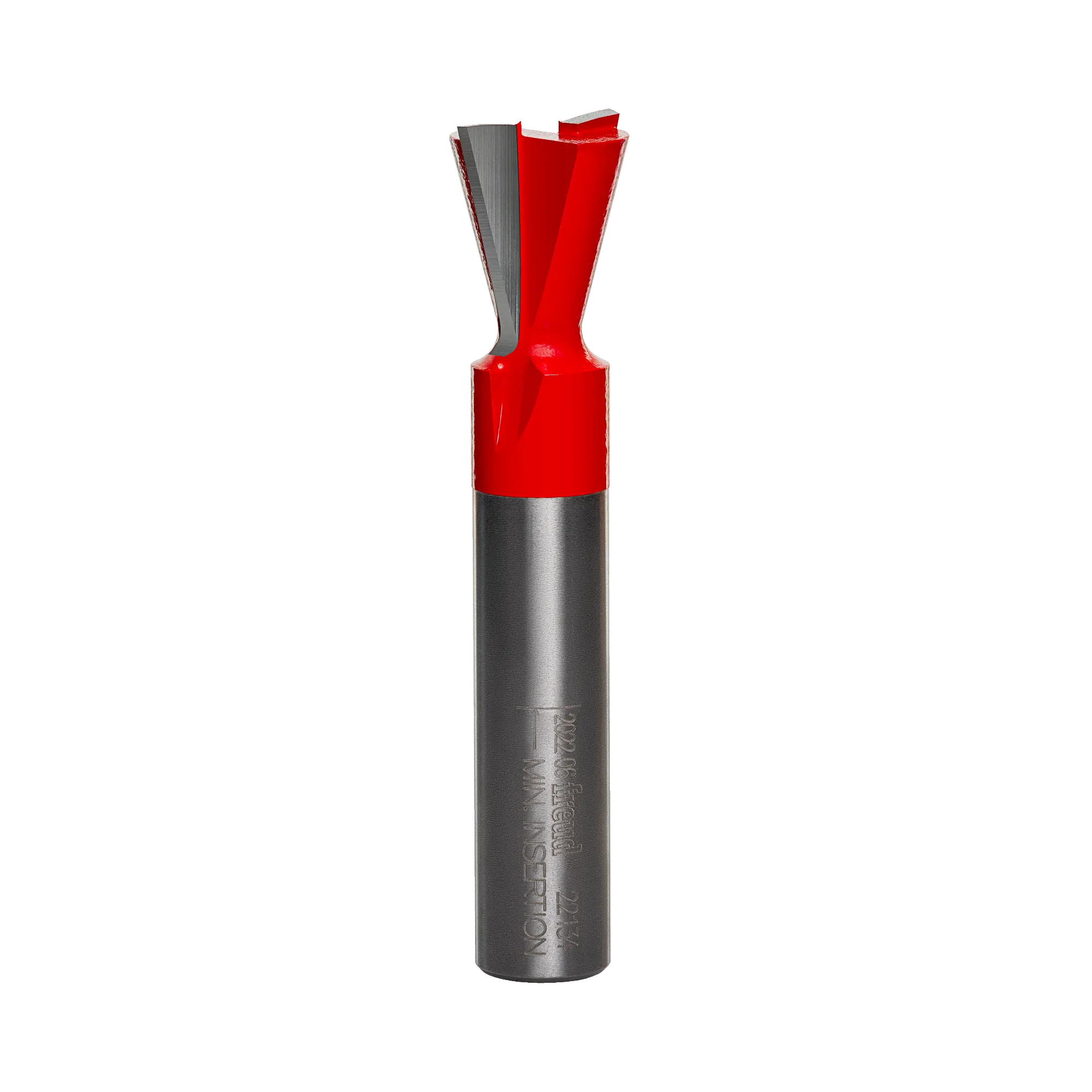

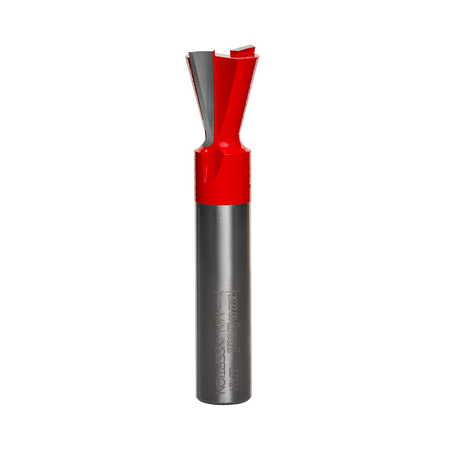

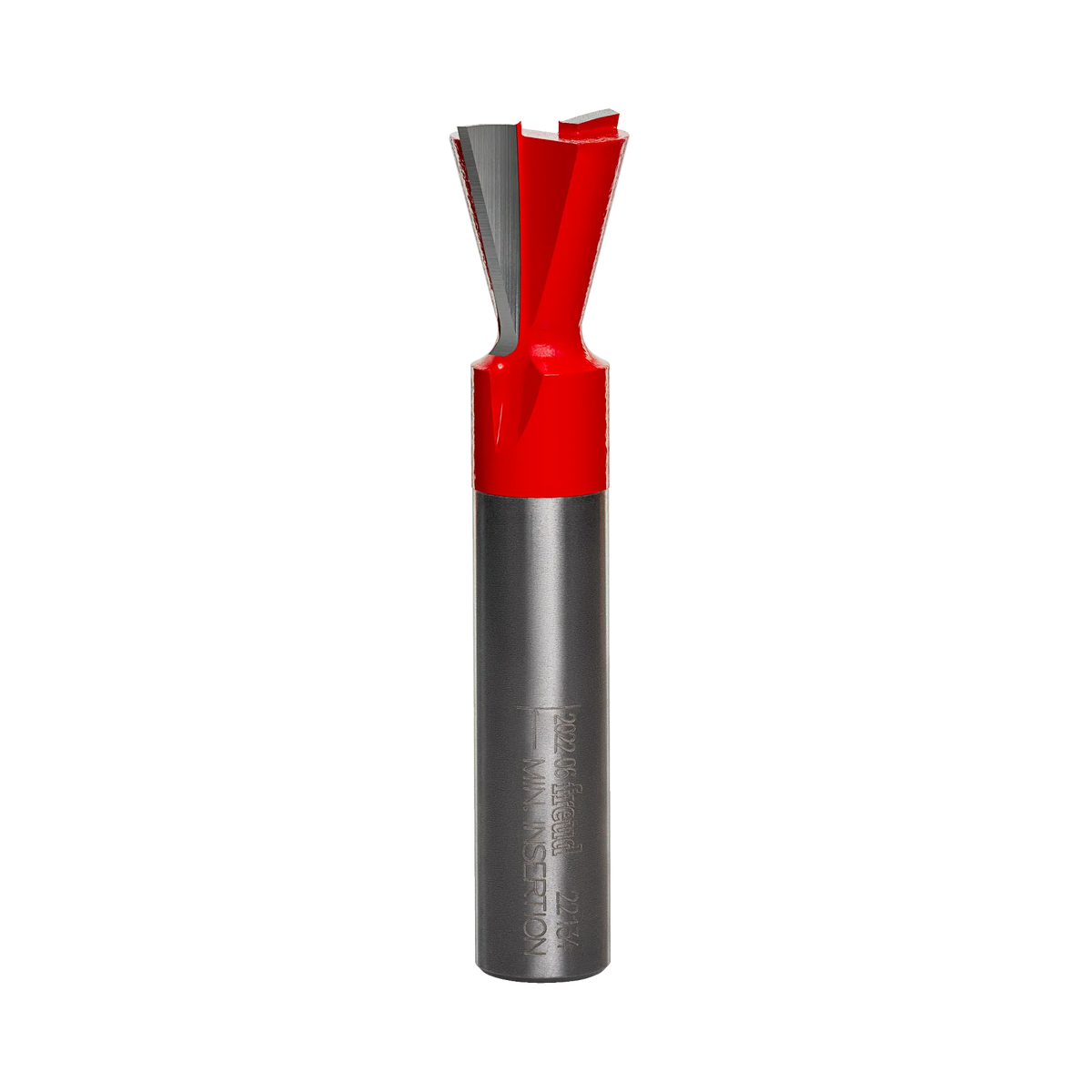

A professional studio photograph of the Freud 22-134 dovetail router bit, showcasing its bright red body, sharp silver carbide cutting edges, and a polished 1/2-inch steel shank.
Retail packaging for the Freud 22-134 dovetail bit, featuring a clear protective case with industrial labels indicating its 14-degree angle and 1/2-inch shank size.
A technical diagram for the Freud 22-134 dovetail bit, illustrating a 14-degree angled profile with a 3/4-inch width at the base of the cut.
An instructional illustration showing a completed drawer box with high-strength interlocking dovetail joints created by the Freud 22-134 router bit.
A professional studio photograph of the Freud 22-134 dovetail router bit, showcasing its bright red body, sharp silver carbide cutting edges, and a polished 1/2-inch steel shank.
Retail packaging for the Freud 22-134 dovetail bit, featuring a clear protective case with industrial labels indicating its 14-degree angle and 1/2-inch shank size.
A technical diagram for the Freud 22-134 dovetail bit, illustrating a 14-degree angled profile with a 3/4-inch width at the base of the cut.
An instructional illustration showing a completed drawer box with high-strength interlocking dovetail joints created by the Freud 22-134 router bit.
Freud

Freud 22-134 3/4 Inch 14 Degree Dovetail Router Bit 1/2 Inch Shank TiCo Carbide Joinery Tool for Dovetail Jigs Plywood Hardwood and Softwood

Only 1 left
SKU: 22-134
$21.99

Description

Engineer Rock-Solid Joinery with Freud’s Industrial 14° Dovetail Router Bit

The Freud 22-134 Dovetail Router Bit is the professional woodworker’s choice for creating the traditional, high-strength interlocking joints required for premium drawers, jewelry boxes, and exposed furniture carcases. Featuring a 14-degree angle, this bit provides a superior wedging action and mechanical interlock that is especially effective in softwoods, where fibers can loosen over time, but is equally suited for heavy-duty hardwood applications requiring maximum structural integrity.

Constructed with TiCo™ High-Density Carbide, this bit is engineered to maintain a razor-sharp edge significantly longer than standard alternatives. The 1/2-inch shank offers maximum stability and reduced vibration, ensuring that every pass results in the smooth, intricate fit necessary for a flawless finish. Coated with Freud’s signature red Perma-SHIELD® Non-Stick coating, the bit resists heat buildup, pitch accumulation, and corrosion, making it perfect for high-production use in CNC machines, table-mounted routers, or hand-held jigs.

Key Features

  • TiCo™ Hi-Density Carbide: Specialized titanium-cobalt carbide for long-lasting sharpness and a flawless finish in all materials.
  • Perma-SHIELD® Coating: Non-stick coating reduces blade drag and protects the bit from heat and resin buildup.
  • Universal Jig Compatibility: Engineered to work seamlessly with most popular dovetail jigs, including Porter-Cable, Rockler, and Leigh models.
  • Industrial Stability: The robust 1/2" shank minimizes chatter and ensures high precision during deep joinery cuts.
  • Multi-Material Versatility: Cleanly routes all composition materials, plywoods, hardwoods, and softwoods.
  • Precision Balance: Computer-balanced to eliminate vibration even at high speeds up to 24,000 RPM.

What's Included

  • (1) Freud 22-134 3/4" Diameter 14-Degree Dovetail Router Bit

Specifications

Shank Diameter (A) 1/2 Inch
Overall Diameter (D) 3/4 Inch
Carbide Height (h) 3/4 Inch
Overall Length (H) 3-1/8 Inches
Dovetail Angle (d) 14°
Number of Cutters 2
Maximum RPM 24,000 RPM
Bit Material Carbide Tipped
Shank Length 2.375 Inches
Bearing Included No
Pro-Tip: When routing dovetails, chip removal is critical to prevent burning. If your jig allows, perform a "climb cut" (moving the router from right to left) for the very first pass at a shallow depth of about 1/16". This scores the wood fibers and virtually eliminates surface tear-out on the face of your workpiece.
