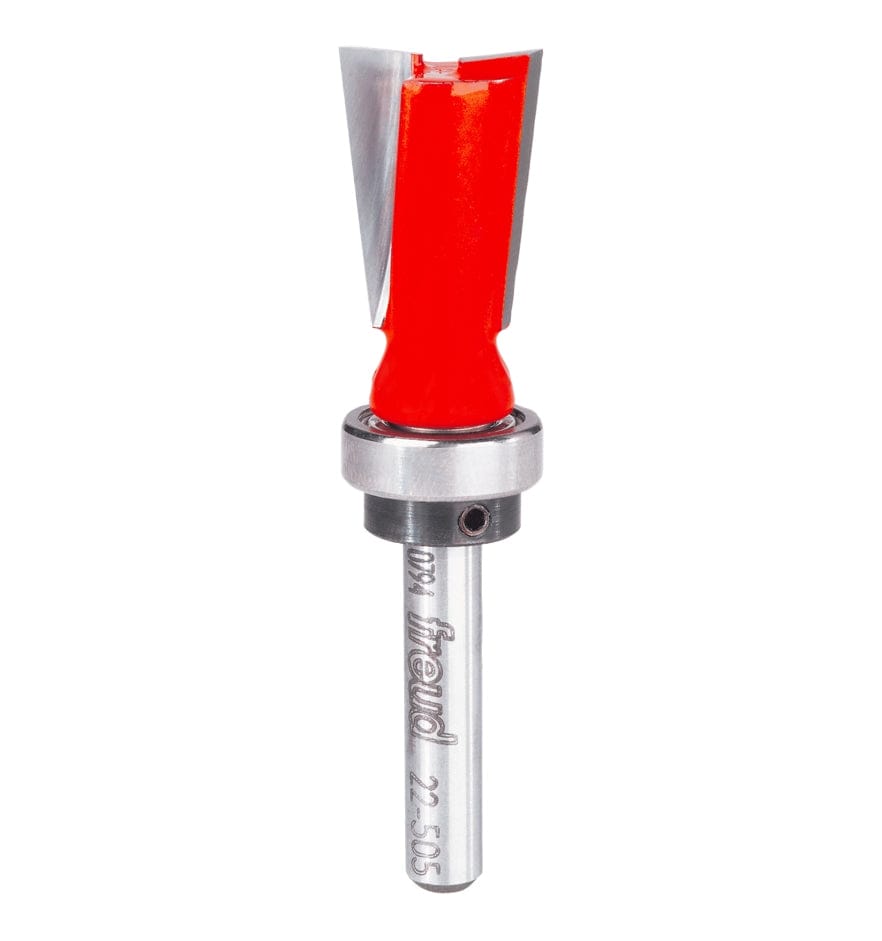

A professional studio photograph of the Freud 22-505 top bearing dovetail router bit, featuring its bright red Perma-SHIELD coating on the cutting head, sharp silver TiCo carbide edges, a top-mounted ball bearing guide, and a polished 1/4 inch steel shank.

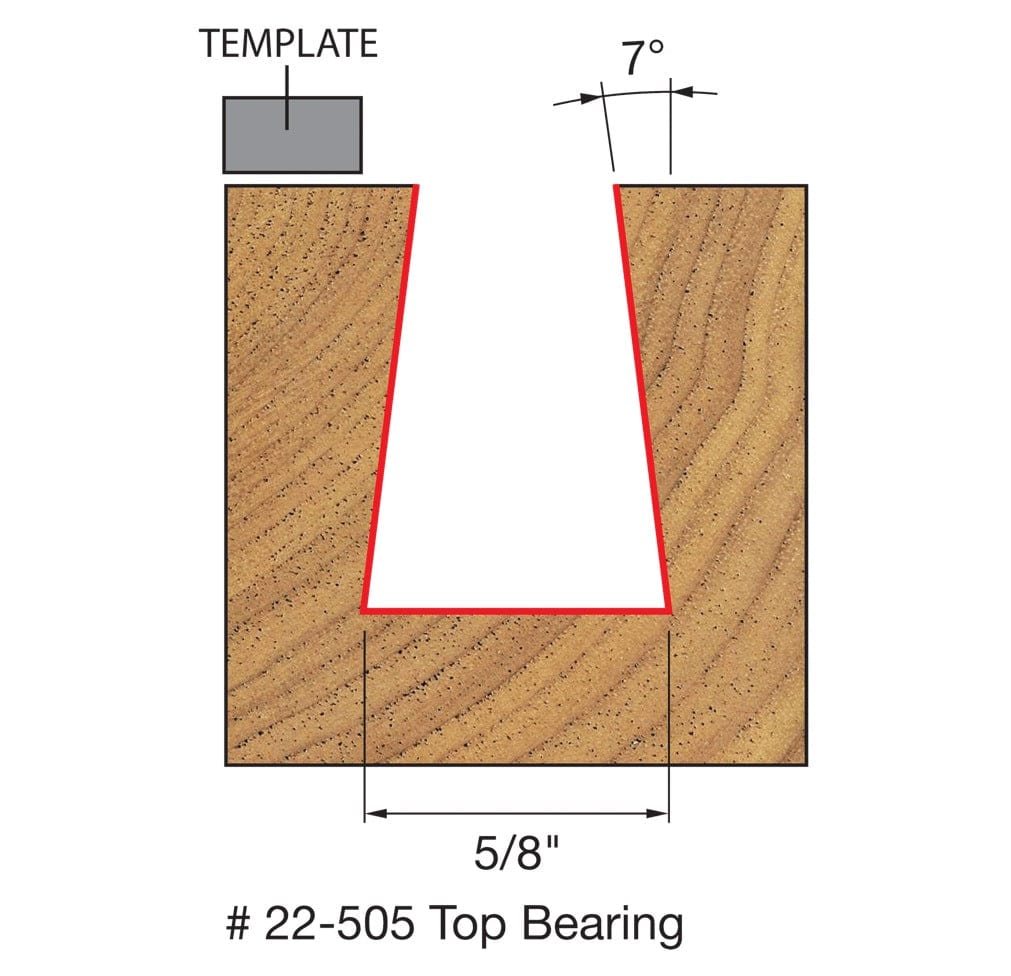

A technical diagram for the Freud 22-505 bit, illustrating a cross-section of a wood block and a grey template. A red path indicates a precise 7-degree angled dovetail cut that is exactly 5/8 of an inch wide at the base.

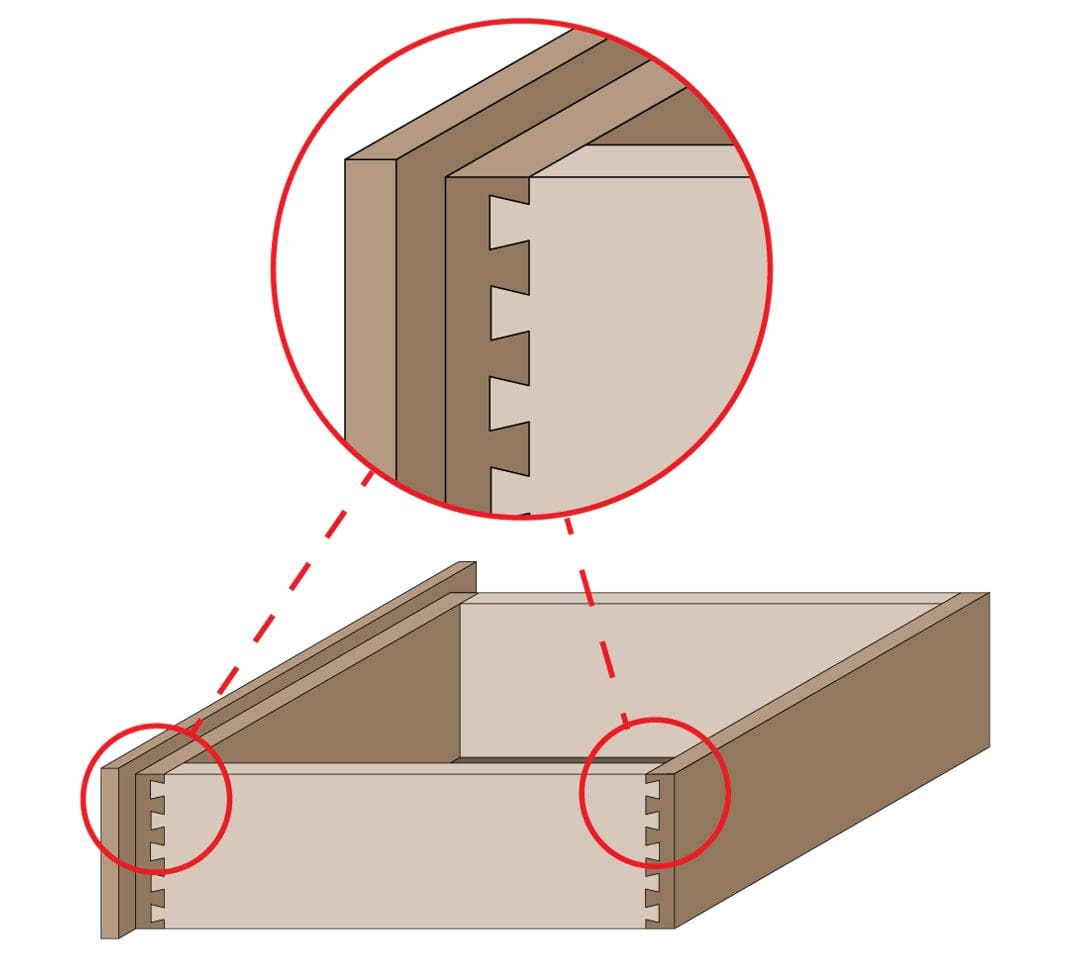

A technical instructional diagram showing a perspective view of a wooden drawer box with a circular callout that highlights the precise, interlocking dovetail joints created using the Freud 22-505 bit.
A professional studio photograph of the Freud 22-505 top bearing dovetail router bit, featuring its bright red Perma-SHIELD coating on the cutting head, sharp silver TiCo carbide edges, a top-mounted ball bearing guide, and a polished 1/4 inch steel shank.
A technical diagram for the Freud 22-505 bit, illustrating a cross-section of a wood block and a grey template. A red path indicates a precise 7-degree angled dovetail cut that is exactly 5/8 of an inch wide at the base.
A technical instructional diagram showing a perspective view of a wooden drawer box with a circular callout that highlights the precise, interlocking dovetail joints created using the Freud 22-505 bit.
Freud

Freud 22-505 5/8 Inch Diameter 7-Degree Top Bearing Dovetail Router Bit 1/4 Inch Shank TiCo Carbide Tipped Joinery Tool for Furniture and Jigs

Only 1 left
SKU: 22-505
$16.99 USD

Description

Master Traditional Joinery with the Precision of Freud’s Top-Bearing Dovetail Bits

The Freud 22-505 5/8" Top-Bearing Dovetail Router Bit is the professional’s choice for creating exceptionally strong and visually stunning joints in drawers, jewelry boxes, and exposed furniture projects. Designed with a 7-degree angle, this bit is engineered to produce the intricate, interlocking joints that signify high-quality craftsmanship. The top-mounted ball bearing makes this bit specifically ideal for use with templates and popular dovetail jigs, allowing for fast, repeatable, and error-free joinery in high-production environments.

Constructed with TiCo™ Hi-Density Carbide and protected by Freud’s proprietary Perma-SHIELD® Non-Stick Coating, the 22-505 is built to withstand the rigors of heavy use while maintaining a razor-sharp edge. The specialized red coating reduces friction and heat buildup, preventing the resin gumming and corrosion that can lead to wood burning or bit failure. Whether you are using a CNC machine, a hand-held router, or a table-mounted setup, this bit delivers a mirror-smooth finish across solid hardwoods, softwoods, plywood, and abrasive composites.

Key Features

  • Top-Mounted Bearing: Designed for easy template following and compatibility with many popular dovetail jigs.
  • TiCo™ Carbide Tipped: High-density titanium cobalt carbide ensures a flawless finish and significantly longer tool life.
  • Perma-SHIELD® Coating: Non-stick red coating protects the tool from heat, corrosion, and pitch buildup.
  • Versatile Operation: Fully optimized for use in CNC, hand-held, and table-mounted portable routers.
  • Joint Strength: Ideal for creating the traditional, strong joints required for high-end wood drawers and boxes.
  • Multi-Material Compatibility: Effortlessly cuts through solid wood, plywood, and wood-based composites.

What's Included

  • (1) Freud 22-505 5/8" Diameter 7-Degree Dovetail Bit (1/4" Shank)
  • (1) Top-Mounted Ball Bearing Guide

Specifications

Overall Diameter (D) 5/8 Inch
Shank Diameter (A) 1/4 Inch
Angle (d) 7 Degrees
Carbide Height (h) 7/8 Inch
Overall Length (H) 2-5/8 Inches
Number of Cutters 2
Maximum RPM 24,000 RPM
Bearing Type Top-Mounted Guide Bearing
Bit Material TiCo™ Hi-Density Carbide Tipped
Application Traditional Joinery, Drawers, Boxes
Pro-Tip: When routing dovetails, always use a backing board to prevent "blowout" at the end of the cut. Additionally, perform your deep dovetail cuts in multiple shallow passes to reduce stress on the 1/4" shank and maintain the sharpest possible edge for a perfect friction fit!
