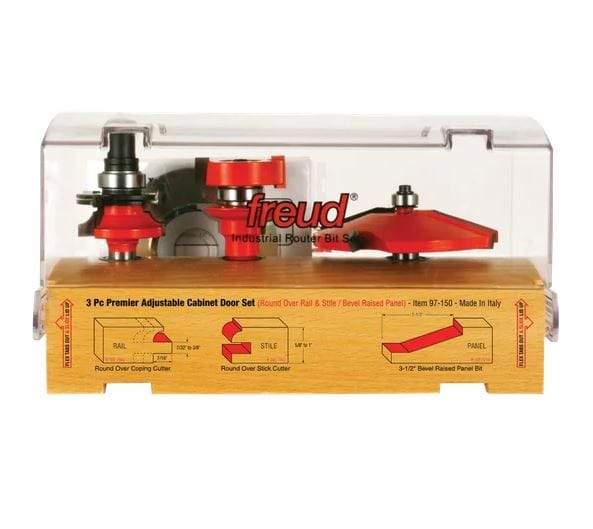

The Freud 97-150 3-piece cabinet bit set shown in its wooden storage box with a clear plastic cover and profile diagrams on the front.

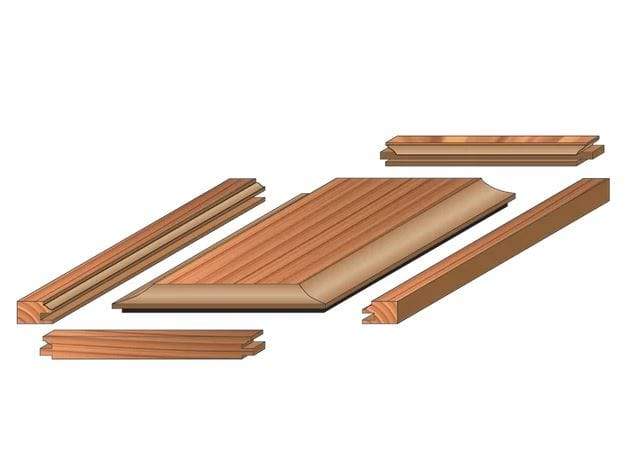

An exploded-view diagram of a raised panel door, showing the separate rails, stiles, and the beveled central panel.

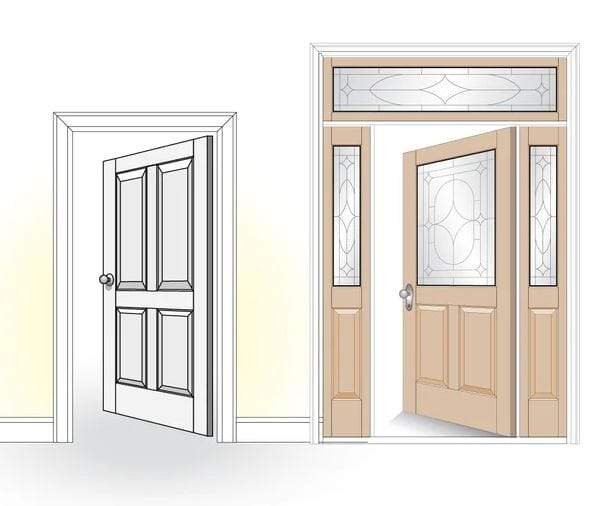

A diagram showing two different styles of raised panel doors that can be created with the router bit set.
The Freud 97-150 3-piece cabinet bit set shown in its wooden storage box with a clear plastic cover and profile diagrams on the front.
An exploded-view diagram of a raised panel door, showing the separate rails, stiles, and the beveled central panel.
A diagram showing two different styles of raised panel doors that can be created with the router bit set.
Freud

Freud 97-150 3-Piece Premier Adjustable Cabinet Bit Set with 1/2-Inch Shank for Raised Panel and Rail and Stile Doors Woodworking

In stock
SKU: 97-150
$149.00
Description

Build Cabinet Doors Like a Pro

Stop wrestling with complicated setups and weak joints. The Freud 97-150 Premier Adjustable Cabinet Bit Set is the all-in-one solution for building professional, high-quality raised panel doors. This set is engineered for woodworkers who demand precision, strength, and a flawless finish. It combines Freud's most advanced router bit technologies—including their exclusive long tenon system for the strongest possible joints—into one complete package, stored in an attractive wooden case.

Key Features

  • Strongest Joints: Features Freud's exclusive Premier Adjustable Rail & Stile Bit (#99-760) with long tenon technology for the strongest possible rail and stile joints.
  • Flawless Finish: Includes Freud's Quadra-Cut™ Raised Panel Bit (#99-515), which uses four cutters for an incredibly smooth, splinter-free finish.
  • Maximum Stability: All bits feature 1/2" shanks for maximum stability and reduced chatter in table-mounted routers.
  • Long Bit Life: Freud Perma-SHIELD® Coating protects the bits from heat, pitch build-up, and corrosion.
  • Versatile Materials: Cuts all composition materials, plywoods, hardwoods, and softwoods with precision.

What's Included

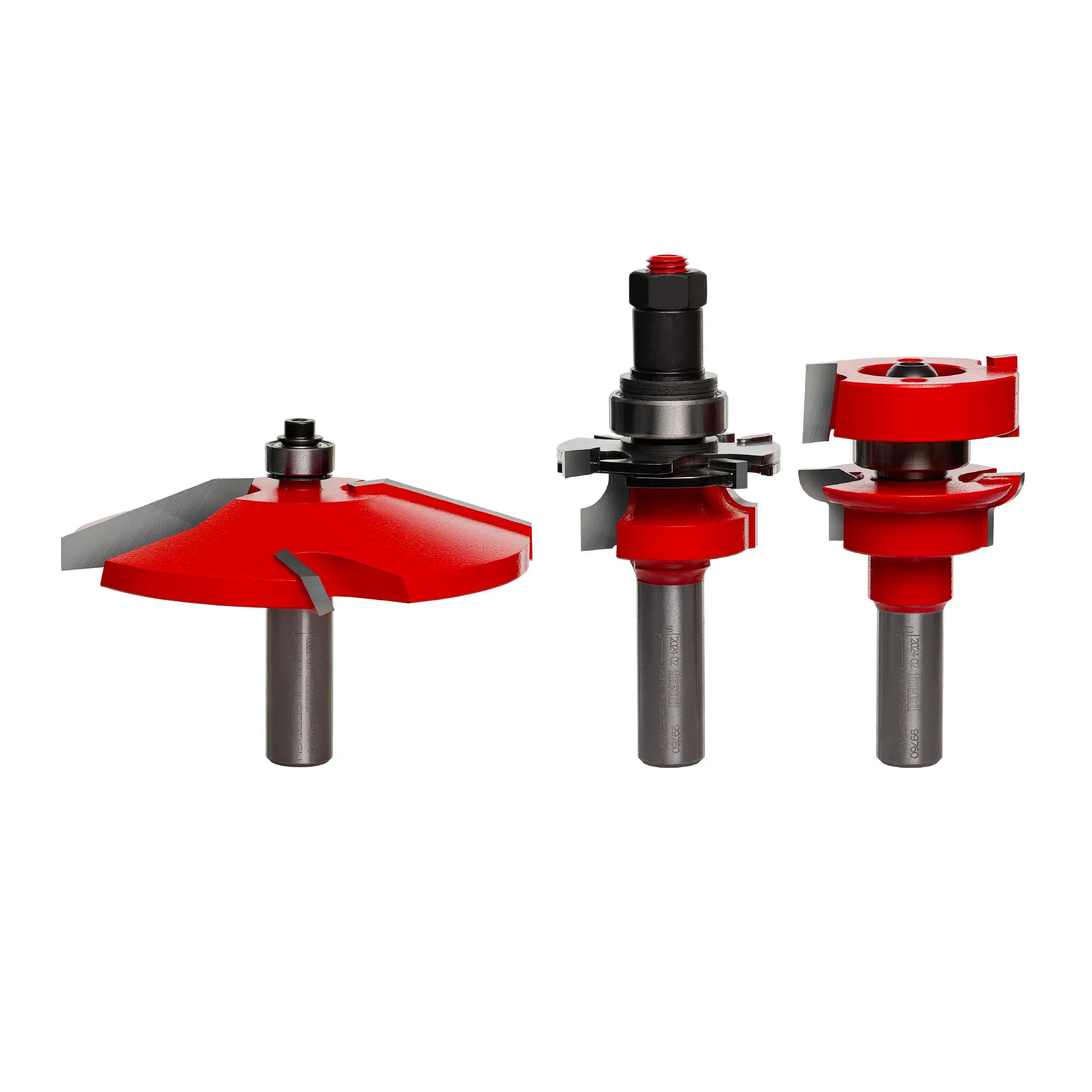

  • (1) #99-760 Premier Adjustable Rail & Stile Bit (Round Over Profile)
  • (1) #99-515 3-1/2" Quadra-Cut™ Raised Panel Bit
  • (1) Attractive Wooden Storage Box

Specifications

Specification Detail
Set Number 97-150
Shank Diameter 1/2" (All bits)
Ideal For Raised or Flat Panel Cabinet Doors
Coating Freud Perma-SHIELD®
Rail & Stile Bit (99-760)
    Profile Round Over
    Overall Diameter 1-11/16"
    Tenon Length Adjustable (Long Tenon Technology)
Raised Panel Bit (99-515)
    Cutter Design Quadra-Cut™ (4-Cutter)
    Overall Diameter 3-1/2"
    Carbide Height 1-1/4"

To get the most out of these professional-grade bits, you need a router with serious power and precision. If it's time for an upgrade, we highly recommend pairing this set with the Bosch 1617EVSPK 12 Amp 2.25 HP Plunge & Fixed-Base Router Kit.
