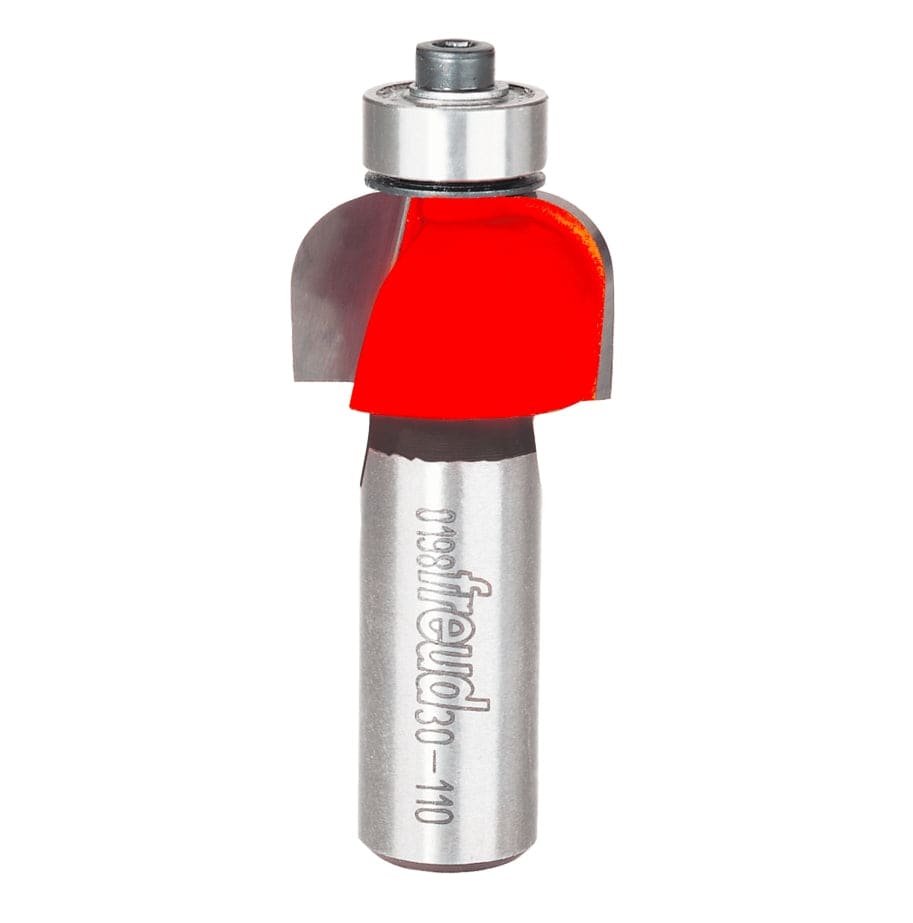

A professional studio photograph of the Freud 30-110 cove router bit, featuring its bright red Perma-SHIELD coating on the cutting head, sharp silver carbide edges, a top-mounted ball bearing pilot, and a polished 1/2 inch steel shank.

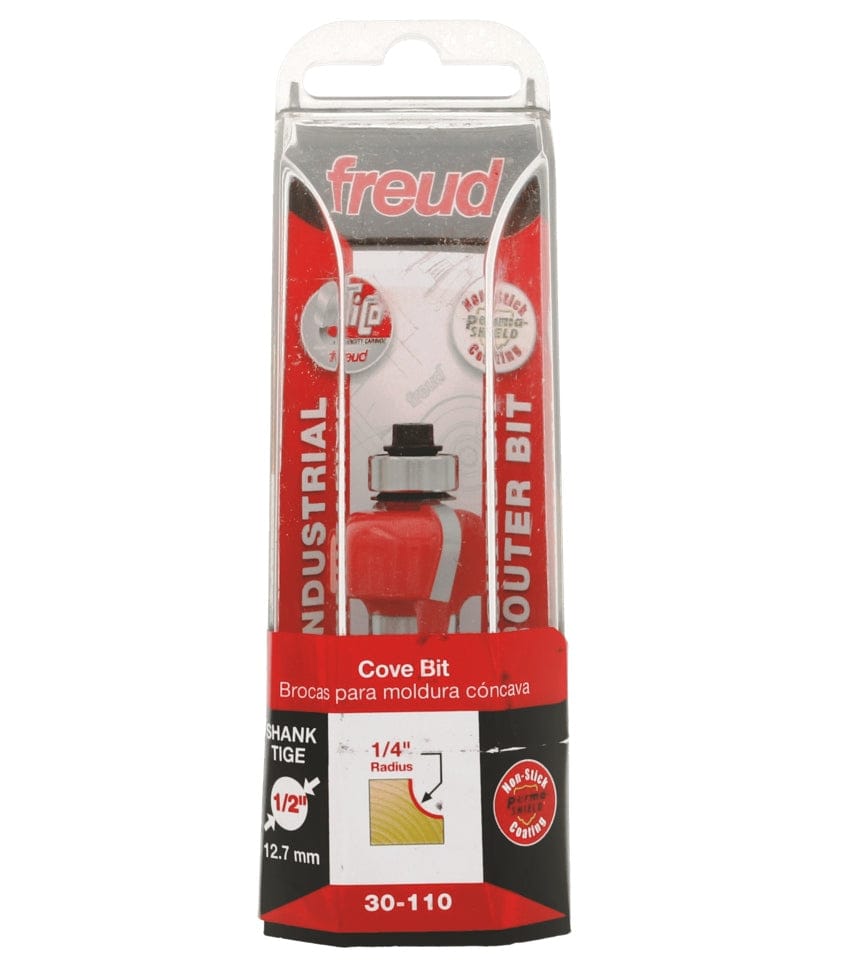

The retail packaging for the Freud 30-110 cove bit, displaying the Industrial Router Bit branding, a 1/4 inch radius specification, a 1/2 inch shank diameter, and the TiCo Hi-Density Carbide and Perma-SHIELD coating logos.

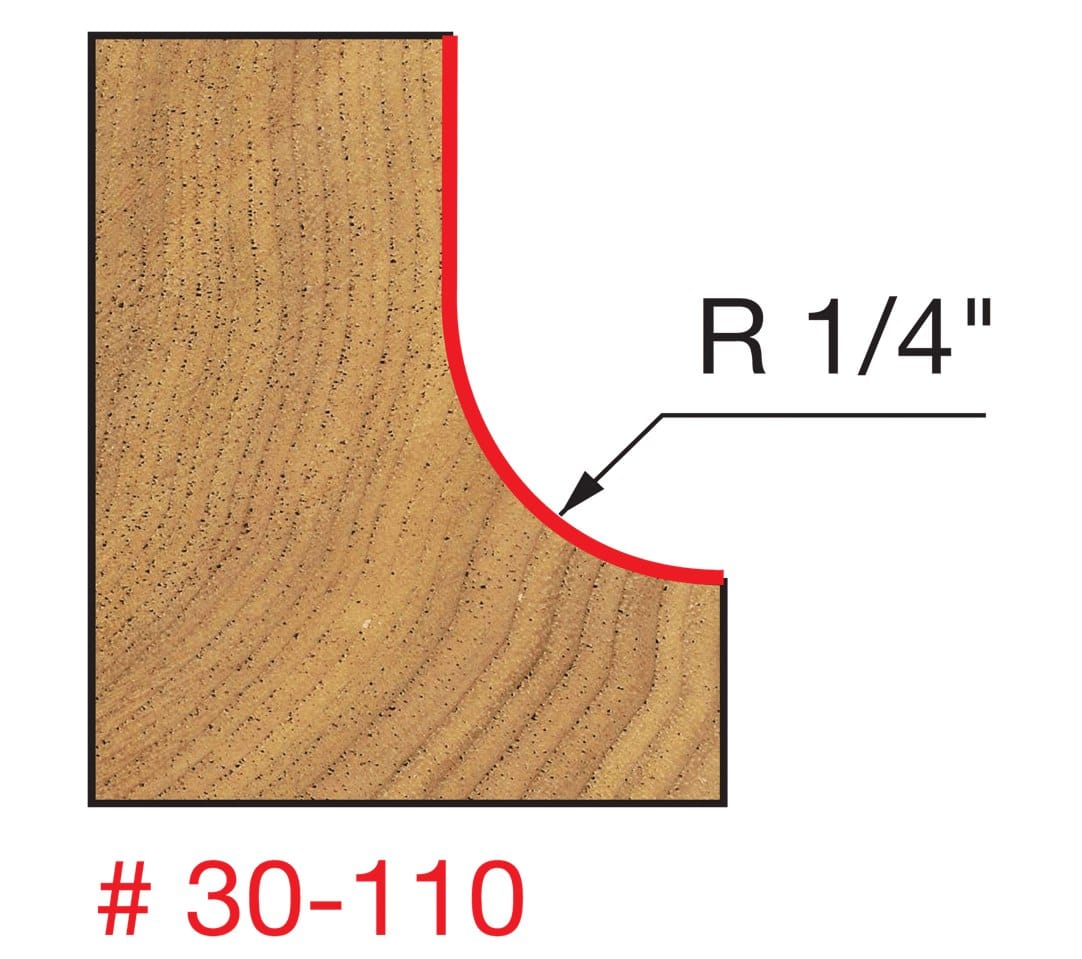

A technical diagram for the Freud 30-110 bit, illustrating a cross-section of a wood block with a red line indicating a precise 1/4 inch radius concave cove profile applied to a square edge.
A professional studio photograph of the Freud 30-110 cove router bit, featuring its bright red Perma-SHIELD coating on the cutting head, sharp silver carbide edges, a top-mounted ball bearing pilot, and a polished 1/2 inch steel shank.
The retail packaging for the Freud 30-110 cove bit, displaying the Industrial Router Bit branding, a 1/4 inch radius specification, a 1/2 inch shank diameter, and the TiCo Hi-Density Carbide and Perma-SHIELD coating logos.
A technical diagram for the Freud 30-110 bit, illustrating a cross-section of a wood block with a red line indicating a precise 1/4 inch radius concave cove profile applied to a square edge.
Freud

Freud 30-110 1/4 Inch Radius Cove Router Bit 1/2 Inch Shank TiCo Carbide Tipped Decorative Edging Tool for Hardwood Millwork and CNC Projects

Only 2 left
SKU: 30-110
$29.29 USD

Description

Achieve Timeless Elegance with Freud’s Precision-Engineered Carbide Cove Bits

The Freud 30-110 1/4" Radius Cove Router Bit is a shop essential for woodworkers who prioritize clean, decorative finishes on furniture, cabinetry, and custom millwork. Often referred to as a "core box" bit, this tool is designed to create a classic concave profile that adds depth and sophistication to any edge application. Its precision-ground TiCo™ Hi-Density Carbide tips ensure maximum sharpness and durability, allowing you to "soften" sharp edges or mill high-end moldings with consistent, professional results.

What sets the Freud 30-110 apart is its specialized upward shear angle, which allows the bit to slice through wood fibers similarly to a master craftsman’s hand plane. This design significantly reduces the risk of tearing or splintering, even in figured grain or abrasive materials. Protected by a non-stick Perma-SHIELD® Coating, the bit is shielded from the heat, corrosion, and pitch buildup that can degrade performance. Whether you are using a CNC machine, a table-mounted router, or a hand-held setup, this bit delivers a mirror-smooth finish across hardwoods, softwoods, plywood, and wood-based composites.

Key Features

  • Upward Shear Angle: Slices wood fibers efficiently to produce clean, splinter-free cuts.
  • Perma-SHIELD® Coating: Non-stick red coating protects against heat, blade drag, and resin buildup.
  • TiCo™ Hi-Density Carbide: Specialized industrial-grade carbide for superior edge retention and long life.
  • Classic Cove Profile: Ideal for creating decorative edges, concave shapes, and inverted radii.
  • Precision Balance: Individually computer-balanced to ensure vibration-free operation at high RPMs.
  • Versatile Application: Optimized for use in solid hardwood, softwood, plywood, and abrasive composites.

What's Included

  • (1) Freud 30-110 1/4" Radius Cove Router Bit (1/2" Shank)

Specifications

Radius (R) 1/4 Inch
Shank Diameter (A) 1/2 Inch
Overall Diameter (D) 1 Inch
Carbide Height (h) 1/2 Inch
Overall Length (H) 2-1/2 Inches
Bearing Diameter (B) 1/2 Inch
Number of Cutters 2
Maximum RPM 24,000 RPM
Material TiCo™ Carbide Tipped
Coating Non-Stick Red Perma-SHIELD®
Pro-Tip: To achieve the smoothest possible finish on softwoods, always feed the bit against the rotation of the router and use a sacrificial backer board at the exit point of the cut. This simple step eliminates grain blowout and ensures your classic cove profiles stay crisp and professional!
