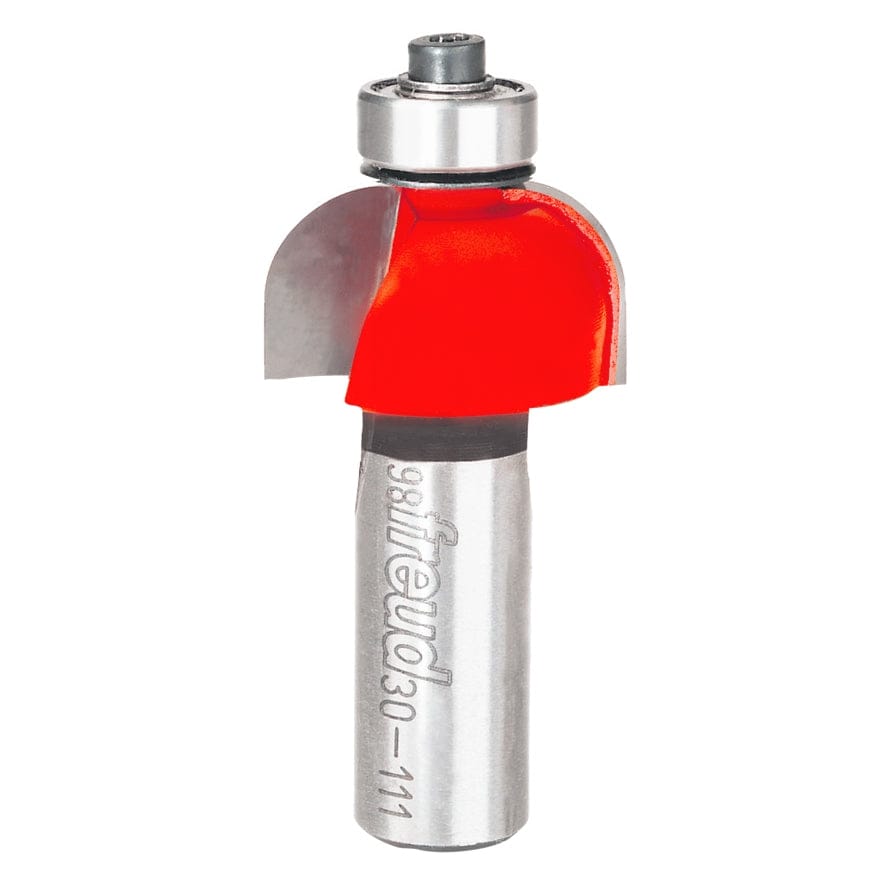

Studio shot of the Freud 30-111 Cove router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Studio shot of the Freud 30-111 Cove router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Studio shot of the Freud 30-111 Cove router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Studio shot of the Freud 30-111 Cove router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Freud

Freud 30-111 1 Inch Dia Cove Router Bit 5/16 Inch Radius 1/2 Inch Shank Decorative Edging Tool for Woodworking Cabinets Furniture and Millwork

Only 1 left
SKU: 30-111
$31.49 USD

Description

Create Smooth, Classic Concave Edges with the Freud Cove Router Bit

Achieve professional-grade detailing on your next project with the Freud 30-111 5/16" Radius Cove Router Bit. This versatile tool allows you to rout clean, smooth concave edges that add a timeless aesthetic to furniture, millwork, and cabinetry. Whether you are crafting a drop-leaf table joint or adding decorative molding to a bookshelf, this bit delivers precise results. Its robust 1/2" shank offers superior stability and reduced vibration, making it compatible with a wide range of hand-held and table-mounted portable routers.

Engineered for performance, the 30-111 features a sophisticated shear angle design that slices through wood fibers in a motion similar to a craftsman using a hand plane. This cutting action significantly reduces the risk of tearing or splintering, even when working with materials that have figured or difficult grain. Constructed with durable carbide and finished with Freud's Perma-SHIELD® Coating, this bit cuts cleanly through hardwood, softwood, plywood, and composites while resisting heat and pitch buildup for a longer tool life.

Key Features

  • Shear Angle Geometry: Slices wood fibers cleanly to eliminate tear-out and minimize sanding.

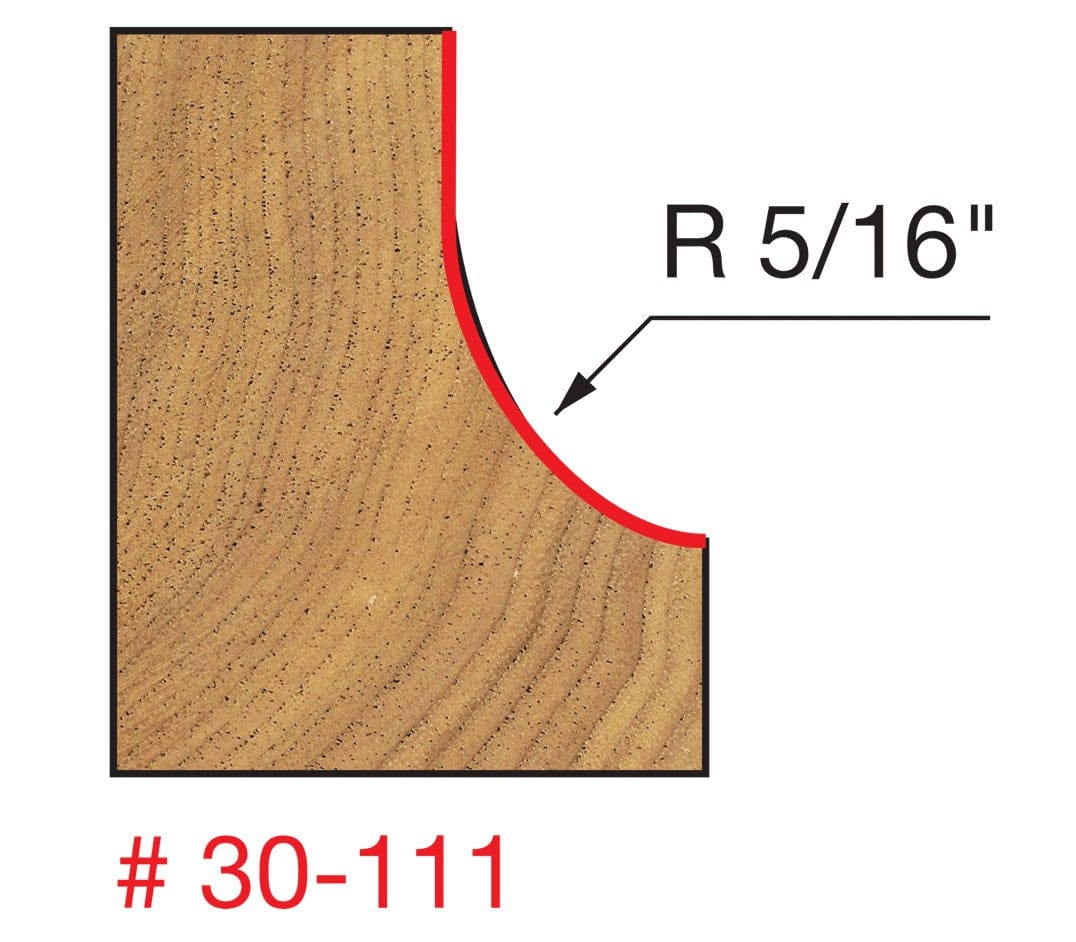

  • Classic Cove Profile: Creates a smooth 5/16" radius concave shape for decorative edging.
  • Perma-SHIELD® Coating: Non-stick coating reduces friction and prevents rust and resin adhesion.
  • High-Speed Stability: Rated for up to 24,000 RPM for efficient material removal.
  • Versatile Application: Safe for use on both hand-held and table-mounted routers.
  • Multi-Material Compatibility: Ideal for cutting hardwoods, softwoods, plywoods, and composition materials.
  • Precision Bearing: Includes a 3/8" ball bearing guide for easy template and edge work.

What's Included

(1) Freud 30-111 5/16" Radius Cove Router Bit

Specifications

Overall Diameter (D) 1"
Shank Diameter (A) 1/2"
Carbide Height (h) 5/16"
Overall Length (H) 2-1/2"
Radius (R) 5/16"
Bearing Diameter (B) 3/8"
Number of Cutters 2
Max RPM 24,000
Profile Design Cove
Coating Perma-SHIELD® Non-Stick
Material Carbide Tipped

Pro-Tip: Sanding inside a cove profile can be tricky. To make it easier, wrap your sandpaper around a 5/8" diameter dowel or rod. Since this bit cuts a 5/16" radius (which equals a 5/8" diameter circle), the dowel will fit perfectly into the curve for uniform sanding.
