Freud Router Bit Set 33-106 1/2 Inch Radius Drop Leaf Table Rule Joint (1/4 Inch Shank TiCo Carbide Perma-SHIELD 2pc Woodworking Furniture Mating)

Freud 33-106 1/2 Inch Radius Drop Leaf Table Rule Joint Router Bit Set

The Freud 33-106 is a 2-piece drop leaf table rule joint router bit set engineered to rout perfectly matched 1/2-inch radiused cove and rounding-over mating edge profiles on custom dining tables and antique restorations. Built with 1/4-inch shanks and designed for stock up to 3/4-inch thick, this matched cutter kit executes smooth, gap-free rule joints that allow table leaves to pivot cleanly without mechanical binding. Tipped with TiCo™ Hi-Density Micrograin Carbide and protected by a heat-resistant Perma-SHIELD® non-stick coating, both bits deliver long-lasting sharpness across solid hardwoods, softwoods, plywood, and composites in handheld or table-mounted routers.

Best Used For:

• Drop-Leaf Table Rule Joint Milling: Shaping perfectly interlocking 1/2-inch radiused cove and convex rule joints on fixed table tops and hinged drop leaves.
• Antique Furniture Restoration: Machining period-correct mating edge profiles on classic wooden drop-leaf dining tables and sideboards.
• Standalone Decorative Edge Softening: Utilizing the cove or rounding-over router bits individually for custom decorative border profiles on cabinet doors and shelves.

Key Performance & Safety Features

• Matched Rule Joint Geometry: Cove and rounding-over profiles are computer-matched to guarantee tight, friction-free joint alignment.
• TiCo™ Hi-Density Micrograin Carbide: Proprietary titanium-cobalt carbide formulation maintains high edge retention under heavy production friction.
• Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating guards against thermal friction, pitch accumulation, and rust corrosion.
• 3/4-Inch Stock Optimization: Engineered specifically to maximize rule joint clearance on standard 3/4-inch thick solid wood table tops.
• Computer-Balanced Anti-Vibration Body: Precision body balancing eliminates chatter and ensures smooth rotational tracking at high operating speeds.
• Universal Machine Compatibility: Formulated for stable, high-precision performance in portable handheld routers and stationary router tables.

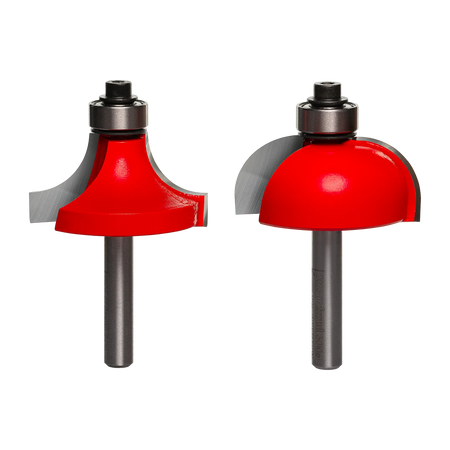

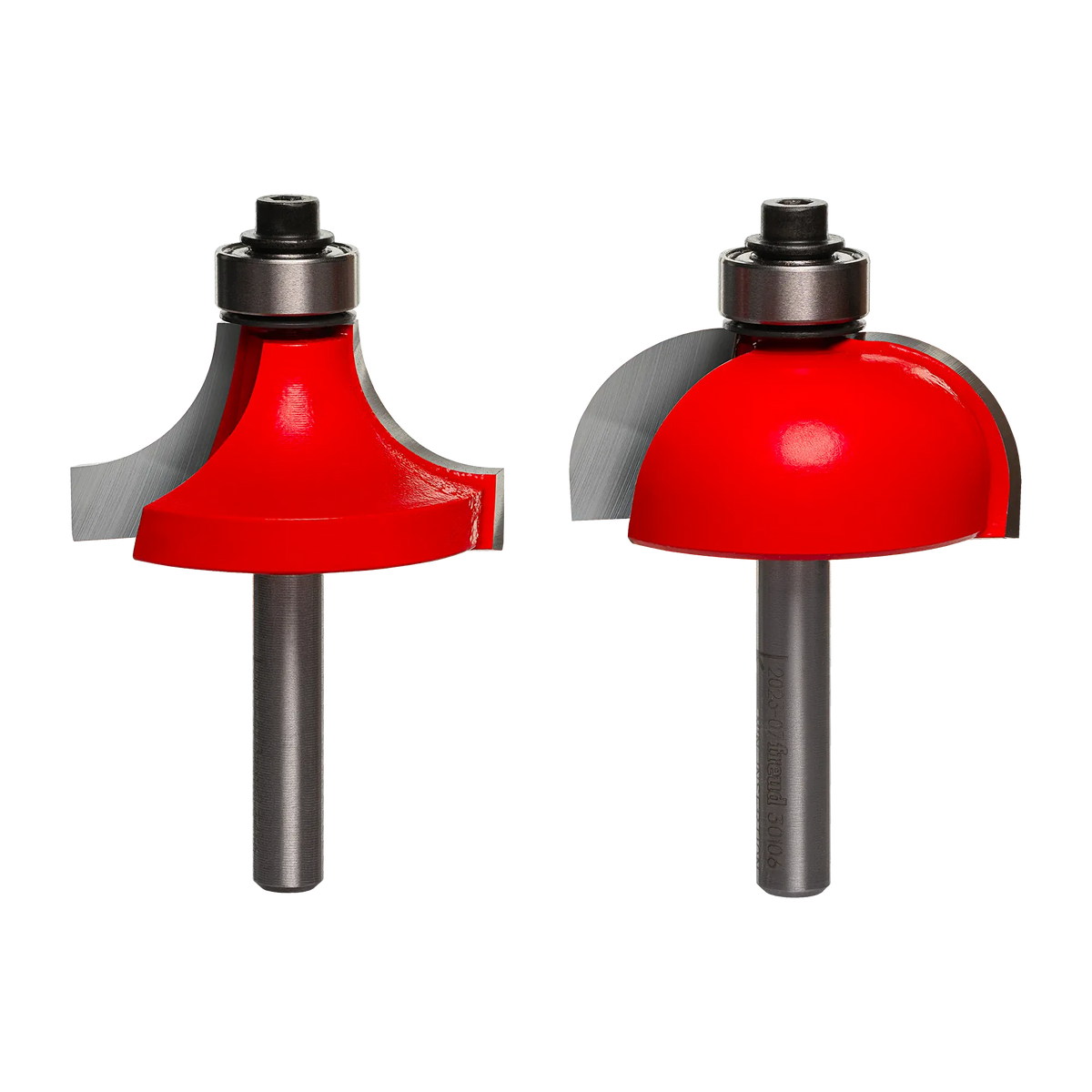

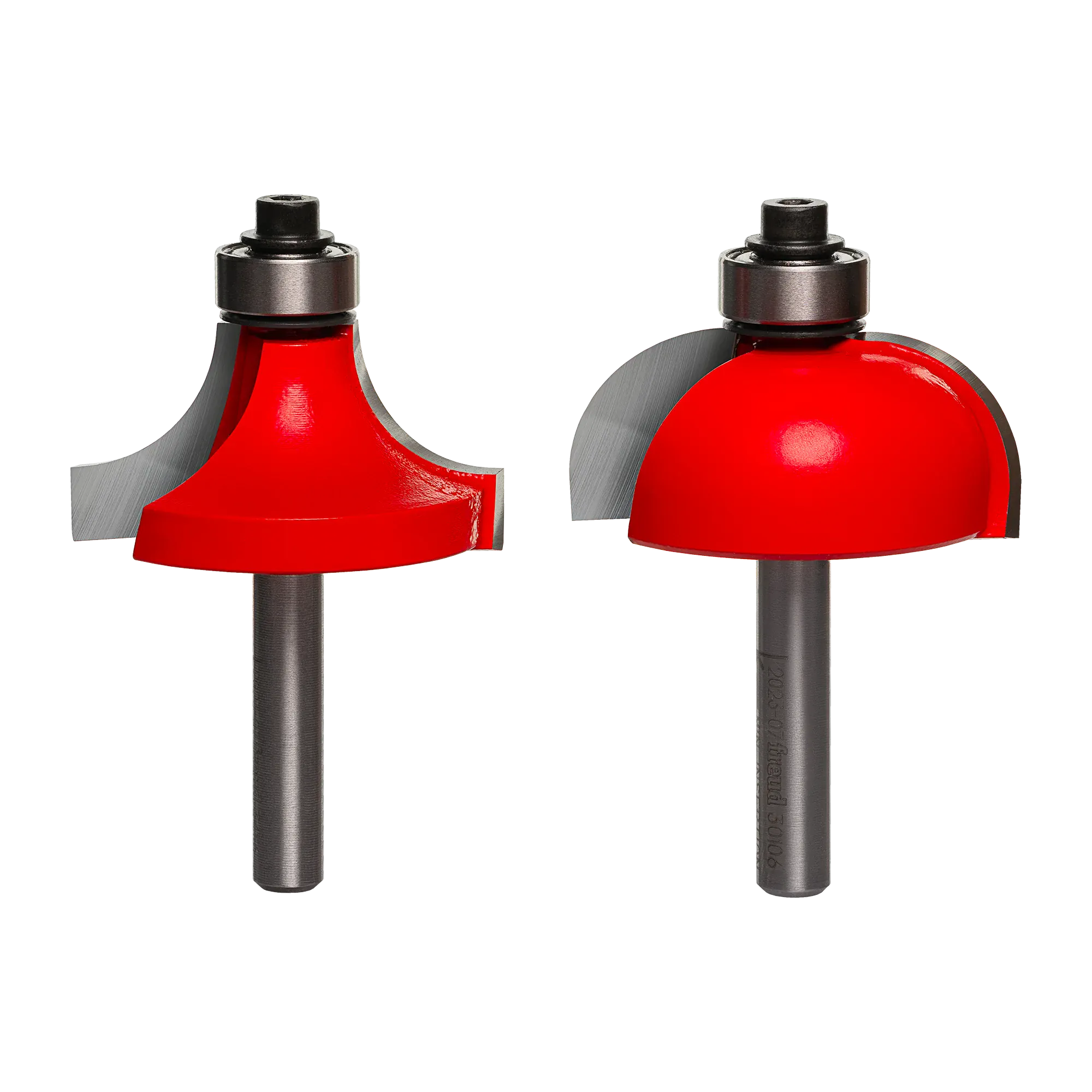

What's Included

• (1) Freud 30-106 1/2" Radius Cove Router Bit with 1/4" Shank
• (1) Freud 34-116 1/2" Radius Rounding Over Router Bit with 1/4" Shank

Technical Specifications

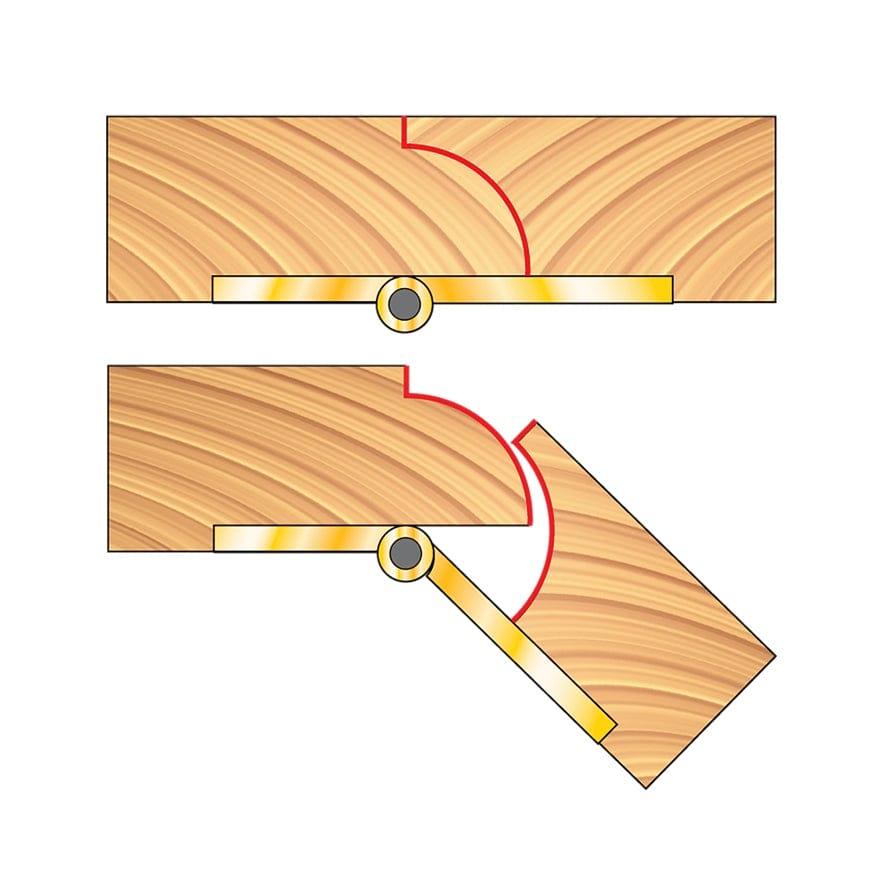

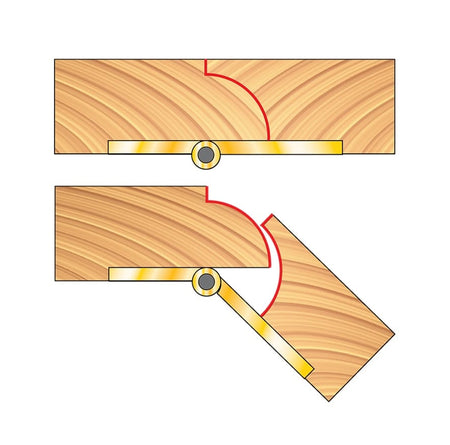

Pro-Tip: Install drop-leaf hinges with the hinge pin center lined up exactly with the spring-line center of the 1/2-inch radius rule joint to ensure the table leaf swings freely without crushing the wood profile edges.
