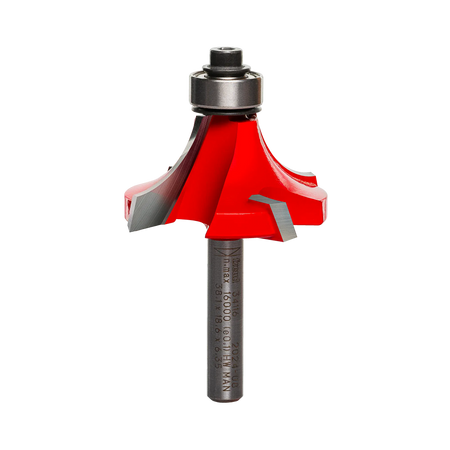

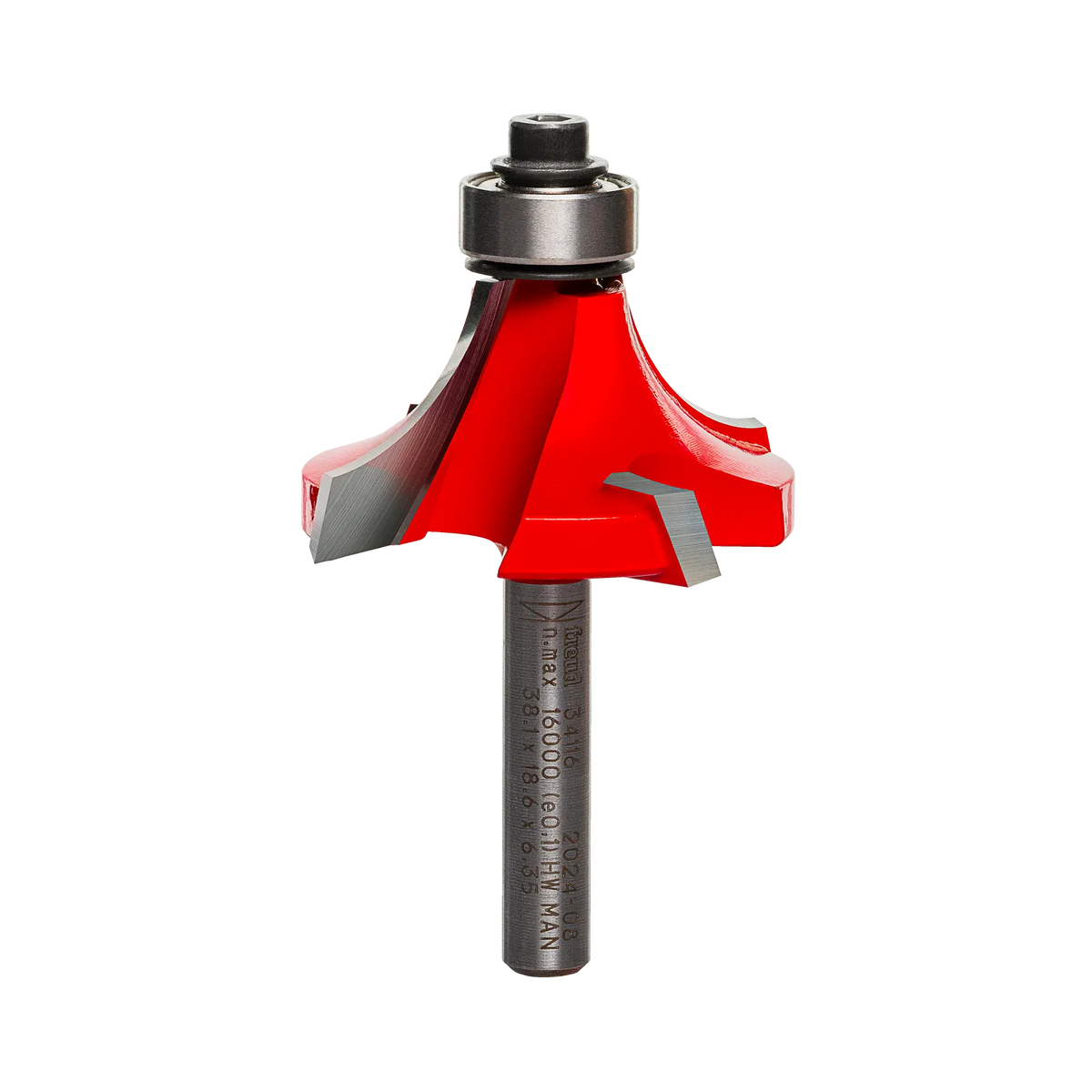

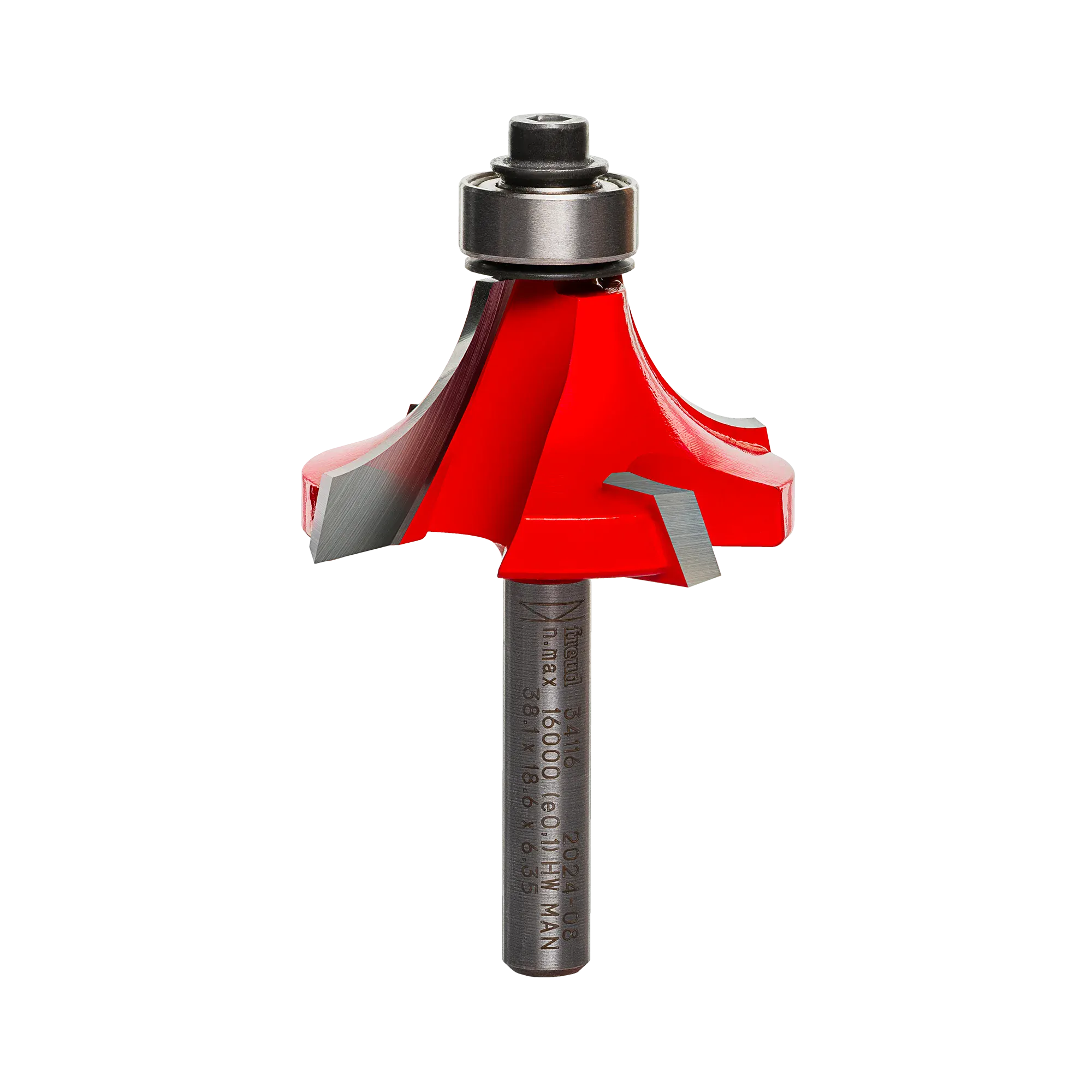

A professional studio photograph of the Freud 34-116 rounding over router bit, highlighting its bright red Perma-SHIELD coating, sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished steel shank.
The retail packaging for the Freud 34-116 rounding over bit, clearly displaying the Industrial Router Bit label, the Quadra-Cut logo, and key specifications including the 1/2 inch radius and the 1/4 inch shank diameter.
A technical specification diagram for the Freud 34-116 bit, featuring a product photo with dimensions. The diagram indicates a 1/2 inch radius profile, a 1-1/2 inch overall diameter, a 2-1/2 inch overall length, and a 1/4 inch shank diameter.
A technical instructional diagram demonstrating the versatility of the Freud 34-116 bit. The left side shows a standard round-over profile, while the right side shows how to obtain a different decorative beading profile by simply ordering a 1/8 inch smaller ball bearing and step washer.
An action photograph of a woodworker using a hand-held router equipped with the Freud 34-116 bit to add a decorative rounded beading profile to the edge of a light-colored wooden workpiece.
A professional studio photograph of the Freud 34-116 rounding over router bit, highlighting its bright red Perma-SHIELD coating, sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished steel shank.
Freud Quadra Cut Router Bits promotional video
A professional studio photograph of the Freud 34-116 rounding over router bit, highlighting its bright red Perma-SHIELD coating, sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished steel shank.
The retail packaging for the Freud 34-116 rounding over bit, clearly displaying the Industrial Router Bit label, the Quadra-Cut logo, and key specifications including the 1/2 inch radius and the 1/4 inch shank diameter.
A technical specification diagram for the Freud 34-116 bit, featuring a product photo with dimensions. The diagram indicates a 1/2 inch radius profile, a 1-1/2 inch overall diameter, a 2-1/2 inch overall length, and a 1/4 inch shank diameter.
A technical instructional diagram demonstrating the versatility of the Freud 34-116 bit. The left side shows a standard round-over profile, while the right side shows how to obtain a different decorative beading profile by simply ordering a 1/8 inch smaller ball bearing and step washer.
An action photograph of a woodworker using a hand-held router equipped with the Freud 34-116 bit to add a decorative rounded beading profile to the edge of a light-colored wooden workpiece.
A professional studio photograph of the Freud 34-116 rounding over router bit, highlighting its bright red Perma-SHIELD coating, sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished steel shank.
Freud Quadra Cut Router Bits promotional video
Freud

Freud Router Bit 34-116 1/2 Inch Radius Rounding Over Edge (1/4 Inch Shank TiCo Carbide Quadra-Cut 16000 Max RPM Woodworking Furniture)

Only 3 left
SKU: 34-116
$39.29 USD

Description

Freud precisely the best logo Logout

Freud 34-116 1/2 Inch Radius Rounding Over Edge Router Bit

The Freud 34-116 is a 1-1/2-inch overall diameter rounding-over router bit engineered to shape smooth 1/2-inch radiused edges on furniture components, cabinet doors, and architectural moldings. Built with a 1/4-inch shank and Freud’s patented Quadra-Cut™ 4-cutter geometry, this tool utilizes two up-shearing and two down-shearing carbide blades to eliminate cross-grain tearout and surface fuzzing. Tipped with TiCo™ Hi-Density Micrograin Carbide and protected by a heat-resistant Perma-SHIELD® non-stick coating, it operates safely at speeds up to 16,000 RPM across solid hardwoods, softwoods, plywood, and composites in CNC machines, router tables, or handheld routers.

Best Used For:

  • Furniture & Tabletop Edge Profiling: Shaping clean 1/2-inch radiused outer borders on solid wood table tops, desk edges, and chair rails.
  • Cabinet Door & Frame Edge Softening: Milling tearout-free rounded profiles on interior cabinet doors, drawer fronts, and frame moldings.
  • Cross-Grain Architectural Molding: Cutting smooth decorative border profiles across abrasive end-grain stock and composite sheets without post-routing sanding.

Key Performance & Safety Features

  • Quadra-Cut™ 4-Cutter Technology: Employs 2 up-shear and 2 down-shear carbide cutters to shear wood fibers simultaneously from top and bottom for a splinter-free finish.
  • TiCo™ Hi-Density Micrograin Carbide: Custom titanium-cobalt carbide formulation extends cutting life and maintains high edge sharpness under heavy production loads.
  • Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating guards against heat buildup, pitch accumulation, and thermal corrosion.
  • Dual-Profile Convertible Versatility: Converts from a rounding-over profile to a decorative beading bit by swapping to a 3/8-inch outer diameter pilot bearing.
  • Precision Pilot Ball Bearing: Includes a 1/2-inch outer diameter steel guide bearing for consistent, uniform tracking along straight or curved edges.
  • Computer-Balanced Anti-Vibration Body: Precision body balancing eliminates chatter and ensures smooth rotational tracking at speeds up to 16,000 RPM.

What's Included

  • (1) Freud 34-116 1/2" Radius Rounding Over Router Bit with 1/4" Shank
  • (1) 1/2" Outer Diameter Pilot Ball Bearing

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 34-116
Profile Radius Dimension (R) 0.500 inches (1/2" / 12.7 mm)
Overall Cutting Diameter (D) 1.500 inches (1-1/2" / 38.1 mm)
Shank Diameter (A) 0.250 inches (1/4" / 6.4 mm)
Carbide Cutting Height (h) 0.750 inches (3/4" / 19.1 mm)
Overall Tool Length (H) 2.500 inches (2-1/2" / 63.5 mm)
Pilot Bearing Diameter (B) 0.500 inches (1/2" / 12.7 mm)
Number of Carbide Cutters 4 Cutters (Quadra-Cut 2 Up-Shear / 2 Down-Shear)
Maximum Operating Speed 16,000 RPM
Body Protective Coating Red Perma-SHIELD® Non-Stick Fluoropolymer
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Router Tables, Handheld Routers

Pro-Tip: To achieve a decorative beading edge profile instead of a standard round-over, replace the included 1/2-inch guide bearing with a 3/8-inch bearing; the smaller bearing leaves a crisp 1/16-inch step shoulder at the top of the radius.
