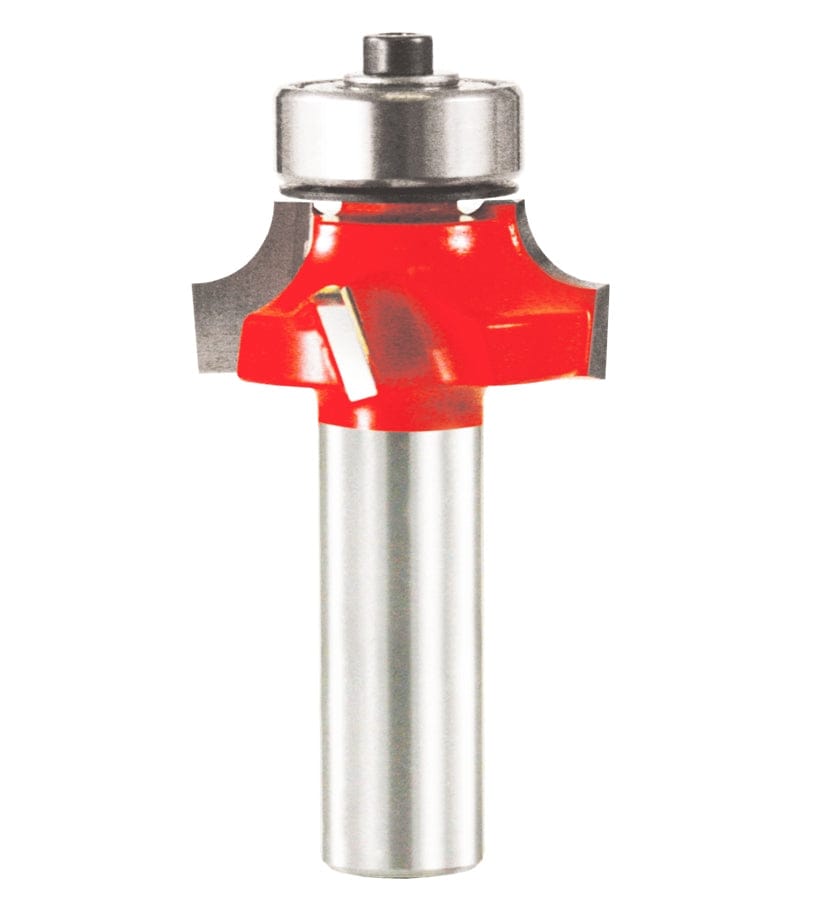

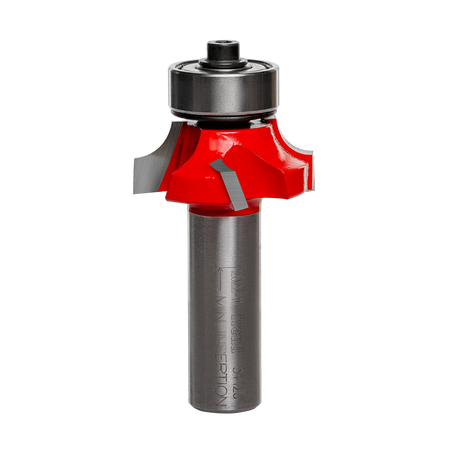

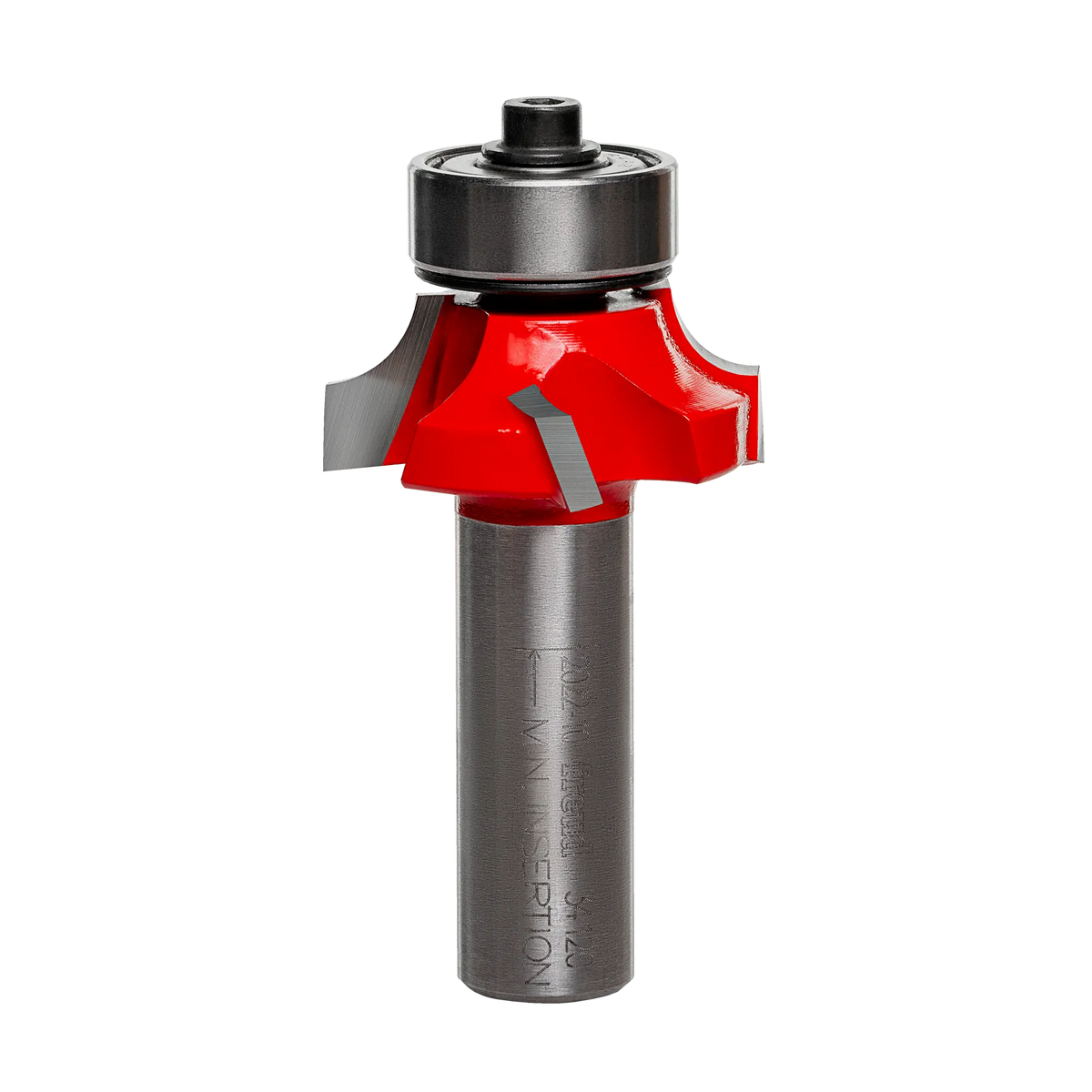

A professional studio photograph of the Freud 34-120 rounding over router bit, highlighting the red Perma-SHIELD coating on its head, the sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished 1/2 inch steel shank.
The retail packaging for the Freud 34-120 rounding over bit, featuring the Industrial Router Bit and Quadra-Cut branding, alongside clear specifications for the 1/4 inch radius and 1/2 inch shank diameter.

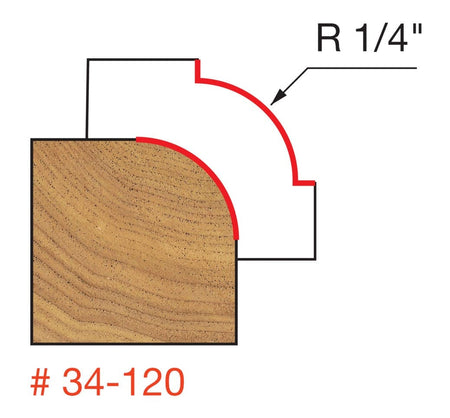

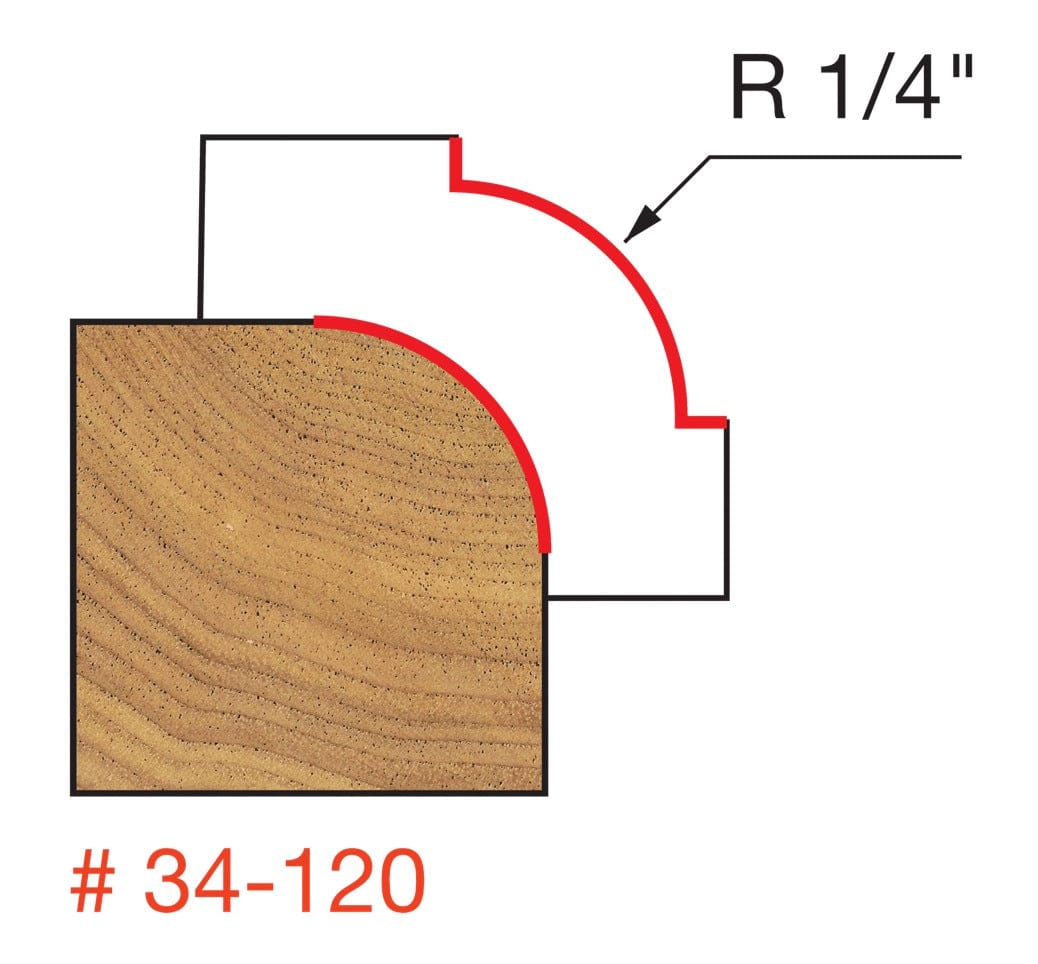

A technical diagram for the Freud 34-120 bit, showing a wood cross-section with a red line indicating a precise 1/4 inch radius rounding-over path applied to a square corner.

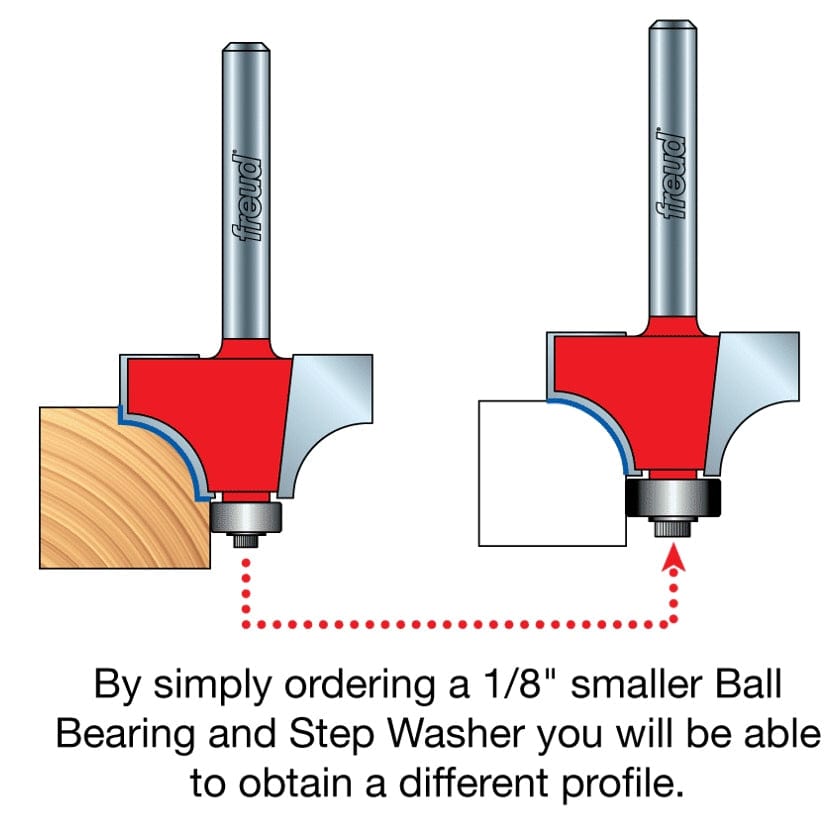

A technical instructional diagram illustrating the dual-profile capability of the Freud 34-120 bit. The left side shows the standard rounding over profile, while the right side demonstrates how swapping to a 1/8 inch smaller ball bearing and step washer creates a decorative beading profile.

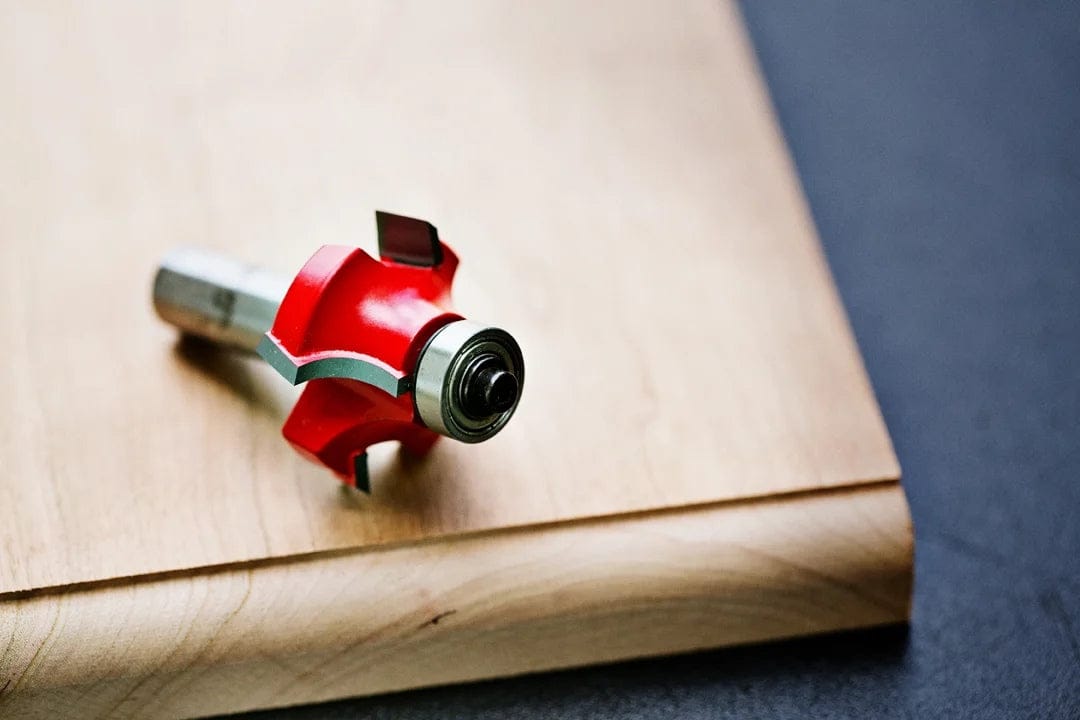

A high-angle photograph of the Freud 34-120 rounding over bit resting on a light-colored wooden board that has been routed with a matching 1/4 inch radius smooth edge.
A professional studio photograph of the Freud 34-120 rounding over router bit, highlighting the red Perma-SHIELD coating on its head, the sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished 1/2 inch steel shank.
Freud Quadra Cut Router Bits promotional video
A professional studio photograph of the Freud 34-120 rounding over router bit, highlighting the red Perma-SHIELD coating on its head, the sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished 1/2 inch steel shank.
The retail packaging for the Freud 34-120 rounding over bit, featuring the Industrial Router Bit and Quadra-Cut branding, alongside clear specifications for the 1/4 inch radius and 1/2 inch shank diameter.
A technical diagram for the Freud 34-120 bit, showing a wood cross-section with a red line indicating a precise 1/4 inch radius rounding-over path applied to a square corner.
A technical instructional diagram illustrating the dual-profile capability of the Freud 34-120 bit. The left side shows the standard rounding over profile, while the right side demonstrates how swapping to a 1/8 inch smaller ball bearing and step washer creates a decorative beading profile.
A high-angle photograph of the Freud 34-120 rounding over bit resting on a light-colored wooden board that has been routed with a matching 1/4 inch radius smooth edge.
A professional studio photograph of the Freud 34-120 rounding over router bit, highlighting the red Perma-SHIELD coating on its head, the sharp silver carbide Quadra-Cut edges, a top-mounted ball bearing pilot, and a polished 1/2 inch steel shank.
Freud Quadra Cut Router Bits promotional video
Freud

Freud Router Bit 34-120 1/4 Inch Radius Rounding Over Edge (1/2 Inch Shank TiCo Carbide Quadra-Cut 18000 Max RPM Woodworking Furniture)

Only 2 left
SKU: 34-120
$31.97 USD

Description

Freud precisely the best logo Logout

Freud 34-120 1/4 Inch Radius Rounding Over Edge Router Bit

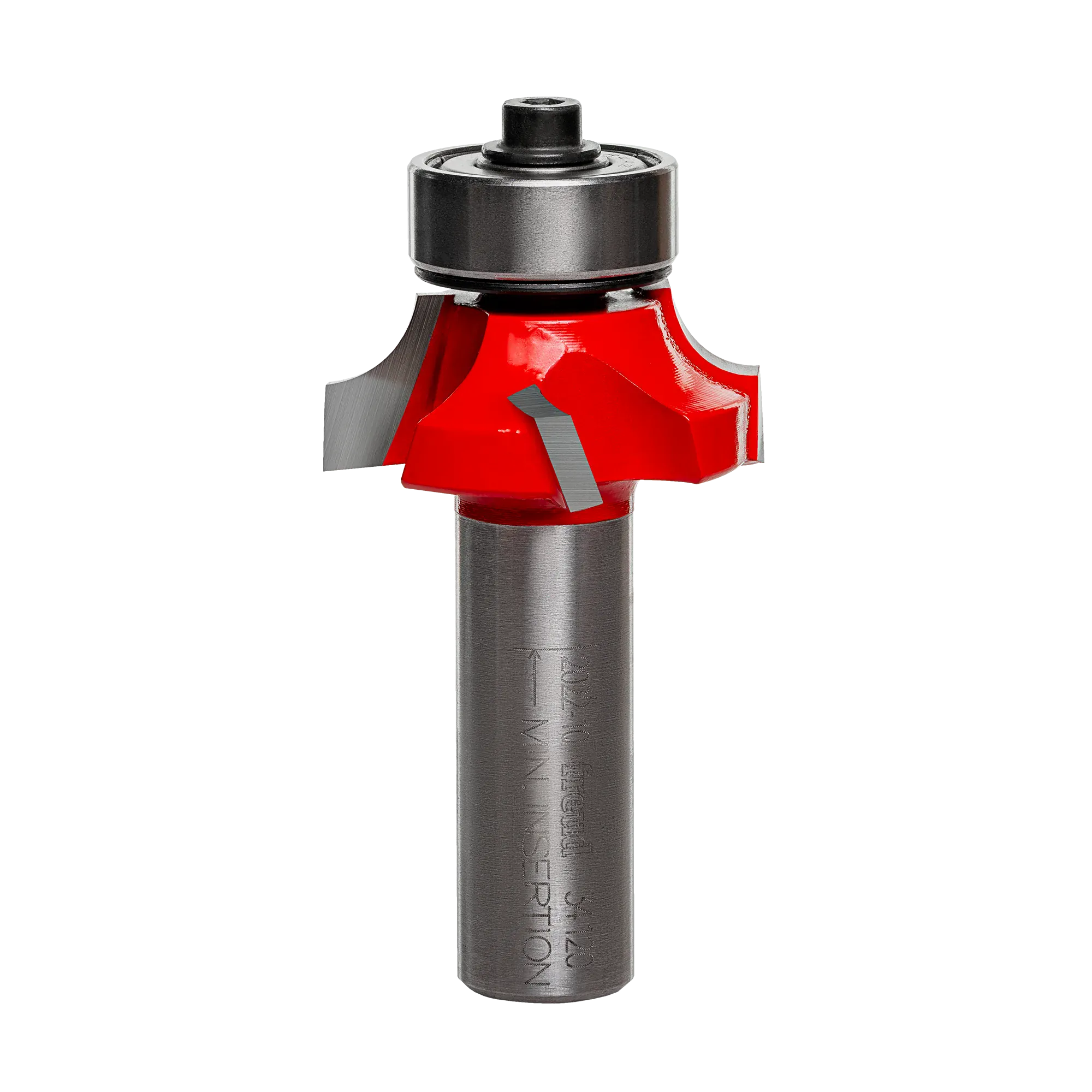

The Freud 34-120 is a 1-1/4-inch overall diameter rounding-over router bit engineered to shape smooth 1/4-inch radiused edges on furniture components, cabinet frames, and architectural moldings. Built with a heavy-duty 1/2-inch shank and Freud’s patented Quadra-Cut™ 4-cutter geometry, this tool employs two up-shearing and two down-shearing carbide blades to eliminate cross-grain tearout and surface fuzzing. Tipped with TiCo™ Hi-Density Micrograin Carbide and protected by a heat-resistant Perma-SHIELD® non-stick coating, it operates safely at speeds up to 18,000 RPM across solid hardwoods, softwoods, plywood, and composites in CNC machines, router tables, or handheld routers.

Best Used For:

  • Furniture & Tabletop Edge Profiling: Shaping smooth 1/4-inch radiused outer borders on solid wood table tops, desk edges, shelves, and chair rails.
  • Cabinet Door & Frame Edge Softening: Milling tearout-free rounded edge profiles on interior cabinet doors, drawer fronts, and frame moldings.
  • Cross-Grain Architectural Molding: Cutting smooth decorative border profiles across abrasive end-grain stock and composite sheets without post-routing sanding.

Key Performance & Safety Features

  • Quadra-Cut™ 4-Cutter Technology: Employs 2 up-shear and 2 down-shear carbide cutters to shear wood fibers simultaneously from top and bottom for a splinter-free finish.
  • TiCo™ Hi-Density Micrograin Carbide: Custom titanium-cobalt carbide formulation extends cutting life and maintains high edge sharpness under heavy production loads.
  • Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating guards against heat buildup, pitch accumulation, and thermal corrosion.

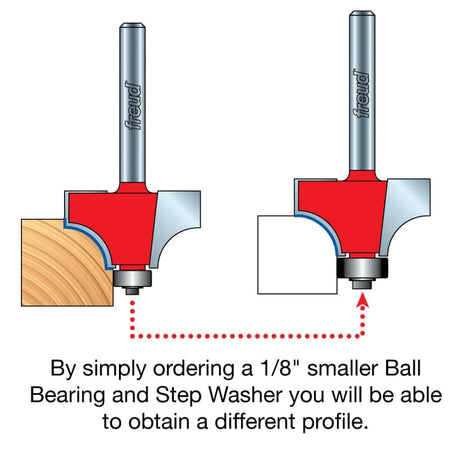

  • Dual-Profile Convertible Versatility: Converts from a rounding-over profile to a decorative beading bit by swapping to a 3/8-inch outer diameter pilot bearing.
  • Precision Pilot Ball Bearing: Includes a 1/2-inch outer diameter steel guide bearing for consistent, uniform tracking along straight or curved edges.
  • Computer-Balanced Anti-Vibration Body: Precision body balancing eliminates chatter and ensures smooth rotational tracking at speeds up to 18,000 RPM.

What's Included

  • (1) Freud 34-120 1/4" Radius Rounding Over Router Bit with 1/2" Shank
  • (1) 1/2" Outer Diameter Pilot Ball Bearing

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 34-120
Profile Radius Dimension (R) 0.250 inches (1/4" / 6.4 mm)
Overall Cutting Diameter (D) 1.250 inches (1-1/4" / 31.8 mm)
Shank Diameter (A) 0.500 inches (1/2" / 12.7 mm)
Carbide Cutting Height (h) 0.500 inches (1/2" / 12.7 mm)
Overall Tool Length (H) 2.500 inches (2-1/2" / 63.5 mm)
Pilot Bearing Diameter (B) 0.500 inches (1/2" / 12.7 mm)
Number of Carbide Cutters 4 Cutters (Quadra-Cut 2 Up-Shear / 2 Down-Shear)
Maximum Operating Speed 18,000 RPM
Body Protective Coating Red Perma-SHIELD® Non-Stick Fluoropolymer
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility CNC Routers, Router Tables, Handheld Routers

Pro-Tip: Replace the standard 1/2-inch guide bearing with a 3/8-inch outer diameter bearing to convert this rounding-over bit into a decorative beading bit that leaves a clean 1/16-inch step shoulder above the radiused curve.
